Precision PPSU Long-Slot Multi-Channel Diverter Valve Base for IVD Equipment

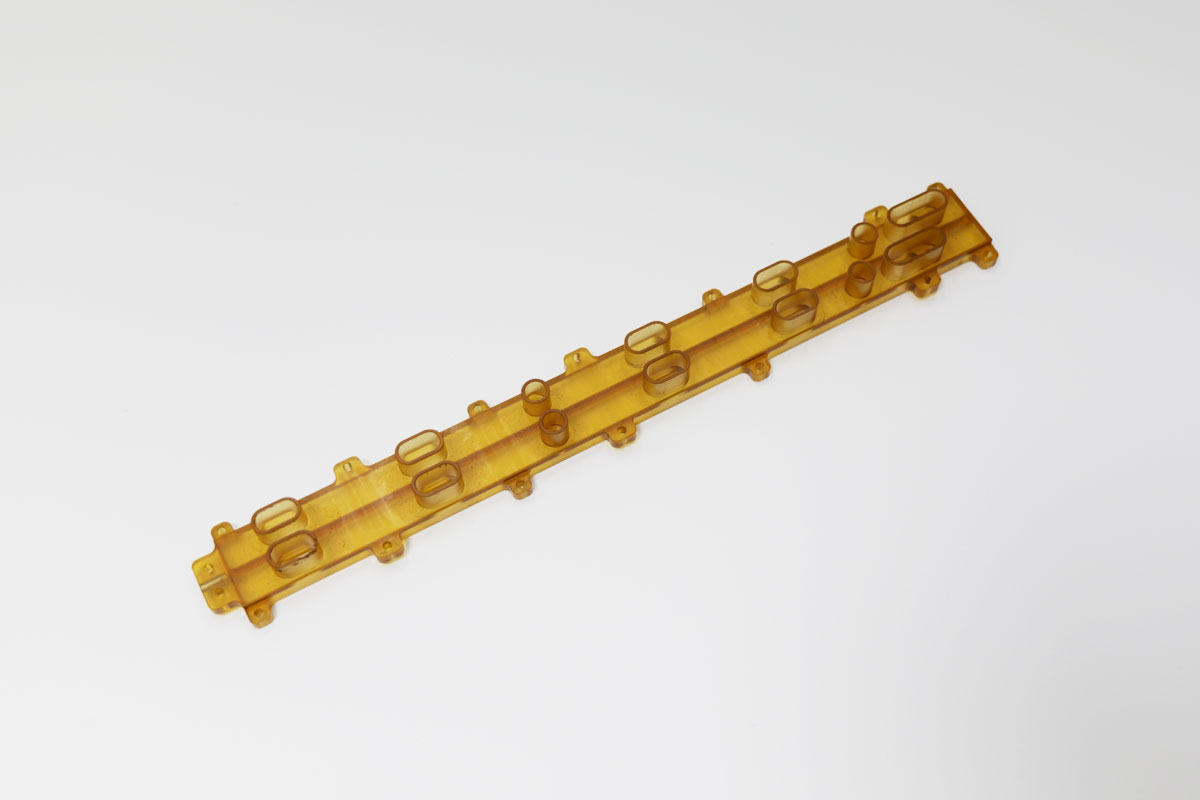

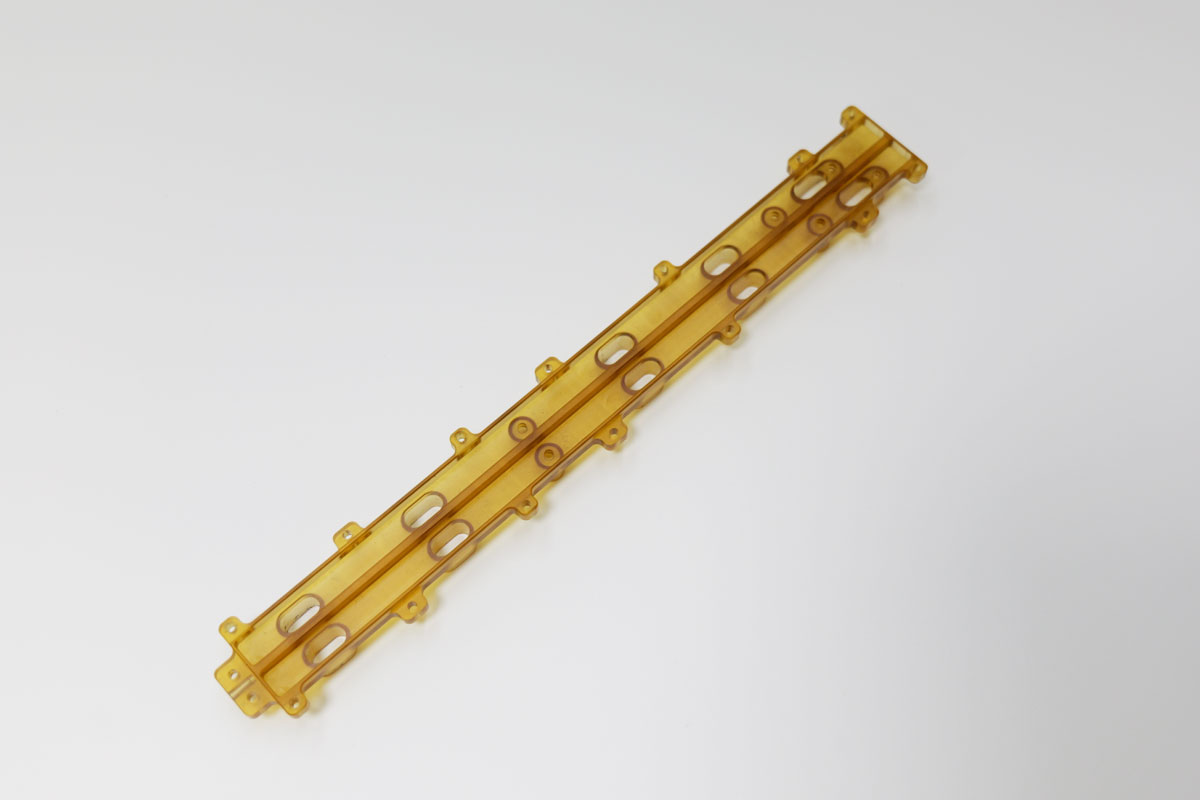

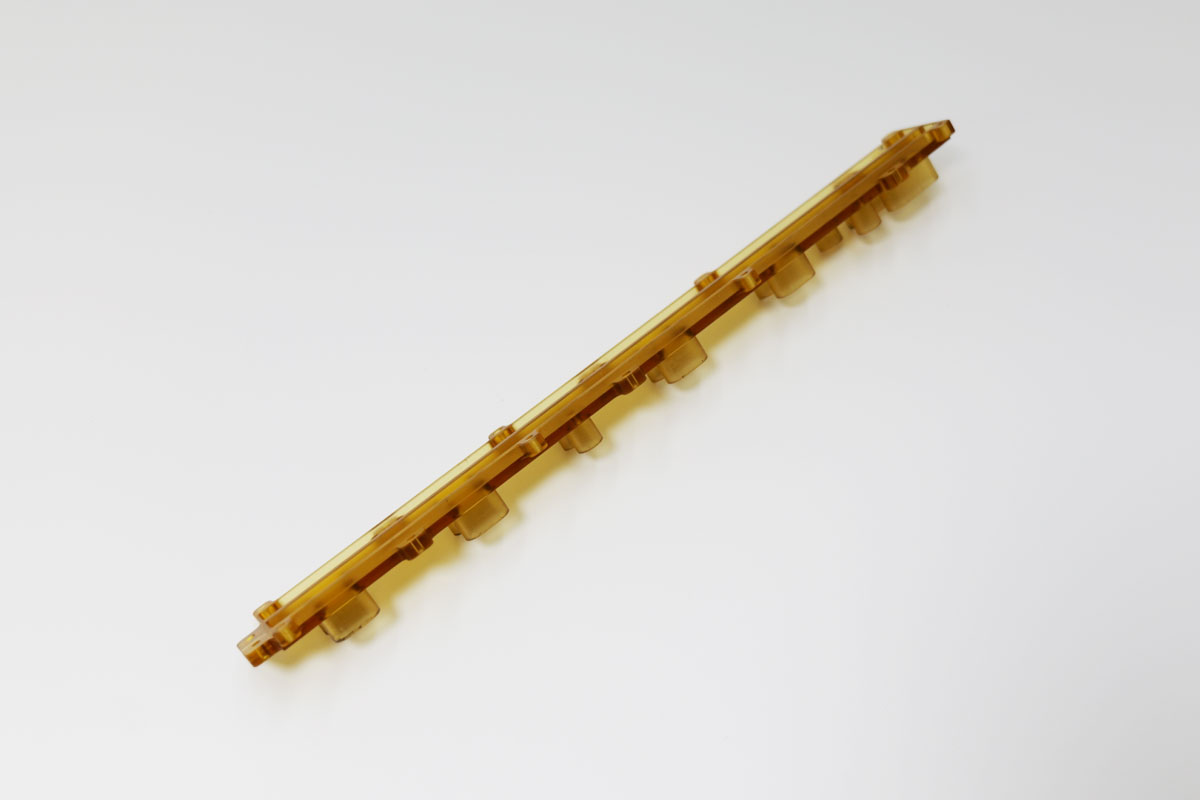

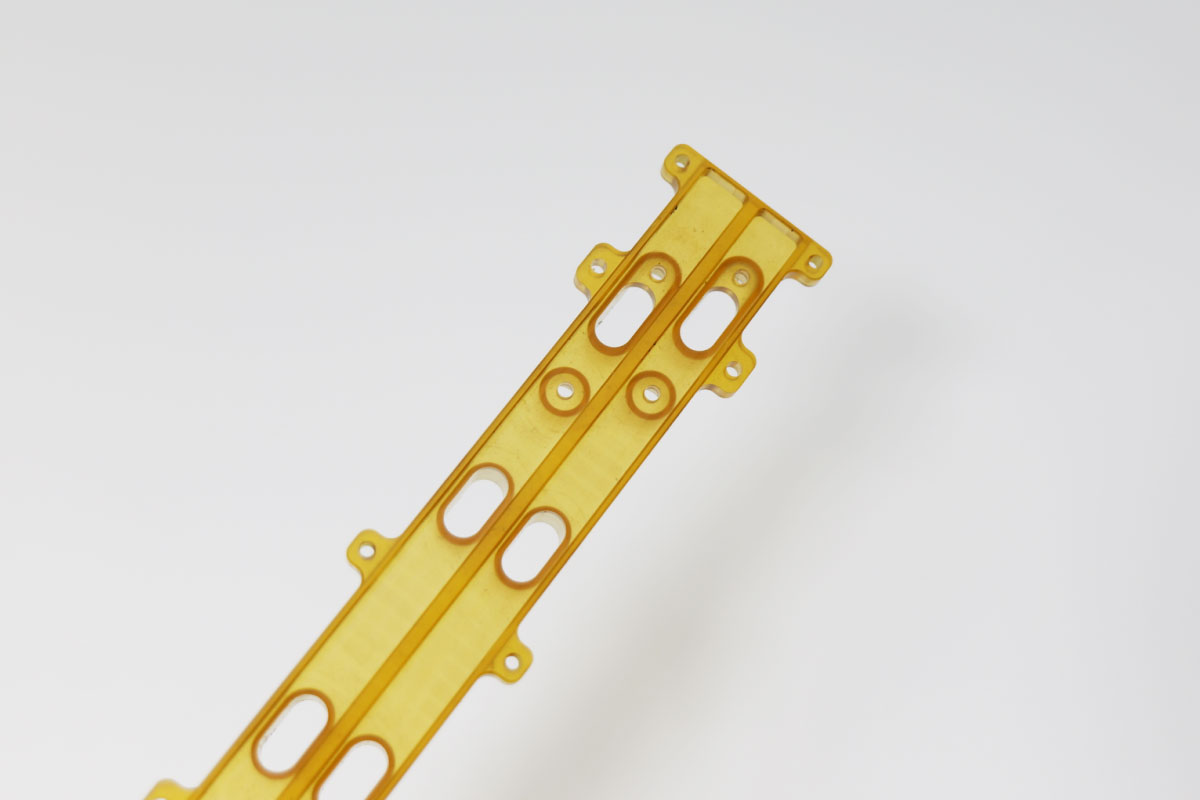

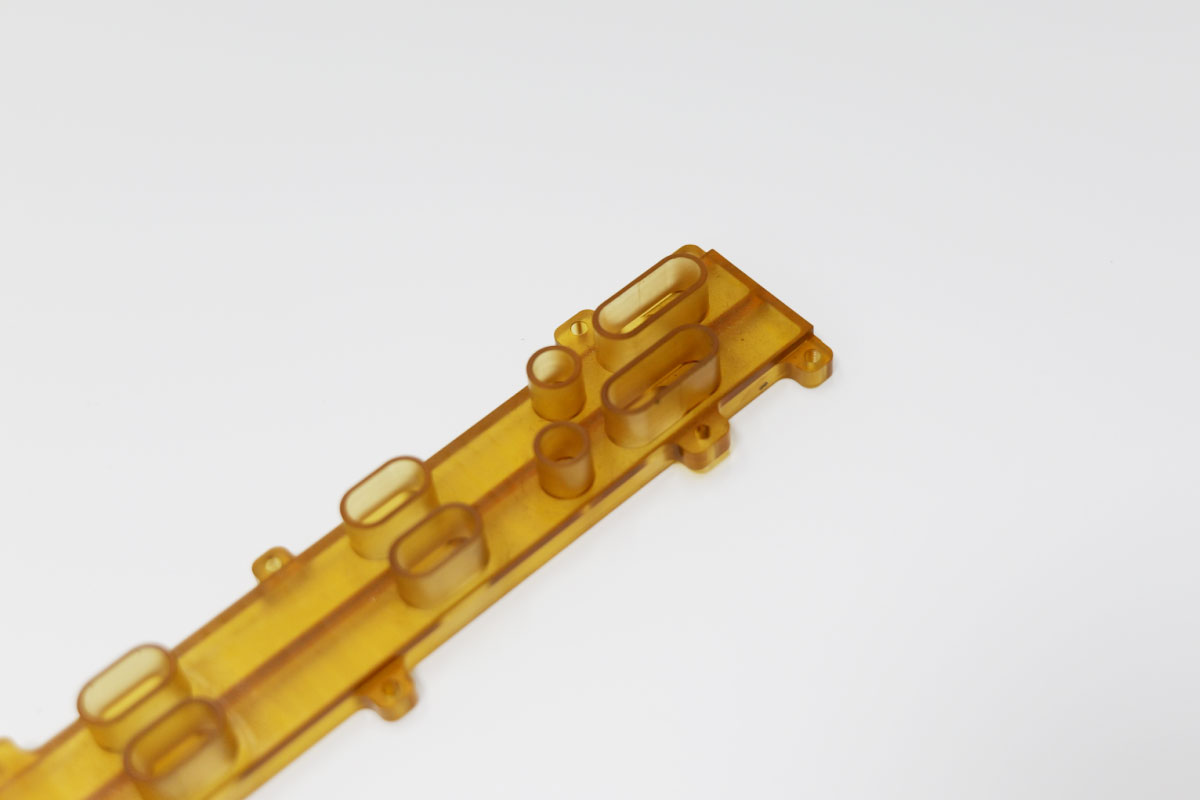

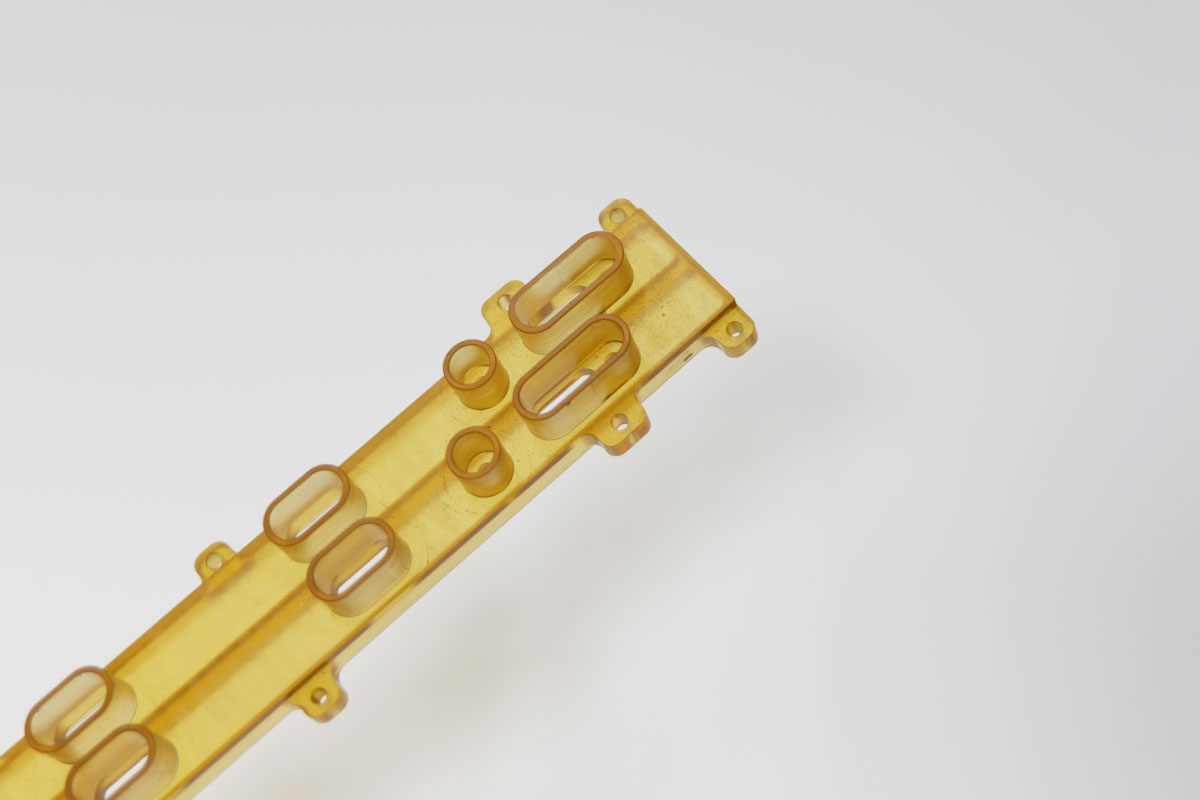

We successfully manufactured a precision PPSU long-slot multi-channel diverter valve base for an in-vitro diagnostic (IVD) equipment application. This transparent fluidic component features an elongated body with multiple precision-machined channels and thin-wall slot structures — presenting significant machining challenges including thin-wall bending deformation, dimensional instability due to temperature fluctuations, and stringent surface quality requirements for transparent medical components. Through low-stress fixturing, temperature-controlled machining environments, specialized tooling strategies, and optical-grade finishing techniques, we delivered dimensionally stable, visually flawless valve bases meeting rigorous IVD equipment specifications.

Project Overview

Key Technical Highlights

• Thin-Wall Deformation Prevention: Implemented low-stress fixturing with distributed support along the entire elongated body, combined with staged light-cutting strategies to minimize cutting forces and prevent bending deformation in thin-wall slot structures.
• Process Innovation:
  • Temperature-Controlled Machining: Stable workshop temperature (20±1°C) and controlled coolant temperature maintain consistent material dimensions — preventing thermal expansion-induced dimensional drift common in PPSU machining [citation:7].
  • Sharp Tooling with Controlled Parameters: Ultra-sharp diamond-coated tooling with optimized cutting speeds and light depths of cut prevent localized overheating, which can cause material softening, melt-back, and dimensional instability [citation:7].
  • Optical-Grade Surface Finishing: Specialized finishing strategies with minimal radial engagement achieve Ra≤0.4μm surface finish on transparent fluidic surfaces — preventing light scattering and maintaining optical clarity for visual inspection of fluid flow.
  • Stress-Relief Sequence: Intermediate machining pauses allow stress relaxation before final finishing, preventing residual stress-induced deformation and ensuring long-term dimensional stability [citation:2][citation:4].
• Visual Quality Control:
  • Controlled machining parameters prevent surface clouding, micro-bubbles, and tool-mark defects that compromise transparency.
  • Cleanroom-compatible handling protocols prevent contamination and surface scratches during machining and inspection.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.015mm), channel positional accuracy (±0.01mm), and flatness (≤0.01mm), supplemented by optical inspection for transparency and surface defects, surface roughness testing (Ra≤0.4μm on optical zones), and dimensional stability verification under thermal cycling conditions.

Industry Applications

This solution demonstrates our expertise in precision PPSU component manufacturing for medical diagnostics, ideal for:
✓ IVD fluidic diverter valves ✓ Microfluidic channel bases ✓ Transparent medical fluidic components ✓ Diagnostic equipment precision manifolds
