What is Swiss-type CNC turning and when is it used?

Swiss turning uses a guide bushing to support the material very close to the cutting tool, drastically reducing deflection. This is ideal for long, slender, and small-diameter parts (like surgical screws or connector pins) that require extreme precision and complex secondary operations all in one setup.

Can you machine aluminum CNC turning parts with anodizing?

Yes, we frequently produce aluminum turned parts and offer anodizing as a very common secondary service. We can machine parts to account for the dimensional change from the anodizing coating to ensure final tolerances are met.

What is your typical turnaround time for a high-volume CNC turning order?

For high-volume production runs, typical lead times range from 2-4 weeks after final approval of samples. This includes time for material procurement, production, quality inspection, and surface finishing. Rapid turnaround options are available.

Why choose you as a CNC turned parts manufacturer?

As a manufacturer, not just a machine shop, we control the entire process from raw material to finished goods. We have deep expertise in high-volume CNC turning optimization, dedicated quality inspection for statistical process control, and reliable supply chain partnerships to ensure consistent delivery.

How do you ensure concentricity and runout on precision shafts?

We ensure precision by using high-quality collets and live tooling, performing in-process checks with micrometers and dial indicators, and final inspection with CMMs to verify that concentricity, cylindricity, and total runout are within your specified tolerances.

CNC Turning

Precision CNC Turning Solutions for the European Market

In high-end manufacturing, quality is the universal standard. We are committed to providing precision CNC turning services for German and European industrial clients, fully compliant with EU ISO 9001 and ISO 2768 quality standards. We don't just manufacture parts; we address your core challenges in prototyping and batch production: precision, efficiency, and reliability.

Submit drawing quotation

Maximum part size for CNC turning

Part size limitations	Metric units	Imperial units
Maximum part diameter	300 mm	11.8 in
Maximum part length	500 mm	19.7 in
Maximum swing over the carriage	350 mm	13.7 in
Maximum spindle through-hole	40 mm	1.5 in
Maximum speed: 1700RPM, Motor power: 640W

Precision CNC Turned Parts & Assemblies

View our portfolio of high-volume CNC turned parts, including shafts, pins, connectors, and fully assembled sub-components. These examples demonstrate our expertise in Swiss machining and multi-axis turning for exceptional concentricity and finish.

All CNC Materials Get Free Quote Quality Assurance

PA66 Elastic Bushing

How we manufacture precision PA66 elastic bushings for 3C automation equipment — managing post-slotting deformation, unstable spring-back, edge chipping, and micro-burr removal in internal slots. Process includes CNC turning | CNC milling | stress-relief slotting strategies | custom deburring | CMM verification.

6061 aluminum stepped cylindrical connector housing

6061 Stepped Cylindrical Connector Housing

How we manufacture precision 6061 stepped cylindrical connector housings for industrial automation signal sleeve applications — managing thin-wall ovality and clamping distortion, deep-cavity chip evacuation vs. tool rigidity trade-off, and deburring of slots and small holes in confined geometries.

6061 aluminum pulley shaft for automation equipment

6061 Pulley Shaft

We manufactured a precision 6061 aluminum pulley shaft for automation transmission systems — delivering high concentricity, tight diameter tolerances, and superior surface finish through optimized single-setup CNC turning and precision grinding.

6061 aluminum optical input mirror mount

6061 Optical Input Mirror Mount

We manufactured a precision 6061 optical input mirror mount for fluid control systems — achieving internal thread-to-bore coaxiality, burr-free cross-hole intersections, and micron-level flange seal flatness through integrated turn-mill machining and precision finishing.

304 Stainless Steel Flange

We manufactured a precision 304 stainless steel flange for semiconductor automation systems — achieving stringent flatness (≤0.005mm) and seal surface finish (Ra≤0.4μm) through single-setup turn-mill machining and precision facing.

6061 aluminum hydraulic diverter valve block

6061 Hydraulic Diverter Valve Block

We manufactured a precision 6061 hydraulic diverter valve block for fluid power systems — delivering burr-free cross-drilled intersections through high-pressure water deburring, ensuring unrestricted flow and contamination-free operation in hydraulic circuits.

Available materials for CNC Turning

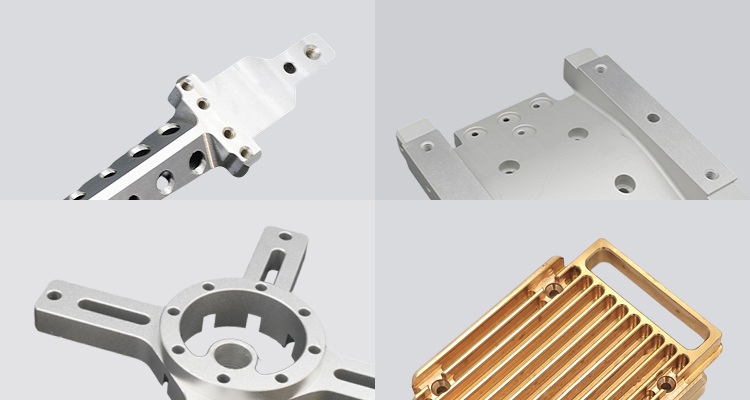

Metals

A wide range of metals for CNC machining, with applications in multiple industries. Ideal for both one-off prototypes and end-use custom parts.

Browse CNC milling metal materials

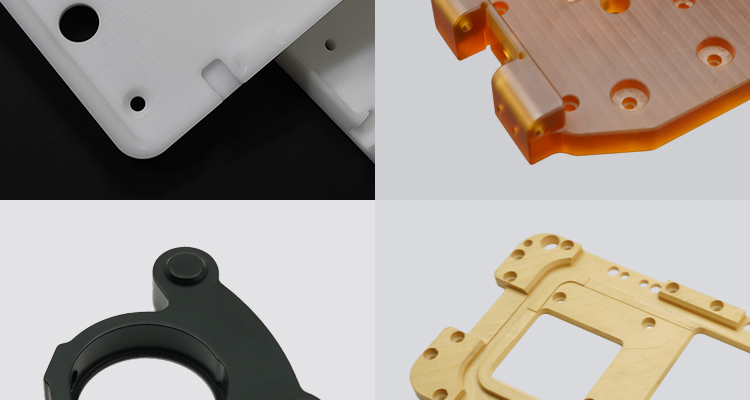

Plastics

A wide range of plastics for CNC machining, with applications in multiple industries. Ideal for both one-off prototypes and end-use custom parts.

Browse CNC milling plastic materials

CNC turning tolerances

We follow ISO 2768 standards for CNC machining.

Limits for nominal size	Plastics (ISO 2768- m)	Metals (ISO 2768- f)
0.5mm* to 3mm	±0.1mm	±0.05mm
Over 3mm to 6mm	±0.1mm	±0.05mm
Over 6mm to 30mm	±0.2mm	±0.1mm
Over 30mm to 120mm	±0.3mm	±0.15mm
Over 120mm to 400mm	±0.5mm	±0.2mm
Over 400mm to 1000mm	±0.8mm	±0.3mm
Over 1000mm to 2000mm	±1.2mm	±0.5mm
Over 2000mm to 4000mm	±2mm
*Please clearly indicate tolerances for nominal sizes below 0.5mm on your technical drawing.

Get a Precision Quote

We have high standards for CNC turning

We manufacture your custom parts according to strict manufacturing standards and ensure all parts and processes adhere to The Voguc Standard.

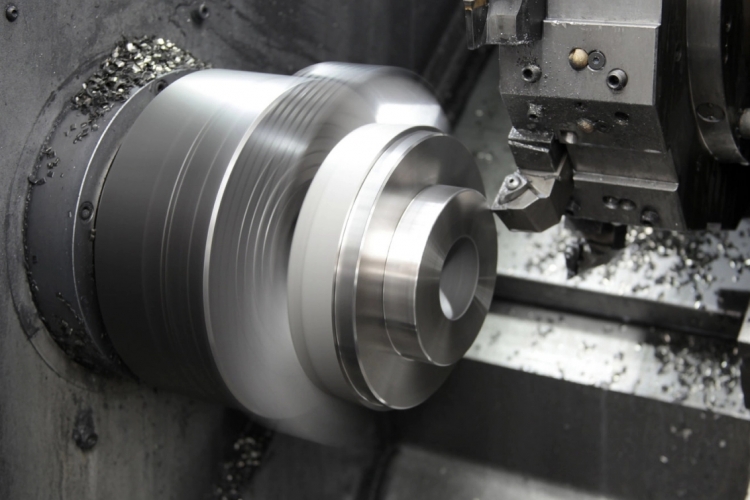

Several surface finishes are available to improve the cosmetic quality of your parts after machining.
Every custom part gets checked on site by our manufacturing partners according to our guidelines.
Inspection reports and other types of quality documentation are available on request to assure the highest quality and compliance.

High-Volume CNC Turning Workshop & Expertise

As a dedicated CNC turned parts manufacturer, our turning cell is optimized for precision and efficiency. We produce millions of reliable cylindrical components annually for the automotive, aerospace, and medical industries.

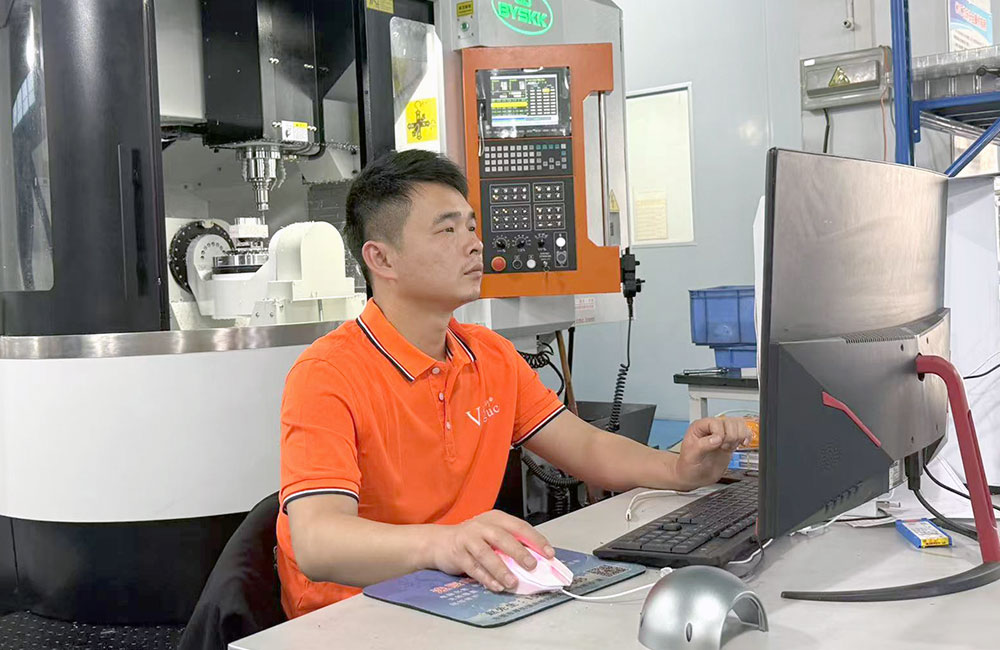

5 Axis CNC Machining Services

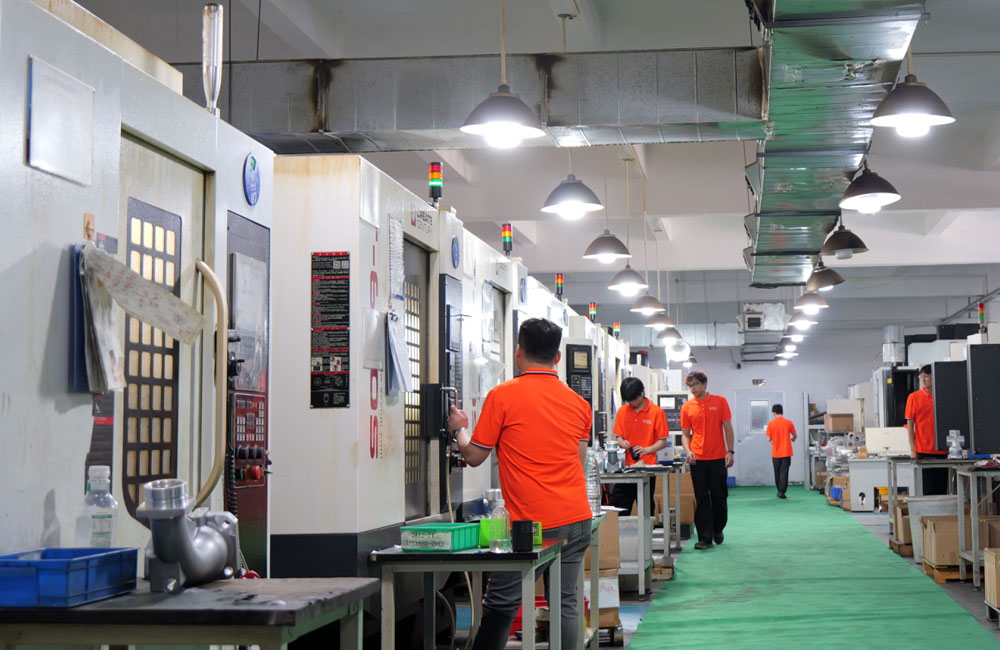

CNC Machining Services

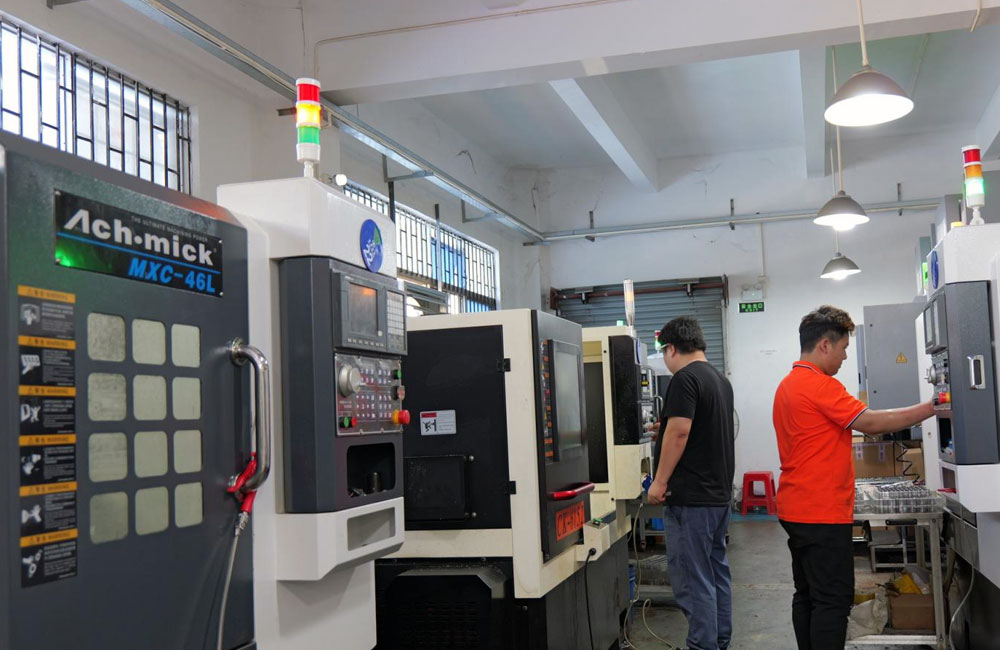

CNC Turning Services

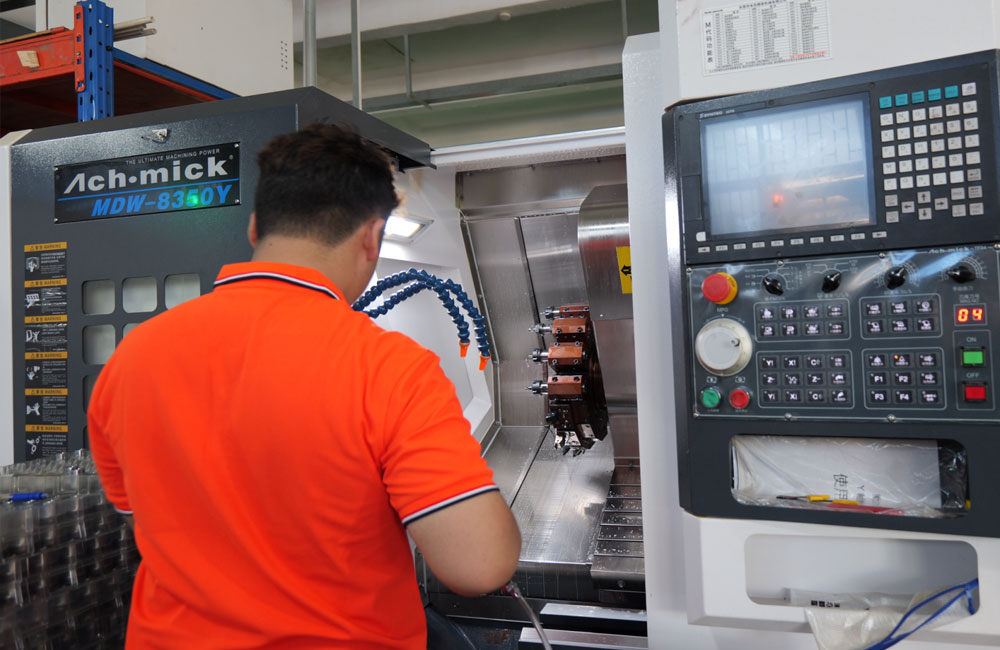

Precision CNC Turning Services

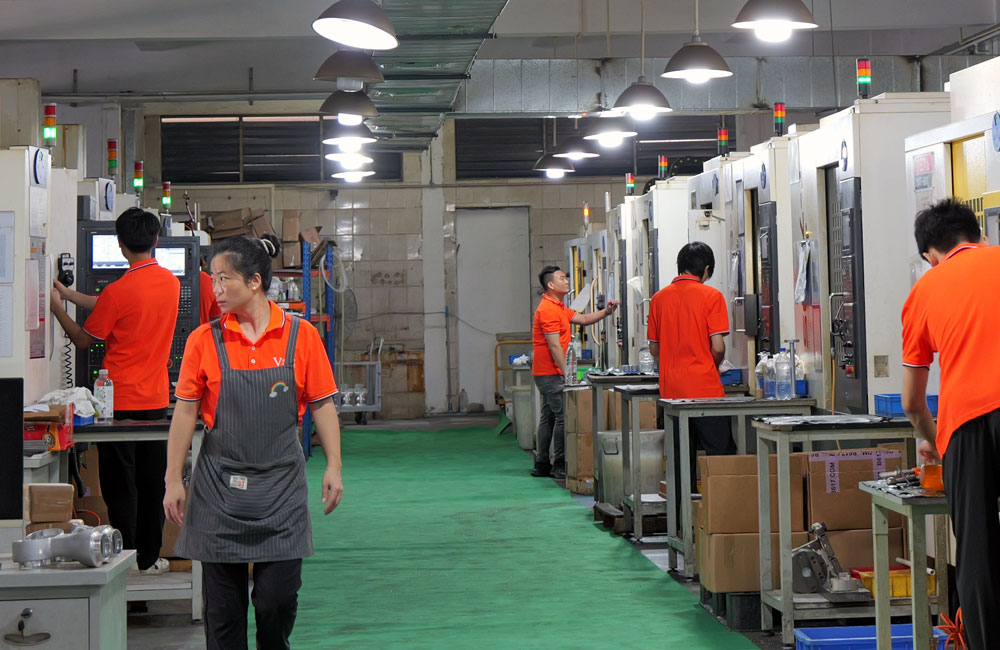

CNC Machining Works

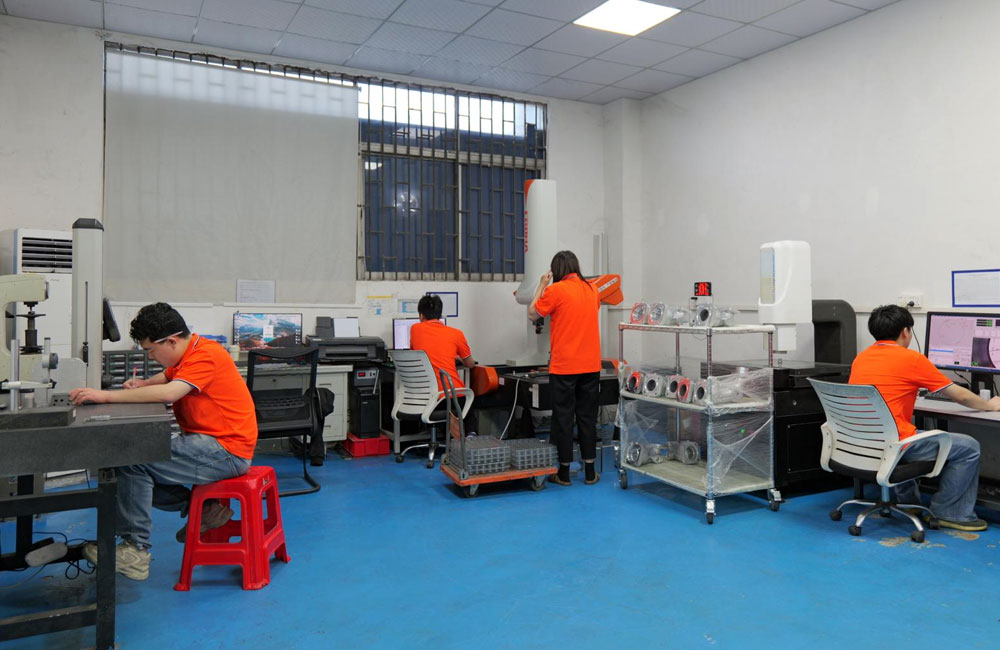

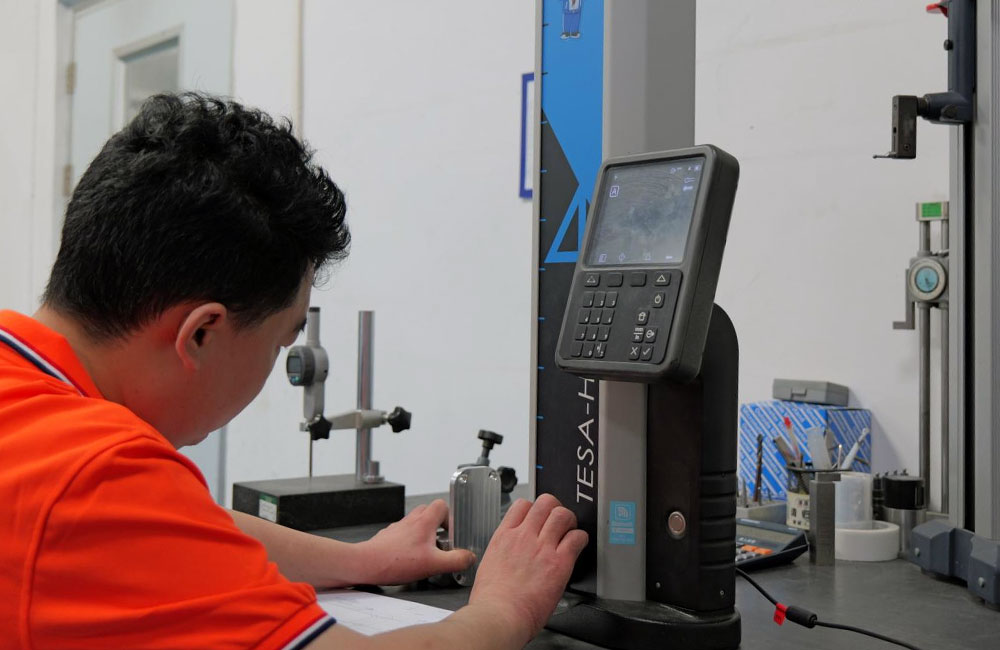

Quality Inspection Department

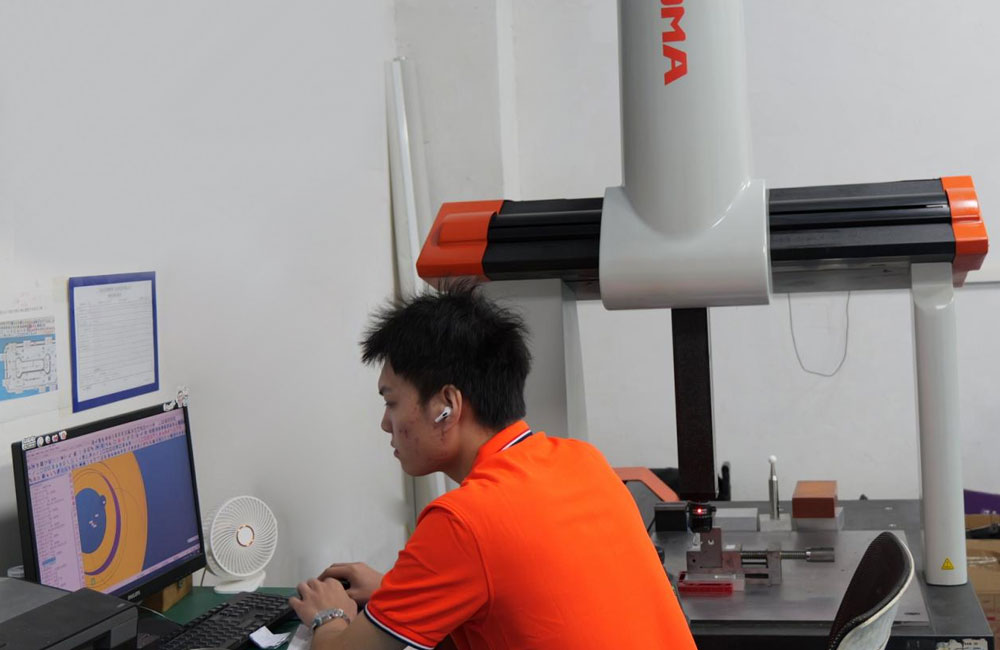

CMM workshop

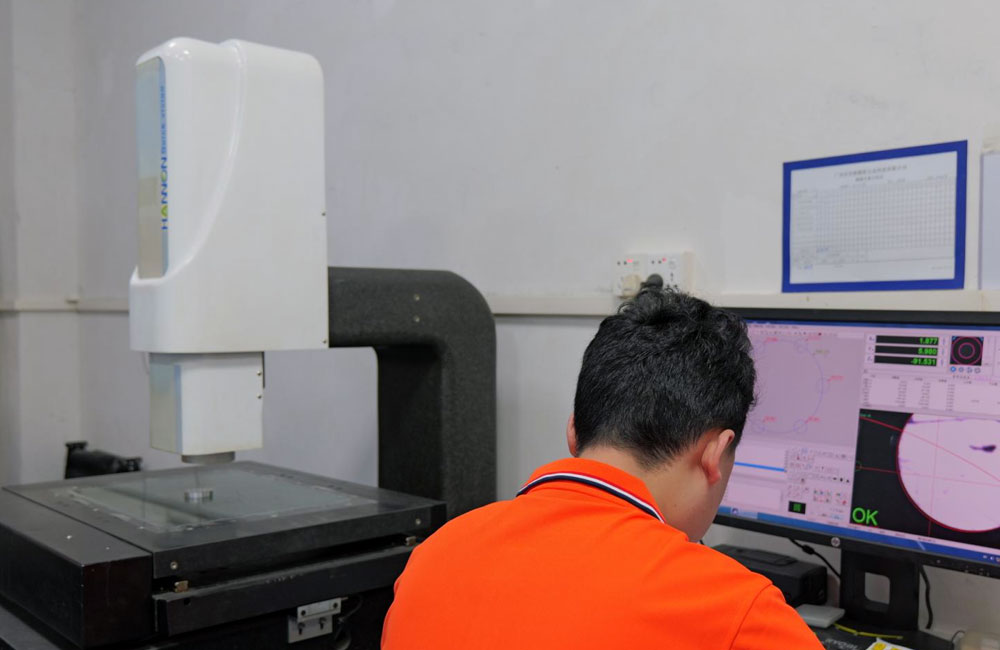

VMM workshop

Quality Inspection Department

Let's Machine Your Vision, Together.

Ready to transform your CAD file into a custom part? Upload your design to get a free, precise quote.

Get Your Instant Quote
