Precision 6061 Pulley Shaft with High-Strength Transmission Performance for Automation Systems

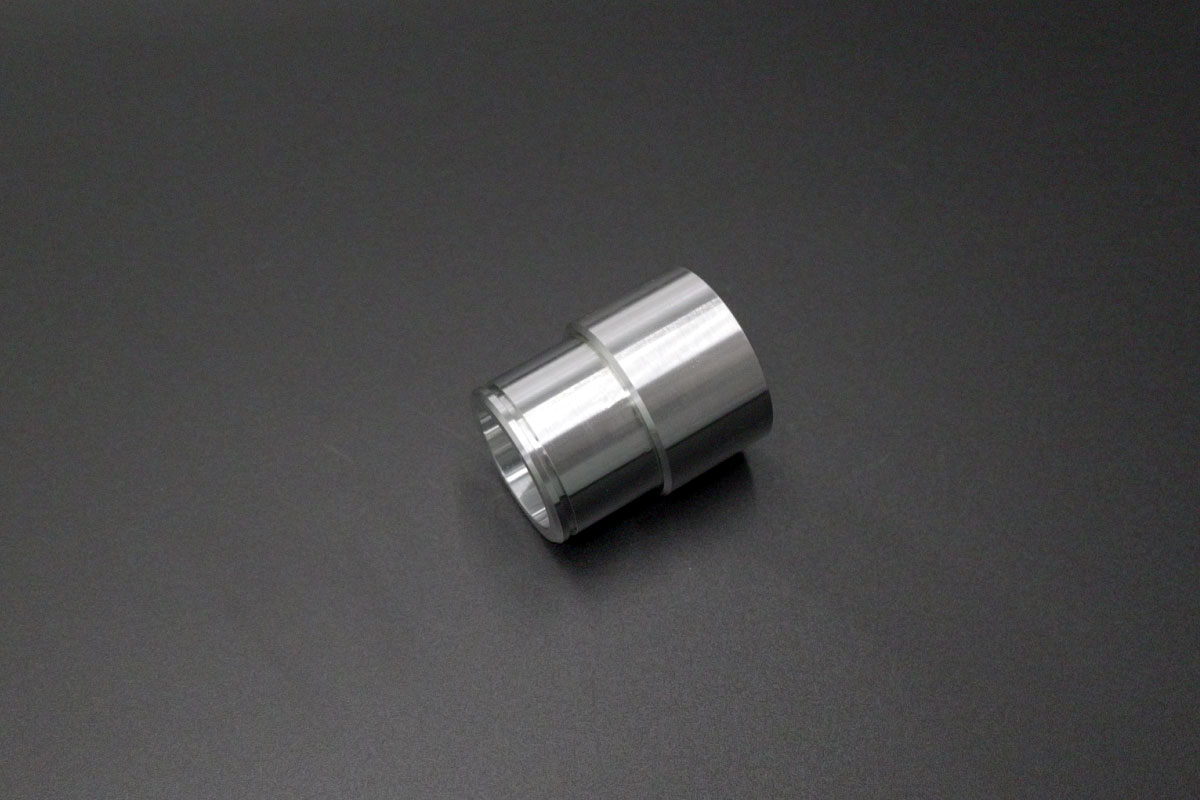

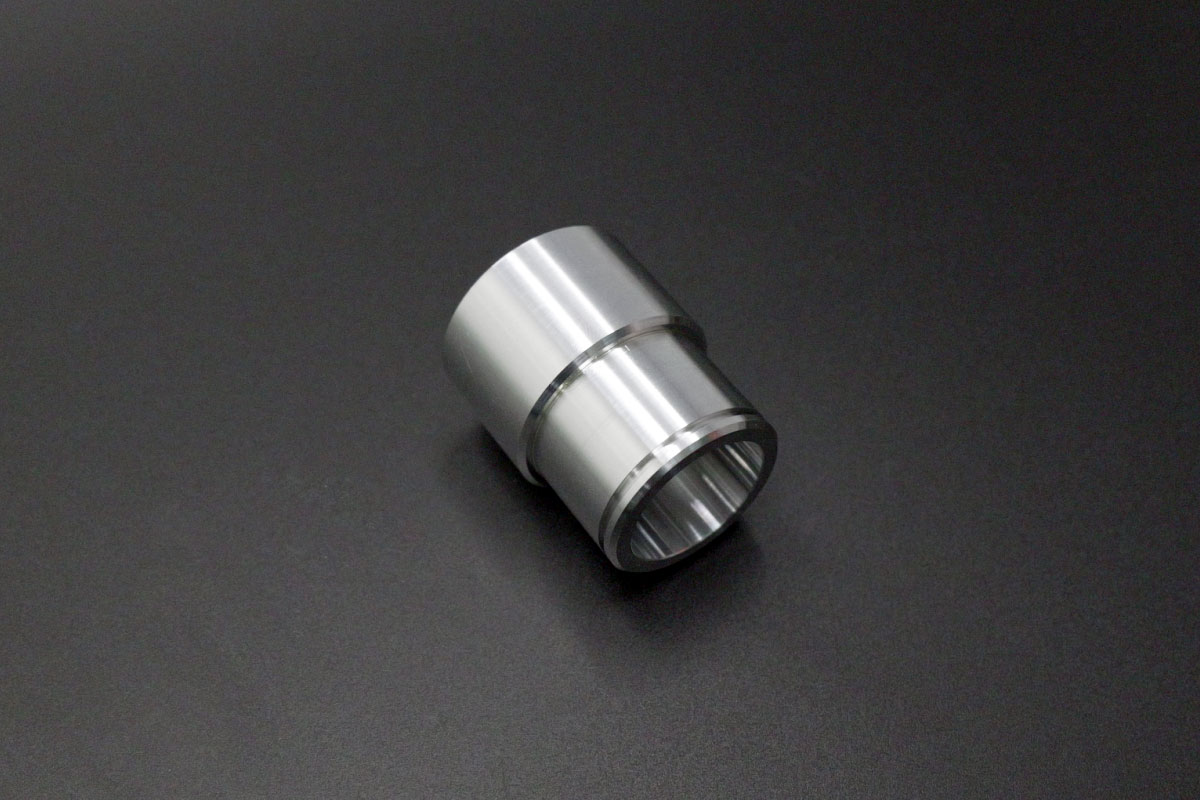

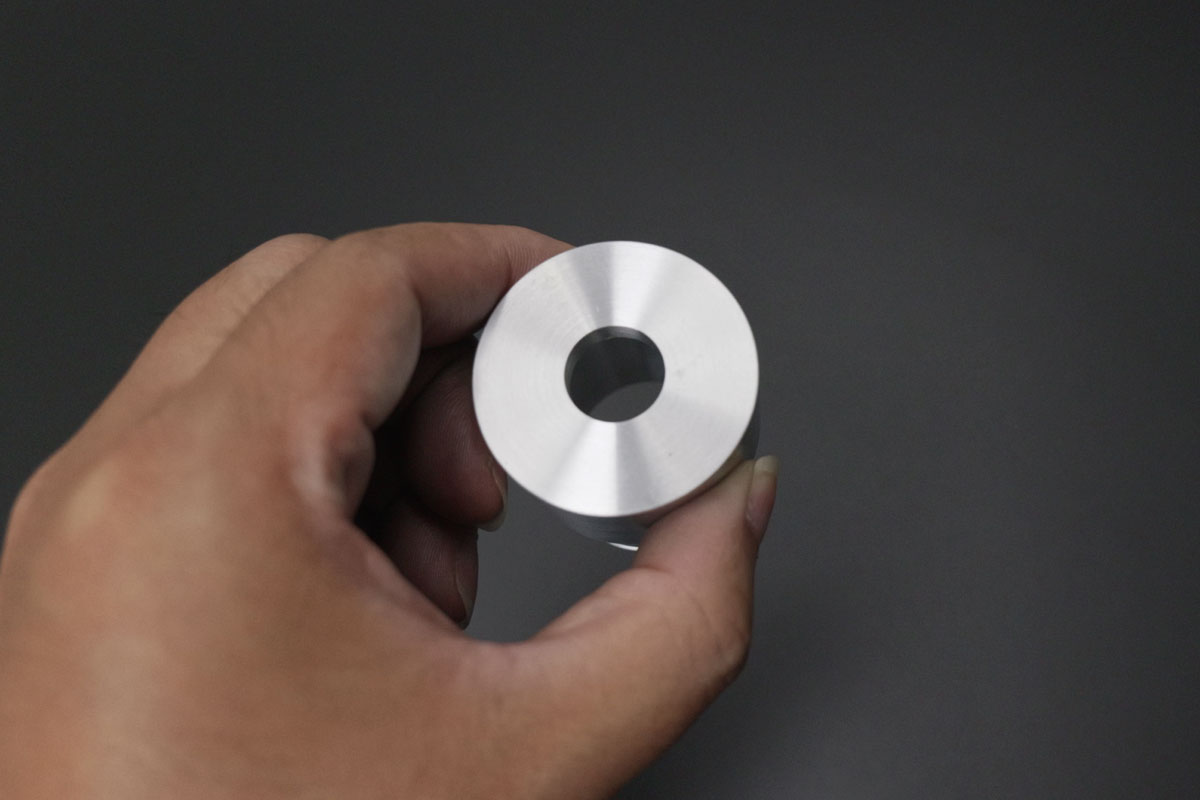

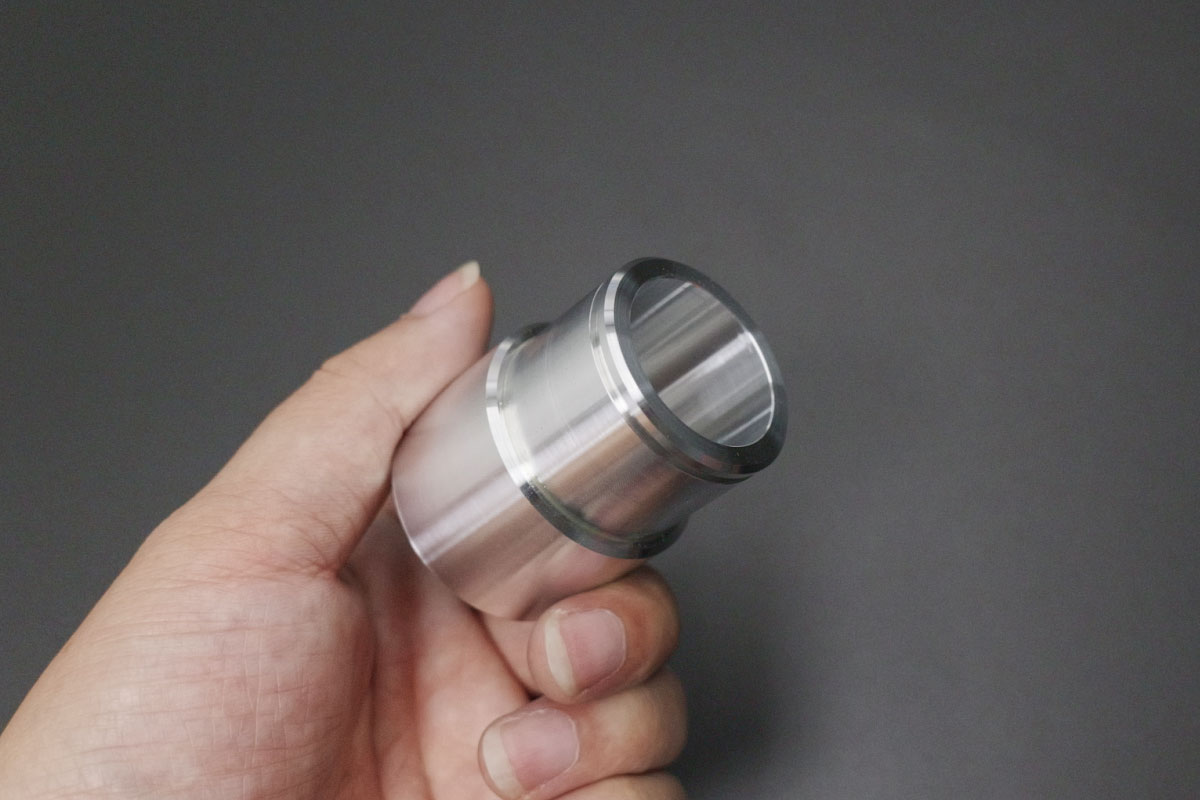

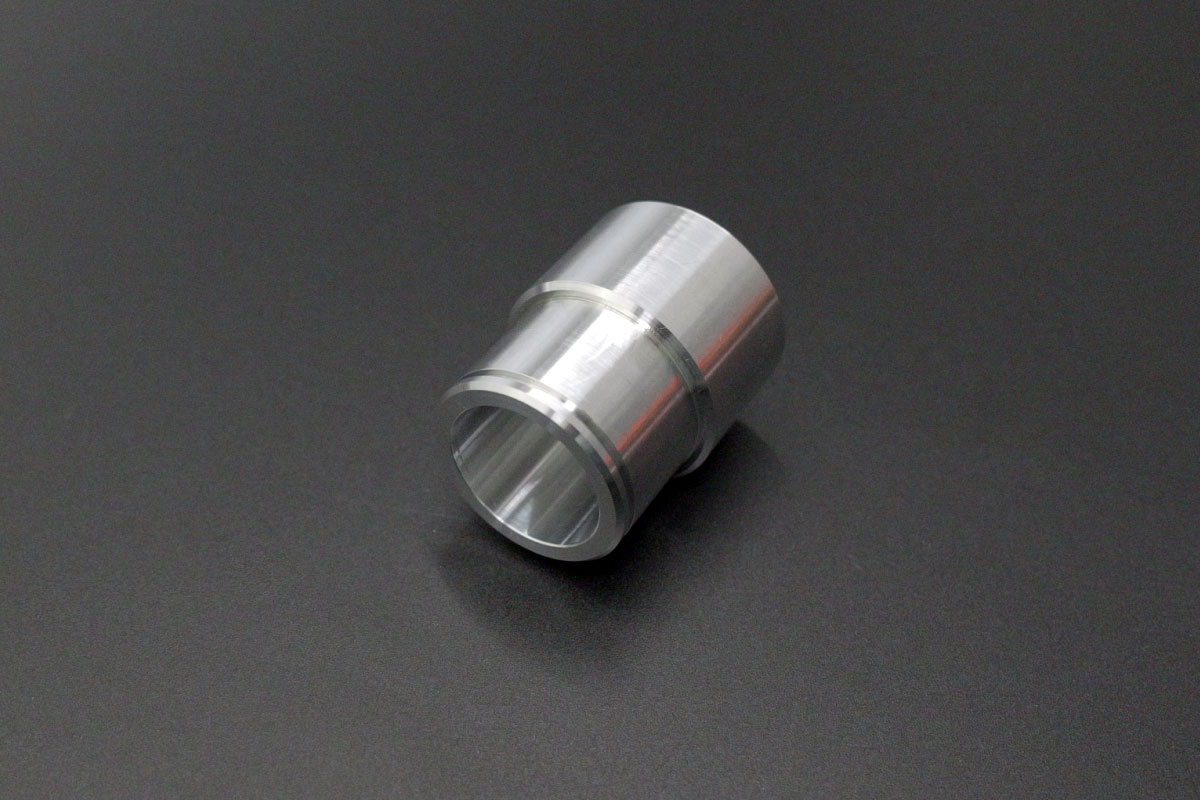

We successfully manufactured a precision 6061 aluminum pulley shaft for an automation equipment transmission application. This cylindrical drive component features multiple precision-diameter sections, keyway mounting interfaces, and bearing journal surfaces — presenting machining challenges including strict concentricity and runout control across multi-diameter sections, tight diameter tolerances for bearing fit, and surface finish requirements for seal and bearing interfaces. Through single-setup CNC turning, precision grinding, and optimized fixturing, we delivered reliable, high-performance pulley shafts meeting automation system durability requirements.

Project Overview

Key Technical Highlights

• High-Concentricity Multi-Diameter Machining: Achieved ≤0.01mm concentricity across all shaft diameter sections through single-setup CNC turning with precision live-center support — ensuring consistent alignment for reliable pulley and bearing fit.
• Process Innovation:
  • Single-Setup Turning: All shaft diameters and keyway features machined in a single turning setup from a common datum — eliminating re-fixturing errors and maintaining perfect concentricity.
  • Precision Bearing Journal Grinding: Critical bearing fit diameters finish-ground to ±0.005mm tolerance with Ra≤0.4μm surface finish — ensuring proper bearing seating and extended service life.
  • Keyway and Feature Machining: Precision milling of keyways and drive features referenced to established shaft centerline, maintaining accurate positional relationships.
  • Controlled Surface Finishing: Separate finishing strategies for bearing journals (ground) and general surfaces (turned) optimize performance vs. cost.
• Surface Quality:
  • Bearing journals achieve Ra≤0.4μm ground finish for optimal bearing fit.
  • General shaft surfaces maintain Ra≤1.6μm turned finish.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for concentricity (≤0.01mm) and dimensional accuracy (±0.01mm/±0.005mm on bearing journals), supplemented by surface roughness testing (Ra≤0.4μm / Ra≤1.6μm) and runout verification.

Industry Applications

This solution demonstrates our expertise in precision rotating component manufacturing, ideal for:
✓ Automation equipment drive shafts ✓ Pulley and belt drive systems ✓ Conveyor system shafts ✓ Precision rotating assemblies

Why Partner With Us?

• Proven expertise in high-concentricity multi-diameter shaft machining
• Precision grinding for bearing-grade surface finish and tolerance
• Single-setup turning for consistent geometric alignment
• 12+ years of precision manufacturing experience across automation and motion control sectors
