Precision PA66 Elastic Bushing with Turn-Mill Integration and Slot Deformation Control

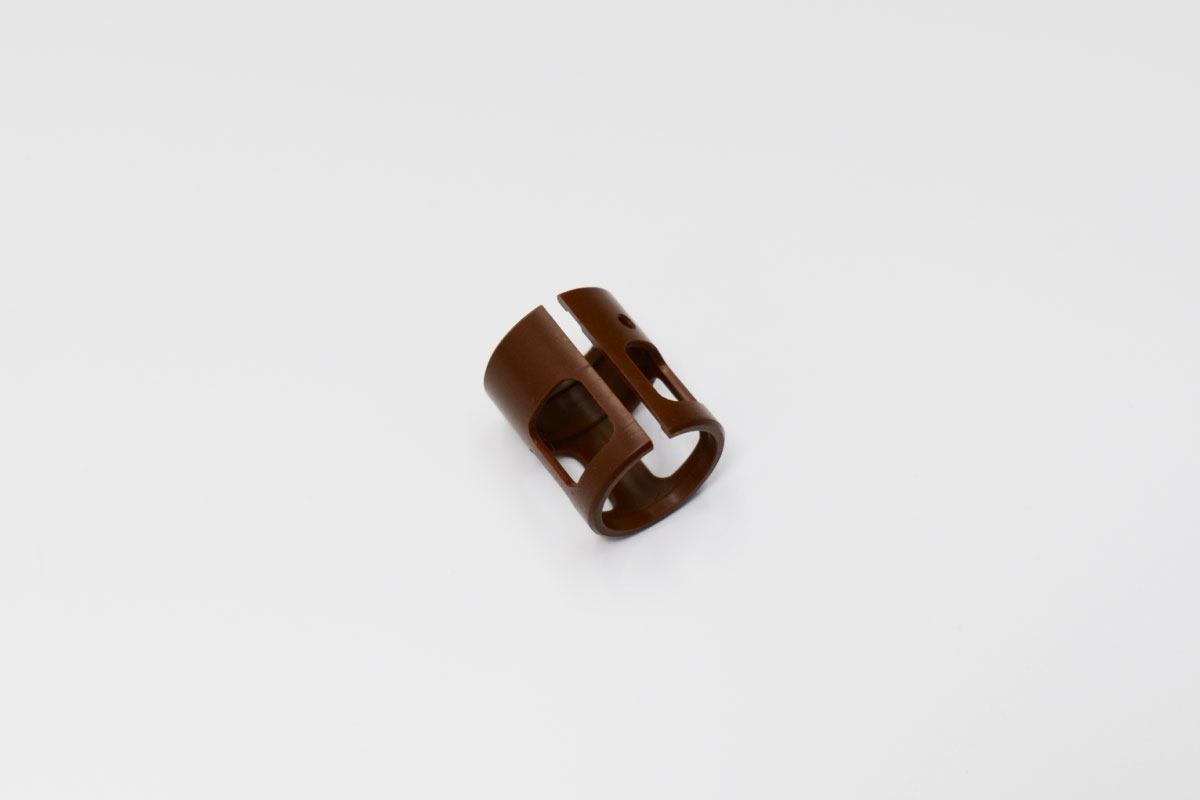

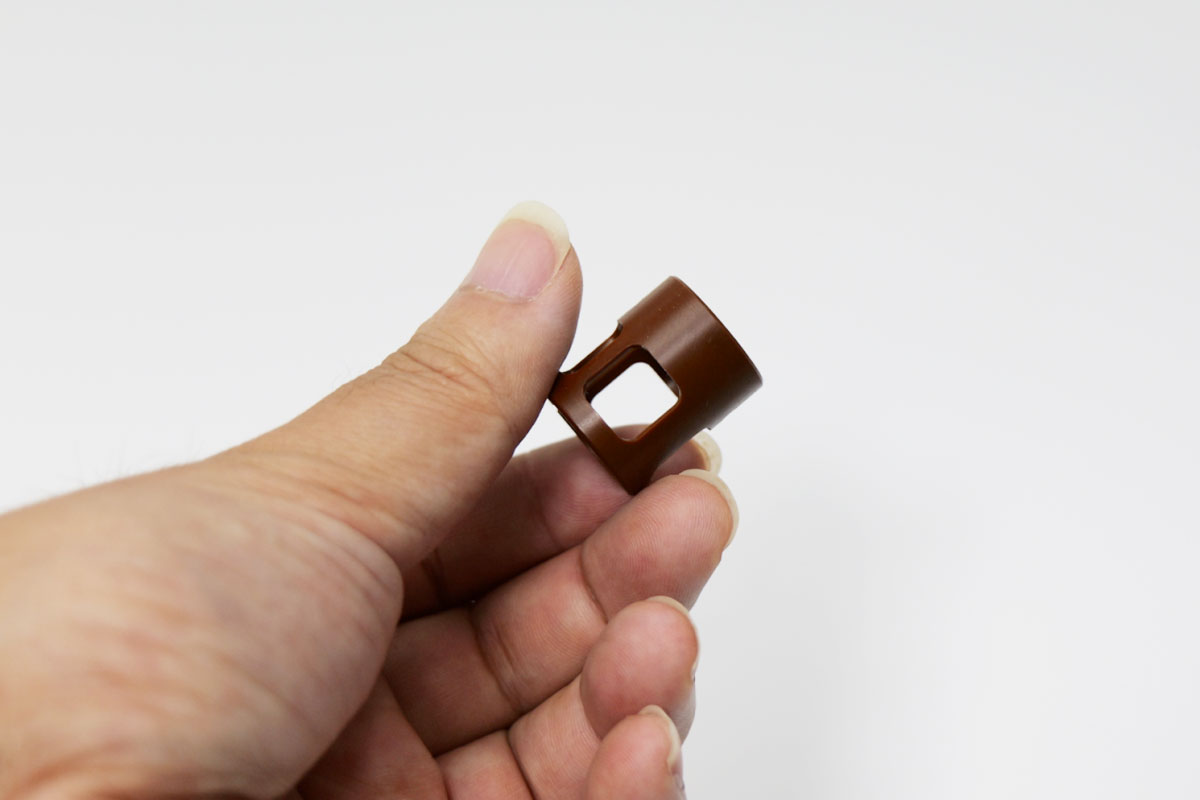

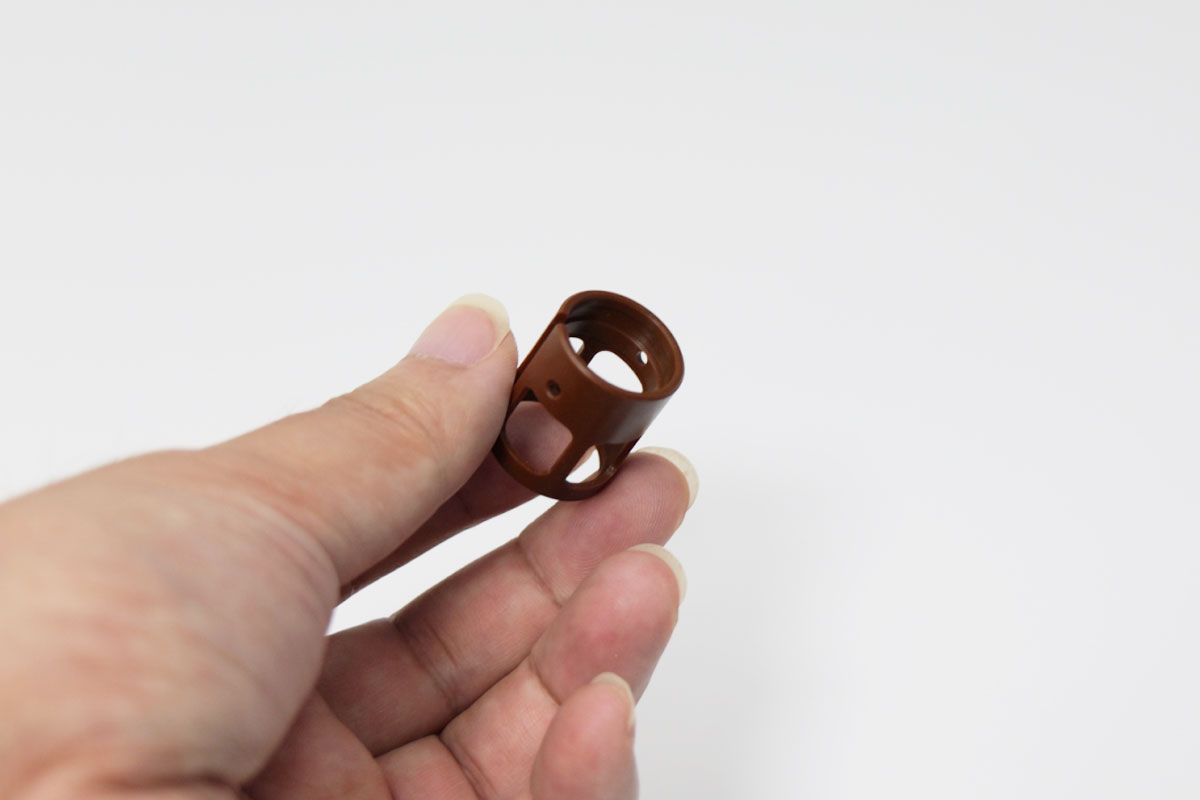

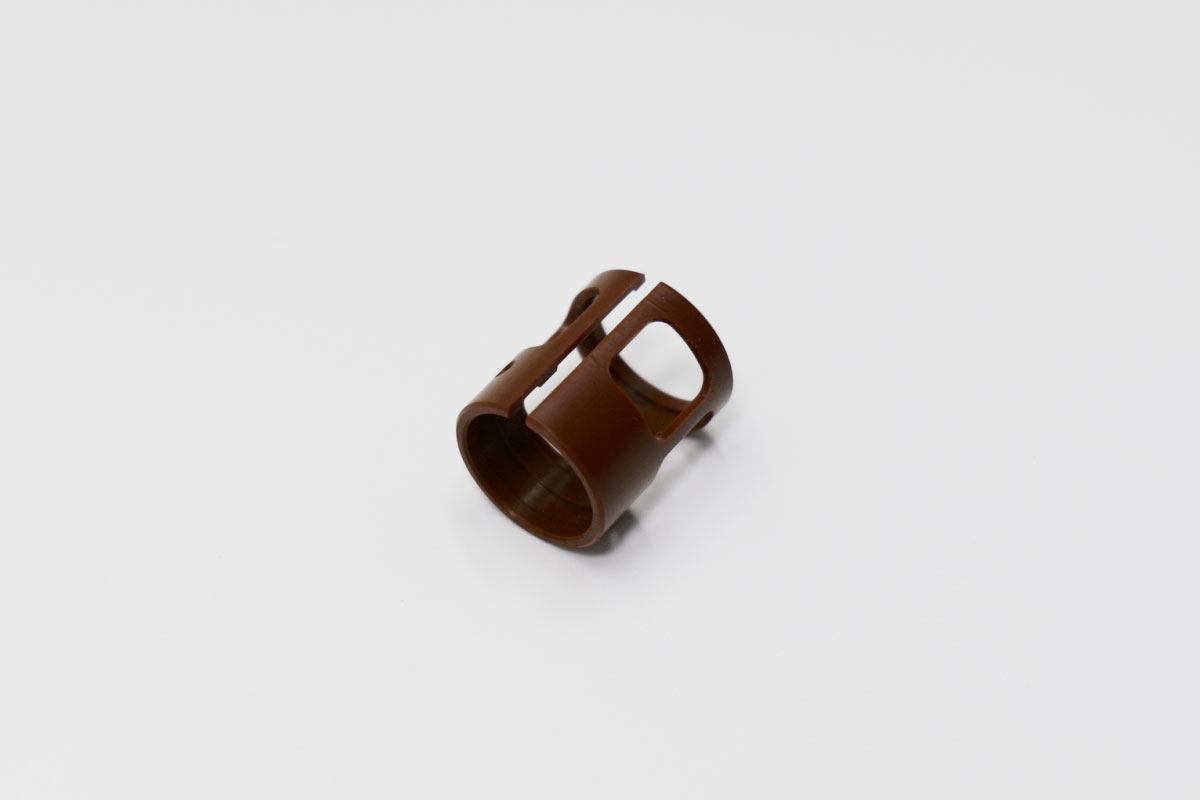

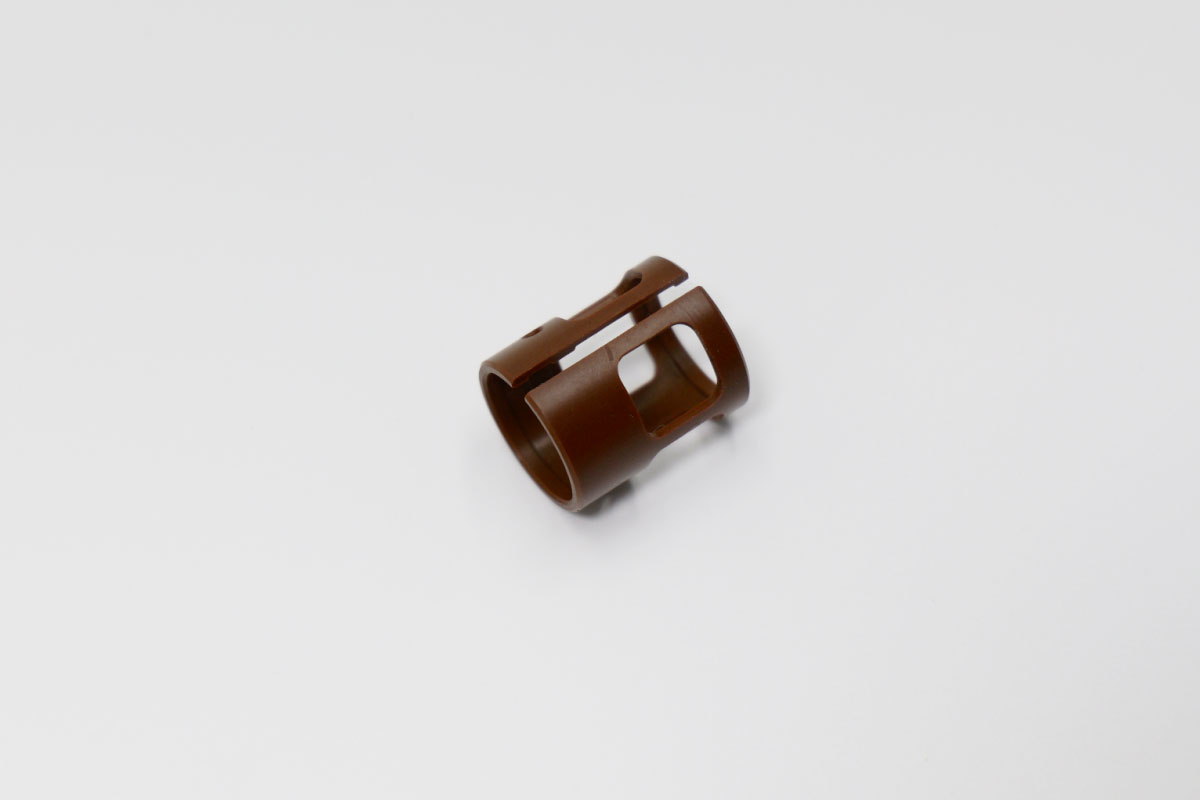

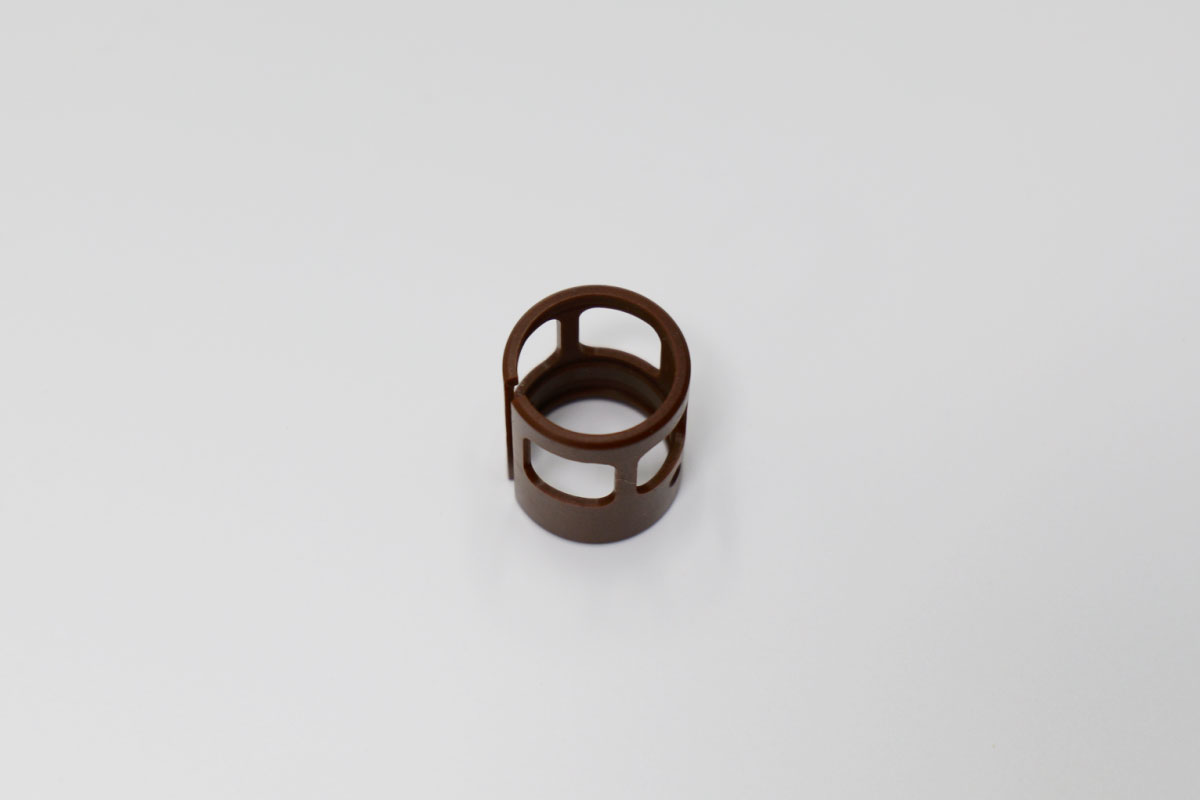

We successfully manufactured a precision PA66 elastic bushing for a 3C automation equipment application. This cylindrical bushing features precision-machined slots to create elastic compliance for interference-fit assembly — presenting significant machining challenges including post-slotting deformation, unstable spring-back consistency, slot edge chipping, and micro-burr removal in confined slot geometries. Through optimized slotting strategies, controlled machining parameters, and specialized deburring techniques, we delivered dimensionally stable bushings with consistent elastic performance and clean internal features.

Project Overview

Key Technical Highlights

• Elastic Performance Control: Implemented stress-relief slotting strategies with staged material removal and controlled cutting parameters to minimize post-machining deformation and ensure consistent spring-back behavior (±0.01mm elastic recovery) across all production units.
• Process Innovation:
  • Staged Slotting Strategy: Multiple light-pass slotting operations with intermediate stress-relief pauses prevent sudden stress release that causes deformation and unstable spring-back.
  • Edge Chipping Prevention: Optimized cutting parameters with sharp PCD/diamond-coated tooling and controlled feed rates at slot entry/exit eliminate edge chipping in the PA66 material.
  • Micro-Burr Removal: Specialized internal slot deburring tools and controlled finishing passes remove micro-burrs in confined slot geometries without damaging slot walls or affecting elastic performance.
  • Material-Specific Machining: Parameters tuned specifically for PA66 — controlled cutting temperatures, optimized chip evacuation, and sharp tooling minimize material smearing and surface defects.
• Quality Assurance:
  • Single-setup turn-mill machining ensures geometric alignment between all slot features.
  • Post-machining dimensional verification confirms stable elastic characteristics.
  • Microscopic inspection of slot edges verifies burr-free, chip-free condition.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.015mm) and slot width (±0.01mm), supplemented by spring-back testing to verify elastic recovery consistency (±0.01mm), microscopic inspection for slot edge condition and micro-burr removal.

Industry Applications

This solution demonstrates our expertise in precision engineering plastic component manufacturing, ideal for:
✓ Automation equipment elastic bushings ✓ Snap-fit and interference-fit components ✓ Precision plastic guide bushings ✓ Wear-resistant plastic interfaces

Why Partner With Us?

• Proven expertise in PA66 and engineering plastic machining with deformation control
• Advanced slotting and stress-relief strategies for elastic components
• Specialized micro-burr removal techniques for confined internal geometries
• 12+ years of precision manufacturing experience across automation and 3C equipment sectors
