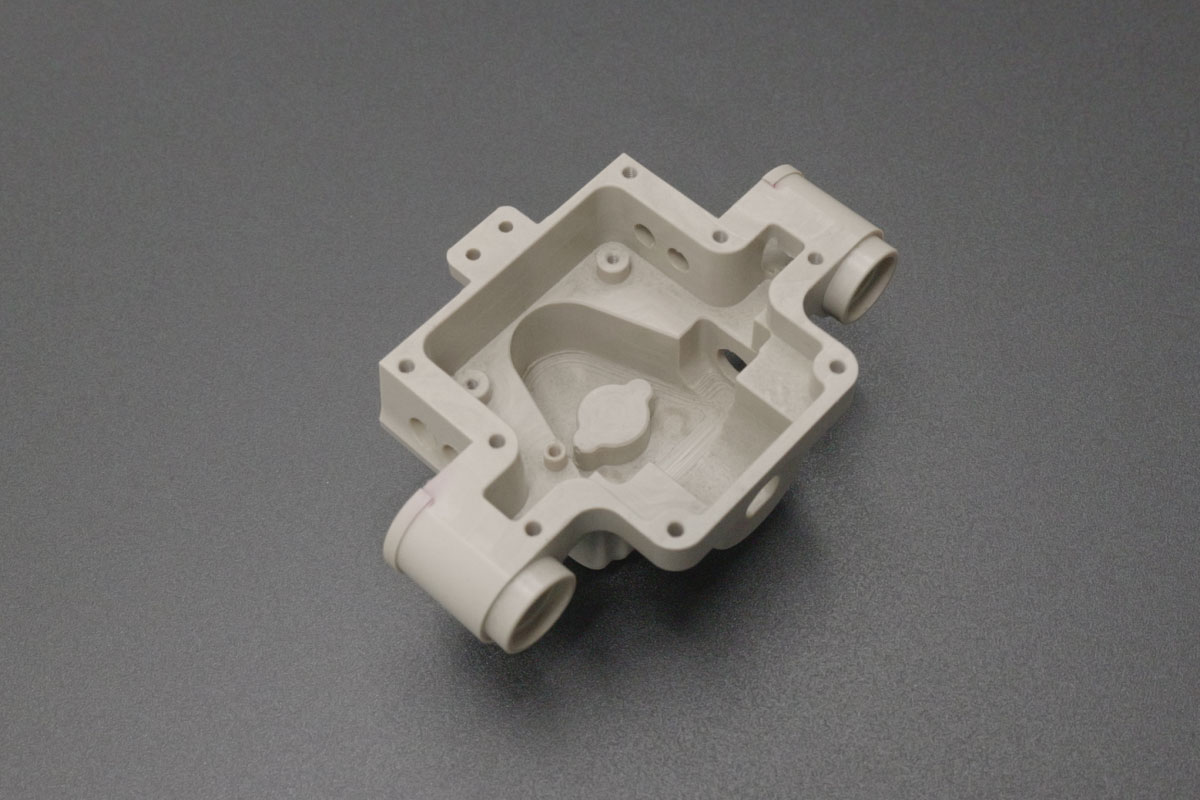

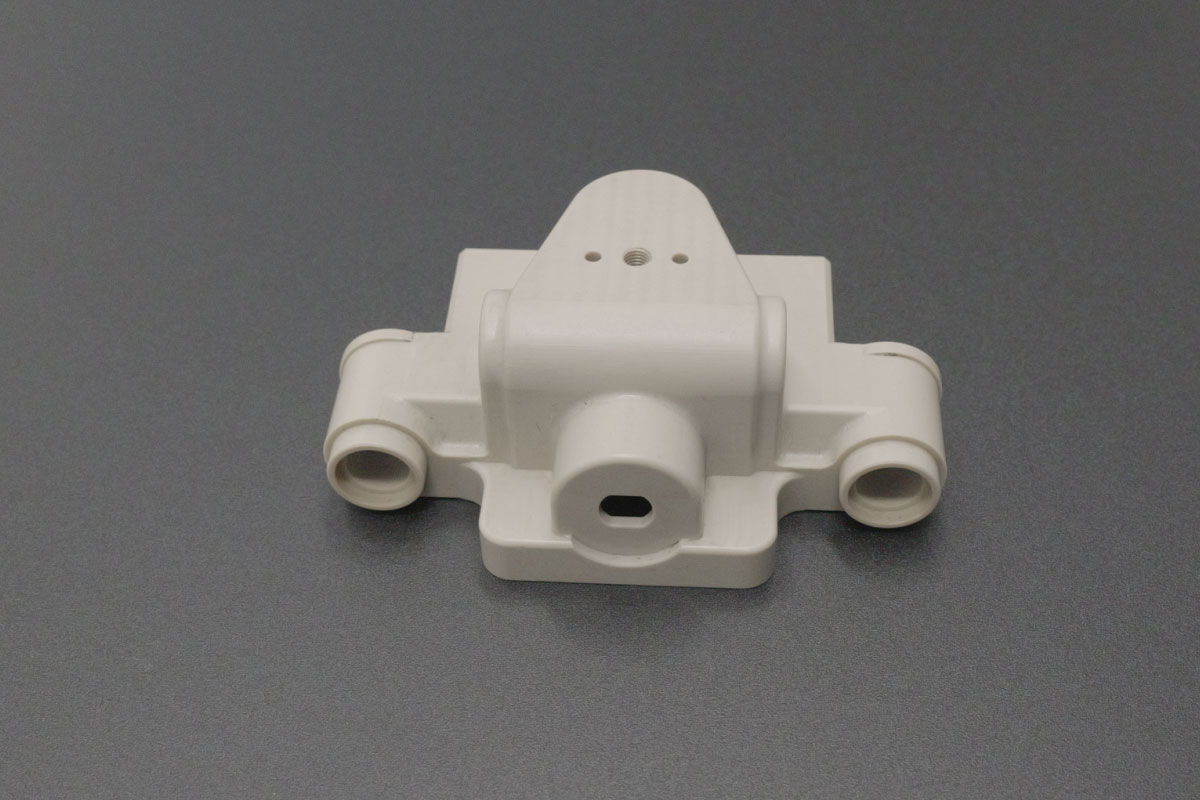

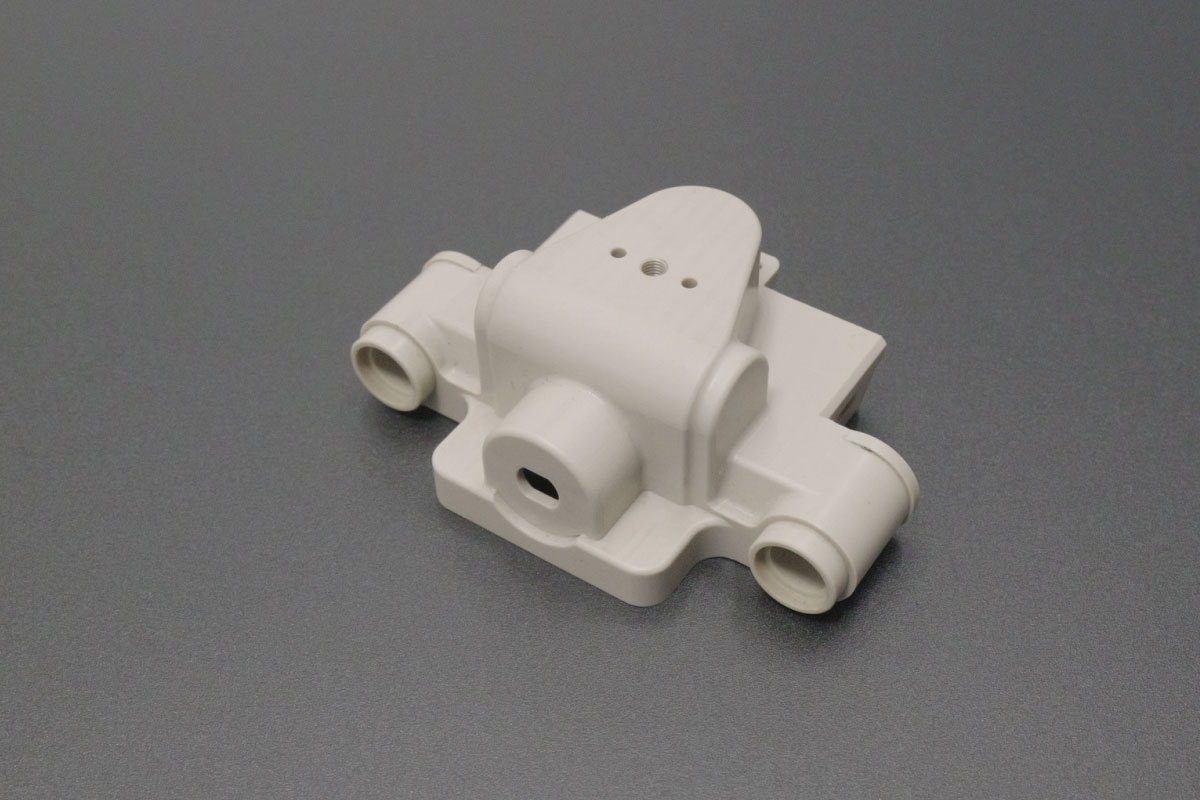

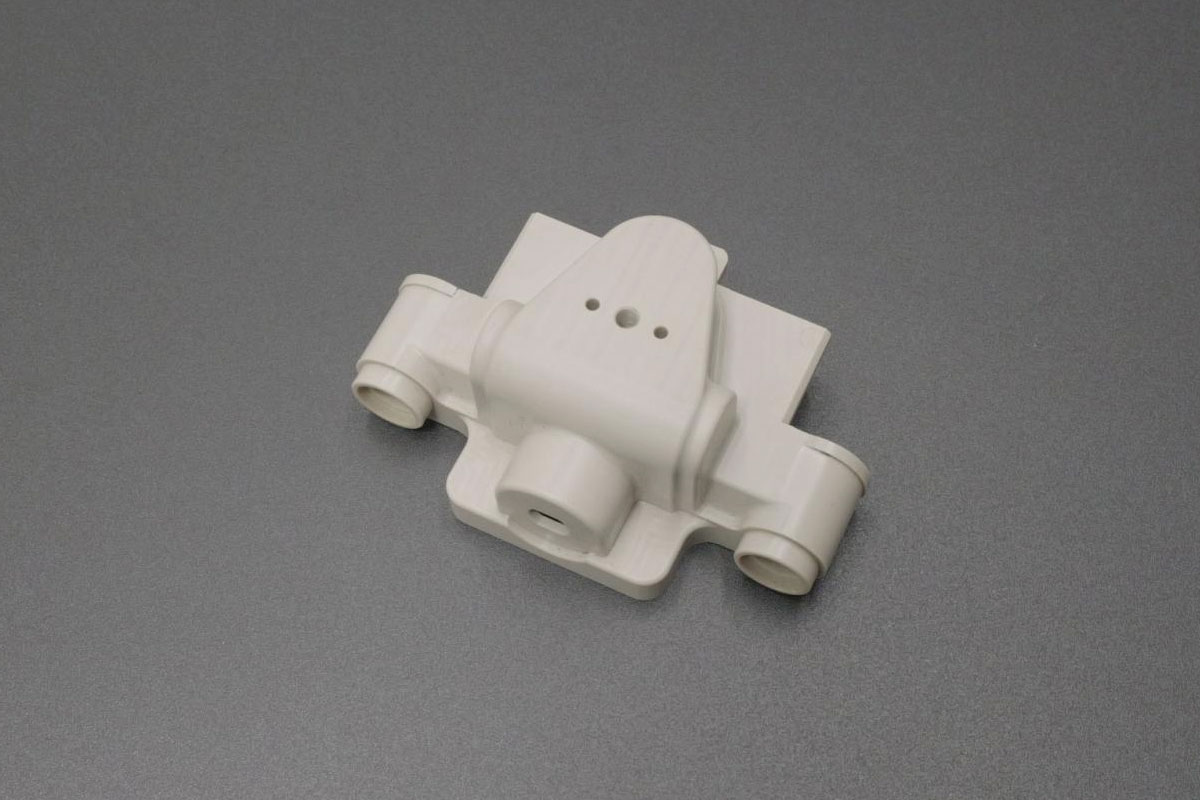

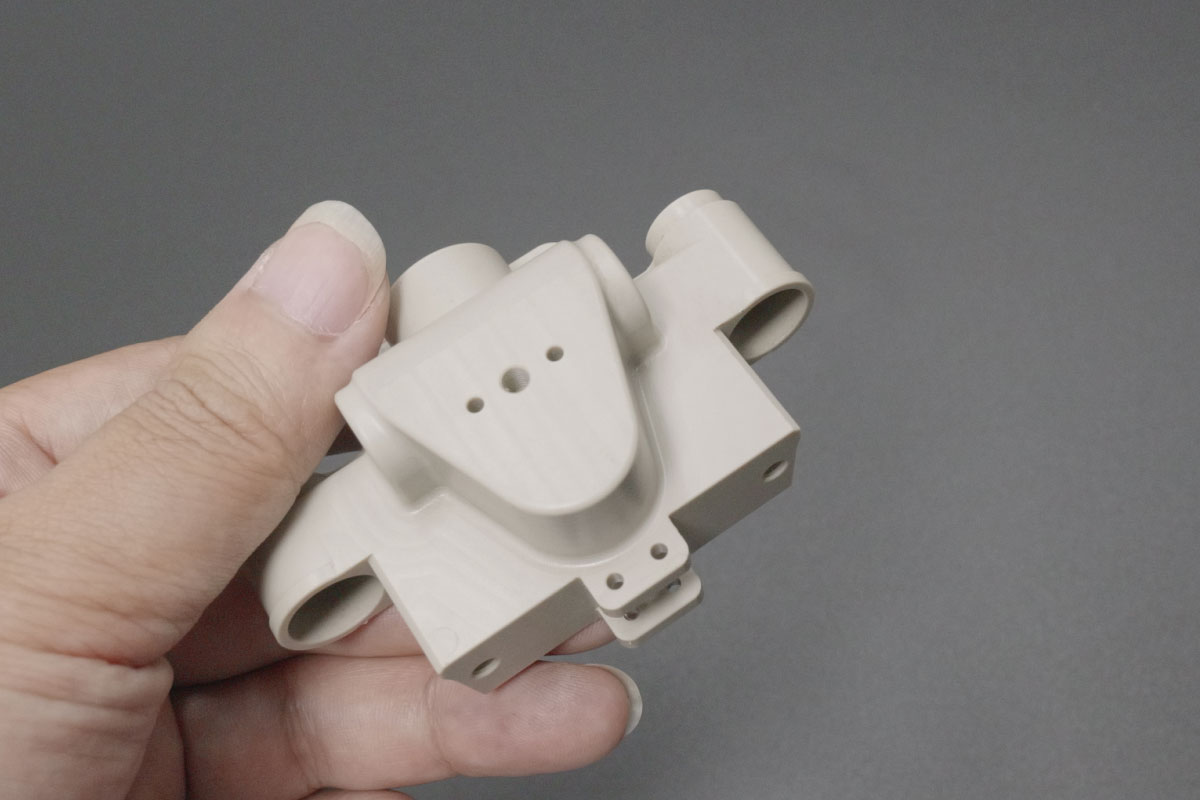

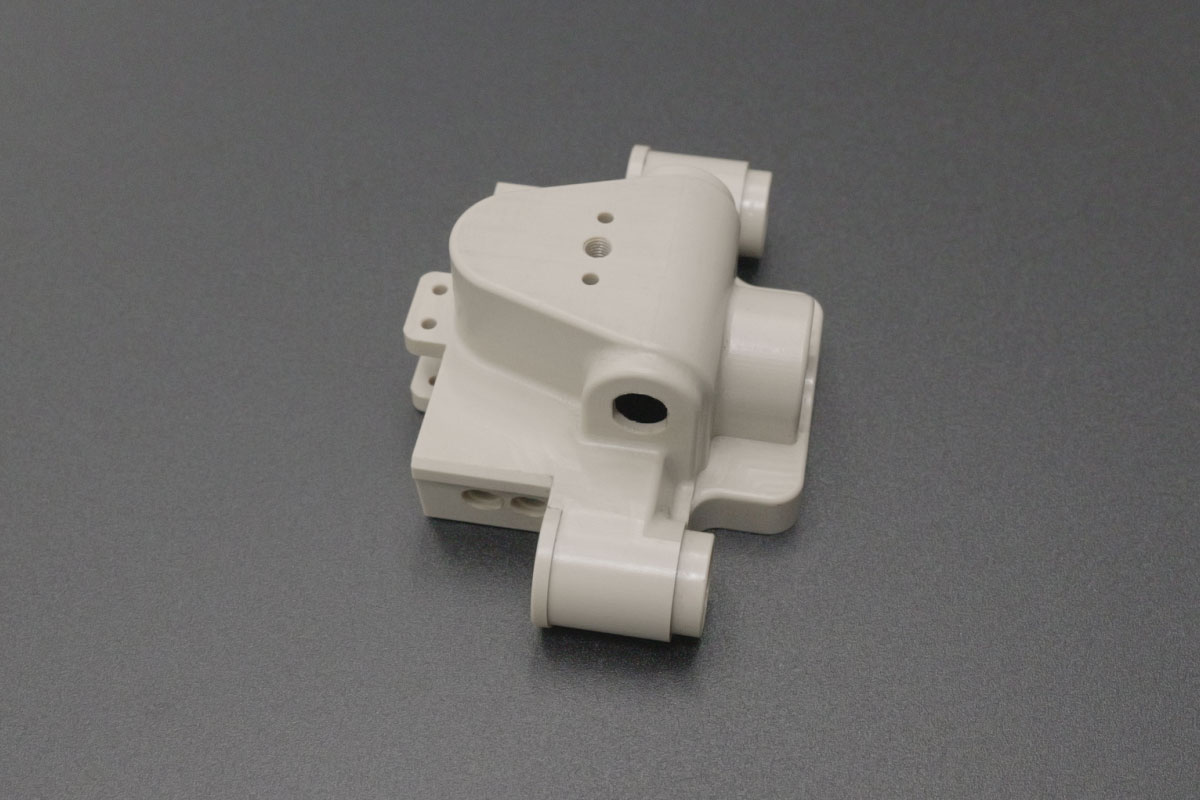

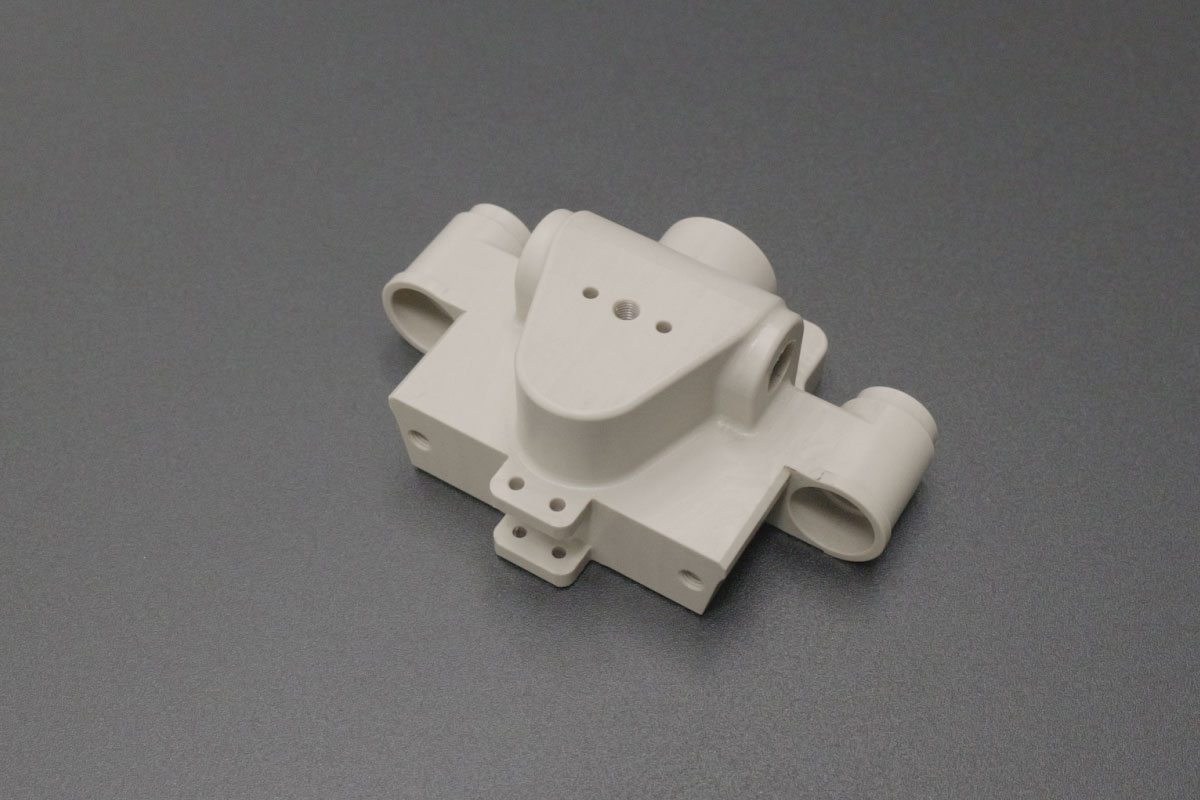

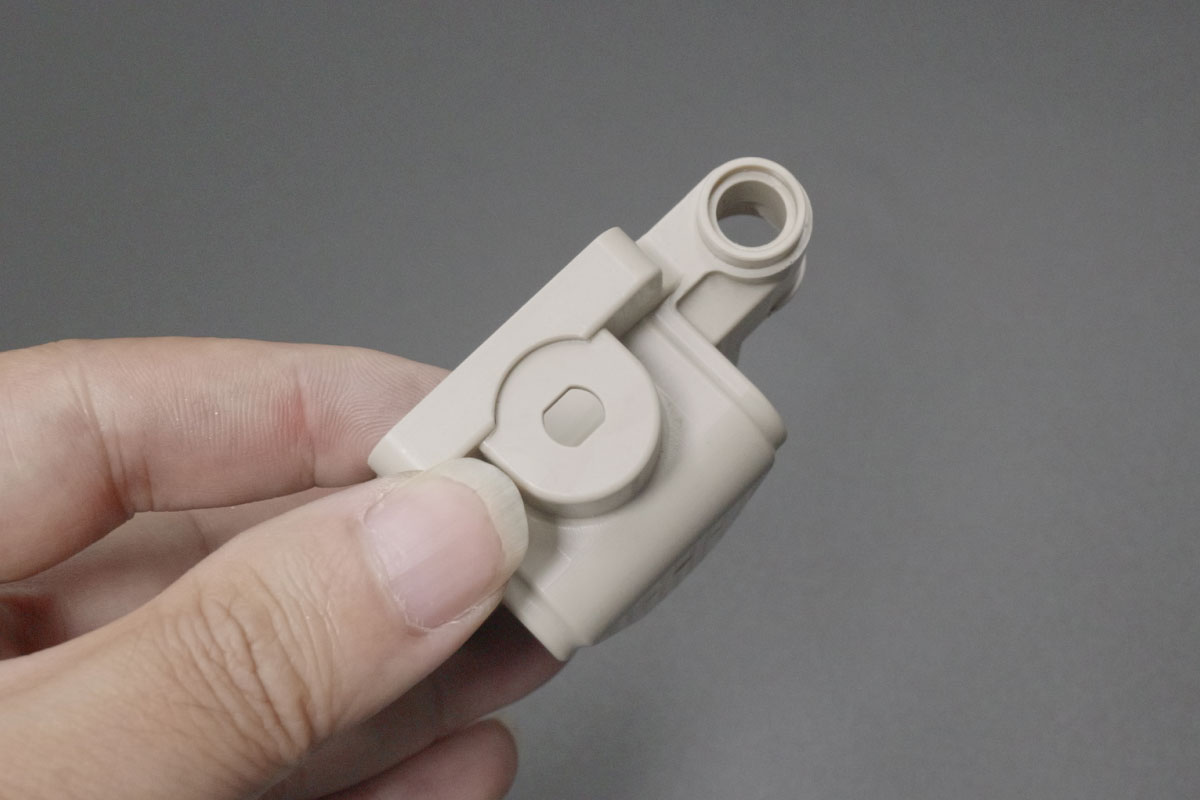

Precision Beige PEEK Bracket Housing for Semiconductor Automation with Deformation and Edge Chipping Control

We successfully manufactured a precision beige PEEK bracket housing for a semiconductor automation equipment application. As a high-performance engineering thermoplastic, PEEK offers exceptional thermal stability (up to 260°C), chemical resistance, and mechanical strength[citation:7] — making it ideal for demanding semiconductor environments. However, PEEK's material characteristics present significant machining challenges including elastic deformation during cutting and edge chipping [citation:1][citation:2]. Through specialized PCD tooling, optimized cutting parameters, and controlled fixturing strategies, we delivered dimensionally stable bracket housings with clean, chip-free edges.

Project Overview

Key Technical Highlights

• Deformation and Edge Chipping Prevention: PEEK's elastic modulus is lower than metals, making it susceptible to elastic deformation under clamping and cutting forces — with material recovery causing dimensional inaccuracies[citation:2][citation:4]. Implemented low-stress fixturing with minimized clamping pressure and PCD tooling (polycrystalline diamond) which demonstrated dramatically reduced tool wear and better edge retention compared to carbide alternatives[citation:1][citation:2].
• Process Innovation:
  • PCD Tooling Application: PCD (polycrystalline diamond) tools maintain cutting edge sharpness significantly longer than carbide tools — reducing cutting forces and preventing edge chipping caused by dull tools[citation:1][citation:2]. Tool life extended by maintaining sharp cutting edges for consistent quality across production runs.
  • Optimized Cutting Parameters: Controlled cutting speeds (100-200 m/min) with low feed rates (0.03-0.04 mm/r) and shallow depths of cut prevent localized overheating — avoiding material smearing, melting, and thermal deformation[citation:1][citation:2].
  • Staged Roughing and Finishing: Roughing establishes near-net geometry while preserving material integrity, followed by precision finishing passes with minimal radial engagement achieving Ra≤1.6μm surface finish.
  • Stress-Relief Strategy: Intermediate machining pauses before final finishing allow stress relaxation — preventing post-machining deformation and ensuring long-term dimensional stability[citation:2].
• Surface Quality:
  • Precision finishing with PCD tools achieves Ra≤1.6μm surface finish on all machined surfaces.
  • Sharp cutting edges and optimized entry/exit strategies prevent edge chipping and burr formation characteristic of PEEK machining[citation:2].

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.02mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for edge chipping, burrs, and surface defects.

Industry Applications

This solution demonstrates our expertise in precision PEEK component manufacturing for semiconductor automation, ideal for:
✓ Semiconductor equipment housings and brackets ✓ Automation components requiring chemical resistance ✓ High-temperature electronic enclosures ✓ Precision structural parts

Why Partner With Us?

• Proven expertise in PEEK precision machining with deformation and edge chipping prevention
• Specialized PCD tooling and optimized cutting parameter applications
• Low-stress fixturing solutions for elastic material control
• 12+ years of precision manufacturing experience across semiconductor and automation sectors
