Precision 6061 Lightweight Hollow Bracket with Thin-Wall Drilling and Chatter Control

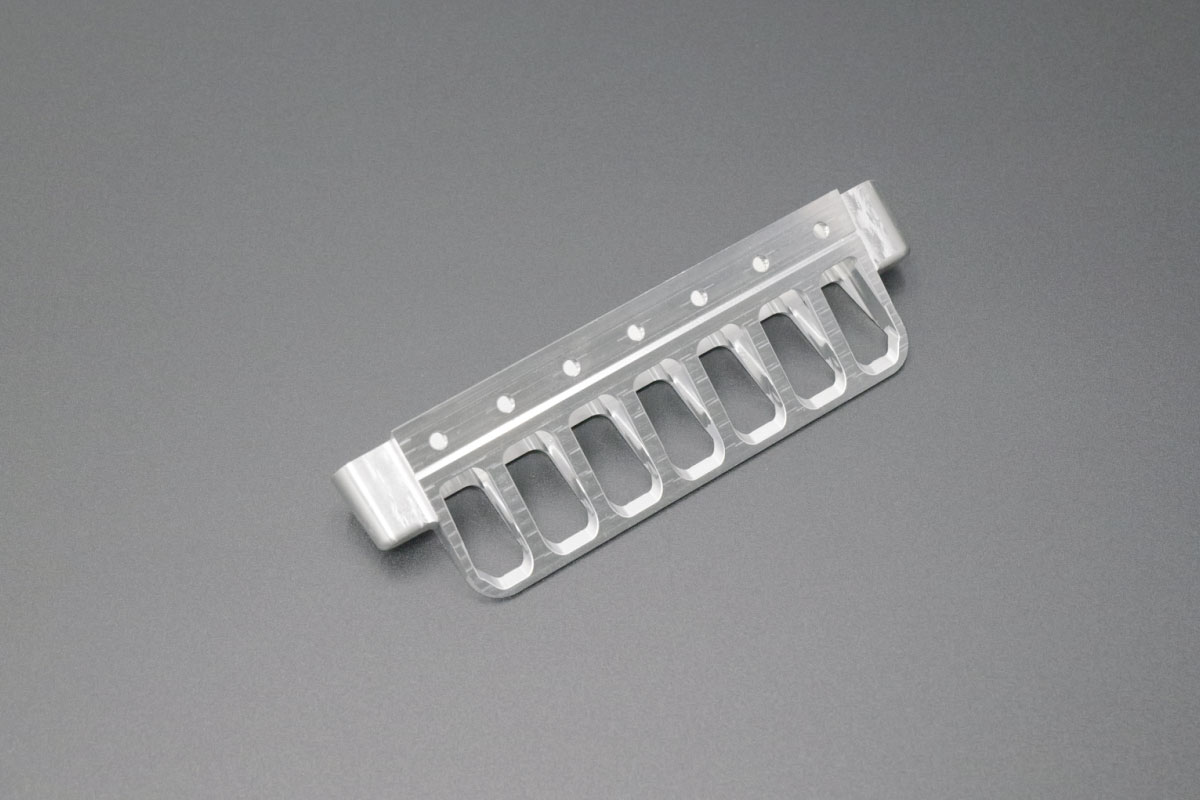

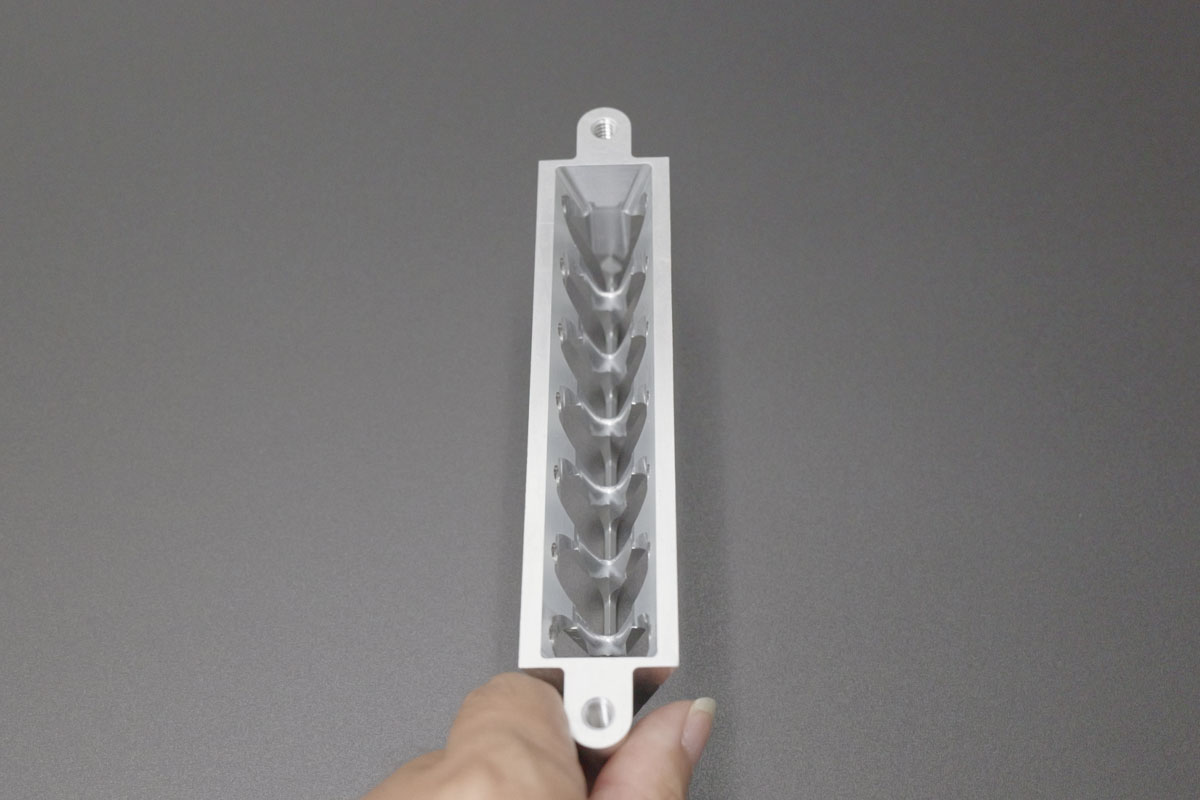

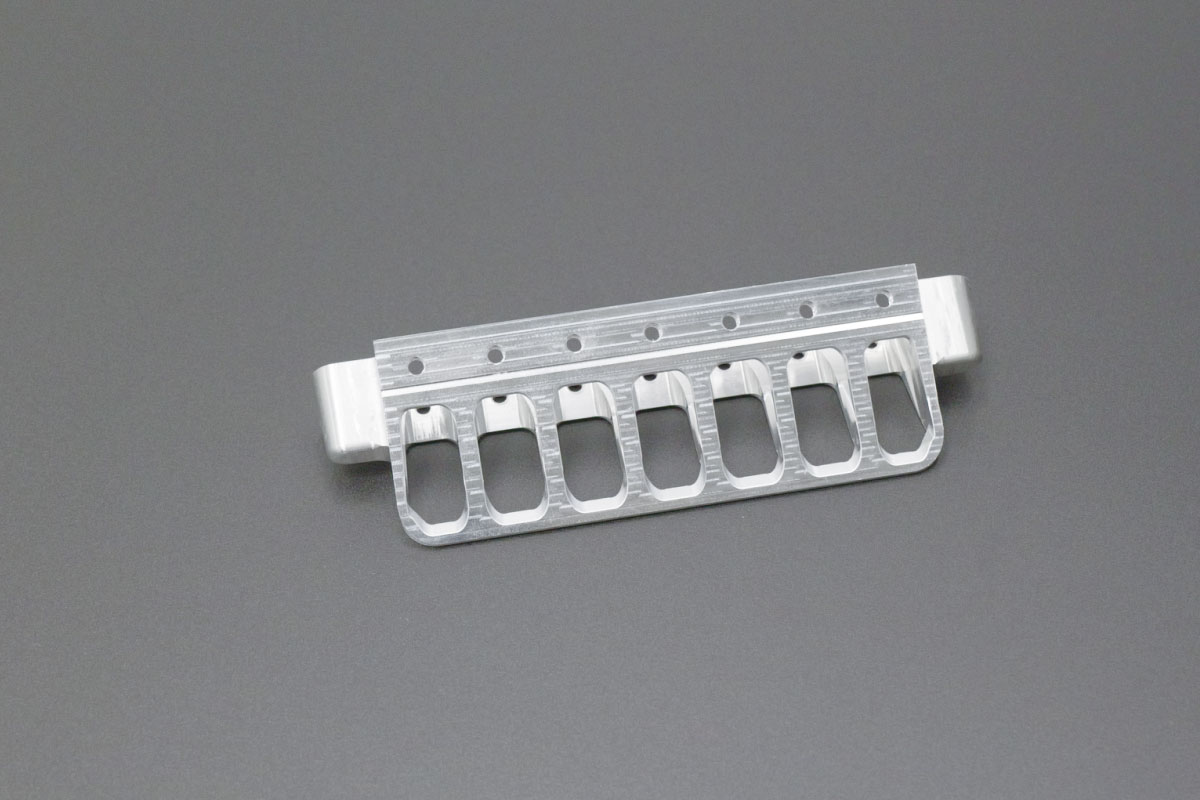

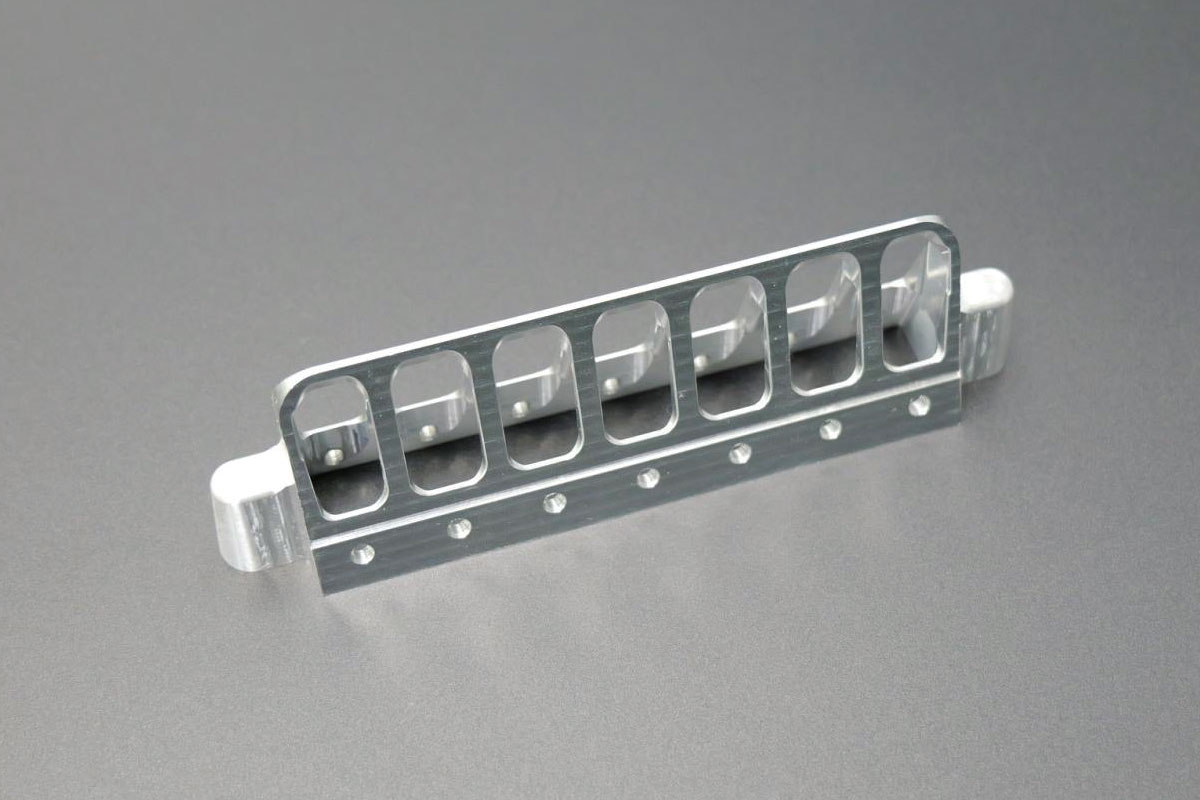

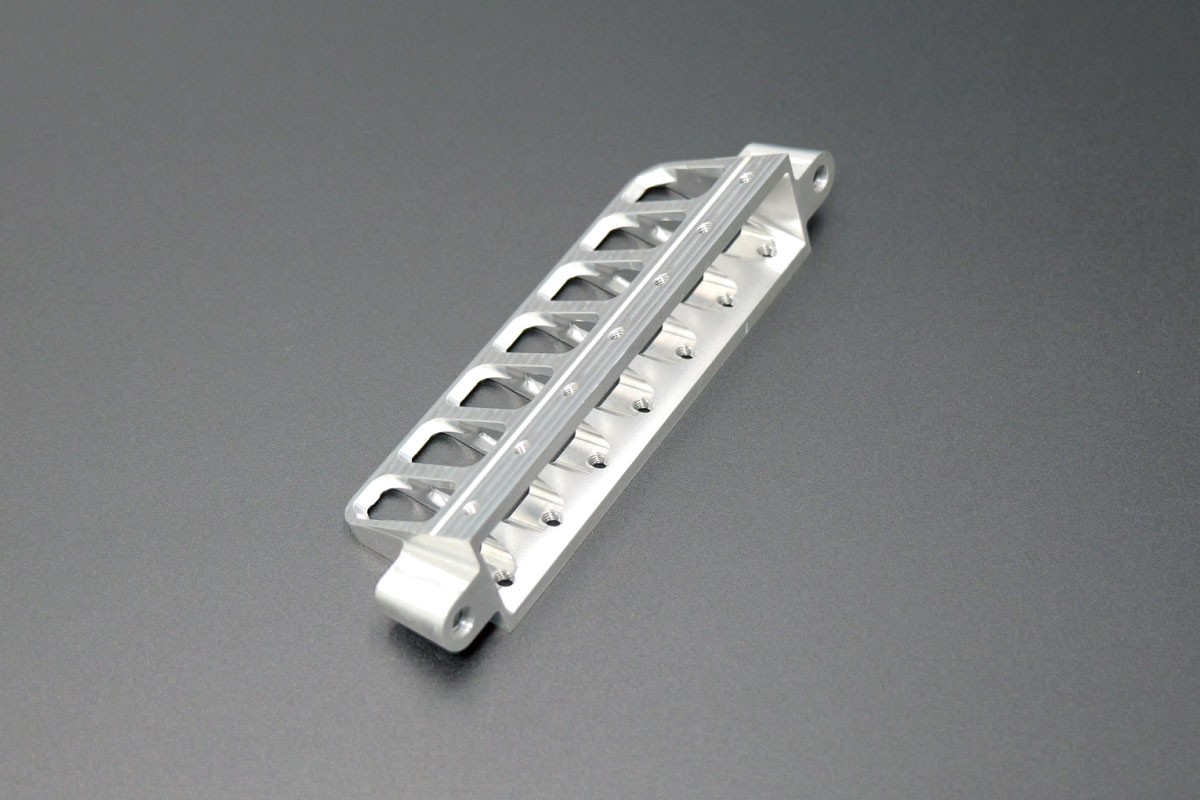

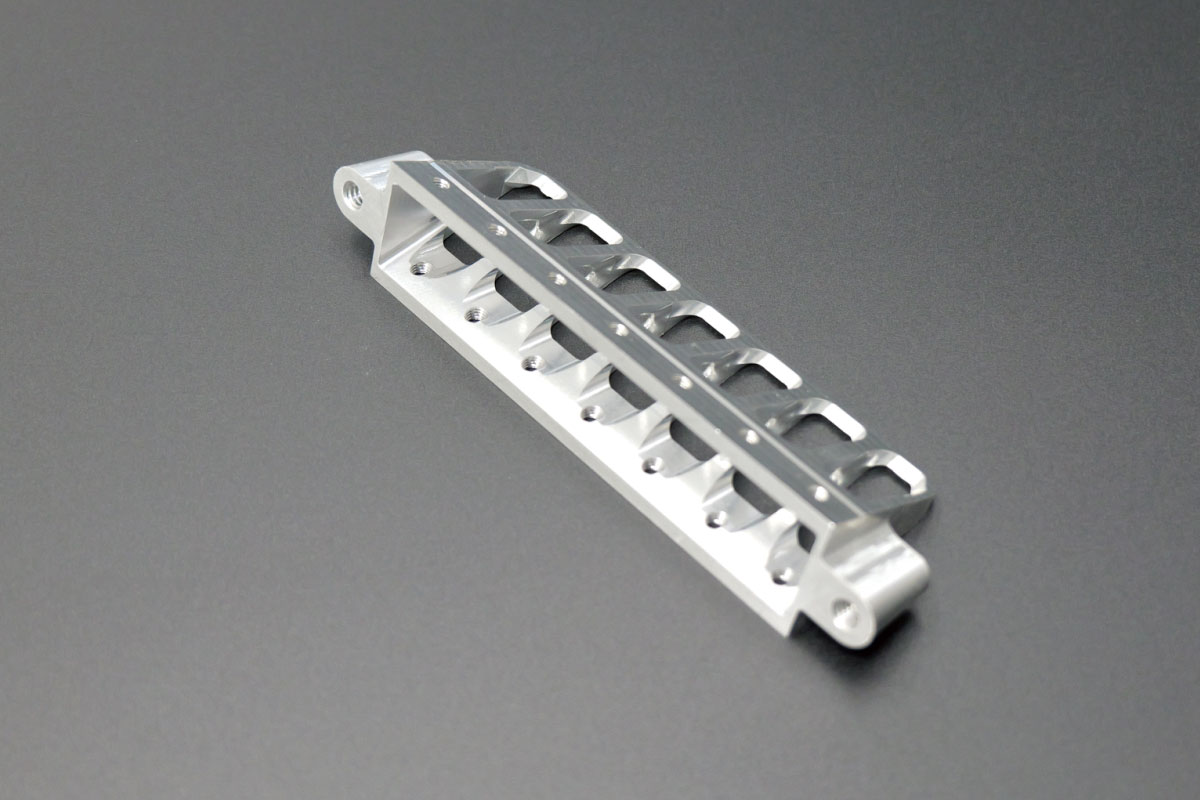

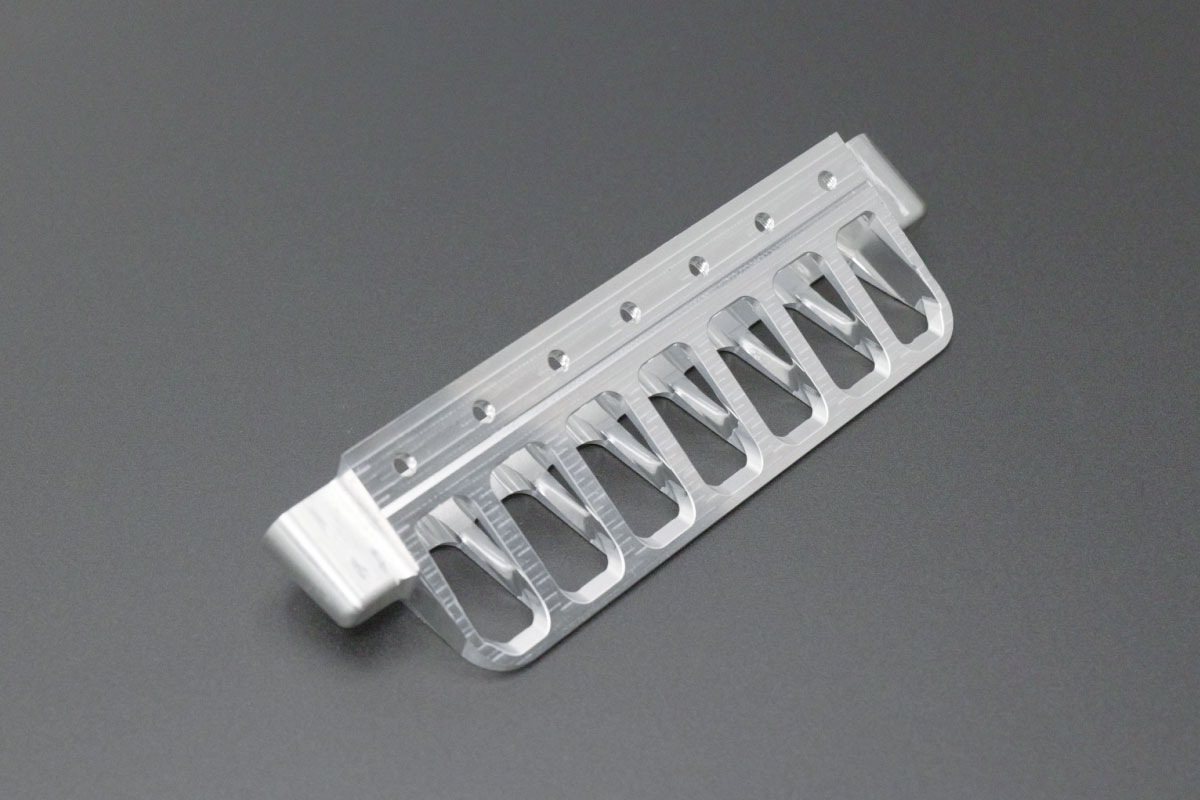

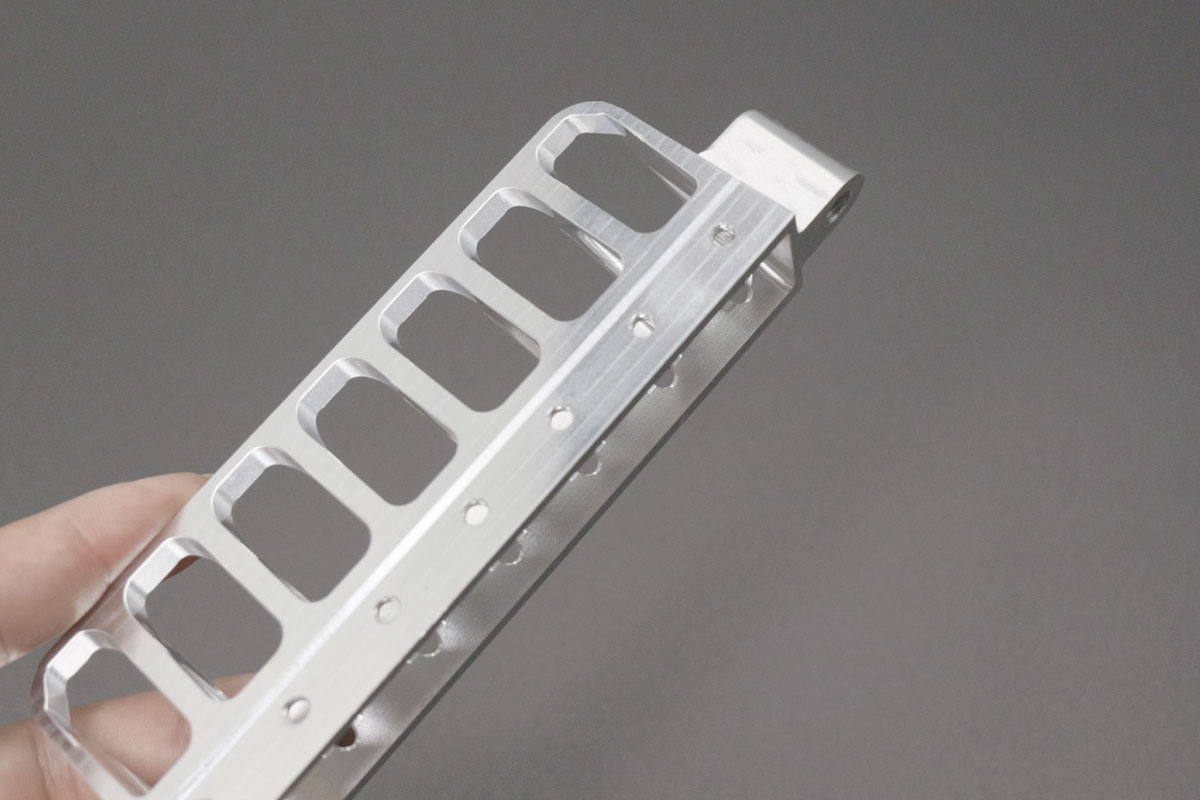

We successfully manufactured a precision 6061 aluminum lightweight hollow bracket for an automation assembly line module application. This structural component features large-area hollow sections with thin-wall rib structures and precision mounting holes — presenting significant machining challenges including thin-wall mounting hole edge burring and collapse during drilling, angled corner finishing in hollow rib structures, and chatter during large-area hollow section machining. Through backed drilling strategies, optimized toolpath techniques, and vibration-control approaches, we delivered clean, distortion-free brackets meeting all geometric requirements.

Project Overview

Key Technical Highlights

• Thin-Wall Drilling Burr and Collapse Prevention: Implemented backed drilling strategies with sacrificial support material placed behind thin-wall sections during hole machining — preventing edge burr formation and hole collapse (pushing through) while ensuring clean entry and exit surfaces.
• Process Innovation:
  • Backed Drilling Support: Custom fixturing with sacrificial backing supports thin-wall drilling zones, preventing material collapse and eliminating edge roll-over on hole exits.
  • Optimized Drilling Parameters: Controlled feed rates with sharp drill geometries minimize cutting forces on thin-wall sections — reducing burr formation and ensuring clean holes.
  • Angled Rib Corner Finishing: Custom lollipop/tapered end mills with optimized contouring toolpaths achieve clean internal corners (≤0.5mm radius) in angled hollow rib structures — eliminating material buildup and stress risers.
  • Large-Area Hollow Chatter Prevention: Variable radial engagement toolpaths with optimized stepovers and specialized anti-vibration toolholders eliminate chatter marks during large-area hollow section machining — maintaining Ra≤1.6μm surface finish.
• Surface Quality:
  • Precision finishing achieves chatter-free, Ra≤1.6μm surface finish on all machined surfaces.
  • All mounting holes verified burr-free and deformation-free.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.02mm), hole positional accuracy (±0.015mm), and flatness (≤0.01mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for hole quality, corner finish, and chatter marks.

Industry Applications

This solution demonstrates our expertise in precision lightweight structural component manufacturing, ideal for:
✓ Automation assembly line modules ✓ Lightweight structural brackets ✓ Equipment mounting frames ✓ Custom machine bases

Why Partner With Us?

• Proven expertise in thin-wall drilling with burr and collapse prevention
• Advanced angled rib corner finishing for complex hollow structures
• Specialized large-area hollow chatter control strategies
• 12+ years of precision manufacturing experience across automation and industrial equipment sectors
