Precision PA 4.6 Semiconductor Test Interface Fixture with Moisture-Resistant Machining Protocol

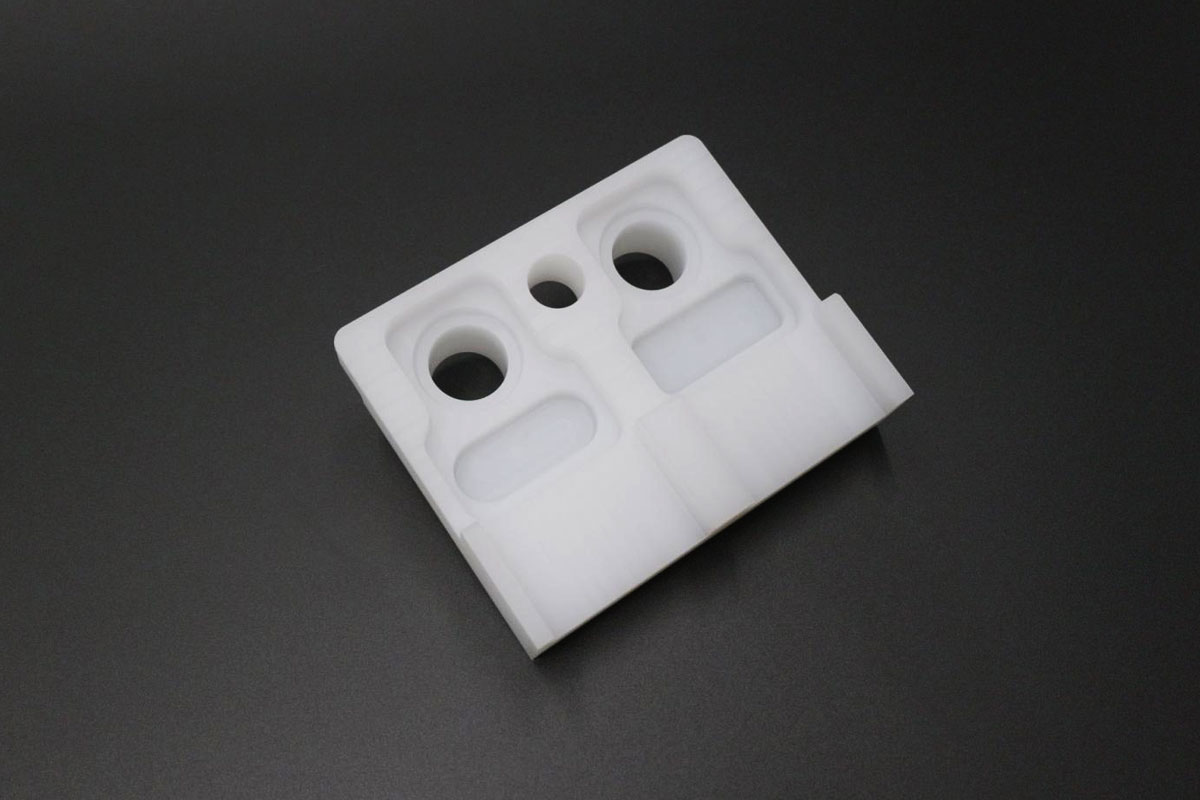

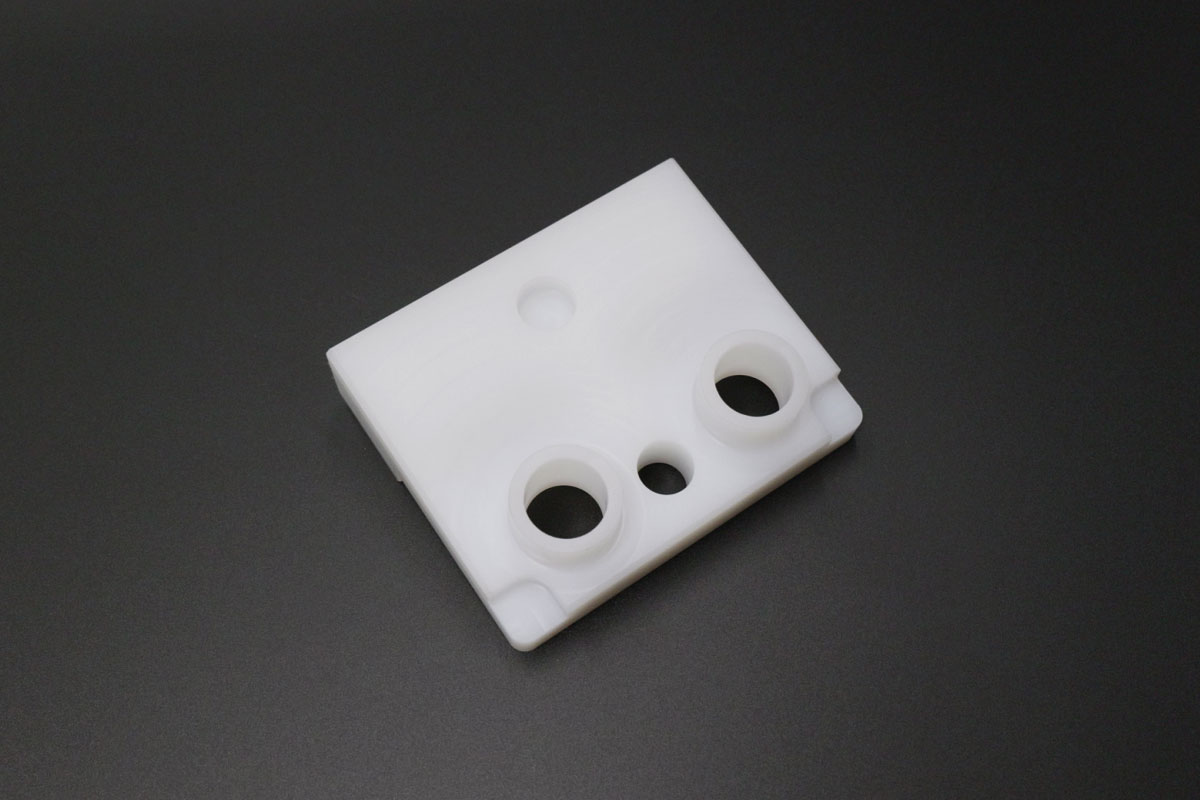

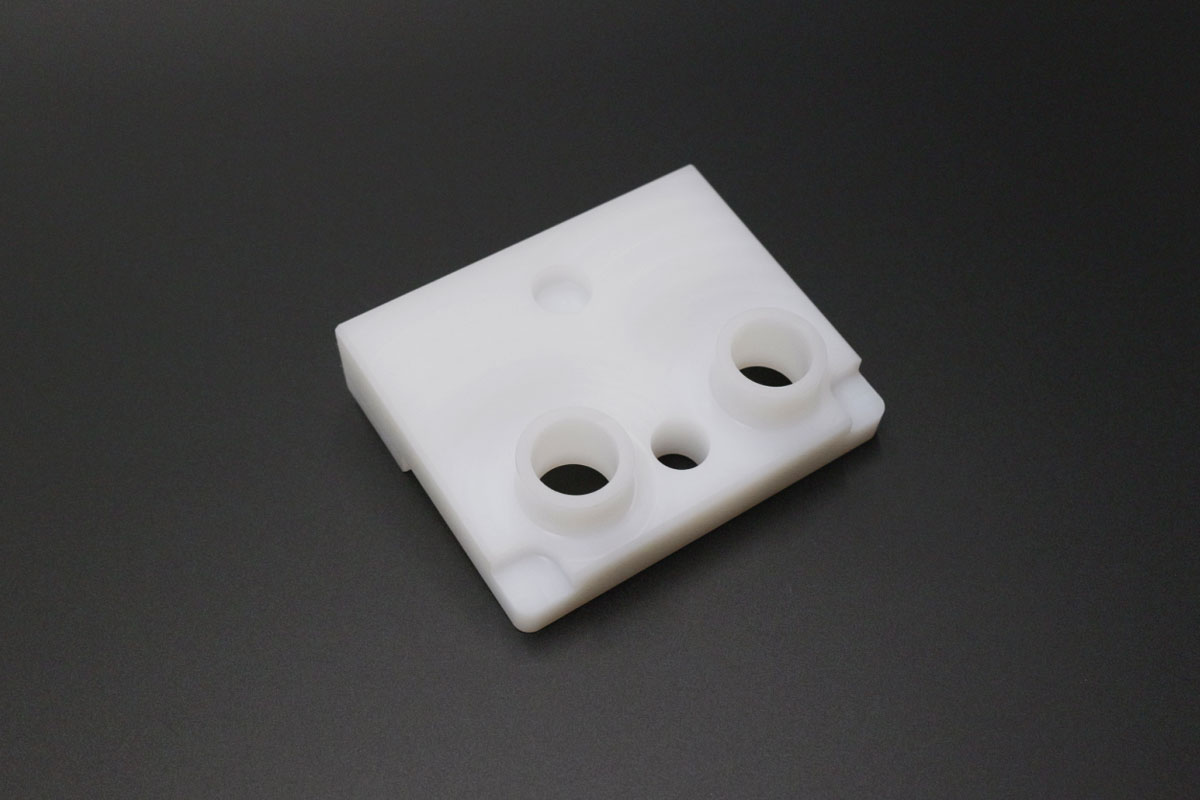

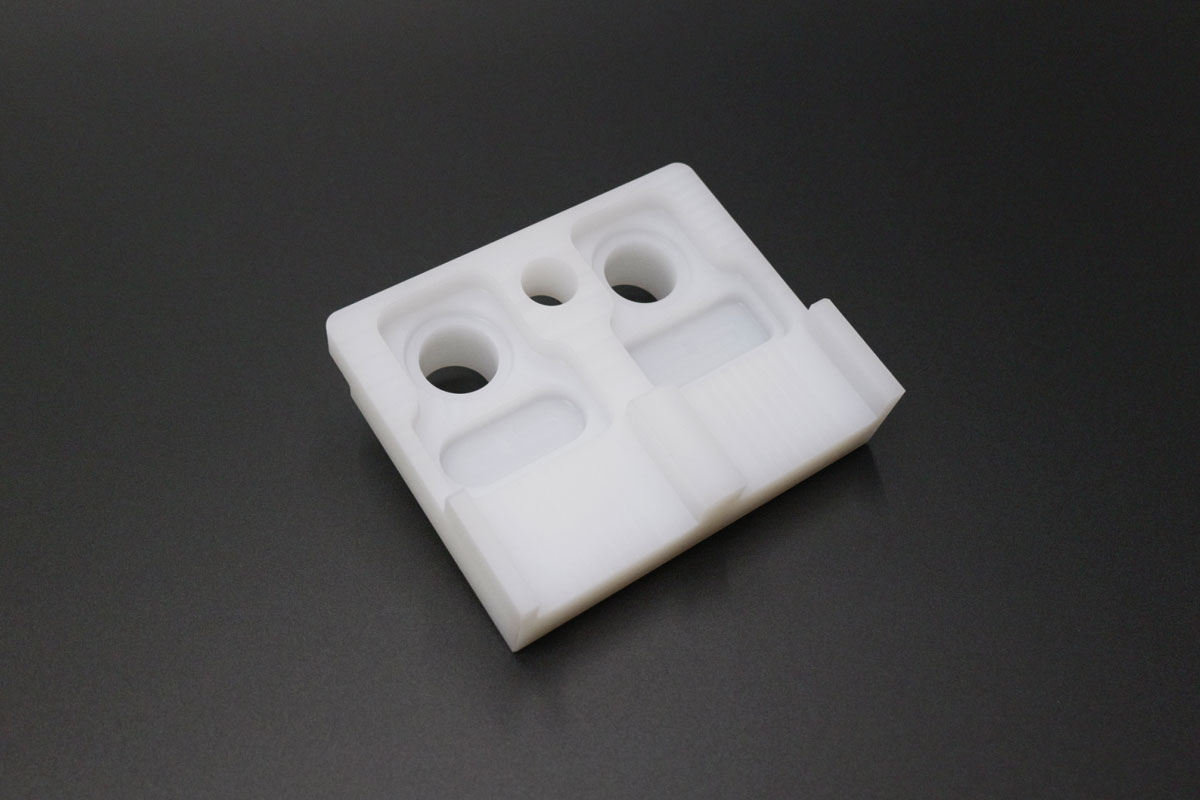

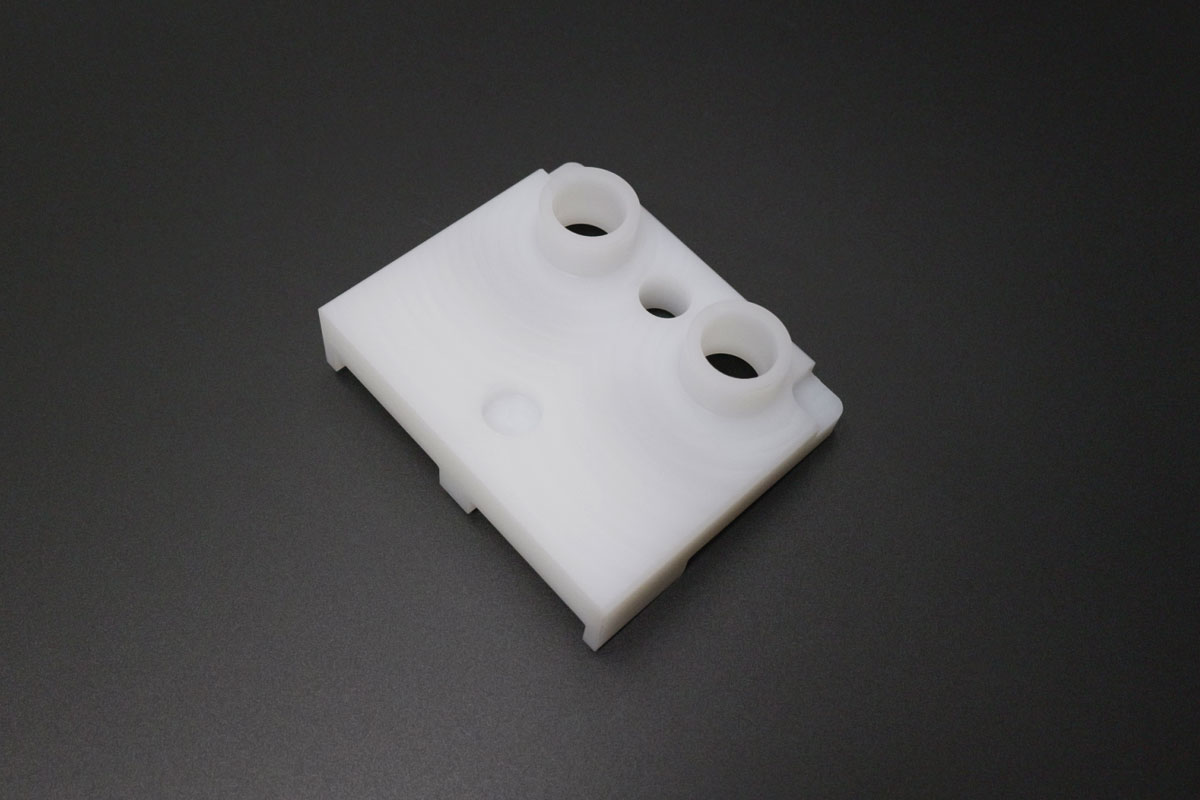

We manufactured a precision PA46 test interface fixture for a semiconductor handler application. PA46 (Stanyl®) delivers 295°C melt stability and 87-105 MPa tensile strength, but its 2.8% moisture uptake at 50% RH makes precision machining a constant battle against dimensional creep. Our approach: a two-stage clamping strategy — firm hold for roughing, reduced pressure for finishing — paired with a 24-hour ambient stabilization cycle between operations. Climate control at 20±1°C and 45% RH prevented hygroscopic swelling during processing. Ultra-sharp diamond-coated tooling with positive rake geometry kept cutting forces low, eliminating burnishing and surface defects. The result: PA46 fixtures holding ±0.015mm tolerances with ≤0.01mm flatness, delivered burr-free and ready for IC socket integration.

Project Overview

Key Technical Highlights

• Climate-Controlled Workflow: 20±1°C, 45% RH throughout machining and inspection — preventing moisture-driven dimensional shift.
• Variable-Clamping Strategy: Reduced finishing pressure allowed stress relaxation after roughing, eliminating post-machining elastic recovery.
• Stress-Relief Stabilization: 24-hour ambient hold between roughing and finishing operations ensured residual stresses dissipated before final dimensioning.
• Diamond-Coated Tooling: Sharp positive-rake geometry minimized cutting forces and heat generation, delivering clean, burr-free surfaces.

Quality Verification

Each fixture was CMM-inspected after full stabilization in controlled environment — verifying ±0.015mm tolerances and ≤0.01mm flatness before release.

Industry Applications

Ideal for semiconductor test handlers, IC socket interfaces, precision automation tooling, and high-temperature electronic fixtures.
