Precision 6061 Bent Punching Heat Sink Cover with Irregular Contour and Rigidity Control

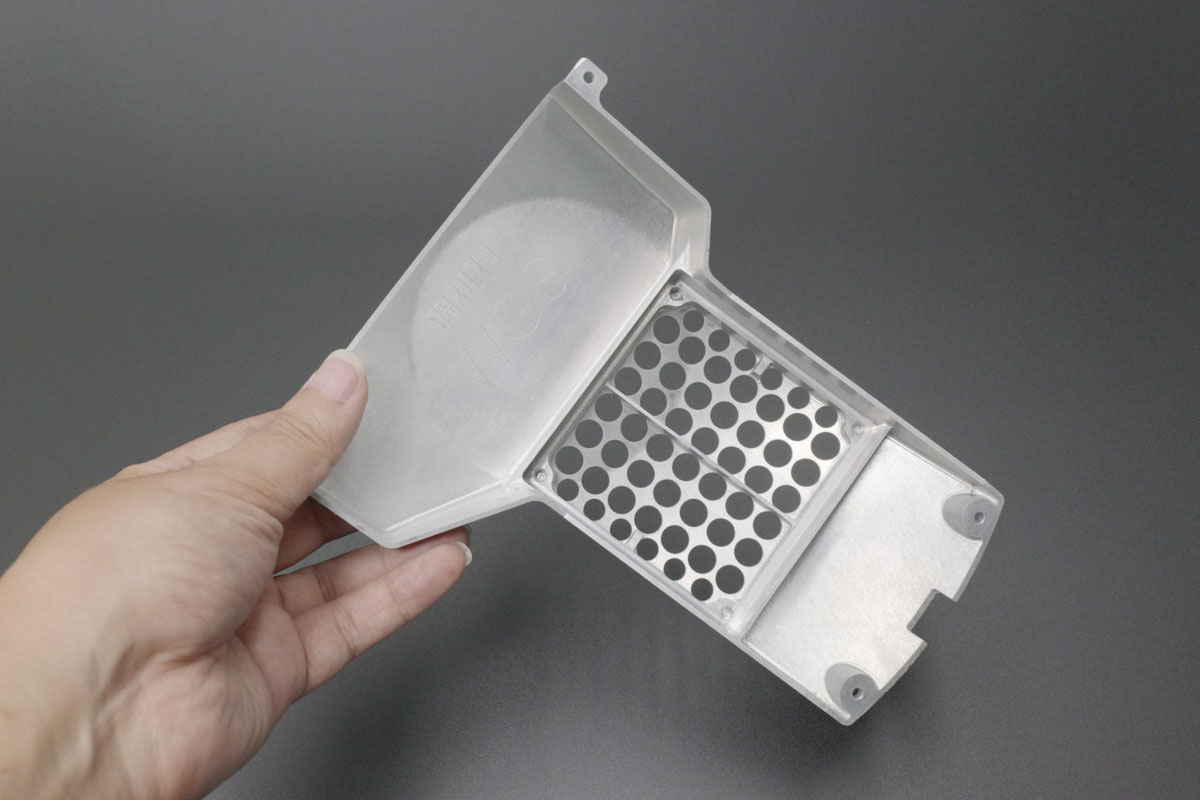

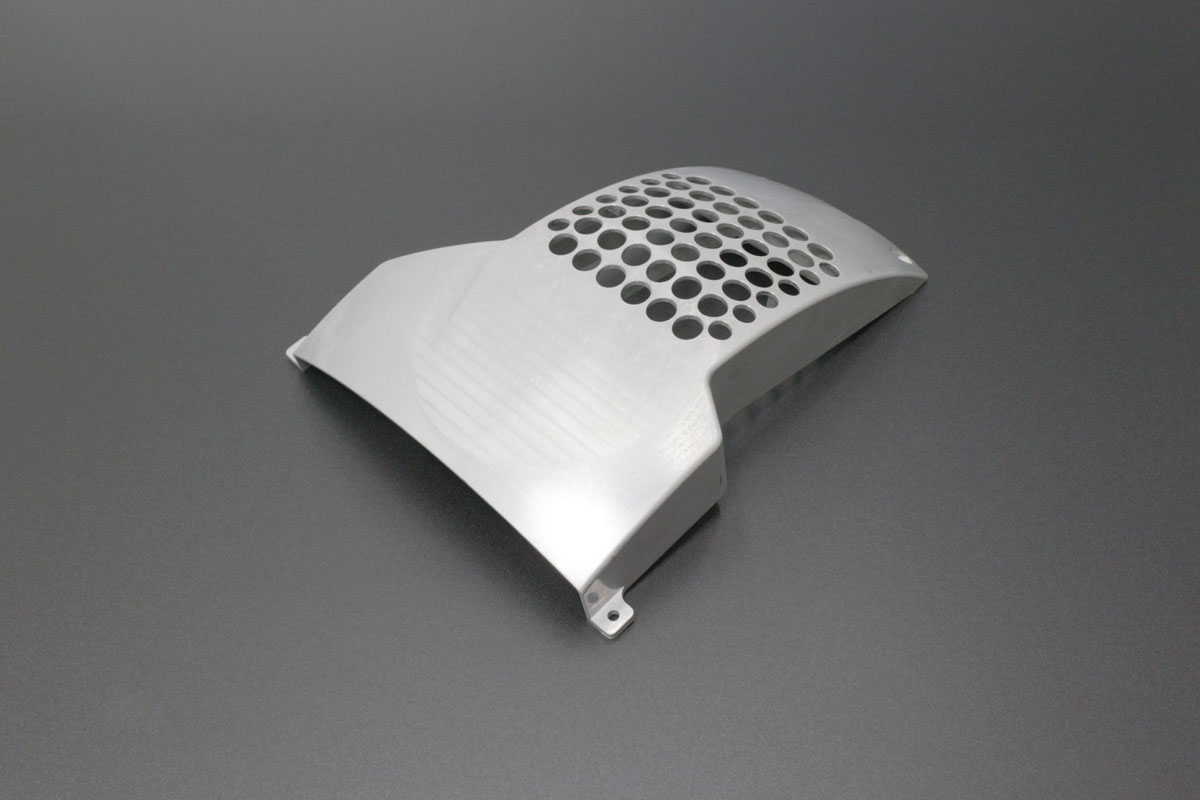

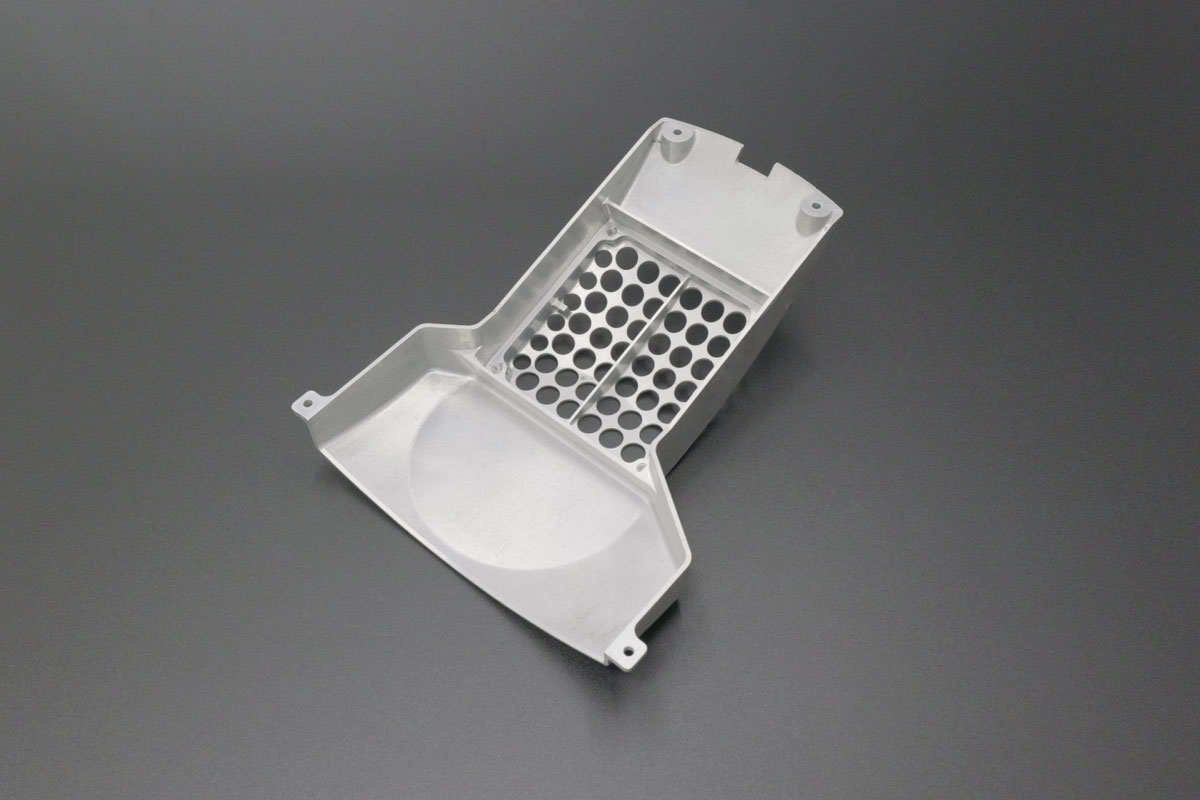

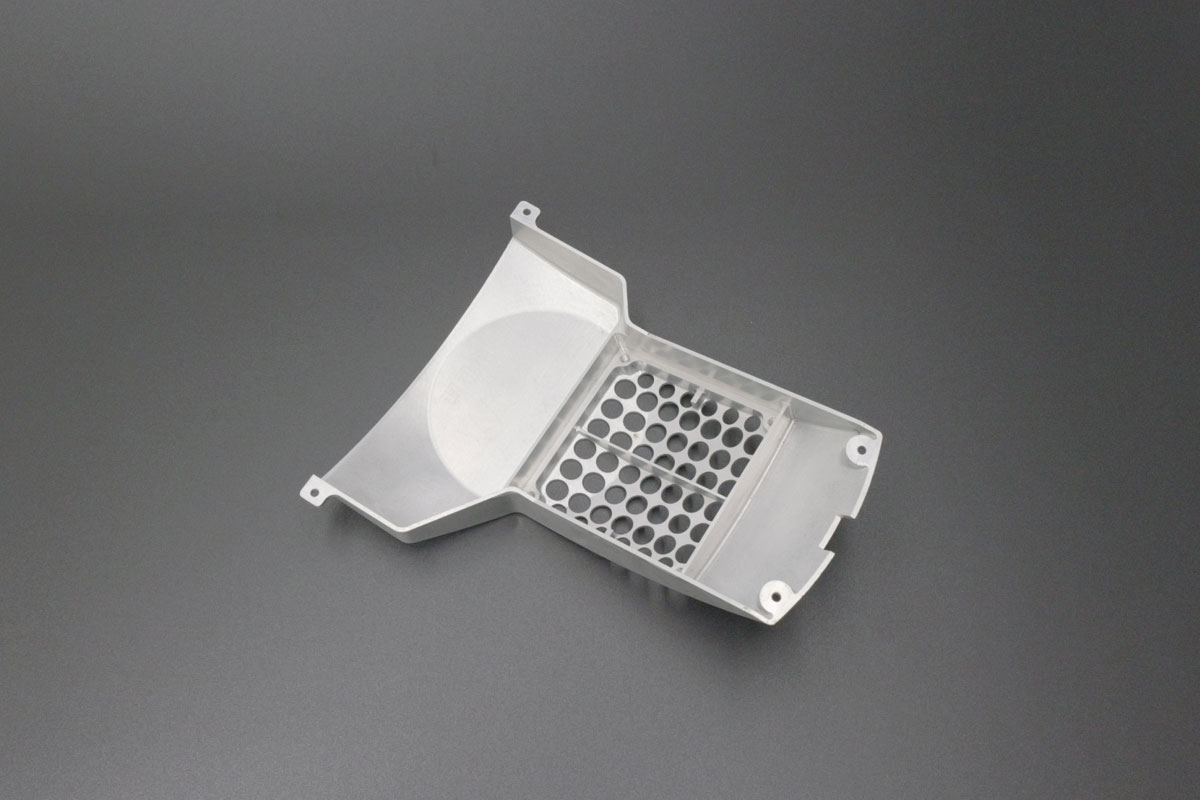

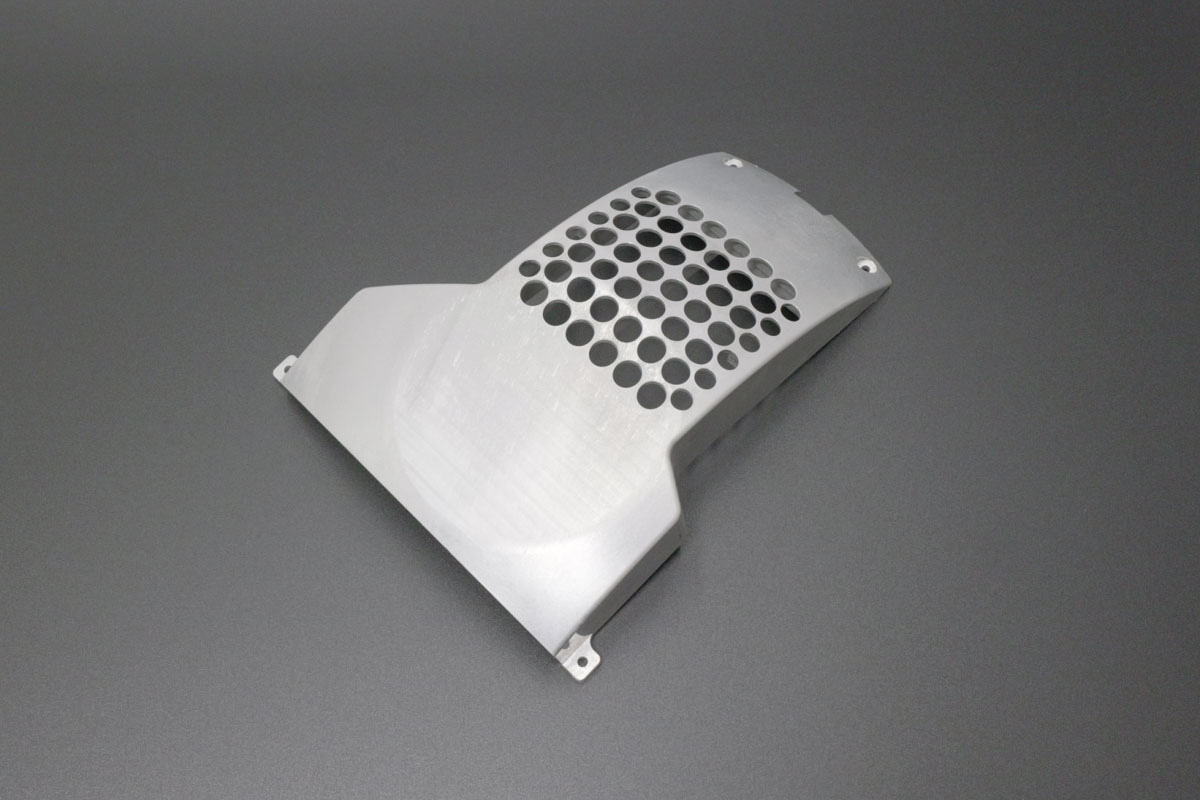

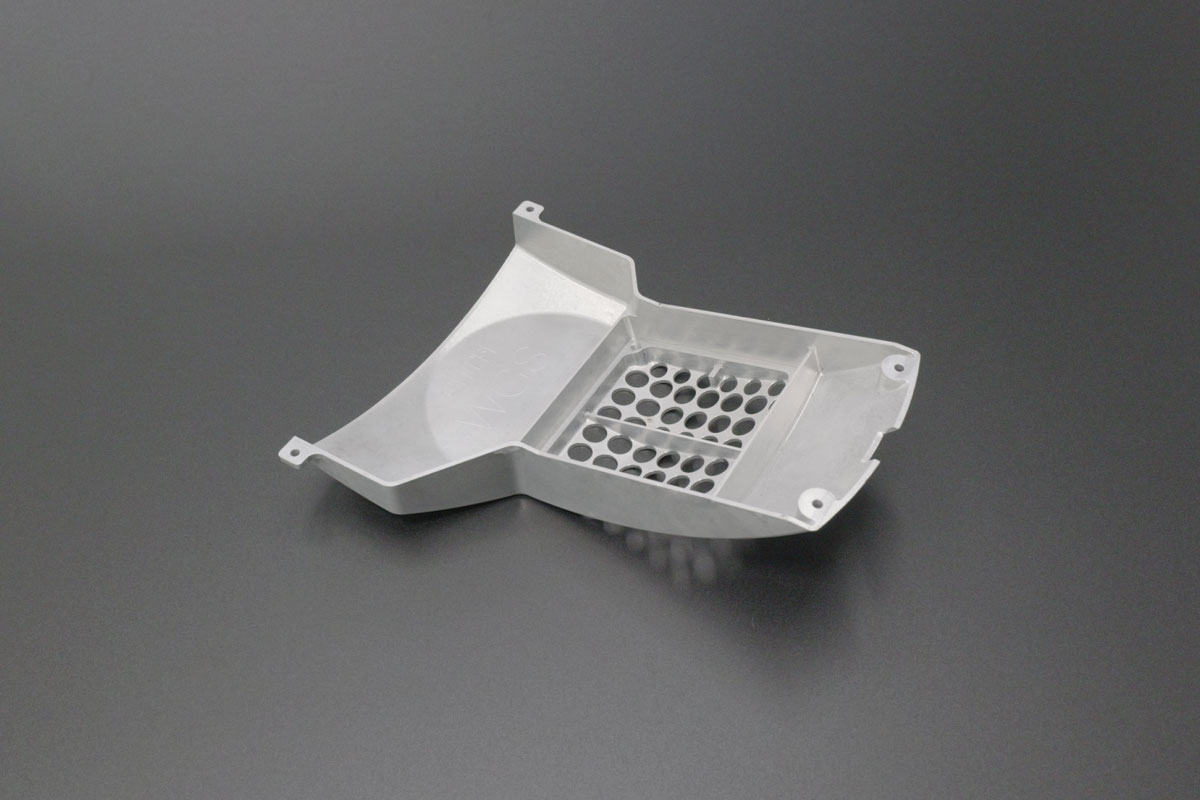

We successfully manufactured a precision 6061 aluminum bent punching heat sink cover for an automation equipment application. This irregularly contoured cover features bent sections with punched ventilation features and complex angled edges — presenting significant machining challenges including no unified reference for irregular contour positioning, difficult corner and angled edge clean-out, and insufficient rigidity causing cutting chatter marks. Through custom fixturing, specialized corner tooling, and vibration-dampening strategies, we delivered clean, distortion-free covers with stable surfaces and precise feature positioning.

Project Overview

Key Technical Highlights

• Irregular Contour Referencing: Established precision-machined datum features on the most accessible flat sections of the cover, enabling consistent feature positioning across the irregular geometry without requiring a unified reference plane.
• Process Innovation:
  • Custom Fixturing: Dedicated fixtures with strategically placed support points follow the irregular contour profile — providing stable clamping without interfering with tool access or distorting the bent structure.
  • Corner and Angled Edge Clean-Out: Specialized lollipop and tapered end mills with optimized contouring toolpaths achieve clean internal corners (≤0.5mm radius) on angled edges and transitions — eliminating material buildup and burrs.
  • Vibration-Dampening Strategy: Toolpaths with variable stepovers and optimized engagement angles tuned for the low-rigidity bent structure eliminate cutting chatter marks — achieving stable Ra≤1.6μm surface finish.
  • Staged Machining Sequence: Controlled roughing establishes near-net contour, followed by precision finishing of corners, edges, and mounting features with minimal cutting forces.
• Surface Quality:
  • Precision finishing achieves chatter-free Ra≤1.6μm surface finish on all visible surfaces.
  • Bent and punched features verified clean and burr-free.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.02mm) and flatness (≤0.01mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for corner quality, chatter marks, and edge finish.

Industry Applications

This solution demonstrates our expertise in precision irregular component manufacturing for automation systems, ideal for:
✓ Automation equipment heat sink covers ✓ Bent and punched structural covers ✓ Irregular contoured protective enclosures ✓ Precision equipment housings

Why Partner With Us?

• Proven expertise in irregular contour referencing without unified datum planes
• Advanced angled edge and corner finishing for complex geometries
• Vibration-dampening strategies for chatter-free low-rigidity machining
• 12+ years of precision manufacturing experience across automation and industrial equipment sectors
