Precision 6061 Angled Air Duct Adapter Housing with High-Gloss Surface and Multi-Axis Control

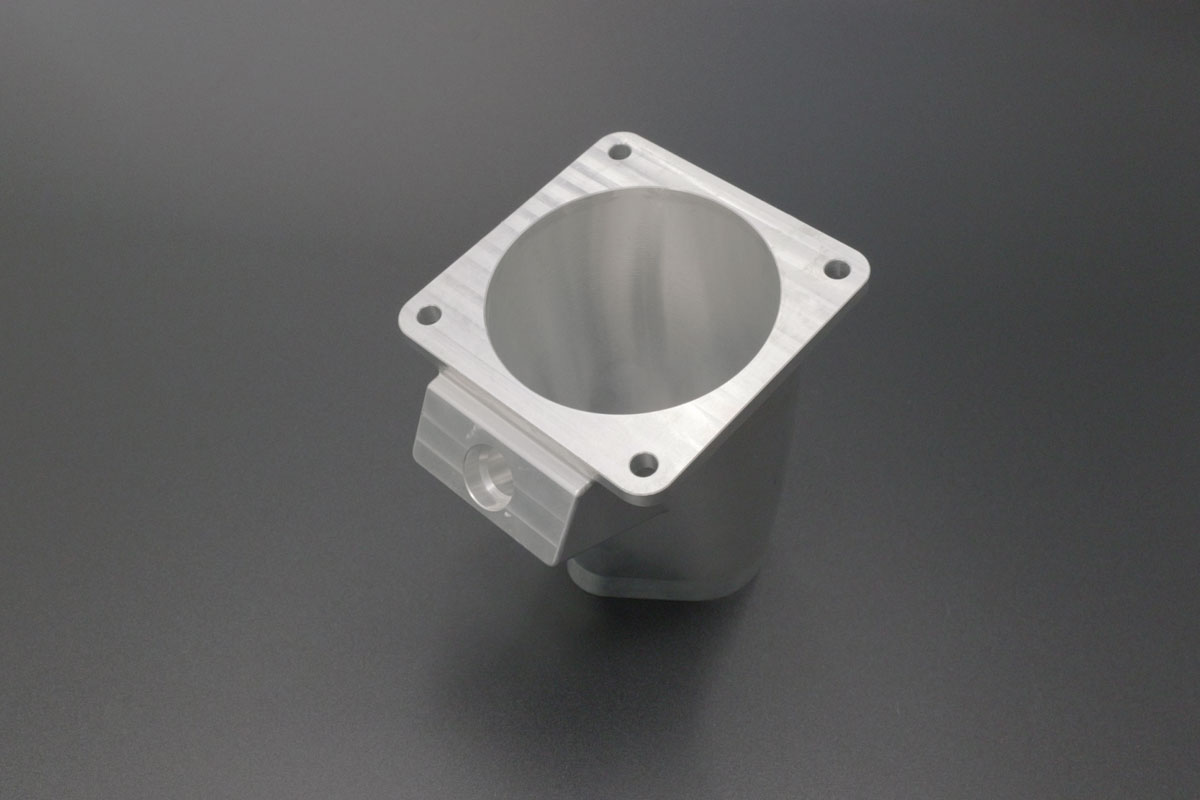

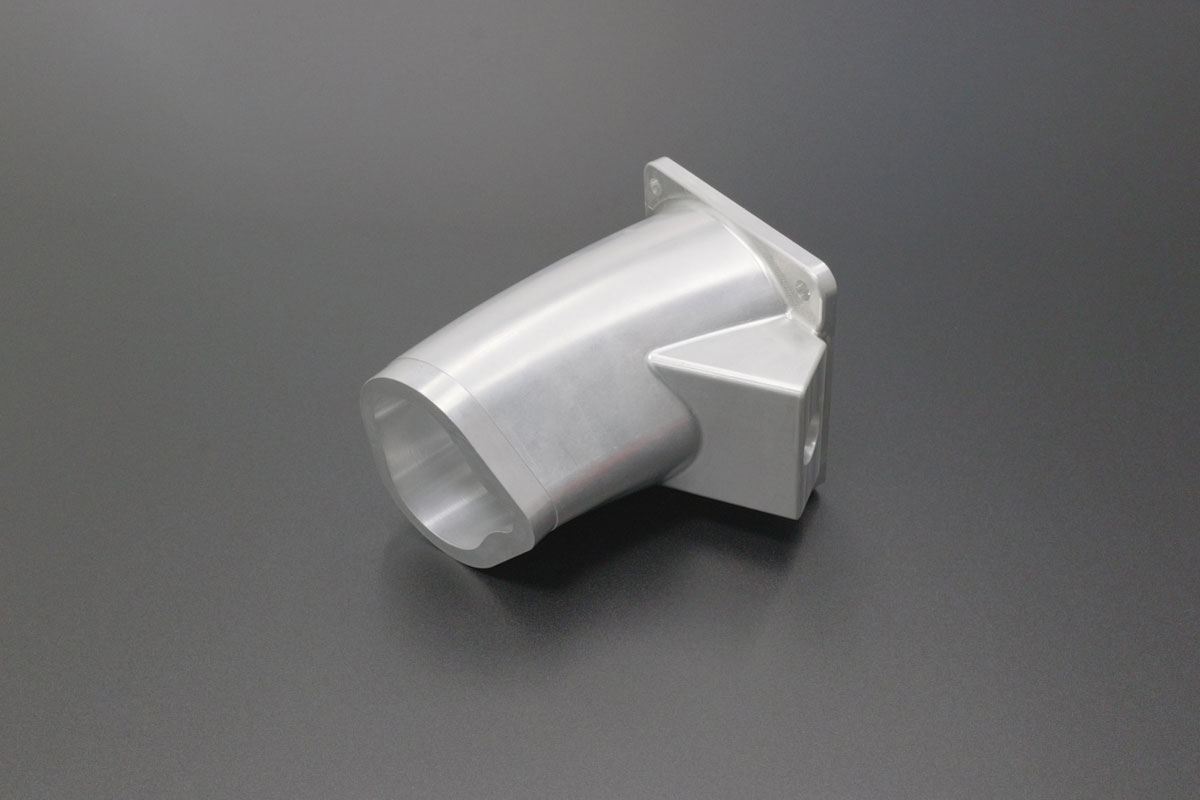

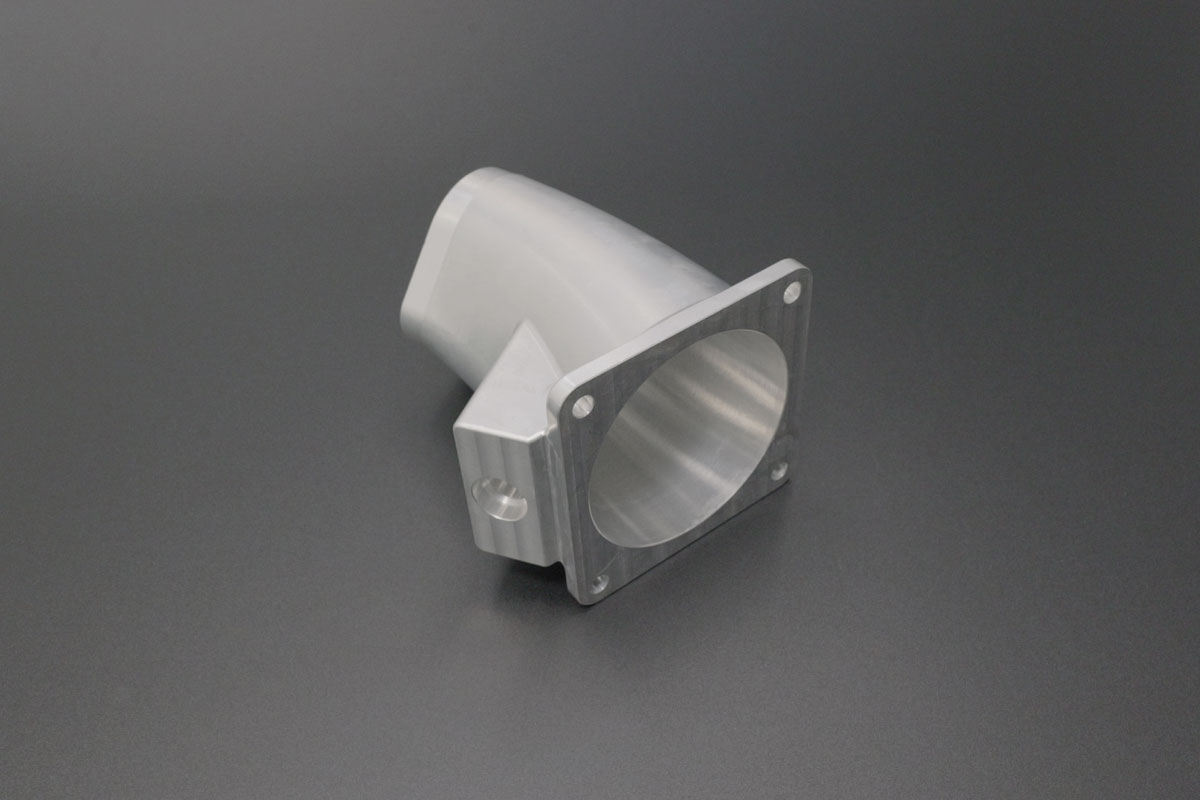

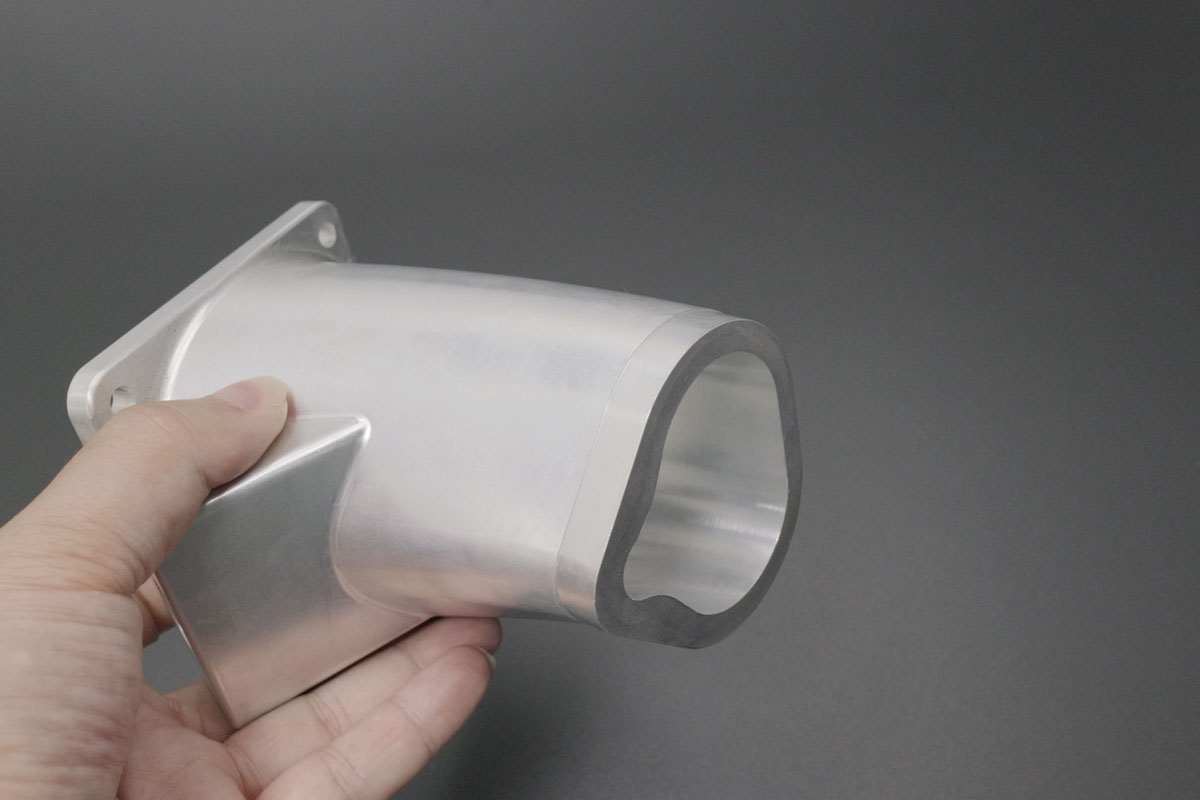

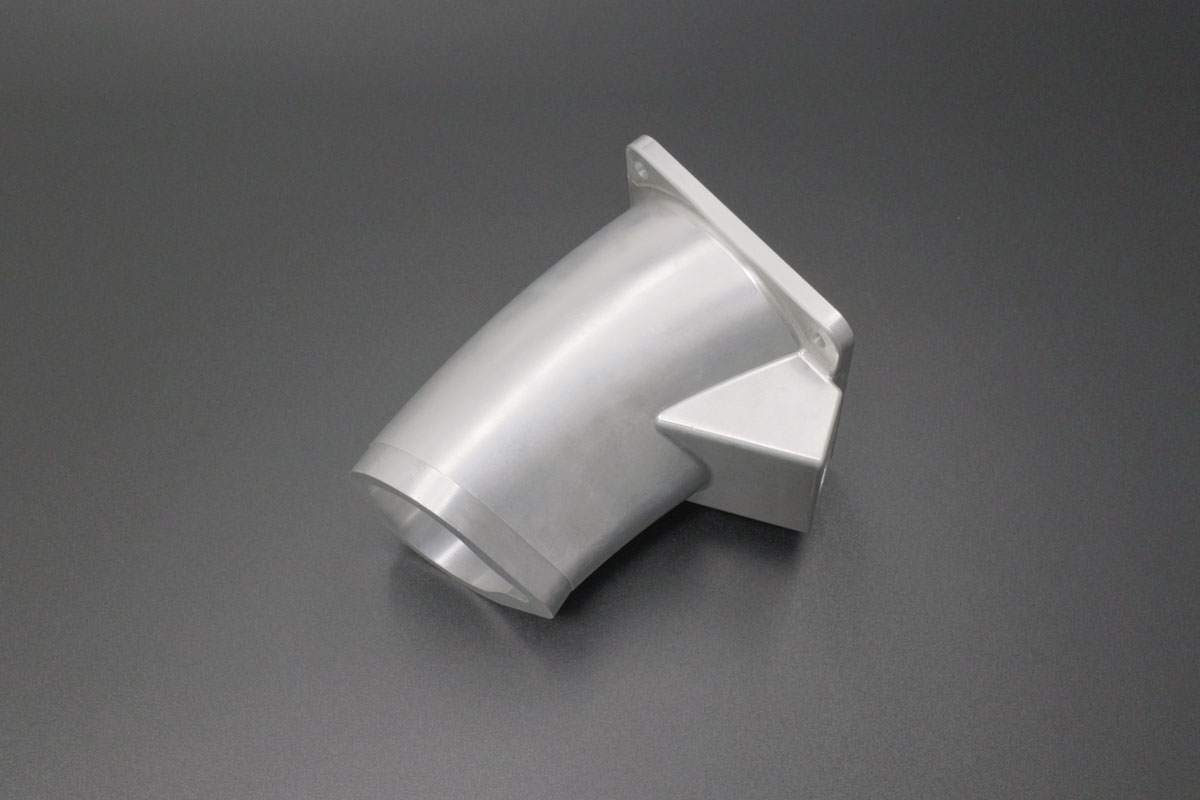

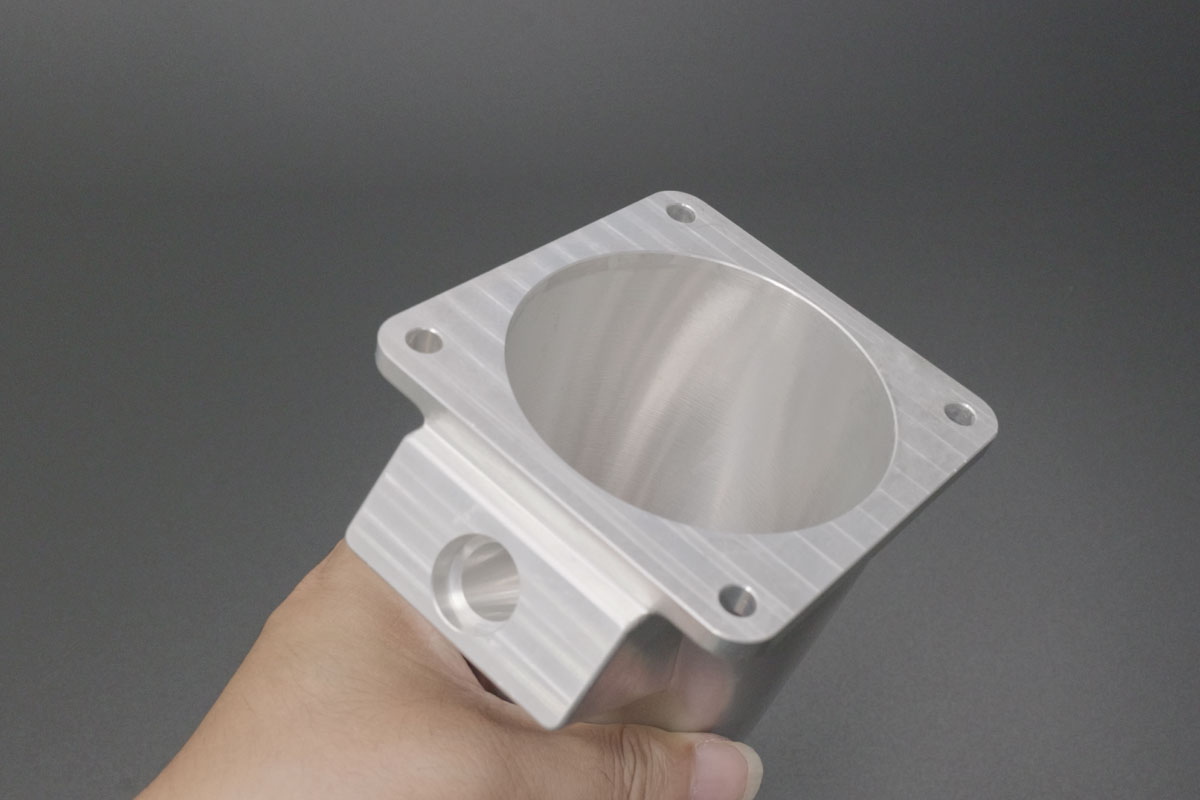

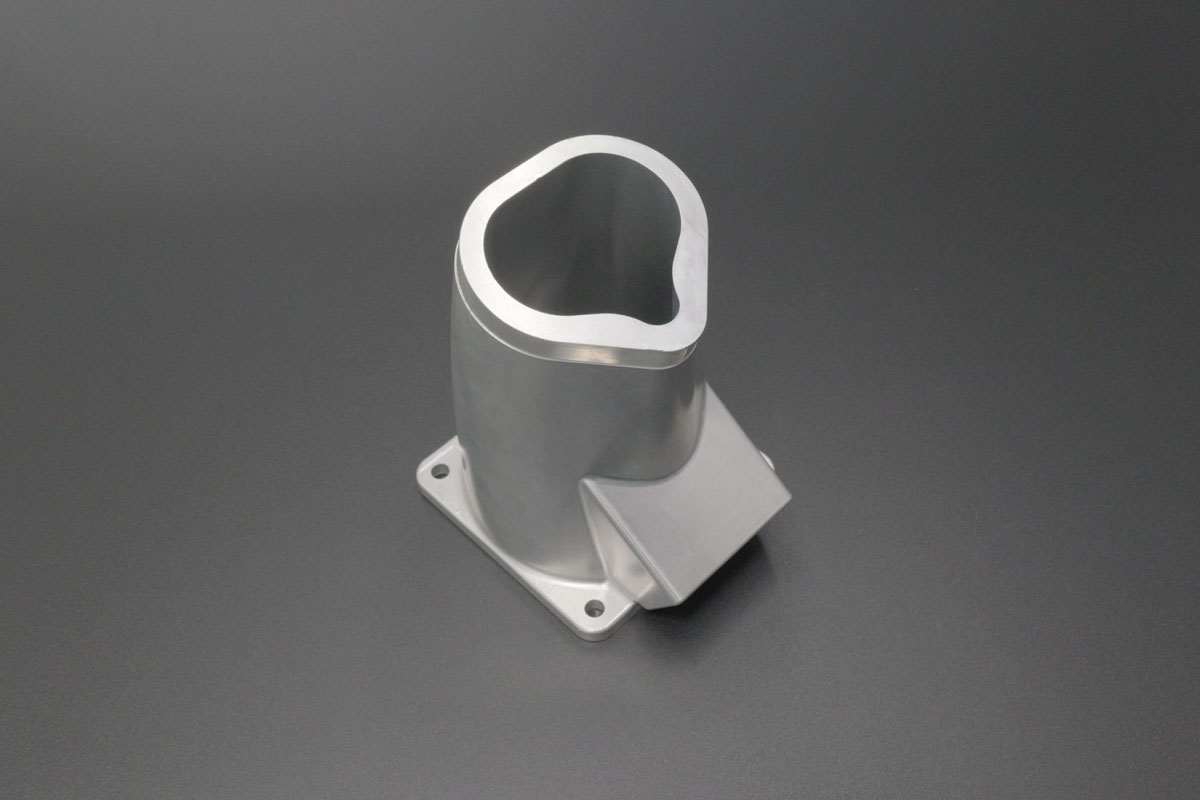

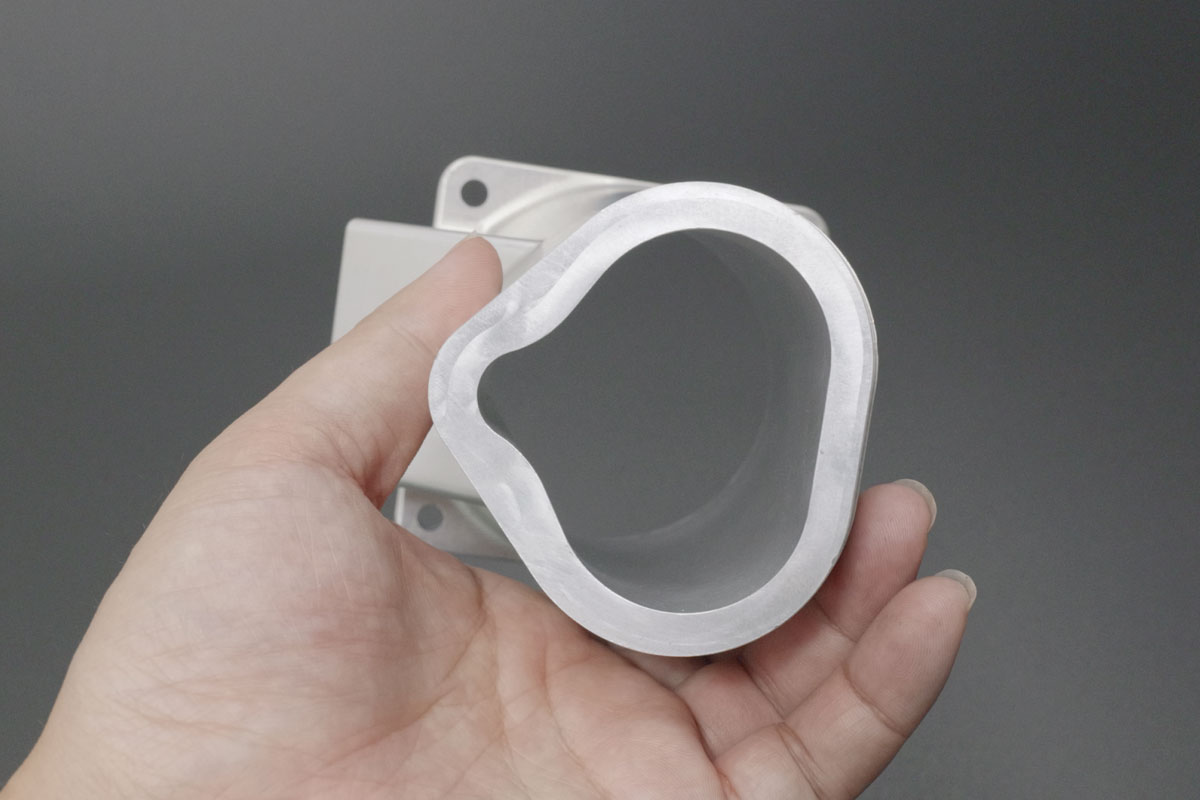

We successfully manufactured a precision 6061 aluminum angled air duct adapter housing for an industrial control equipment application. This complex housing features angled air duct passages, curved external surfaces, and thin-wall sections — presenting significant machining challenges including stringent high-gloss surface appearance requirements, multi-axis fixturing and positioning complexity, thin-wall chatter during machining, and difficult curved surface corner finishing. Through 5-axis CNC milling, optimized fixturing strategies, vibration-dampening toolpaths, and specialized finishing techniques, we delivered high-gloss, visually flawless housings meeting all functional and aesthetic requirements.

Project Overview

Key Technical Highlights

• High-Gloss Surface Achievement: Delivered Ra≤0.8μm high-gloss finish on all visible surfaces through optimized 5-axis finishing strategies — using light finishing passes, fine stepovers, and specialized high-polish tooling to eliminate tool marks and achieve optical-quality surfaces.
• Process Innovation:
  • 5-Axis Single-Setup Machining: Full housing geometry — including angled air duct passages, curved external surfaces, and mounting features — machined in a single fixturing setup on a 5-axis CNC mill, ensuring consistent feature alignment without repositioning errors.
  • Multi-Axis Fixturing: Custom fixture design provides stable clamping across multiple angles while maintaining full tool access to all surfaces — preventing vibration and distortion during thin-wall machining.
  • Thin-Wall Chatter Elimination: Variable radial engagement toolpaths with optimized spindle speeds and anti-vibration toolholders eliminate chatter marks on thin-wall sections while maintaining surface integrity.
  • Curved Surface Corner Finishing: Custom lollipop and tapered end mills with 5-axis contouring achieve clean corners on complex curved surfaces — eliminating burrs and maintaining profile tolerance.
  • Staged Finishing Sequence: Roughing establishes near-net geometry, followed by semi-finishing, then ultra-light finishing passes for high-gloss surface achievement.
• Surface Quality:
  • High-gloss surfaces achieve Ra≤0.8μm with consistent visual appearance across all visible zones.
  • No tool marks, chatter marks, or surface defects on visual surfaces.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.015mm), curved surface profile verification, and high-gloss surface finish inspection using surface roughness testing (Ra≤0.8μm visual zones / Ra≤1.6μm functional zones), supplemented by visual inspection under controlled lighting.

Industry Applications

This solution demonstrates our expertise in precision cosmetic-grade component manufacturing, ideal for:
✓ Industrial control equipment housings ✓ Angled air duct adapters ✓ High-gloss aesthetic components ✓ Complex contoured enclosures

Why Partner With Us?

• Proven expertise in high-gloss surface machining with Ra≤0.8μm capability
• Advanced 5-axis machining and multi-axis fixturing solutions
• Vibration-dampening strategies for thin-wall chatter elimination
• 12+ years of precision manufacturing experience across industrial control and equipment sectors
