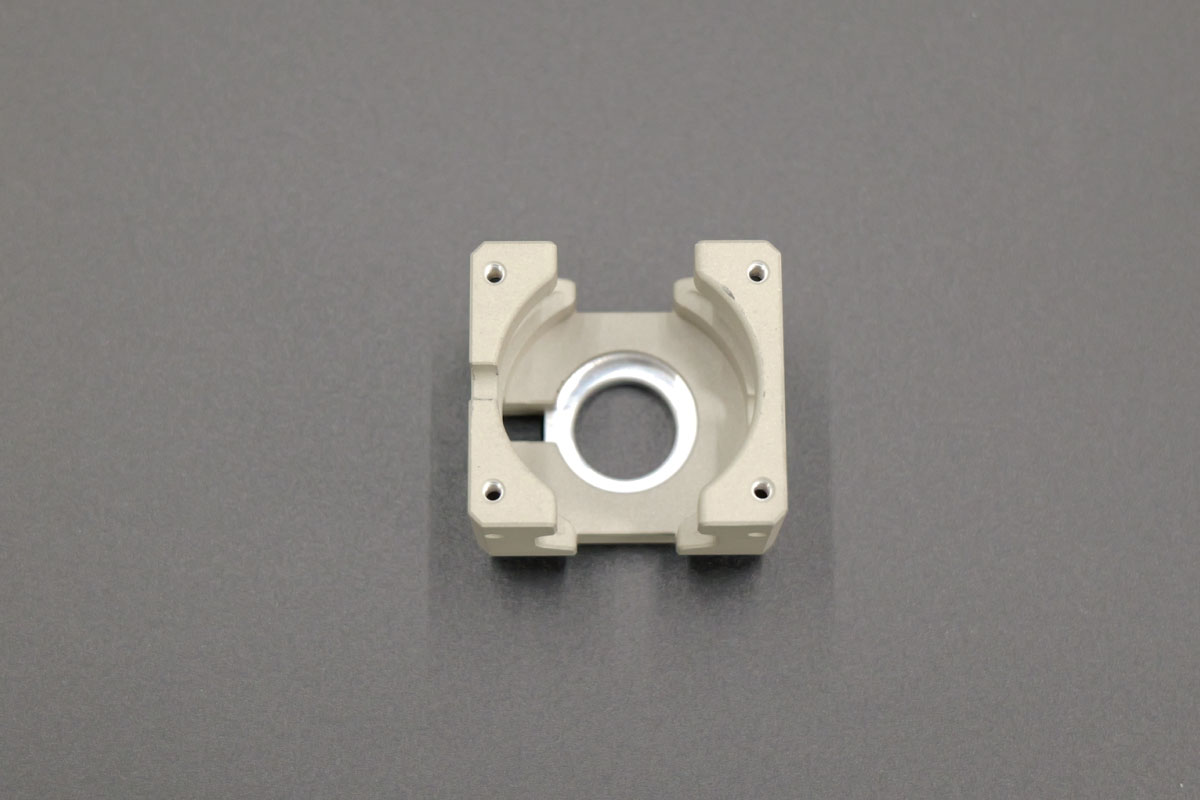

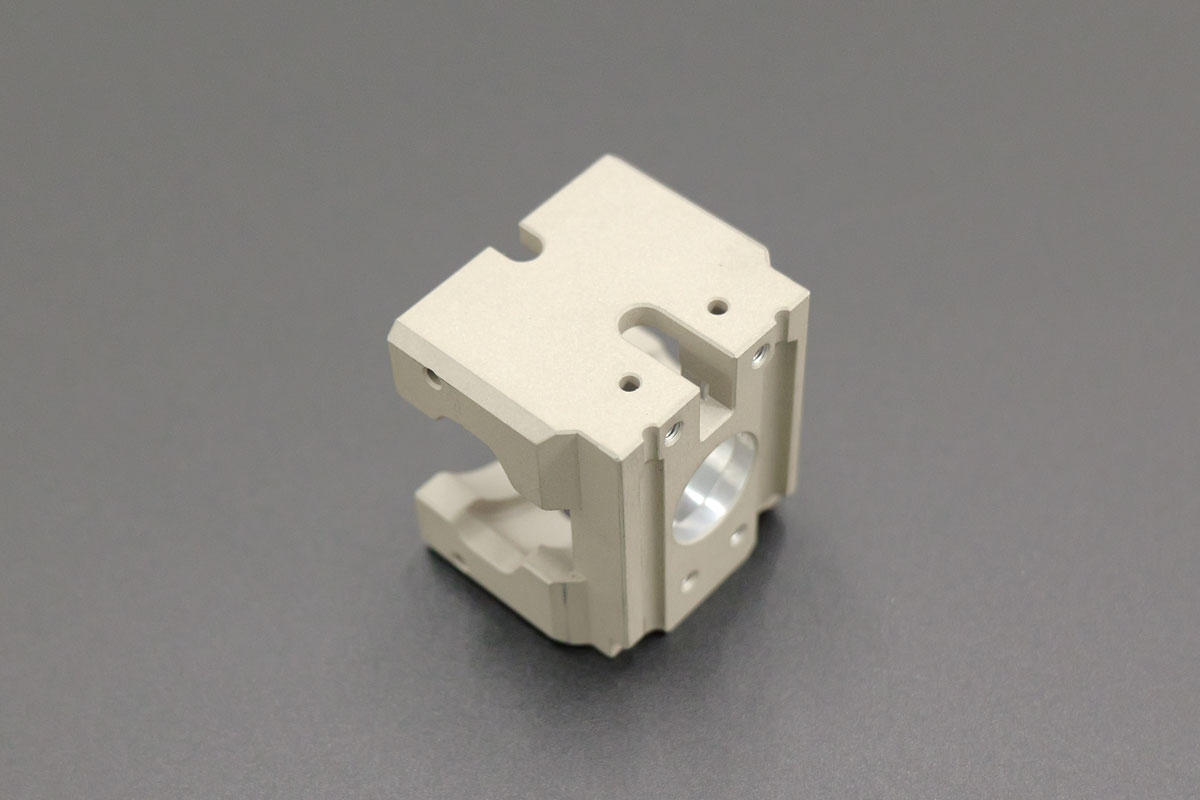

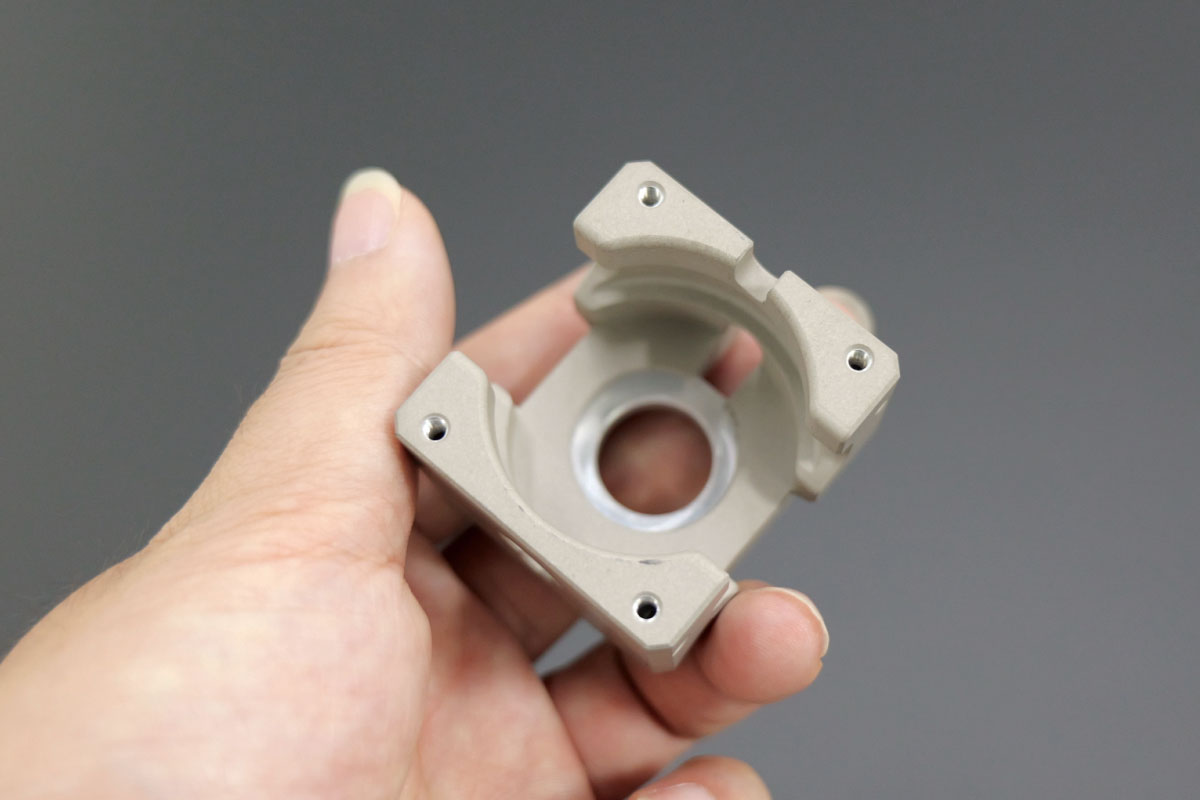

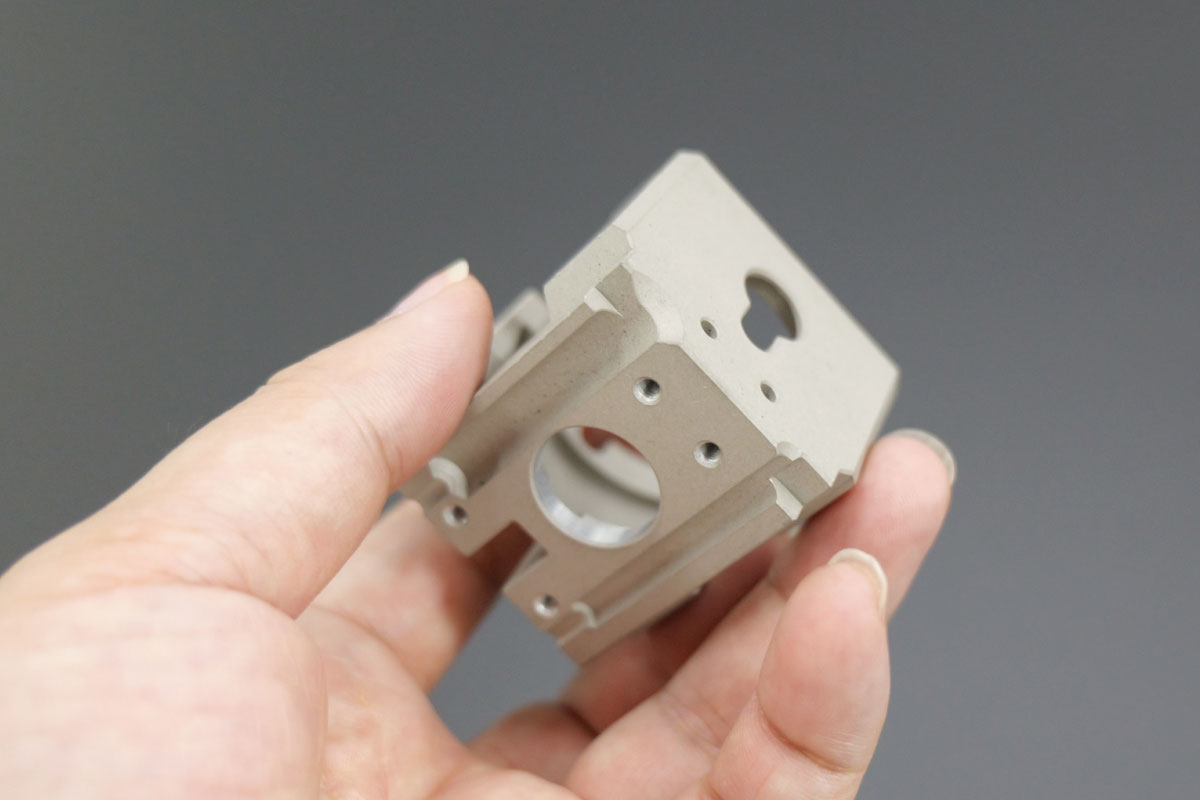

Precision 6061 Aluminum U-Shaped Bridge Fixture Base with Anodized Ceramic Coating

We successfully manufactured a precision 6061 aluminum U-shaped bridge fixture base for an automation equipment application. This structural U-shaped base features vertical side walls with narrow internal slots and presents significant machining challenges — including corner clean-out in confined slot geometries, stress concentration crack prevention at wall junctions, and vertical wall deformation control during drilling operations. Through optimized toolpath strategies, stress-relief sequences, and precision fixturing, we delivered dimensionally stable fixture bases with a durable ceramic-like hard anodized surface for enhanced wear and corrosion resistance.

Project Overview

Key Technical Highlights

• Narrow Internal Slot Corner Clean-Out: Implemented specialized corner-finishing toolpaths using small-diameter end mills with optimized engagement angles to achieve clean, burr-free corners (≤0.5mm radius) in confined vertical slots — eliminating material buildup and stress risers.
• Stress Concentration Crack Prevention:
  • Staged Material Removal: Controlled roughing and finishing sequences minimize stress accumulation at U-shaped wall junctions.
  • Radiused Internal Corners: Optimized corner radii distributed stress evenly across transitions, preventing micro-crack initiation.
  • Stress-Relief Machining: Balanced material removal across both vertical walls maintains symmetric stress distribution.
• Vertical Wall Deformation Control:
  • Backed Drilling Support: Custom fixturing with internal wall support prevents wall deflection during drilling operations.
  • Optimized Drilling Parameters: Controlled feed rates and specialized drill geometries minimize cutting forces on vertical walls, ensuring ≤0.02mm deformation.
• Hard Anodized Ceramic Coating:
  • Type III hard anodizing creates a dense ceramic-like oxide layer (25-50μm) with exceptional wear resistance and surface hardness (HRC 65-70 equivalent).
  • Enhanced corrosion resistance and dielectric properties suitable for demanding automation environments.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.02mm), flatness (≤0.01mm), and wall deformation verification (≤0.02mm after drilling), supplemented by coating thickness testing (25-50μm) and visual inspection of internal slot corners.

Industry Applications

This solution demonstrates our expertise in precision U-shaped fixture base manufacturing with surface treatment, ideal for:
✓ Automation equipment bases ✓ Assembly line fixture plates ✓ Test and inspection tooling ✓ Robotic workcell mounting platforms
