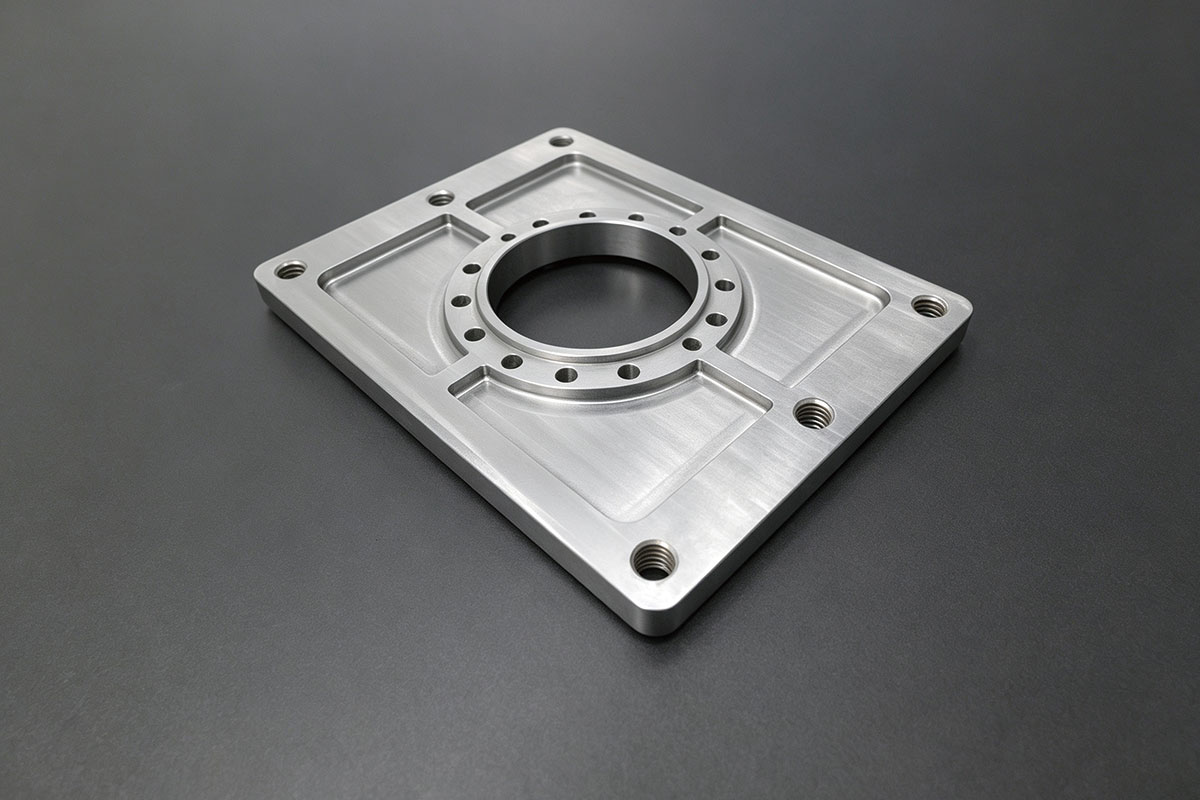

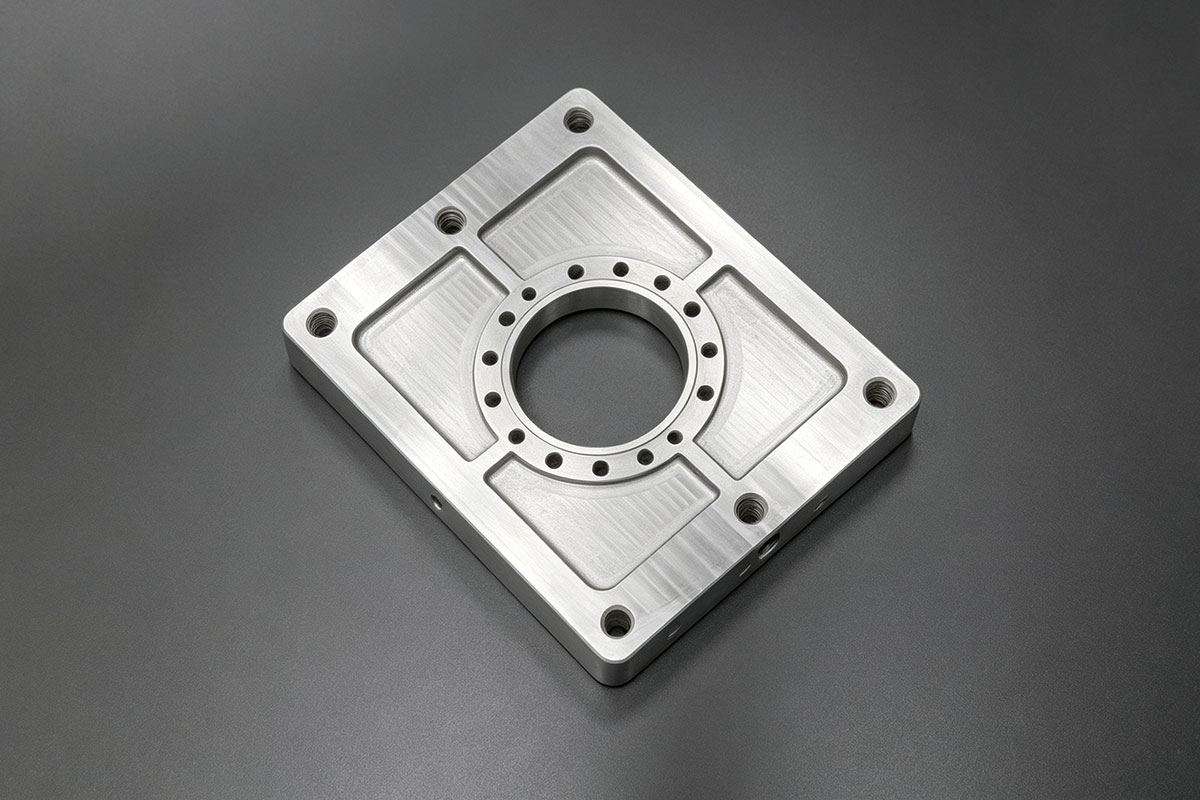

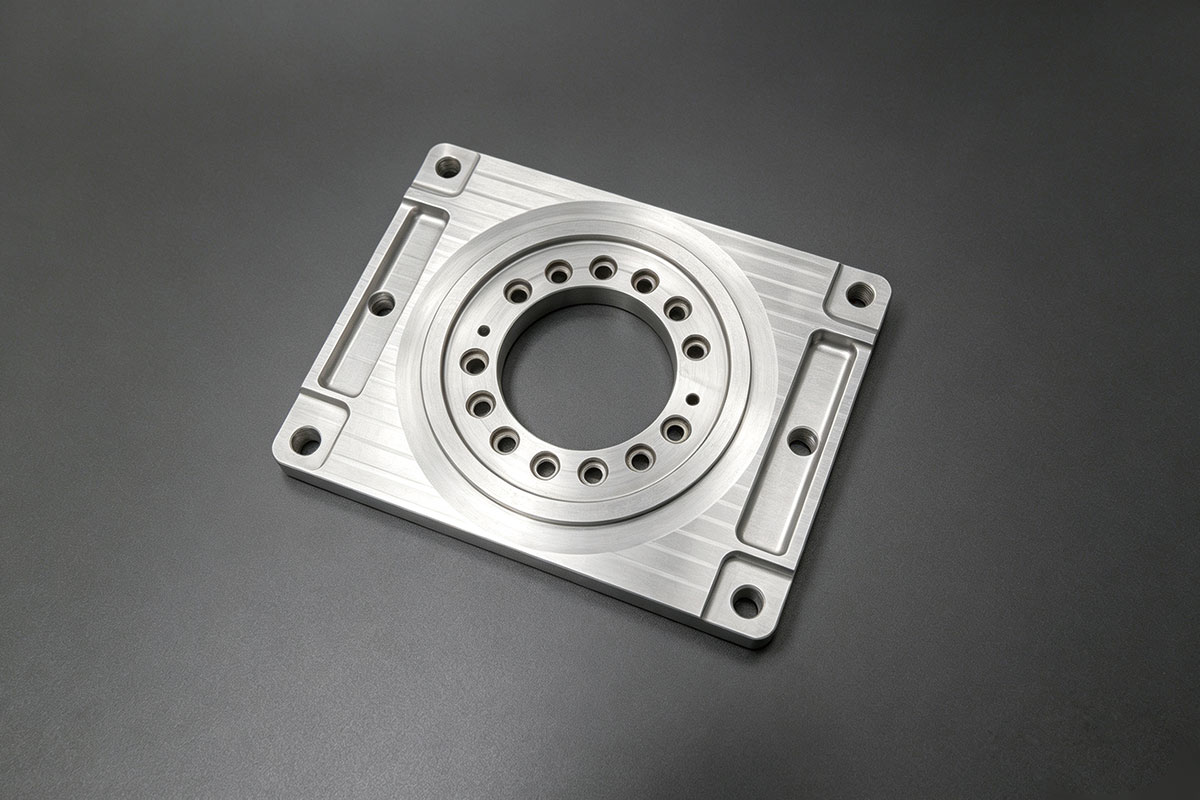

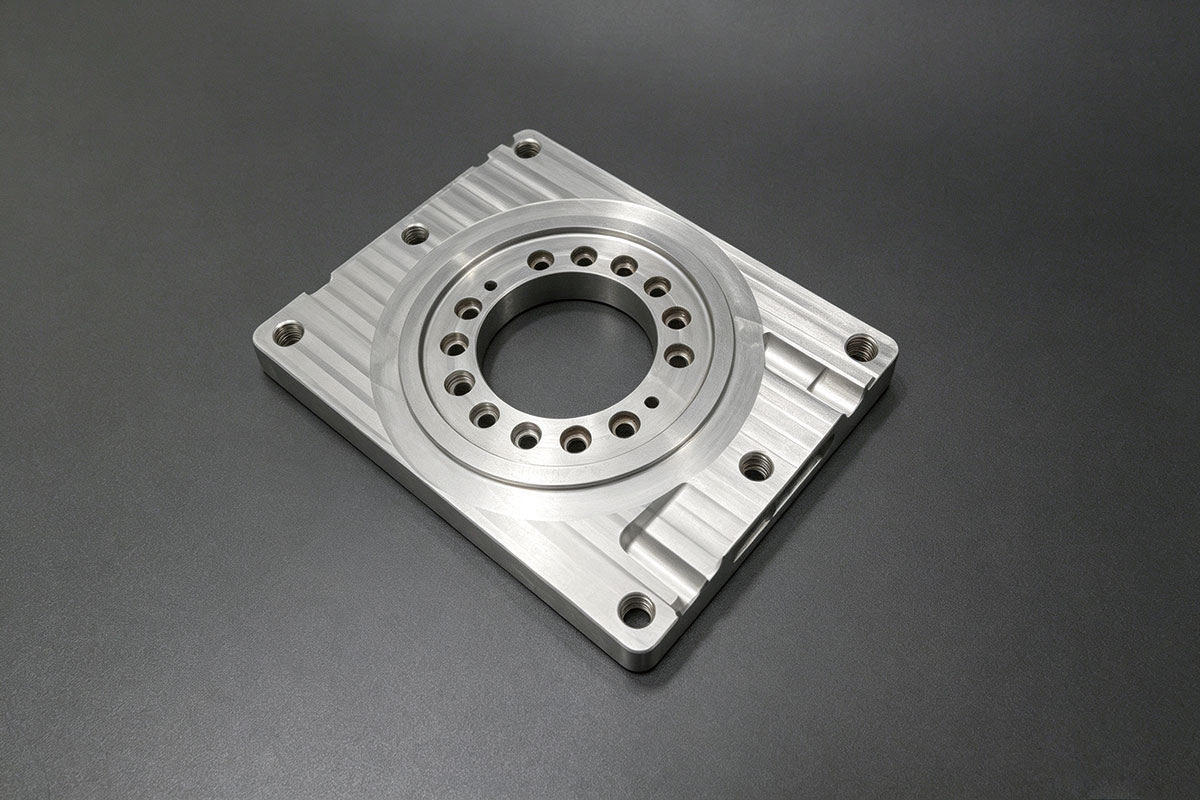

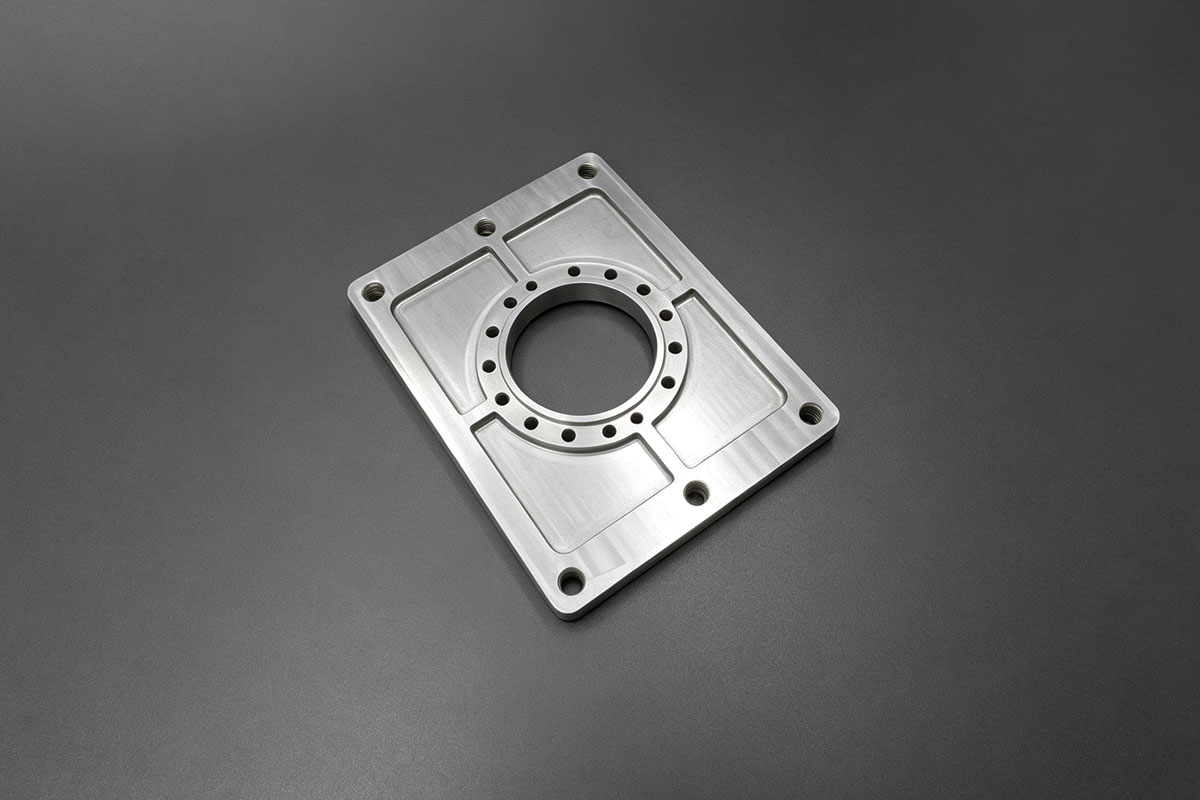

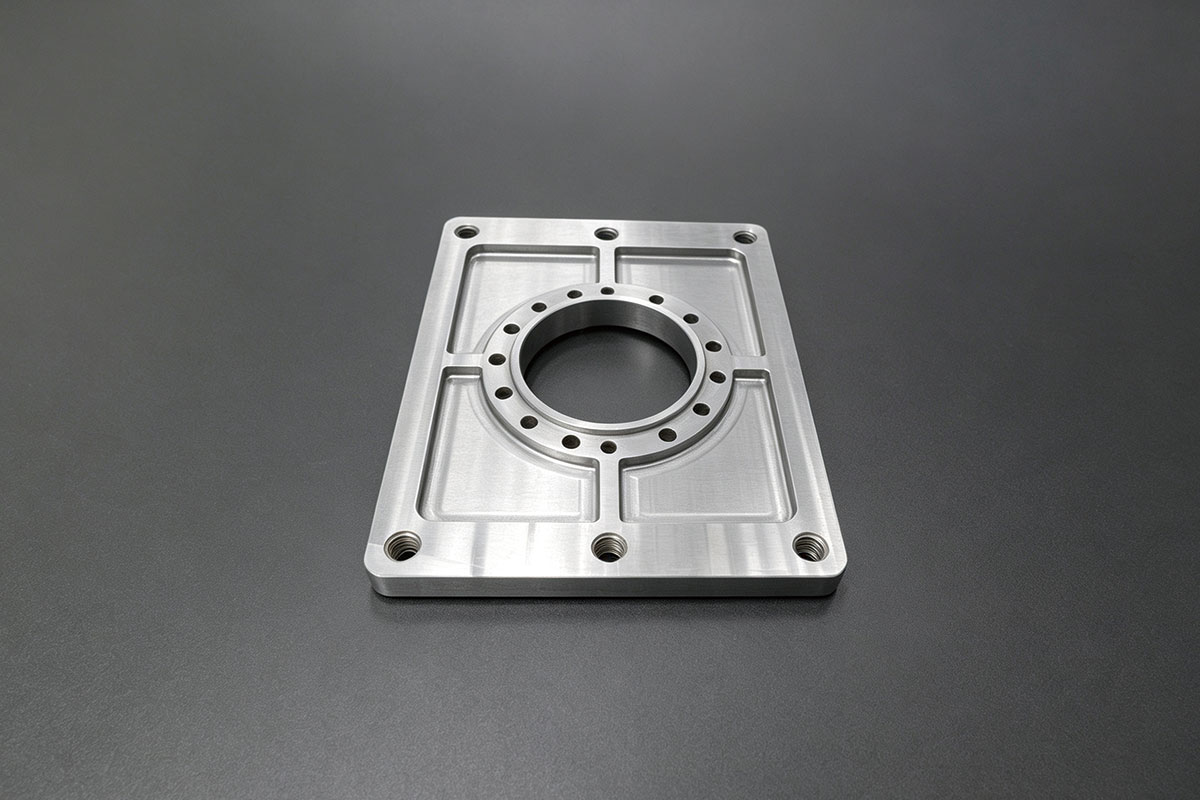

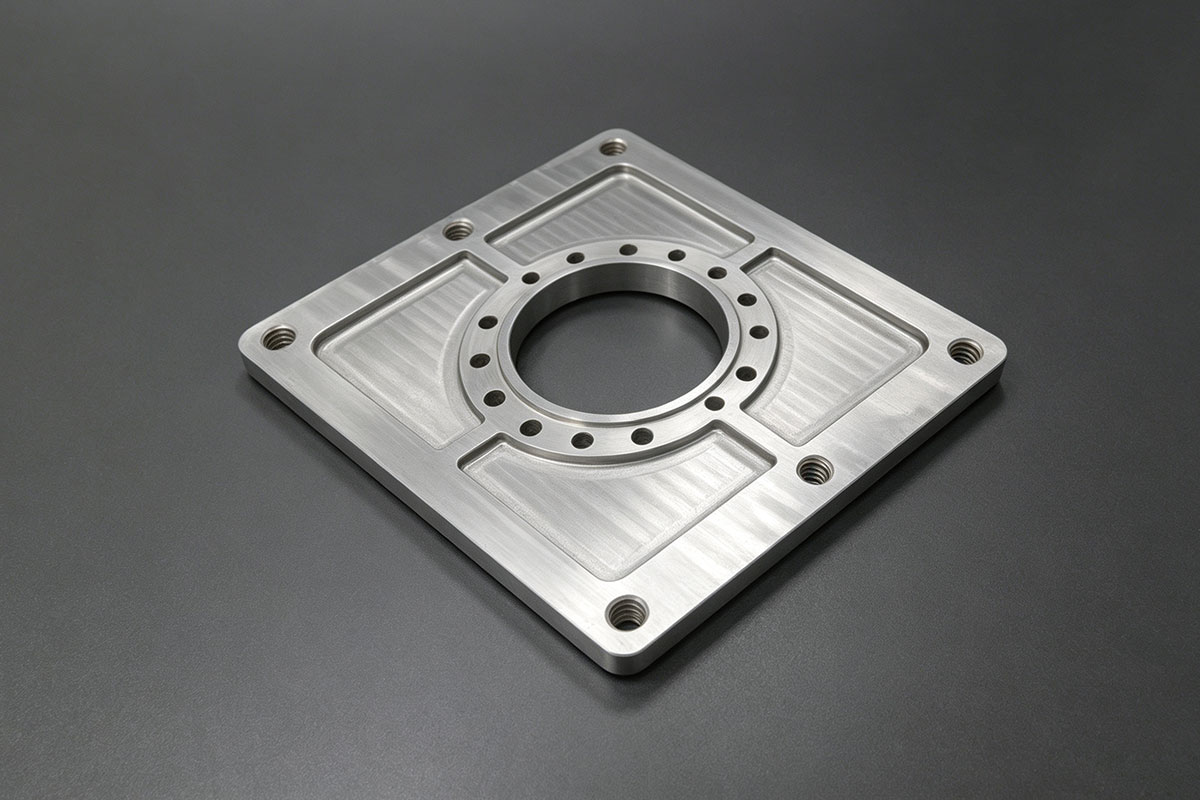

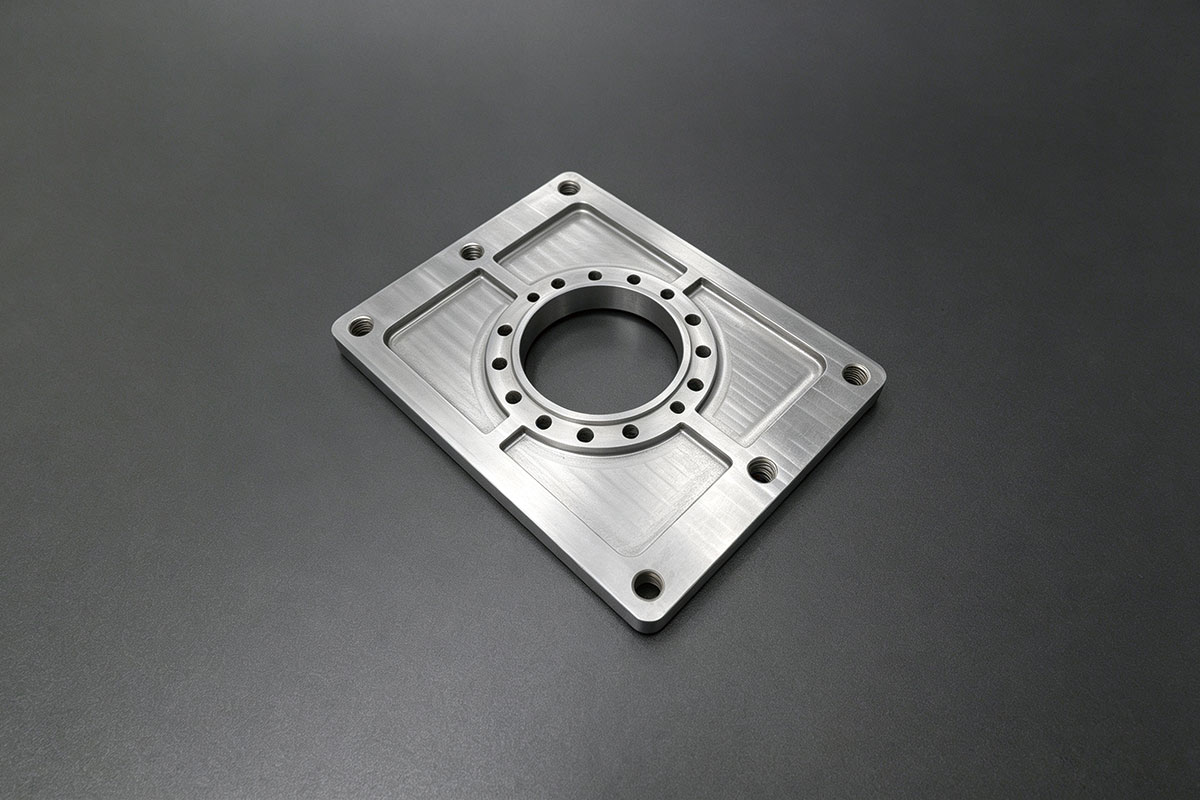

Precision 6061 Square Flange Rotary Adapter Plate with Flatness and Stress Deformation Control

We successfully manufactured a precision 6061 square flange rotary adapter plate for a semiconductor vacuum equipment application. This precision interface component features a square flange configuration with multiple mounting features — presenting significant machining challenges including stringent flatness requirements across the thin plate and stress-induced deformation during thin-plate milling. Thin aluminum plates are particularly susceptible to distortion from residual stress release, clamping forces, and machining heat . Through stress-relief machining sequences, low-stress fixturing, and symmetrical material removal strategies, we delivered flat, dimensionally stable adapter plates meeting semiconductor vacuum equipment specifications.

Project Overview

Key Technical Highlights

• Thin-Plate Stress Deformation Prevention: Implemented stress-relief machining sequences with symmetrical material removal from both sides of the plate — allowing residual stresses to relax before final finishing. Studies show that significant material removal disrupts stress equilibrium, releasing internal stresses and causing the plate to deform . Our staged approach manages stress release while maintaining thickness control.
• Process Innovation:
  • Staged Stress-Relief Sequence: Roughing both faces in alternating passes with intermediate stress-relief pauses, followed by final finishing passes — preventing the "bow" or "cup" distortion common in thin-plate milling .
  • Low-Stress Fixturing: Custom fixtures with full-surface vacuum or mechanical backing support the entire plate underside — eliminating clamping-induced deformation and maintaining consistent flatness during machining .
  • Symmetrical Material Removal: Alternating cuts on both plate faces maintain balanced stress distribution — preventing the asymmetric stress release that causes warpage .
  • Controlled Coolant Application: Temperature-controlled coolant minimizes thermal distortion during high-speed machining of the thin plate .
• Surface Quality:
  • Precision finishing achieves ≤0.01mm flatness across the full plate surface.
  • Interface surfaces maintain Ra≤1.6μm finish for consistent component mating.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for flatness (≤0.01mm) and dimensional accuracy (±0.015mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for distortion and surface defects.

Industry Applications

This solution demonstrates our expertise in precision thin-plate adapter component manufacturing, ideal for:
✓ Semiconductor vacuum equipment adapter plates ✓ Rotary interface mounting flanges ✓ Precision thin-plate structural components ✓ Equipment mounting plates

Why Partner With Us?

• Proven expertise in thin-plate machining with stress deformation prevention
• Advanced stress-relief sequencing and symmetrical removal strategies
• Low-stress fixturing for flatness-critical components
• 12+ years of precision manufacturing experience across semiconductor and vacuum equipment sectors
