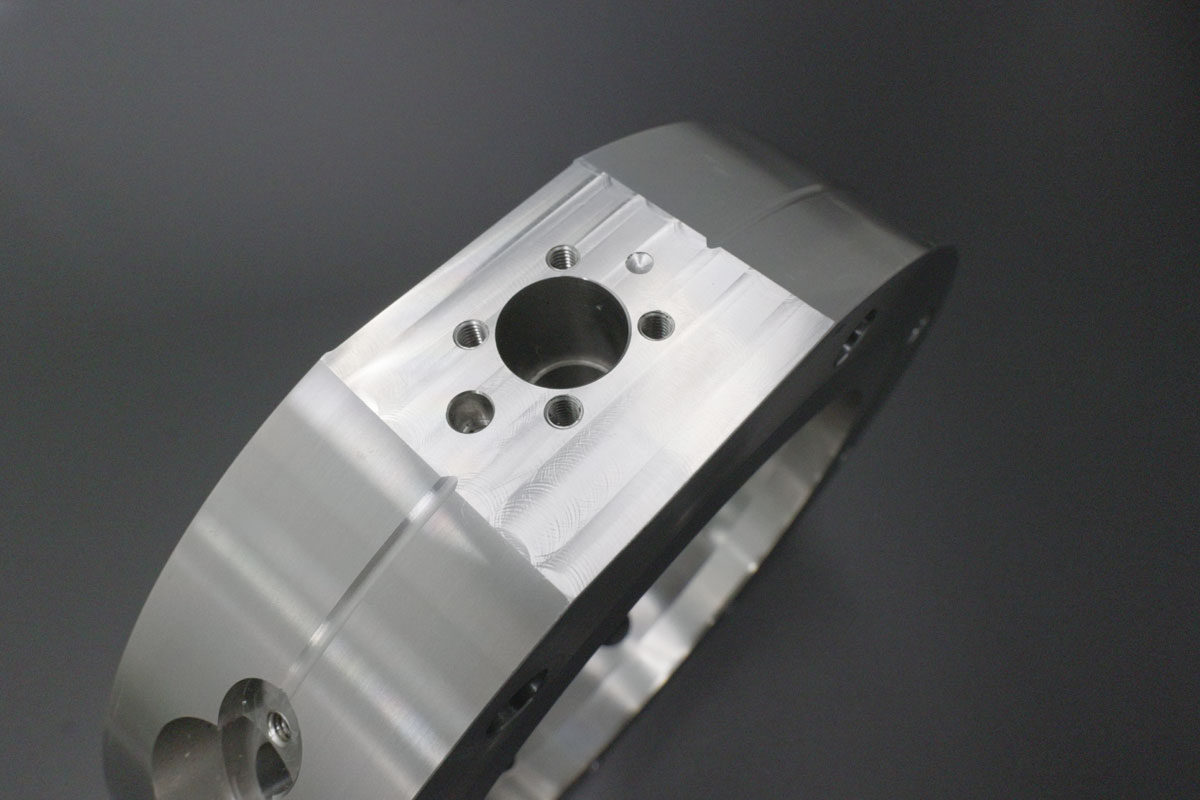

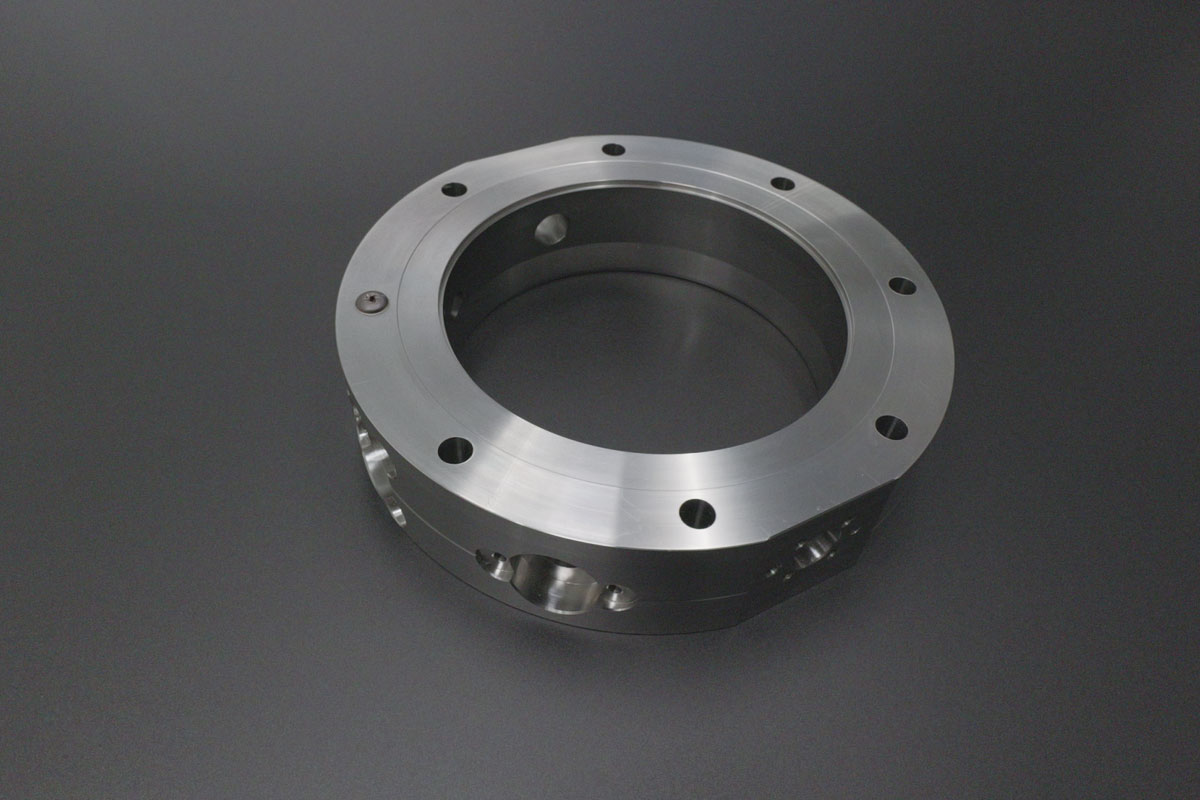

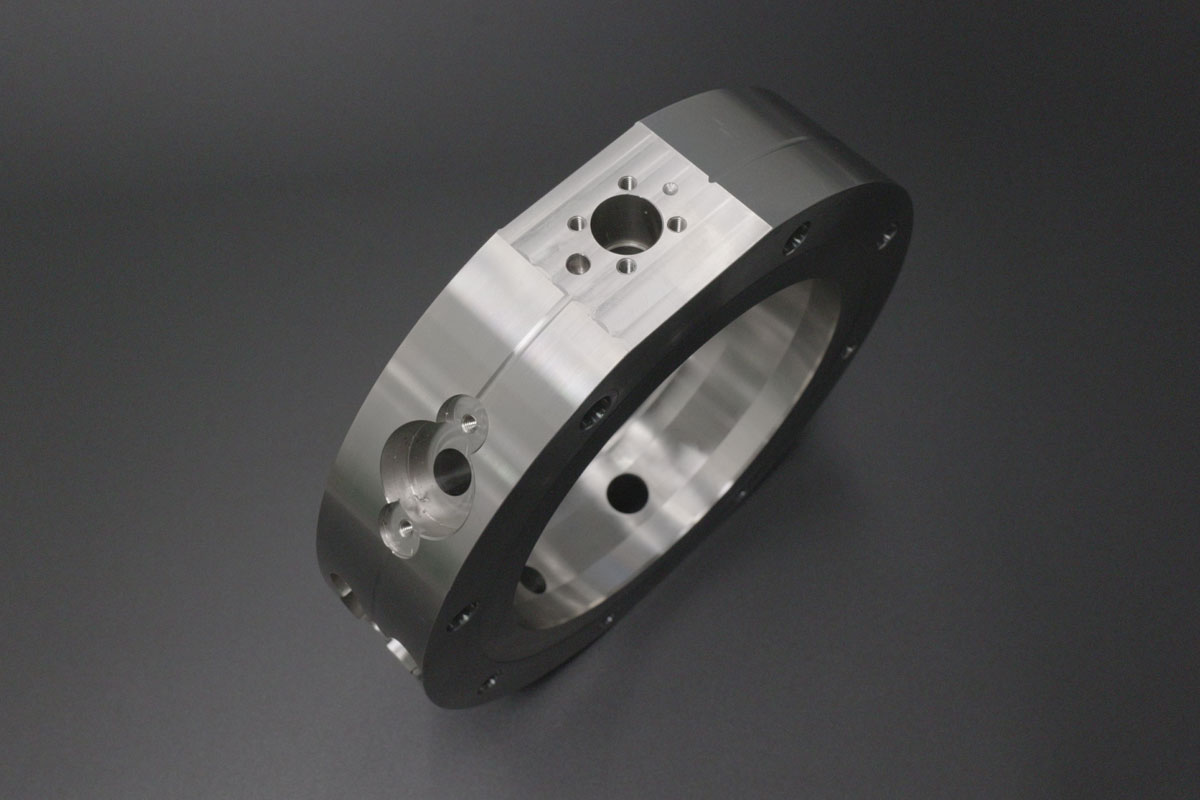

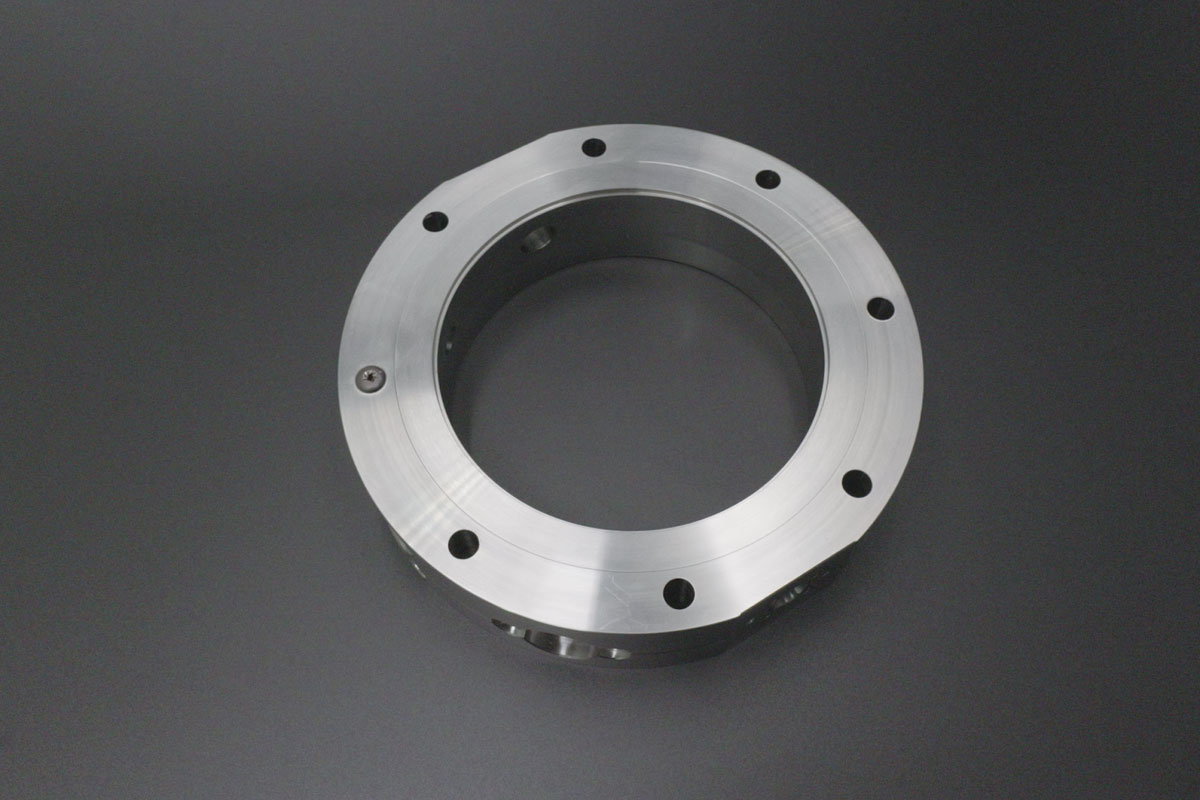

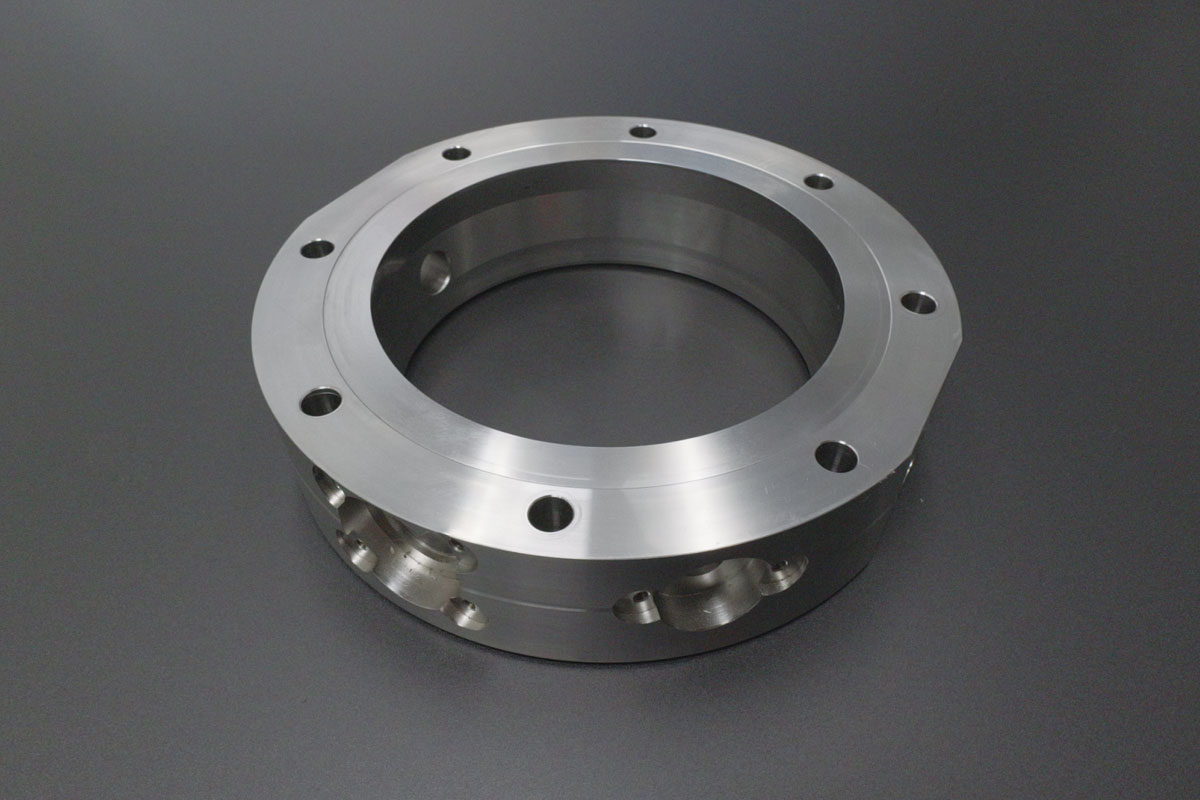

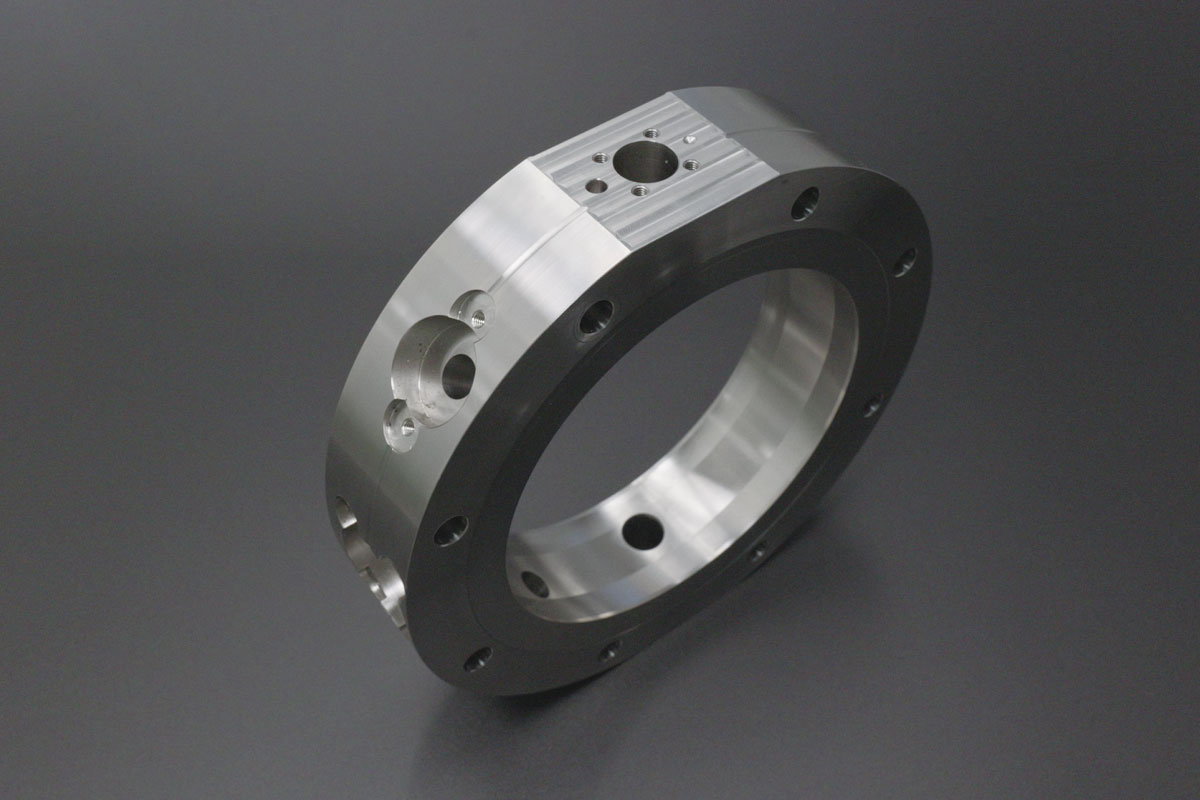

Precision 304 Stainless Steel Vacuum Flange Cylinder with Seal Surface Flatness and Coaxiality Control

We successfully manufactured a precision 304 stainless steel vacuum flange cylinder for an industrial vacuum heat treatment equipment application. This critical vacuum chamber component integrates a cylindrical body with a precision sealing flange — presenting significant machining challenges including stringent flange seal face flatness and ring hole coaxiality requirements, as well as stainless steel cutting adhesion and accelerated tool wear caused by the material's high plasticity and low thermal conductivity[citation:11]. Through specialized coating tooling with FET edge treatment, optimized cutting parameters, and precision boring operations, we delivered vacuum-ready flanges meeting seal performance standards.

Project Overview

Key Technical Highlights

• Seal Face Flatness and Coaxiality Control: Achieved ≤0.005mm flatness on the sealing face and ≤0.01mm coaxiality between the ring hole and cylinder axis through single-setup precision boring and facing operations — ensuring proper vacuum seal compression and leak-free chamber performance. The single-setup approach eliminated re-fixturing errors that would compromise geometric alignment[citation:5].
• Process Innovation:
  • Specialized Tooling for Stainless Steel: Utilized tools with TiAlSi-based nano-coatings and FET (Fine Edge Treatment) — the sharp, smooth edge reduces adhesion (sticking) and minimizes the work-hardening layer, while the coating's high hardness and thermal resistance combat rapid wear[citation:3][citation:11].
  • Adhesion and Built-Up Edge Prevention: Controlled cutting speeds with positive rake geometry prevent material adhesion to the cutting edge — reducing the built-up edge that causes poor surface finish and accelerated tool failure[citation:7][citation:11].
  • Optimized Chip Control: Specialized chip-breaking geometries with smooth flow surfaces ensure consistent chip evacuation — preventing chip entanglement that can damage the seal face finish during finishing operations[citation:3].
  • Single-Setup Turn-Mill: Cylindrical turning, flange facing, ring hole boring, and bolt hole patterns machined in a single fixturing setup — maintaining perfect geometric alignment.
• Surface Quality:
  • Sealing face achieves ≤0.005mm flatness with Ra≤0.8μm finish — meeting vacuum seal requirements.
  • Ring hole and seal face free from scratches, chatter marks, and burrs[citation:12].

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for seal face flatness (≤0.005mm), flange coaxiality (≤0.01mm), and dimensional accuracy (±0.015mm), supplemented by surface roughness testing (Ra≤0.8μm) and visual inspection for scratches, burrs, and surface defects.

Industry Applications

This solution demonstrates our expertise in precision vacuum component manufacturing, ideal for:
✓ Industrial vacuum heat treatment chambers ✓ Vacuum furnace components ✓ High-vacuum sealing flanges ✓ Semiconductor vacuum systems

Why Partner With Us?

• Proven expertise in vacuum flange seal surface flatness and coaxiality control
• Specialized tooling strategies for stainless steel adhesion and wear prevention
• Single-setup precision machining for consistent geometric alignment
• 12+ years of precision manufacturing experience across vacuum equipment and heat treatment sectors
