Precision DT4C Pure Iron Guide Cylinder with Post-Machining Heat Treatment and Magnesium Plating

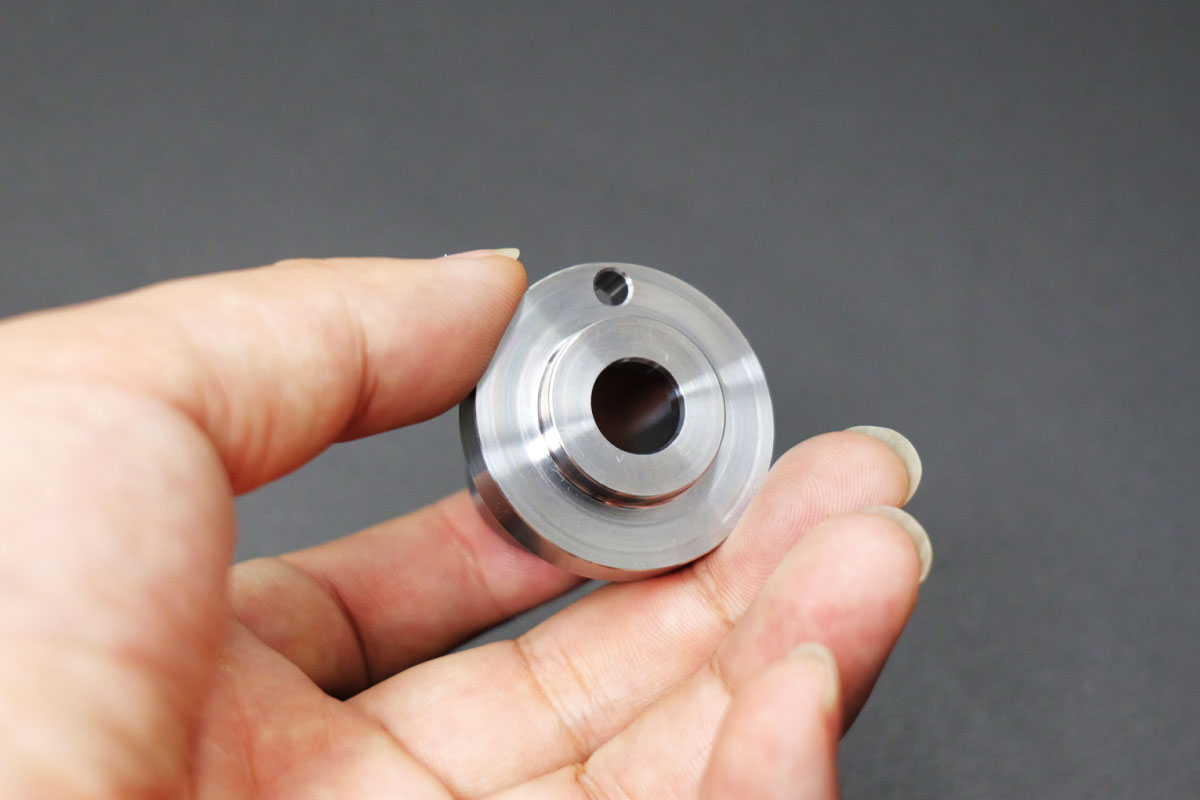

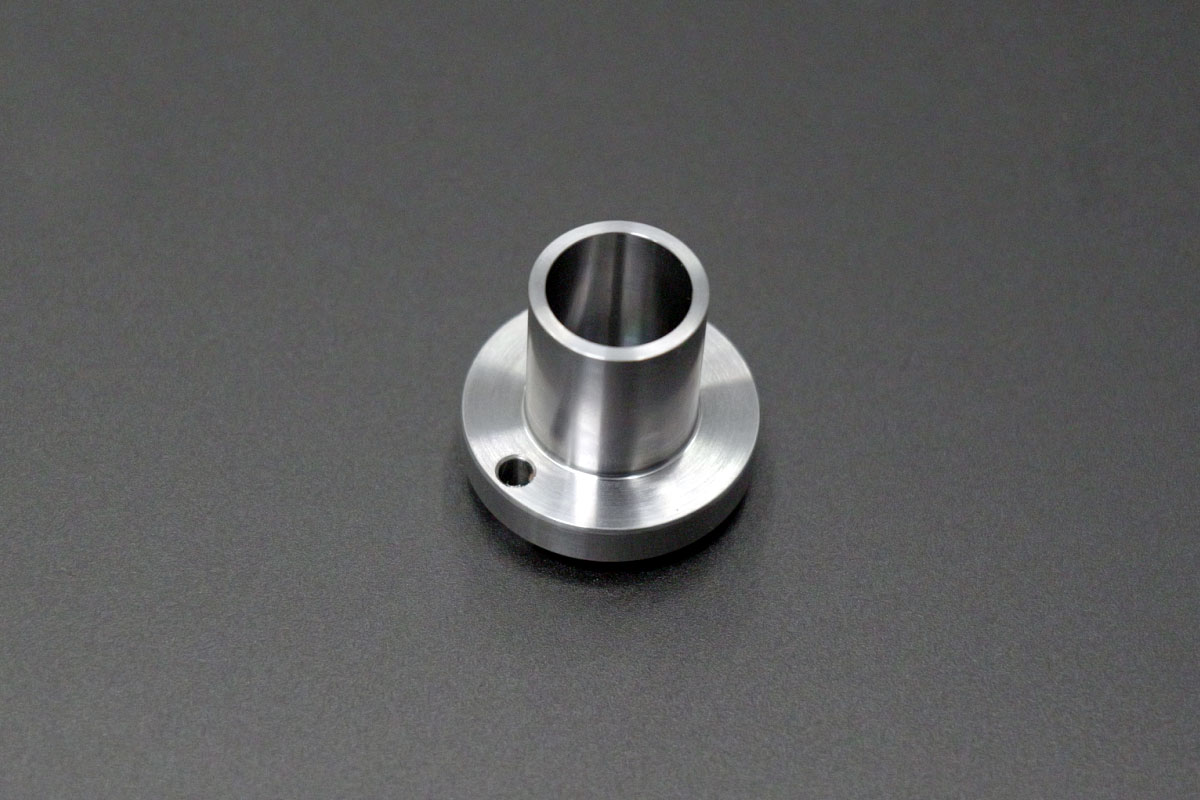

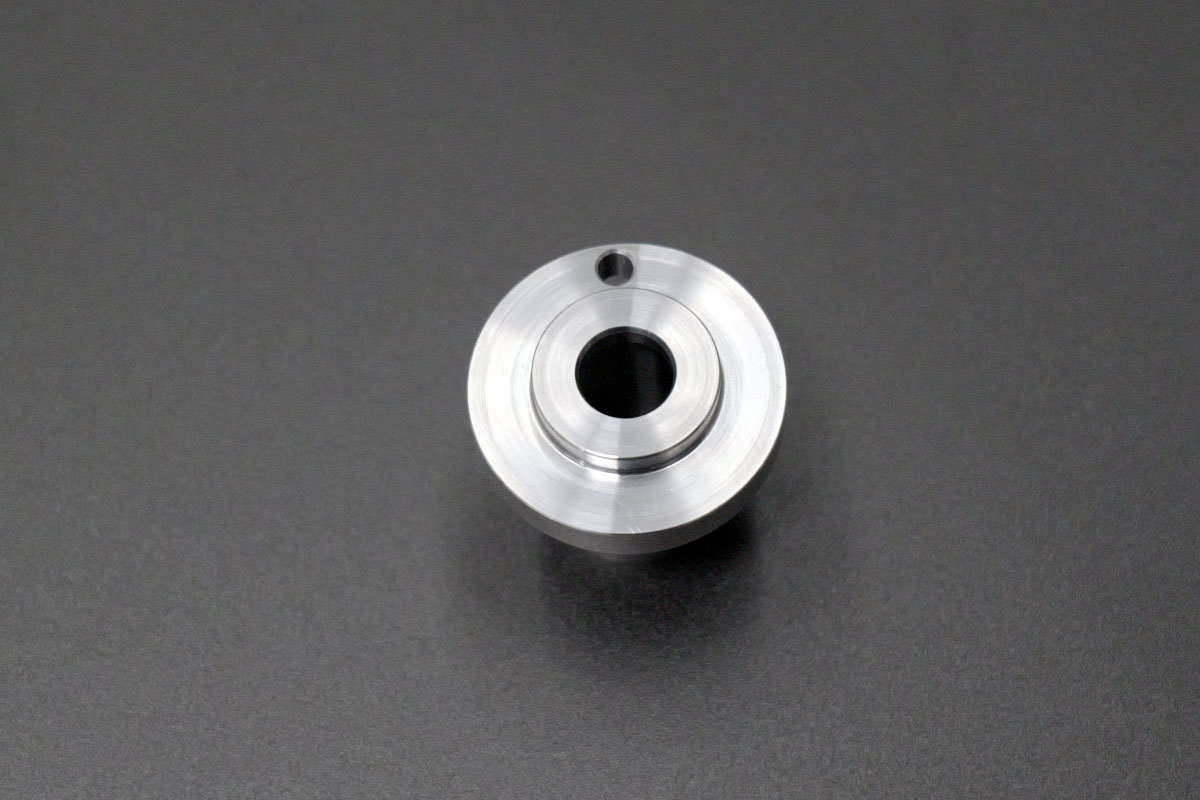

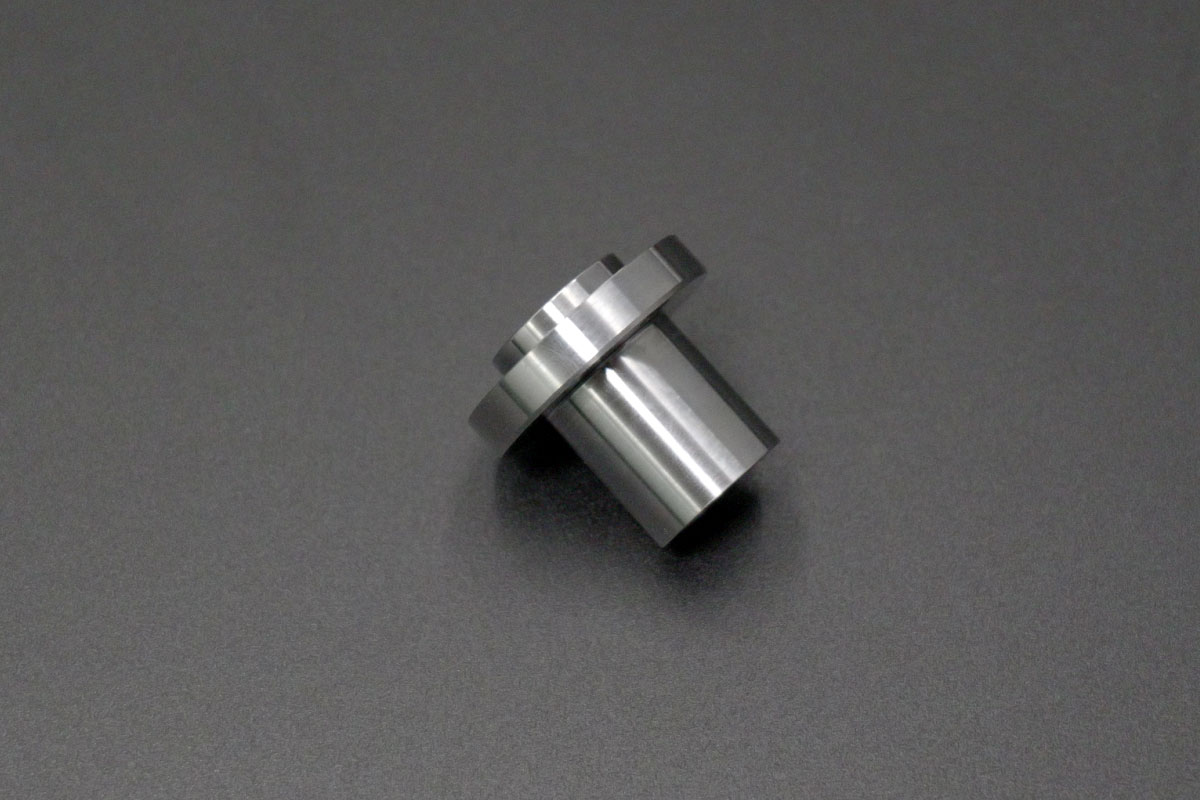

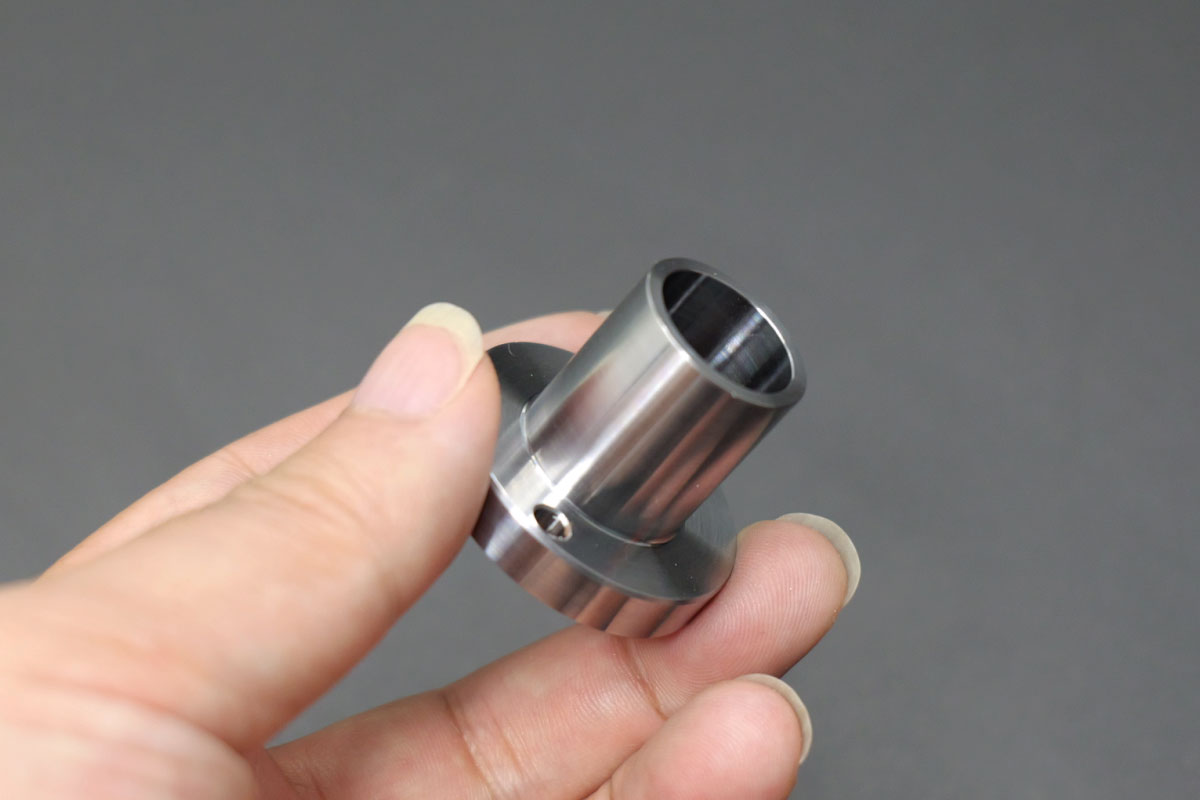

We manufactured a precision DT4C electromagnetic pure iron guide cylinder for a hydraulic equipment application. DT4C pure iron is a high-purity electromagnetic material produced by TISCO (Taiyuan Iron and Steel Group), characterized by extremely low carbon content (≤0.025%), low silicon, phosphorus, and sulfur levels, and exceptional magnetic properties — making it ideal for precision guiding components in hydraulic and electromagnetic systems . The component functions as a critical guide interface requiring precise bore dimensions for sliding fit, presenting three core challenges: dimensional control through heat treatment, stringent bore tolerance and cylindricity requirements, and precise magnesium plating thickness control (5-8μm) . We implemented a sequenced manufacturing approach: turn-mill machining with generous finishing allowance, controlled heat treatment to relieve residual stresses, followed by precision finishing of the guide bore to final dimensions, and electroplating with thickness monitoring to achieve 5-8μm coverage while maintaining bore tolerance. The result: guide cylinders meeting hydraulic equipment precision standards.

Project Overview

Key Technical Highlights

• Post-Machining Heat Treatment Strategy: DT4C pure iron retains internal stresses from processing that can distort precision bores. Following a "rough-to-finish" principle, we performed rough turn-mill operations with generous allowance, followed by stress-relief heat treatment — allowing material relaxation before final bore finishing. This sequencing prevents the dimensional drift that occurs when heat treatment is applied after final machining .
• Bore Tolerance and Cylindricity Control: The guide bore functions as a precision sliding interface. We applied precision boring operations with controlled finishing passes on the heat-treated workpiece, achieving ±0.01mm tolerance and ≤0.005mm cylindricity. Research on guide cylinder manufacturing confirms that inner wall finish quality is directly tied to precision boring parameters .
• Magnesium Plating Process Control: The 5-8μm magnesium plating specification serves multiple purposes — enhancing corrosion resistance, improving sliding performance, and providing sacrificial protection. Plating thickness must be controlled within the narrow 5-8μm window to avoid altering the precision-bored dimensions. We applied electroplating with real-time thickness monitoring, ensuring consistent coverage without exceeding tolerance . Post-plating inspection verified both coating integrity and final bore dimensions.

Quality Verification

CMM inspection verified bore tolerance (±0.01mm) and cylindricity (≤0.005mm) post-plating. Surface roughness confirmed at Ra≤0.8μm. Plating thickness measured at 5-8μm via X-ray fluorescence. All inspections performed after full process completion.

Industry Applications

Ideal for hydraulic equipment guide cylinders, precision sliding interfaces, electromagnetic actuators, and high-purity iron components requiring post-machining treatment.

Why Partner With Us?

• Proven expertise in DT4C pure iron precision machining
• Sequenced rough-finish-heat treat-finish workflow for distortion prevention
• Precision boring for micron-level bore tolerance and cylindricity
• Controlled magnesium plating with thickness verification
• 12+ years serving hydraulic and precision equipment sectors
