Precision 6061 Lathe Chuck Body with Turn-Mill and Wire EDM Hybrid Machining

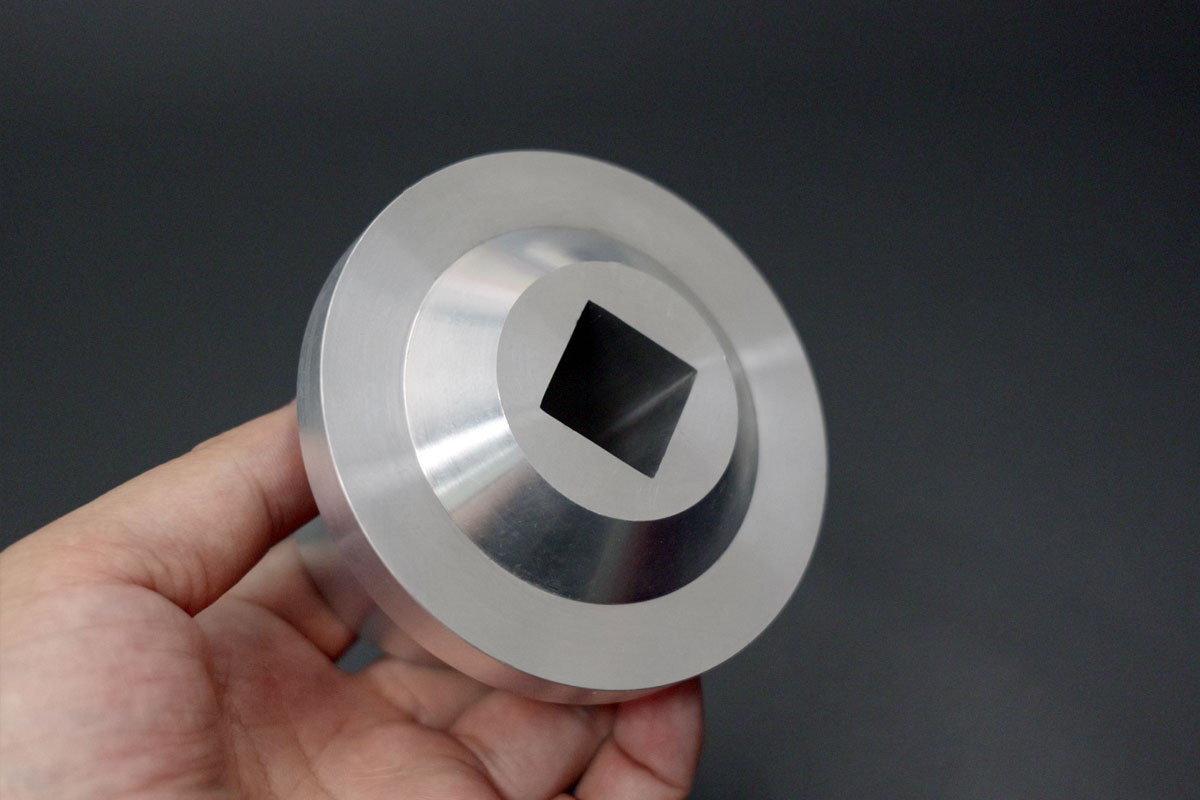

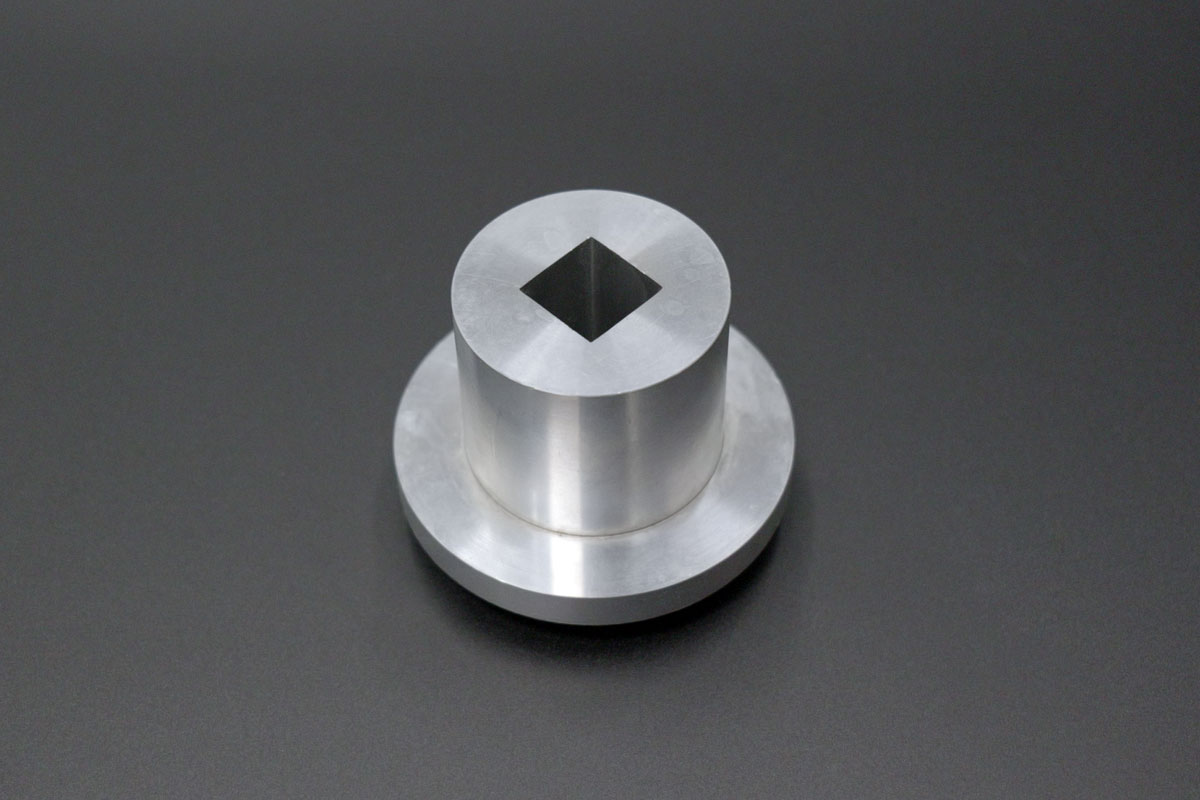

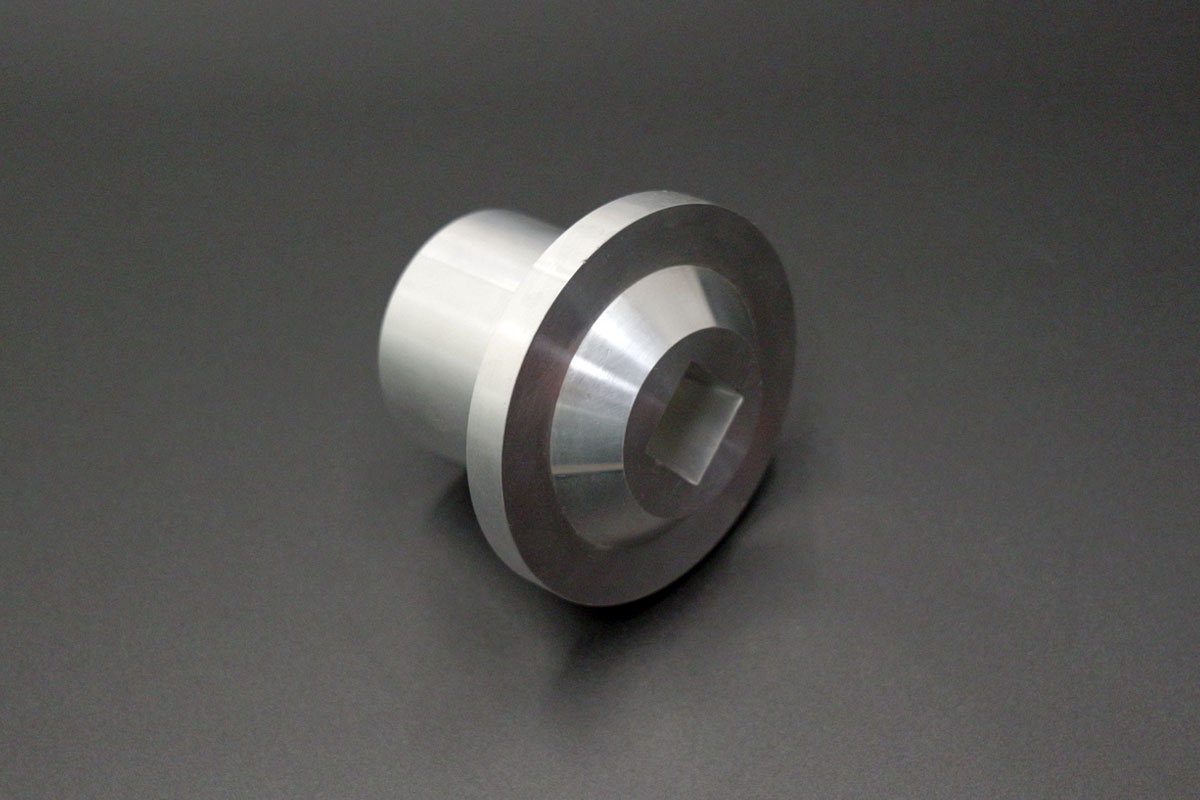

We manufactured a precision 6061 aluminum lathe chuck body for an automation equipment application. This cylindrical component serves as the main body of a lathe clamping system, requiring precision-turned external geometry combined with complex internal slot features [citation:1][citation:4]. The manufacturing challenge: turning operations establish the cylindrical form and bearing interfaces efficiently, while intricate internal contours and narrow slots — which would be difficult and deformation-prone with conventional milling — were addressed through wire EDM. WEDM's zero-cutting-force characteristic is particularly advantageous for thin-wall or delicate features in 6061 aluminum, as it eliminates tool-pressure-induced distortion [citation:3][citation:8]. We sequenced operations strategically: CNC turning roughs the body, followed by stress-relief stabilization, then WEDM for internal contour features, and final turning finishing for critical mating surfaces.

Project Overview

Key Technical Highlights

• Hybrid Process Selection: Turning delivers efficient cylindrical form and bearing surfaces, while WEDM handles complex internal contour features without the cutting-force-induced distortion that would compromise thin-wall geometries in 6061 aluminum [citation:3].
• WEDM Parameter Control for 6061: 6061 aluminum's alloy composition requires attention to avoid oxidation and surface imperfections. Pulse width (ON) and pulse interval (OFF) were balanced to achieve precise dimensions while preventing workpiece oxidation — a known concern with aluminum WEDM [citation:9].
• Sequence Strategy: Rough turning → stress-relief stabilization → WEDM contour cutting → final turning finishing ensures all features reference consistent datums.

Quality Verification

CMM inspection verified dimensional accuracy of both turned and WEDM features. Surface finish confirmed at Ra≤1.6μm. WEDM-cut surfaces inspected for oxidation and edge quality.

Industry Applications

Ideal for lathe chuck bodies, automation clamping components, and hybrid-machined parts requiring both efficient cylindrical turning and complex internal contours.

Why Partner With Us?

• Integrated turning + wire EDM hybrid capability
• WEDM expertise for 6061 aluminum with oxidation prevention
• Sequenced workflow for consistent dimensional accuracy
• 12+ years serving automation and precision equipment sectors
