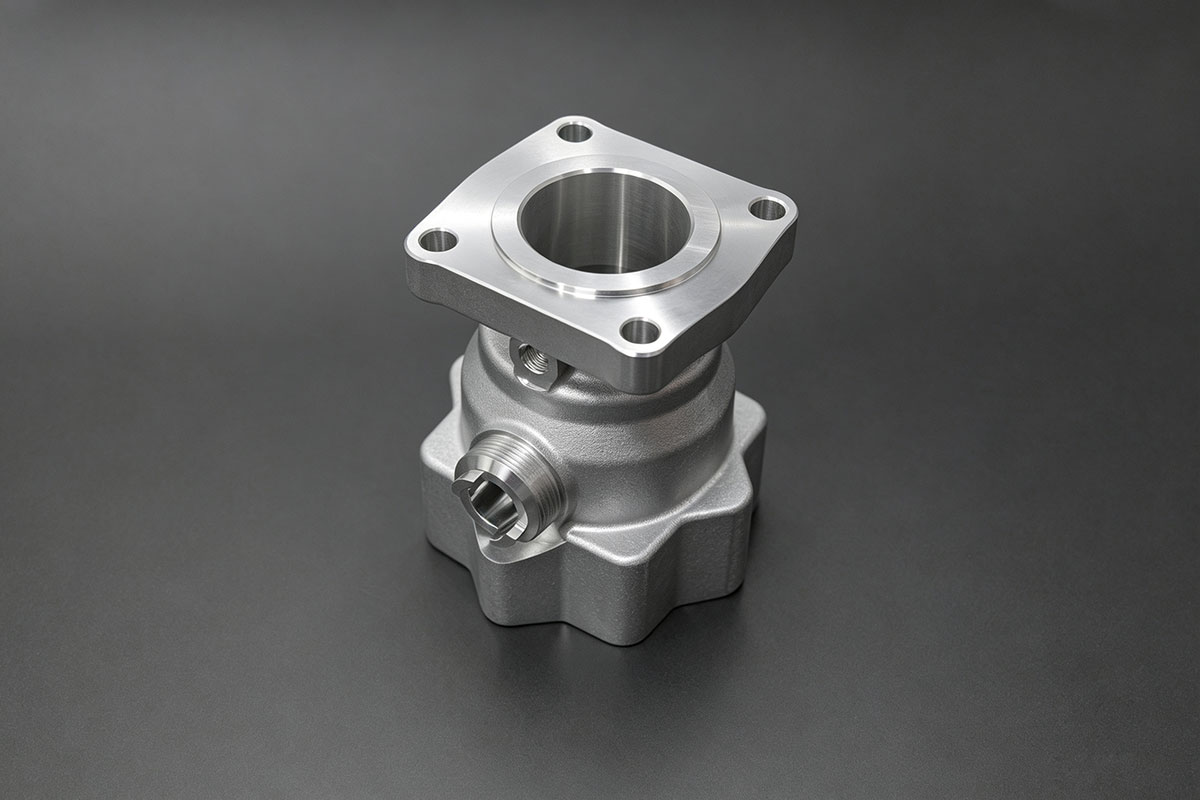

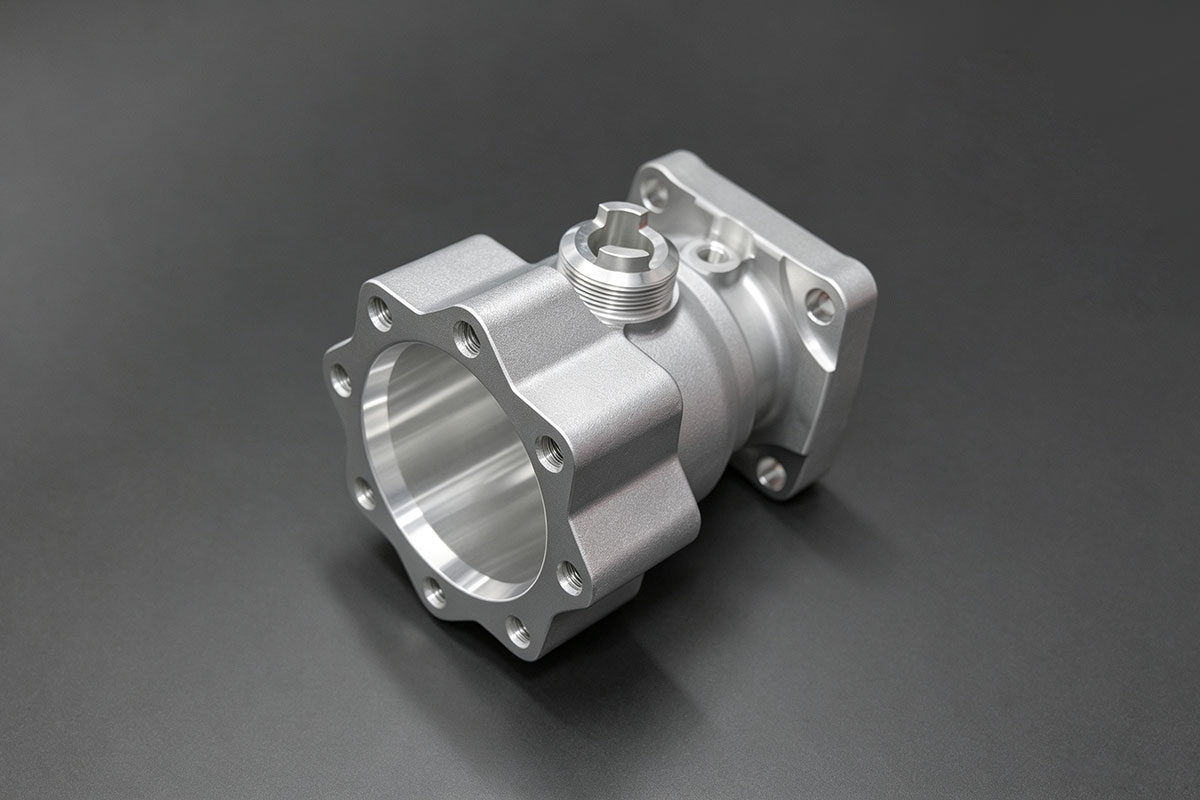

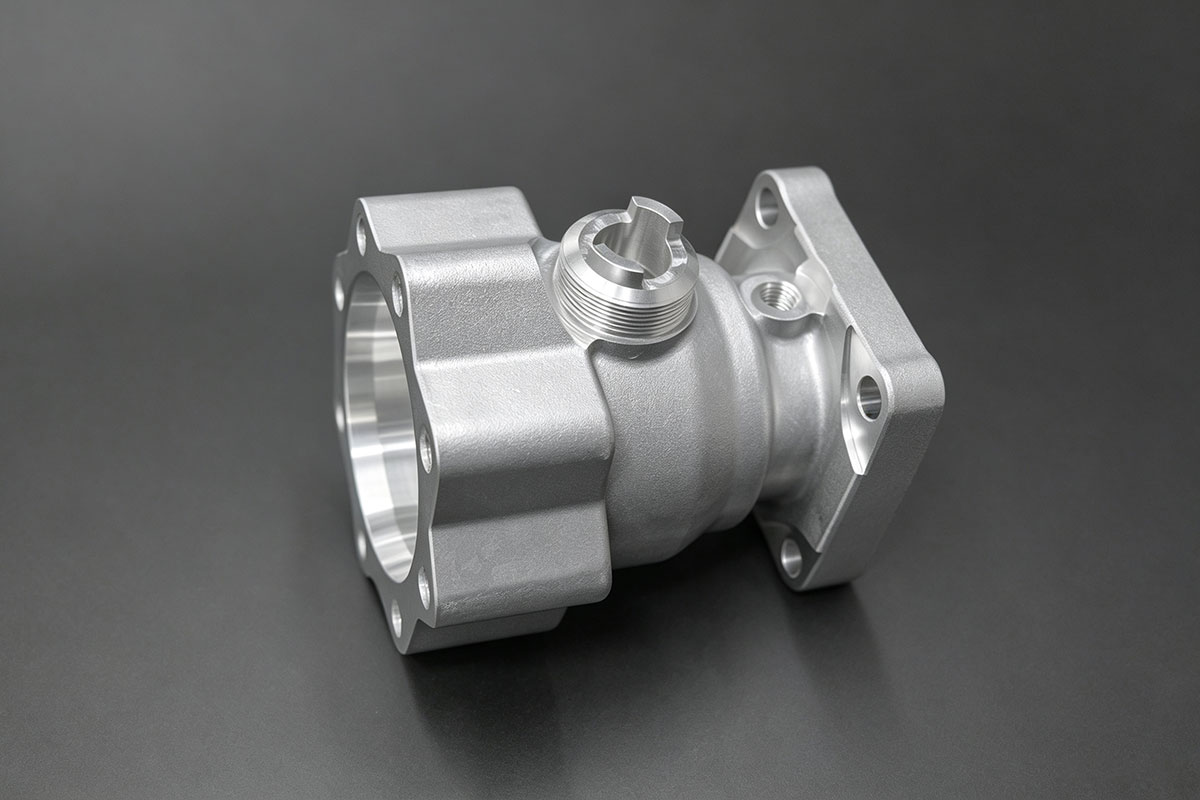

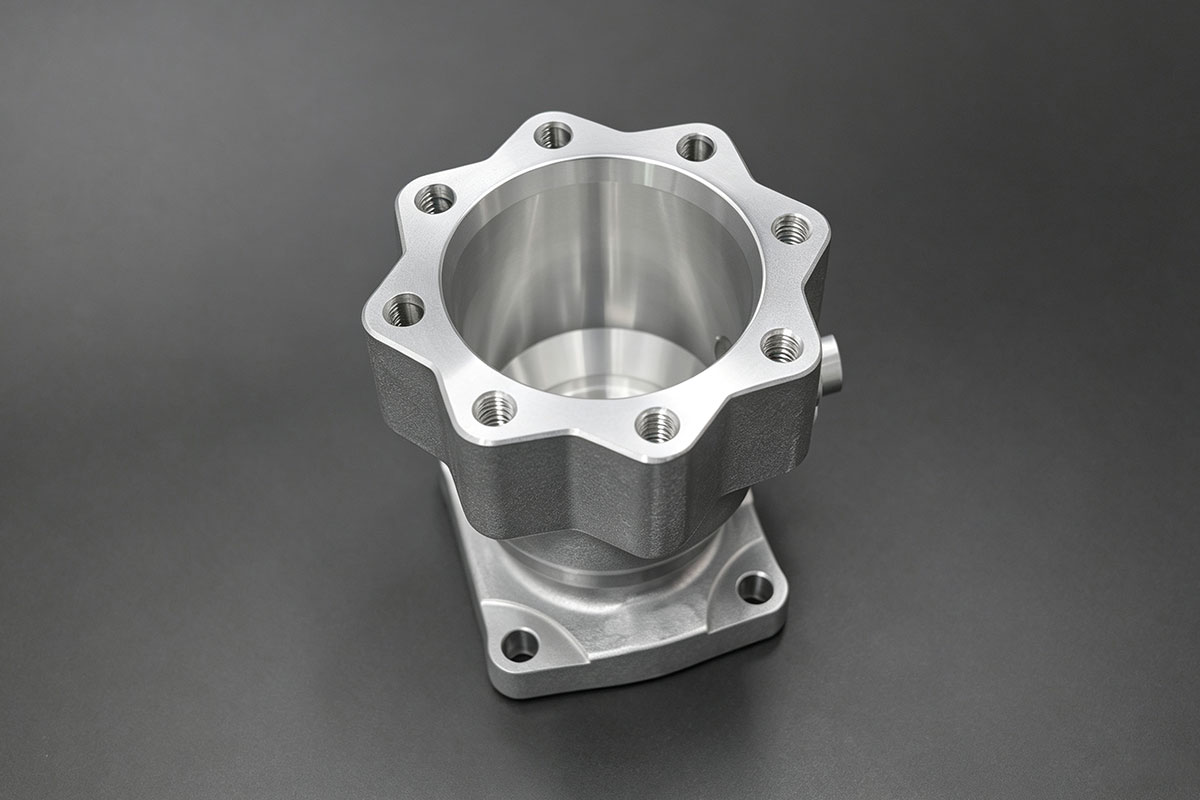

Precision Aluminum Profile General Industrial Vacuum Equipment with Smooth Internal Surface

We manufactured a general-purpose industrial vacuum equipment housing from aluminum profile, combining CNC turning and milling to achieve the required geometry. The core requirement: a smooth, scratch-free internal surface essential for vacuum applications. Achieving this requires more than just high-quality machining — it demands a systematic approach across surface finish, handling, and cleaning protocols. Research on aluminum vacuum chambers highlights that surfaces must have an internal roughness better than 0.8μm, be free from defects and machining marks, and undergo thorough cleaning to remove all contaminants. We implemented precision finishing passes with controlled parameters to achieve the required surface texture, followed by a multi-stage cleaning process: degreasing with industrial metal cleaning agents at 50°C, alkaline wash, and pure water rinse — removing all residual oils and machining debris. Post-cleaning inspection verified complete surface cleanliness and the absence of scratches.

Project Overview

Key Technical Highlights

• Surface Finish Control: Aluminum profile serves as the starting form. Precision finishing passes with light cuts and sharp tooling achieve a smooth, scratch-free internal surface — critical for vacuum applications where surface defects can trap contaminants and compromise performance.
• Process Integration: Turning establishes cylindrical features, while milling adds mounting interfaces and ports. The extruded profile base maintains consistent cross-sectional geometry while CNC refinement delivers the final precision.
• Surface Conditioning: Post-machining, the internal surface undergoes thorough degreasing and cleaning to remove oils, particles, and debris — meeting vacuum equipment cleanliness standards. Workpiece handling is carefully controlled to prevent re-contamination after cleaning.

Quality Verification

Dimensional verification via CMM. Internal surface inspected for smoothness and scratch-free condition via borescope/visual inspection. Cleanliness validated through contact angle testing or particle count verification.

Industry Applications

Ideal for general industrial vacuum chambers, vacuum pump housings, degassing equipment, and vacuum drying systems where internal surface quality is critical for performance.

Why Partner With Us?

• Proven expertise in vacuum-grade aluminum component fabrication
• Integrated CNC machining and surface conditioning capabilities
• Controlled handling and cleaning to maintain scratch-free surfaces
• 12+ years serving industrial equipment and vacuum technology sectors
