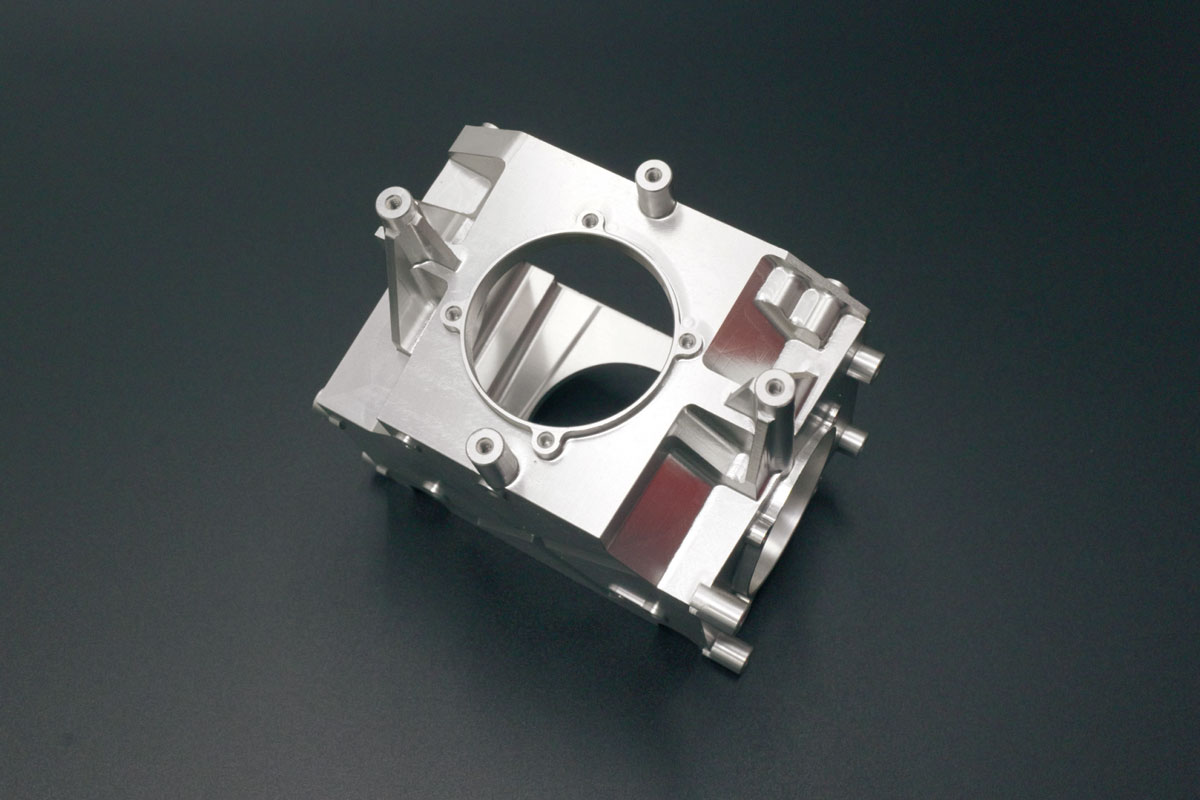

Precision 6061 Multi-Directional Boss Box Base with 5-Axis Machining and Complex Deburring

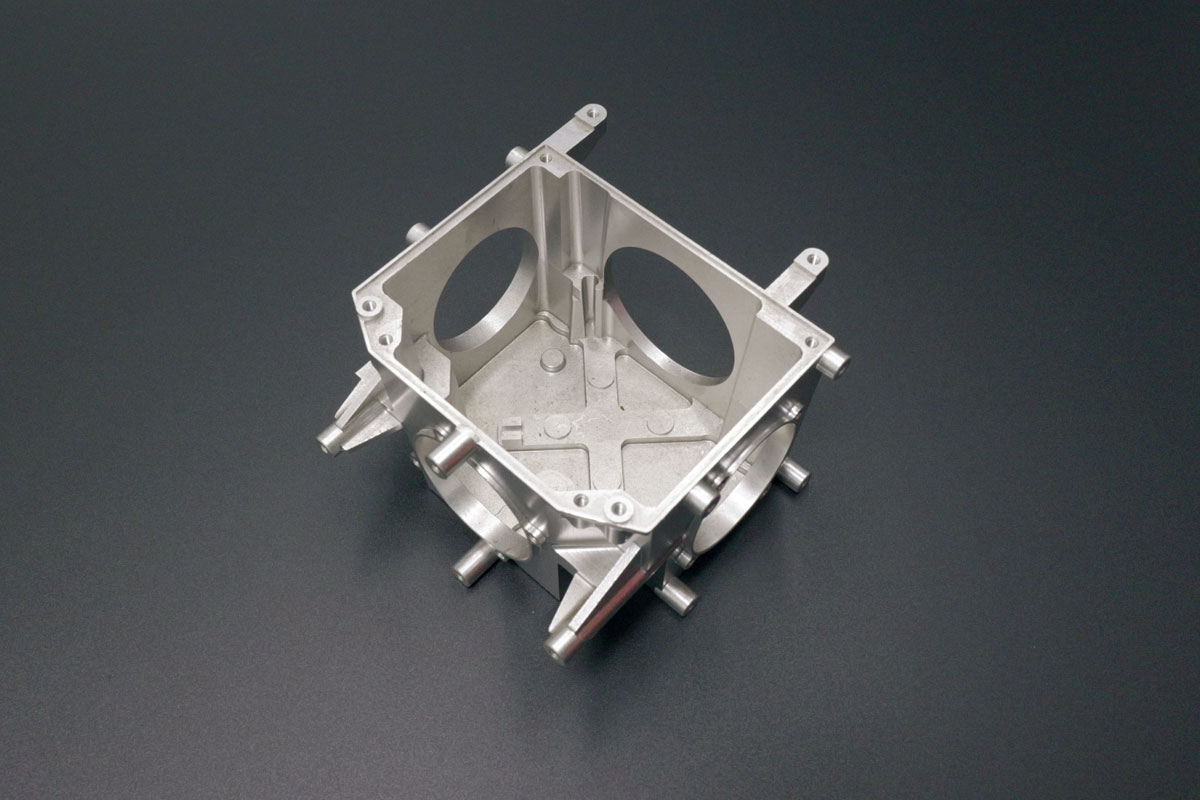

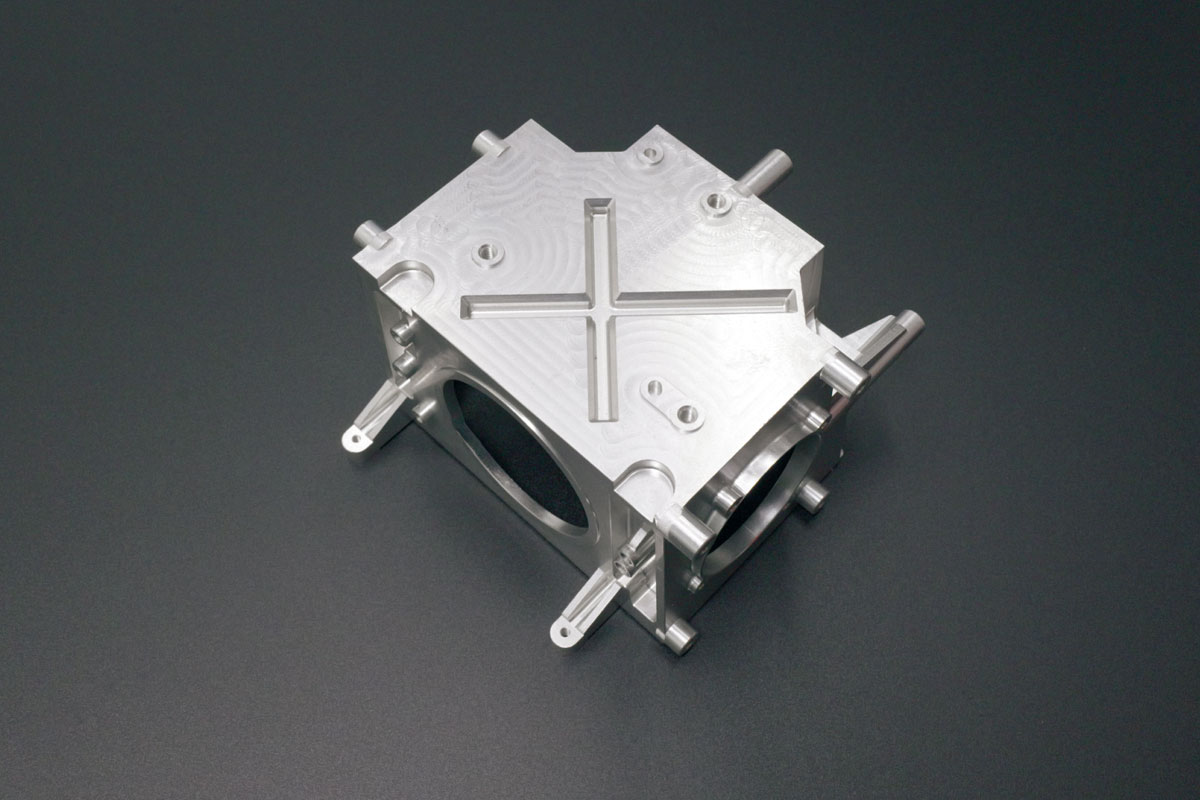

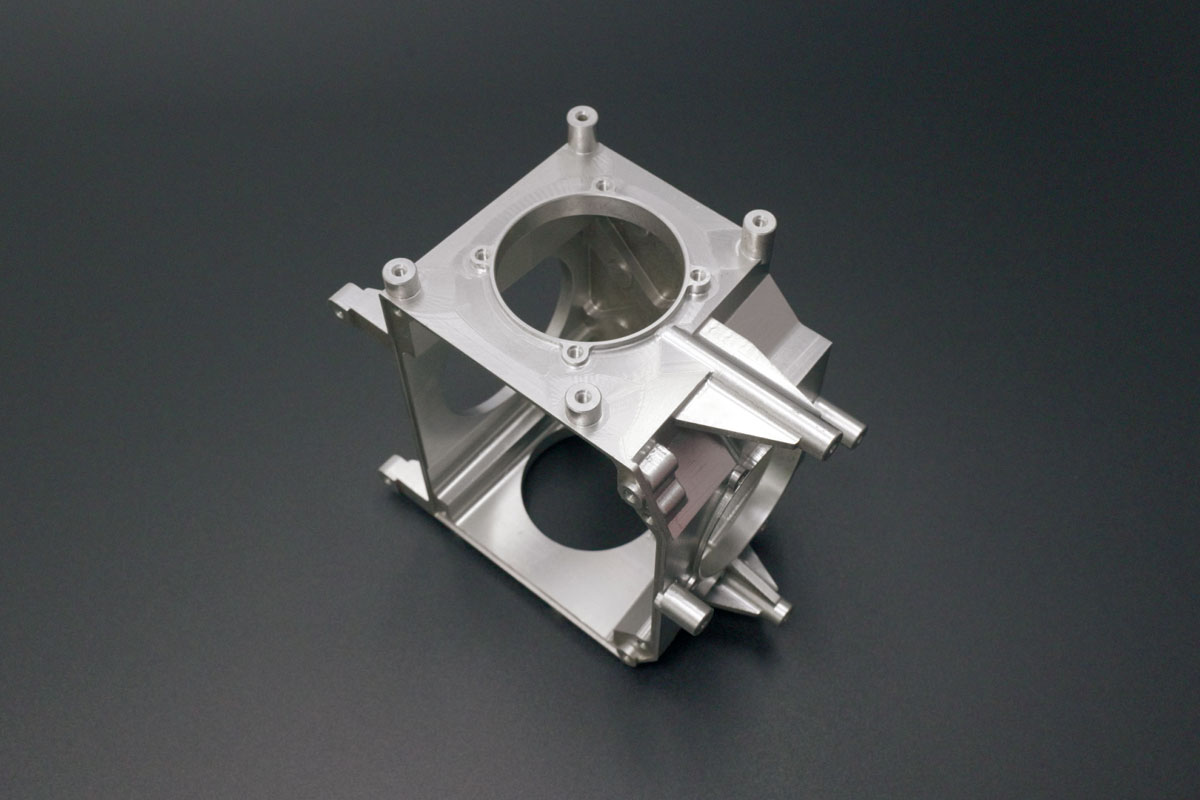

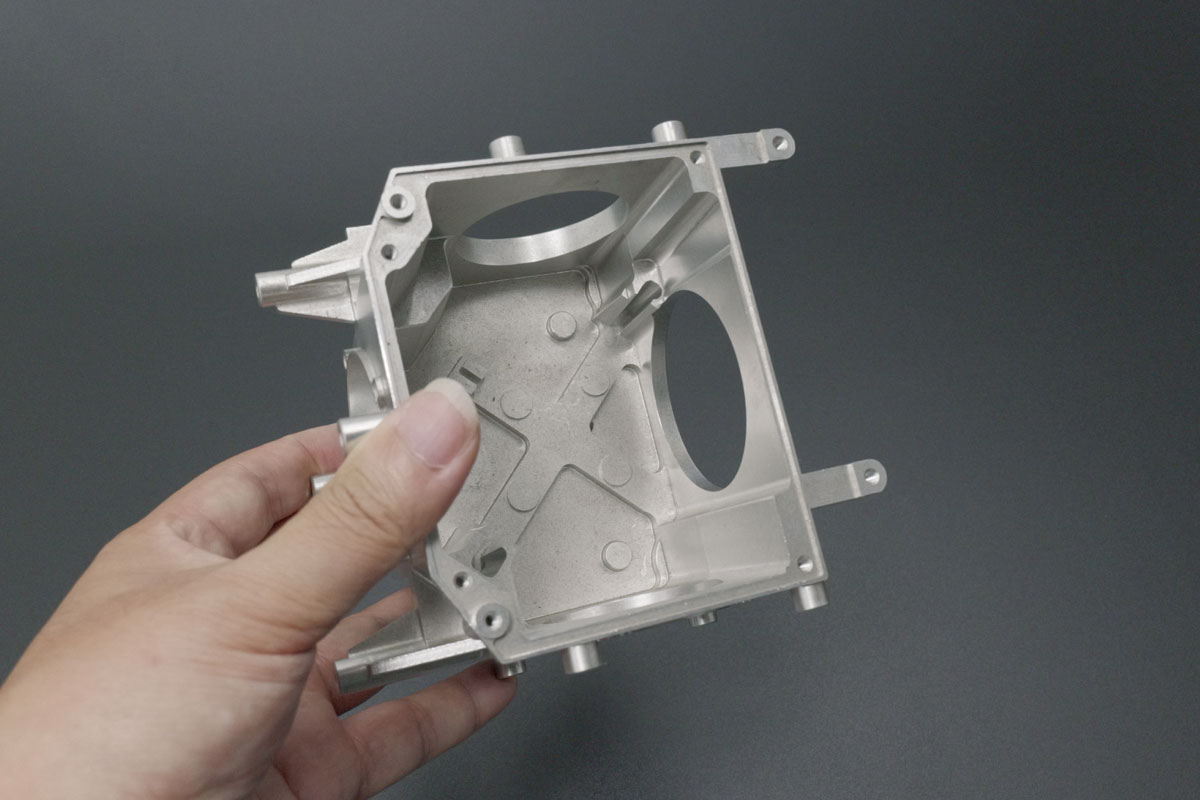

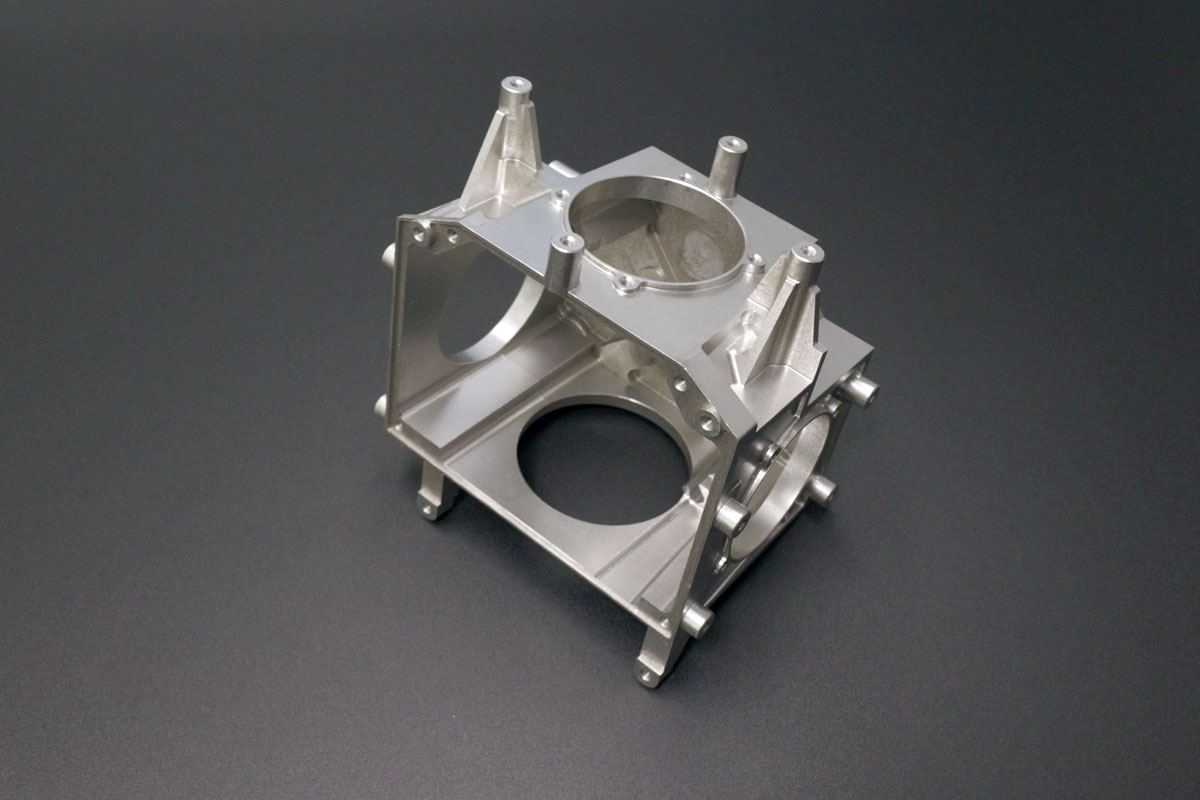

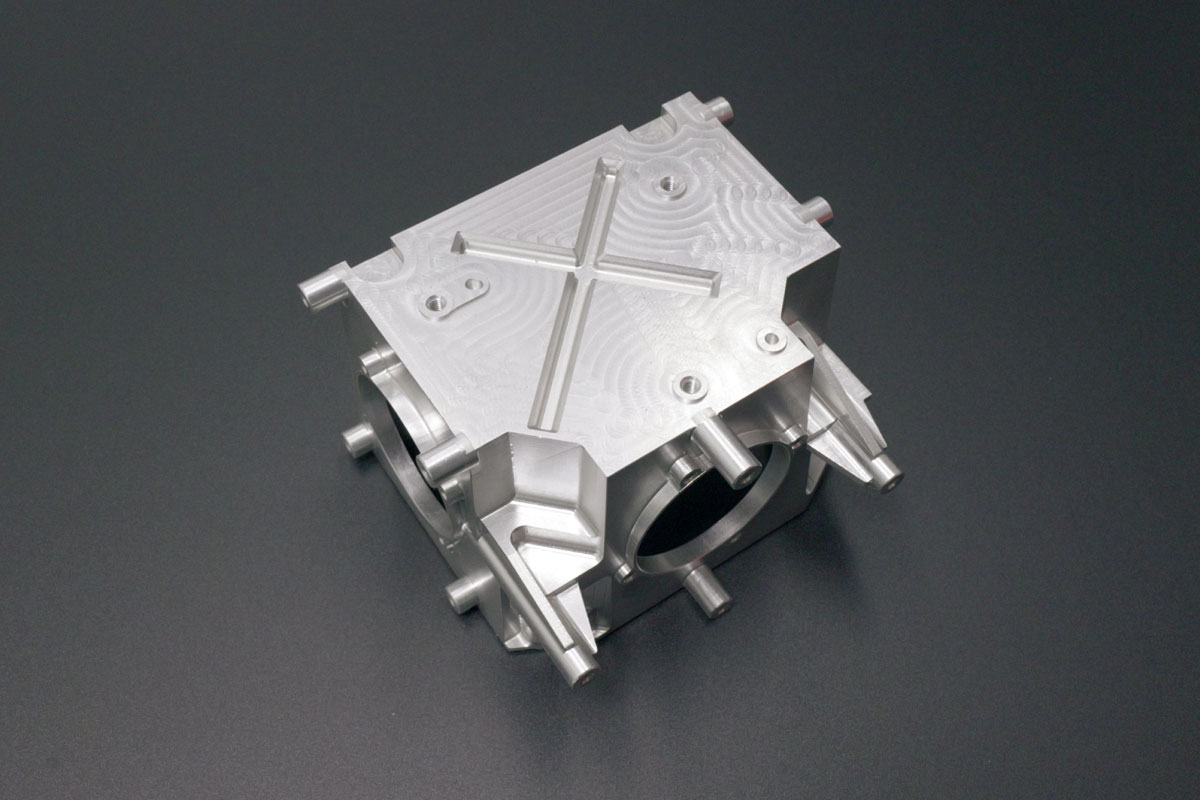

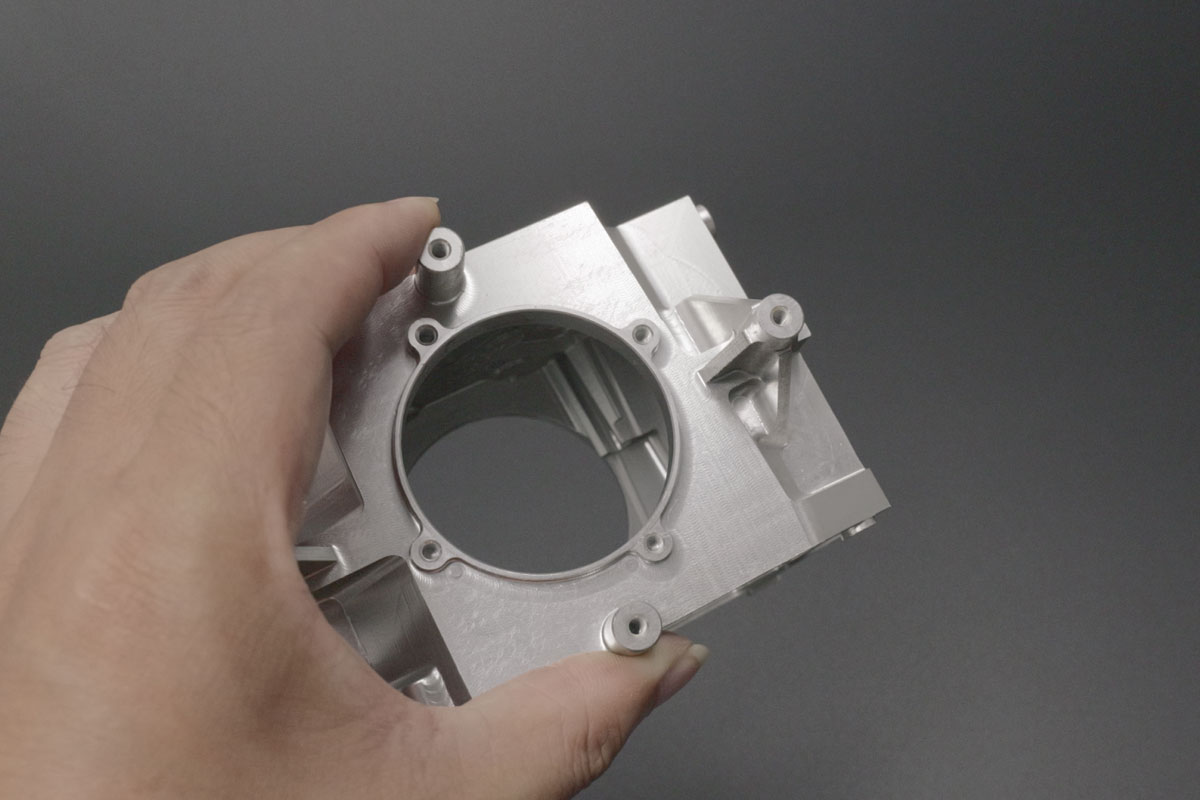

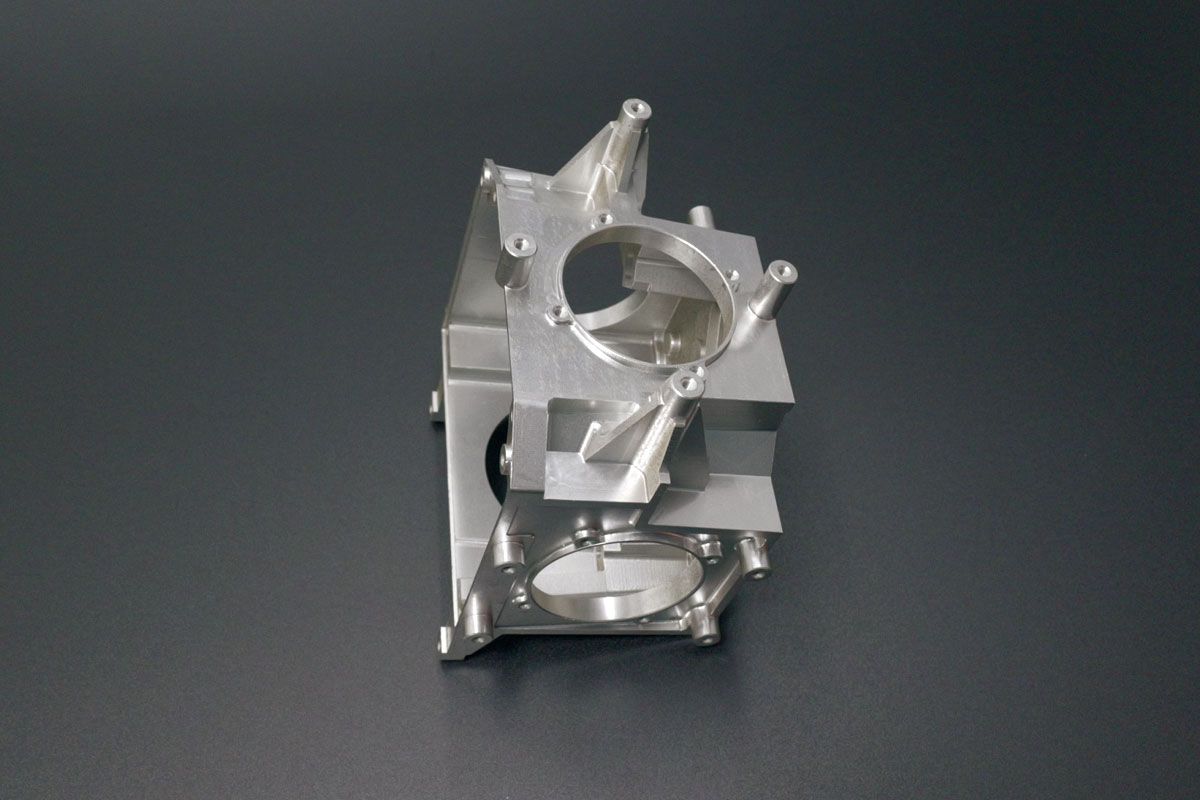

We successfully manufactured a precision 6061 multi-directional boss box base for an automated inspection equipment chamber application. This complex structural base features multiple bosses protruding at varying angles from the main box body — presenting significant machining challenges including extensive multi-corner burr removal, angled boss corner finishing, multi-angle boss machining requiring 5-axis indexed positioning, and no unified clamping reference across the multi-protrusion structure. Through 5-axis CNC milling, specialized deburring strategies, and custom fixturing solutions, we delivered clean, dimensionally accurate bases with consistent feature positioning.

Project Overview

Key Technical Highlights

• 5-Axis Multi-Boss Machining: Utilized 5-axis indexed positioning to machine bosses at varying angles from multiple orientations — accessing all boss faces and features in a single setup without part repositioning, ensuring consistent positional accuracy (±0.015mm) across all bosses.
• Process Innovation:
  • 5-Axis Single-Setup Strategy: All bosses and box features machined in a single fixturing setup using 5-axis indexed milling — eliminating multiple clamping references and ensuring consistent geometric relationships across all protruding features.
  • Multi-Angle Boss Corner Finishing: Custom lollipop/tapered end mills with 5-axis contouring toolpaths achieve clean corners on angled boss geometries — eliminating stress risers and material buildup.
  • Extensive Multi-Corner Deburring: Specialized deburring tools (ball-end, conical, and file-style) combined with controlled brushing techniques remove burrs from multiple dead corners across the complex geometry — ensuring clean, safe edges throughout.
  • Custom Fixturing: Dedicated fixtures with distributed support points reference the base surface while providing access to all boss features — enabling 5-axis machining without re-clamping.
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on all machined surfaces.
  • All corners and edges verified burr-free through comprehensive inspection.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for boss positional accuracy (±0.015mm), angular accuracy (±0.02°), flatness (≤0.01mm), and dimensional tolerance (±0.02mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for complete burr removal across all corners and edges.

Industry Applications

This solution demonstrates our expertise in precision multi-boss component manufacturing for inspection equipment, ideal for:
✓ Automated inspection equipment chambers ✓ Precision instrument bases ✓ Multi-interface mounting platforms ✓ Complex structural assemblies

Why Partner With Us?

• Proven expertise in 5-axis multi-boss machining with single-setup strategies
• Advanced complex deburring capabilities for multi-corner geometries
• Custom fixturing for no-unified-reference structures
• 12+ years of precision manufacturing experience across automation and inspection sectors
