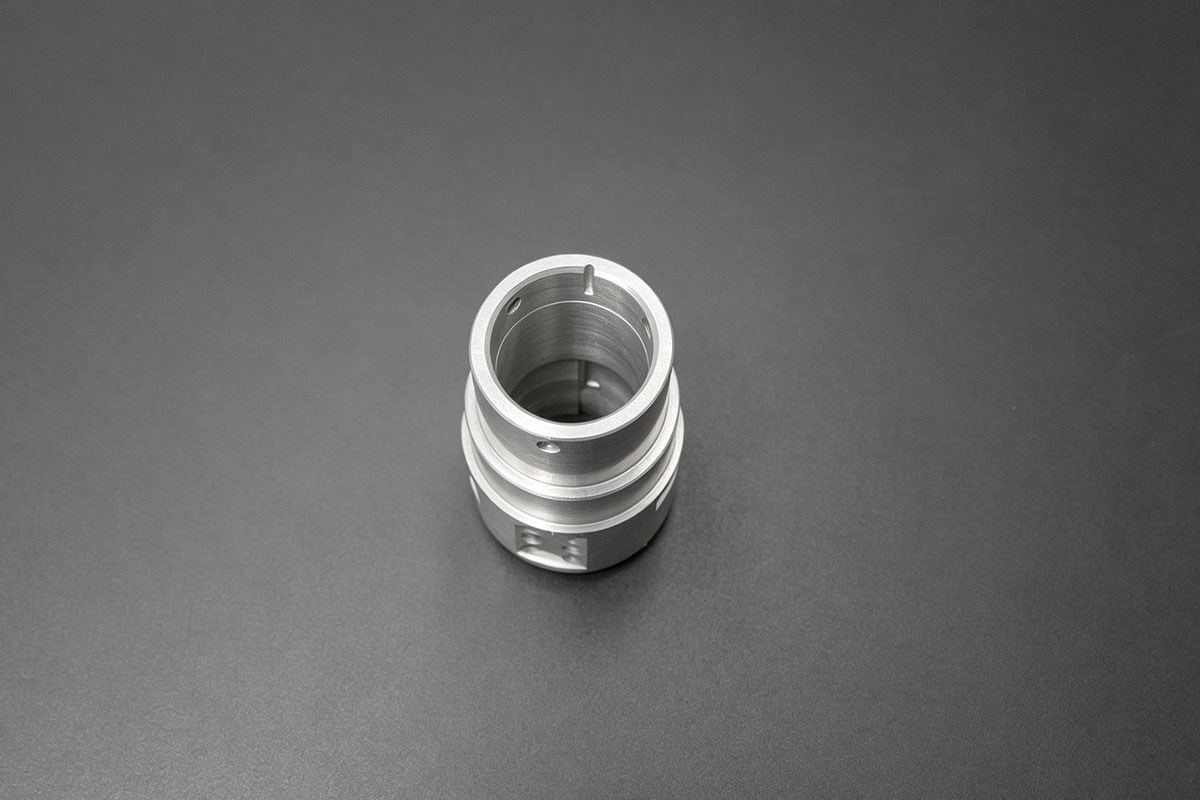

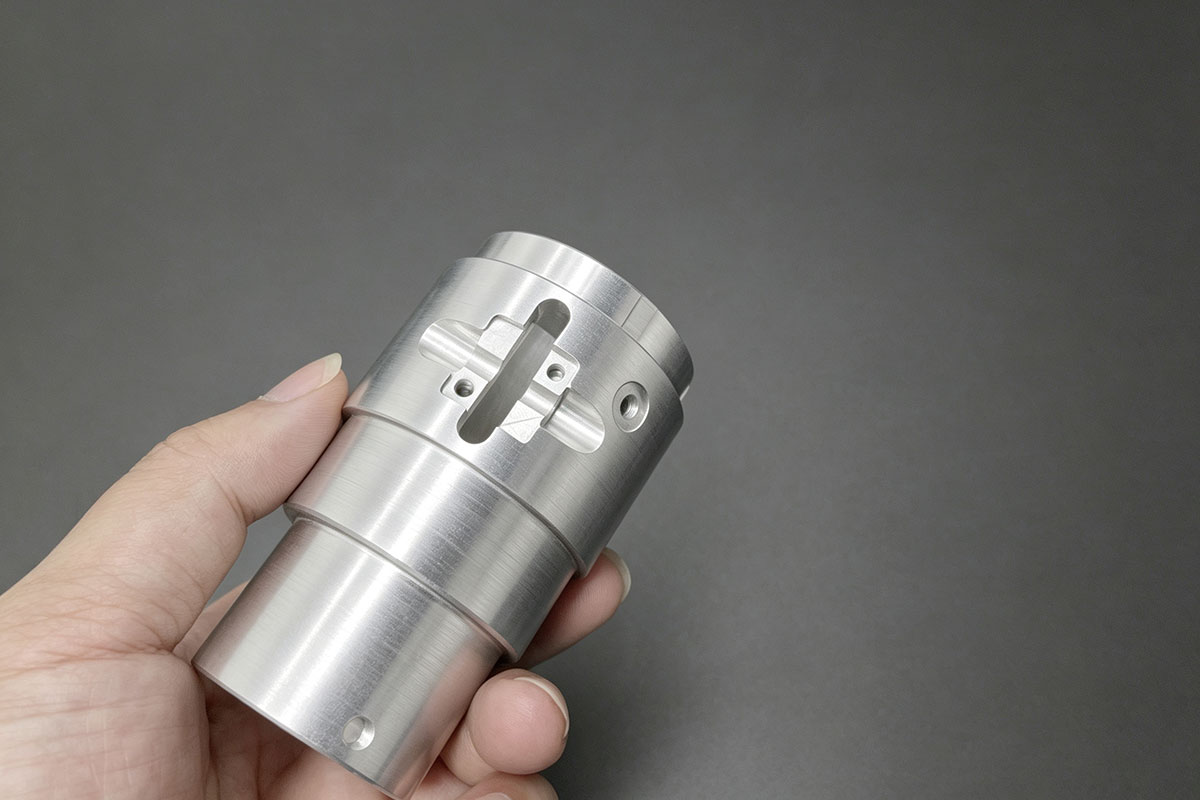

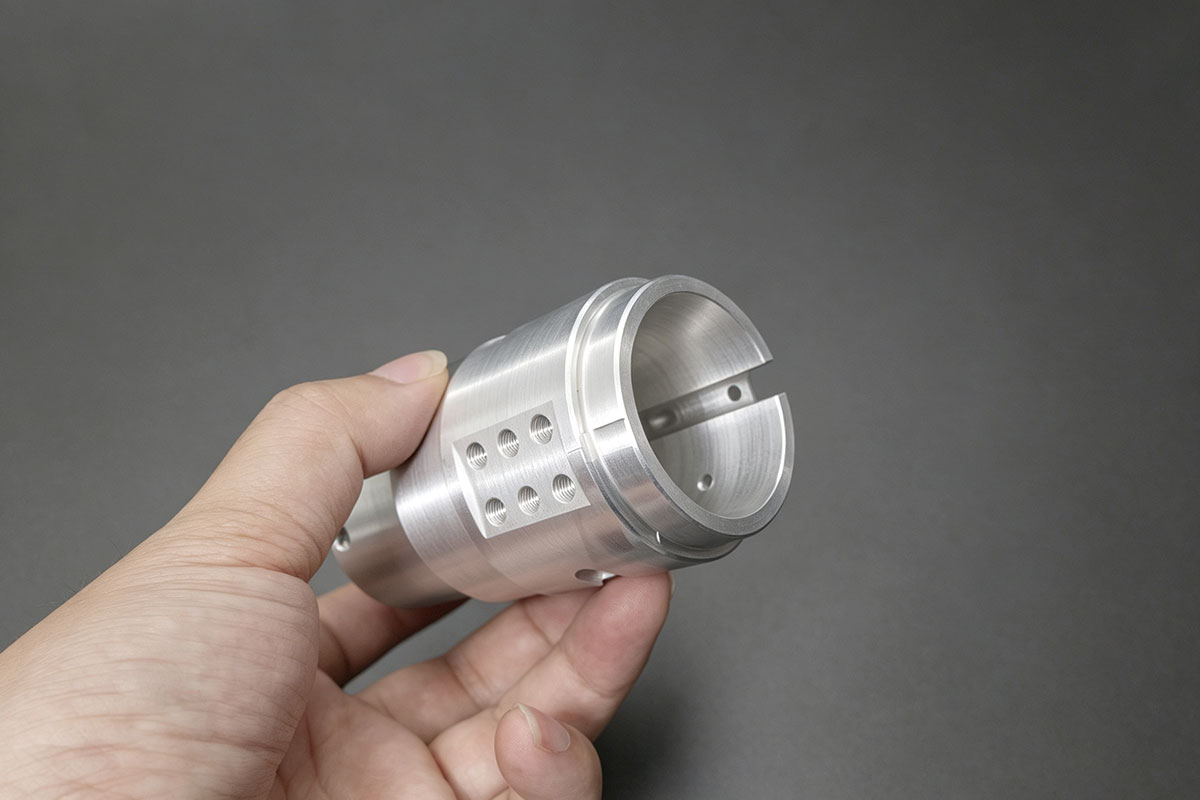

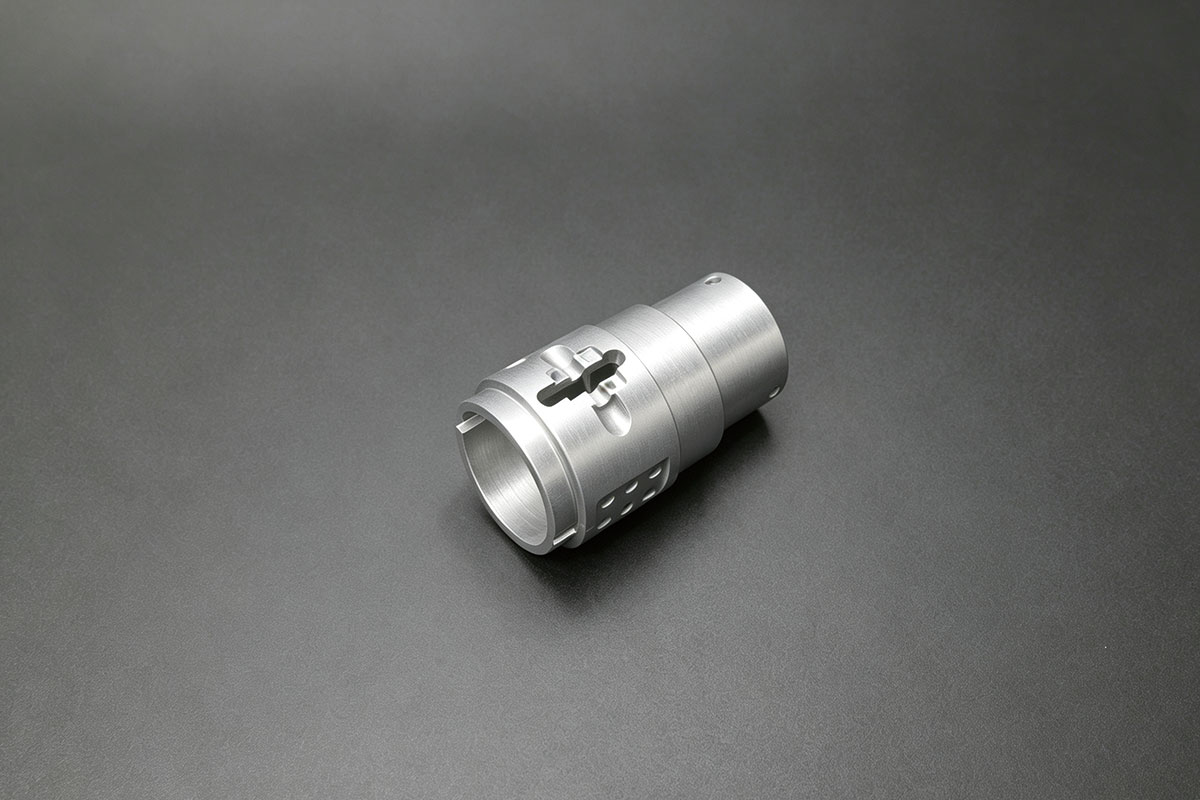

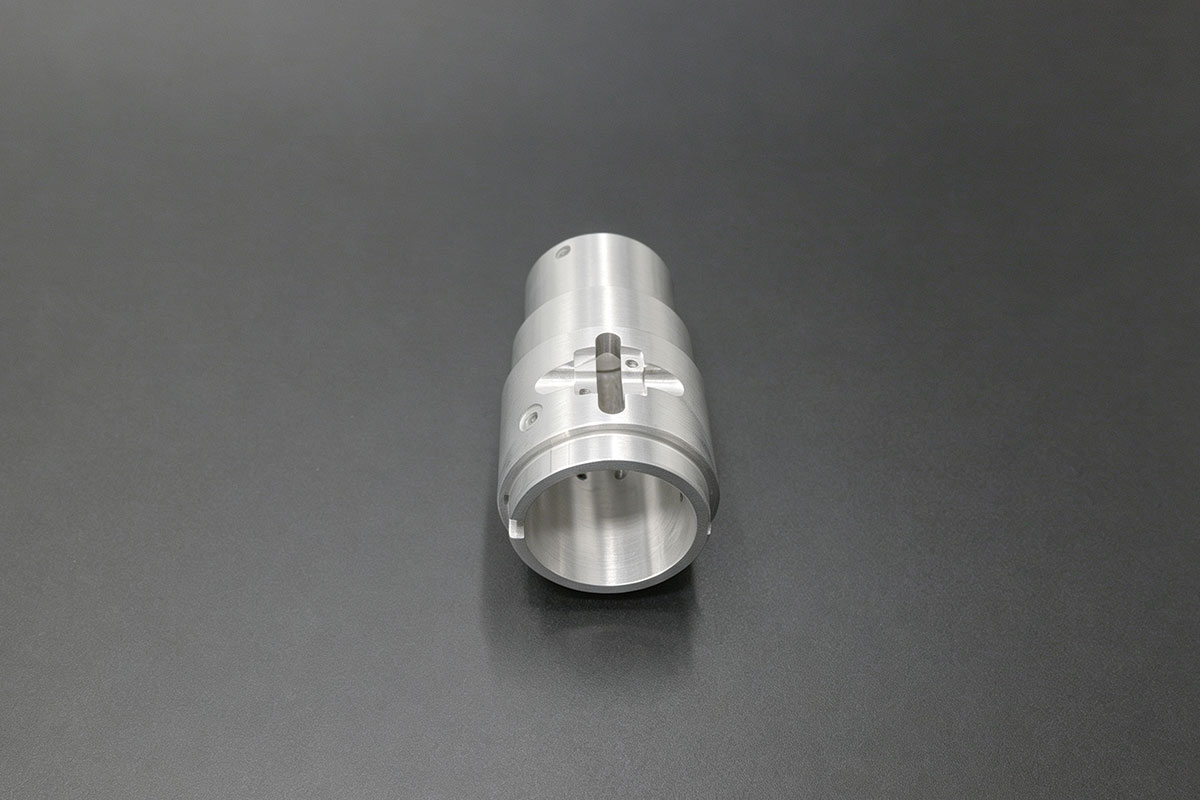

Precision 6061 Stepped Cylindrical Connector Housing with Thin-Wall and Deep-Cavity Control

We successfully manufactured a precision 6061 stepped cylindrical connector housing for an industrial automation signal sleeve application. This multi-step cylindrical housing features thin-wall sections, a deep internal cavity, and multiple precision slots and small holes — presenting significant machining challenges including thin-wall ovality and clamping distortion, deep-cavity chip evacuation vs. tool rigidity trade-off, and deburring of slots and small holes in confined geometries. Through custom thin-wall fixturing, optimized deep-cavity tooling, and specialized deburring techniques, we delivered clean, dimensionally stable housings meeting all specification requirements.

Project Overview

Key Technical Highlights

• Thin-Wall Ovality and Clamping Distortion Prevention: Implemented custom expanding mandrel fixturing with distributed internal support along the thin-wall cylinder bore — eliminating external clamping-induced ovality and maintaining roundness ≤0.015mm while providing stable part retention.
• Process Innovation:
  • Thin-Wall Fixturing Solution: Expanding mandrel with controlled pressure provides internal support across the full cylinder length, preventing ovality during external feature machining.
  • Deep-Cavity Chip Evacuation vs. Tool Rigidity: Optimized staged deep-cavity machining with shorter, stiffer roughing tools removes bulk material, followed by extended-reach finishing tools with high-pressure coolant-through delivery — balancing chip evacuation and rigidity for consistent surface finish.
  • Slot and Small Hole Deburring: Specialized deburring tools (ball-end, conical, and file-style) combined with controlled brushing techniques remove burrs from multiple dead corners in slot geometries and small hole intersections — ensuring clean, burr-free internal features.
  • Staged Machining Sequence: Roughing establishes near-net geometry, followed by stress-relief pause, then precision finishing of slots, holes, and internal cavity.
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on all machined surfaces.
  • All slots and holes verified burr-free through visual and tactile inspection.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.02mm), roundness (≤0.015mm), slot positional accuracy (±0.015mm), and hole positional accuracy (±0.02mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for complete burr removal.

Industry Applications

This solution demonstrates our expertise in precision cylindrical connector manufacturing for industrial automation, ideal for:
✓ Industrial automation signal sleeves ✓ Cylindrical connector housings ✓ Thin-wall tubular components ✓ Precision sensor housings
