Precision PA 4.6 Semiconductor Automation Component with Deformation Control Strategy

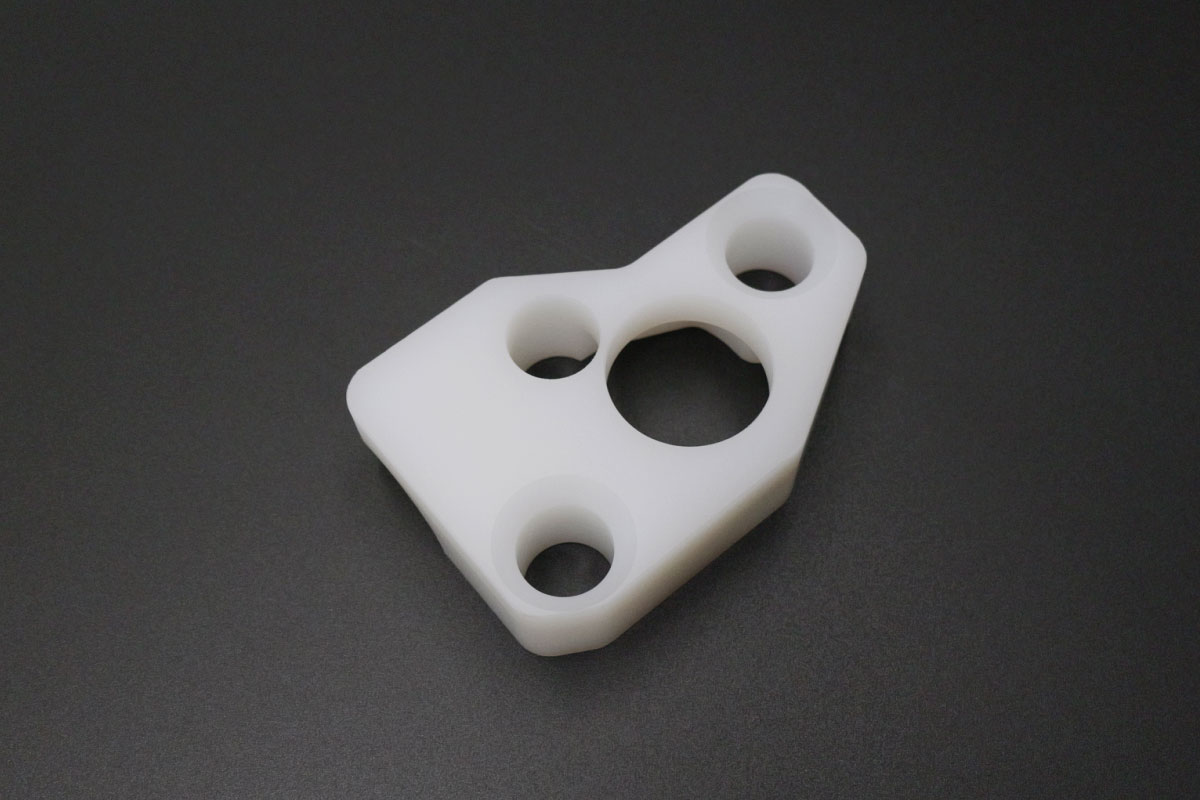

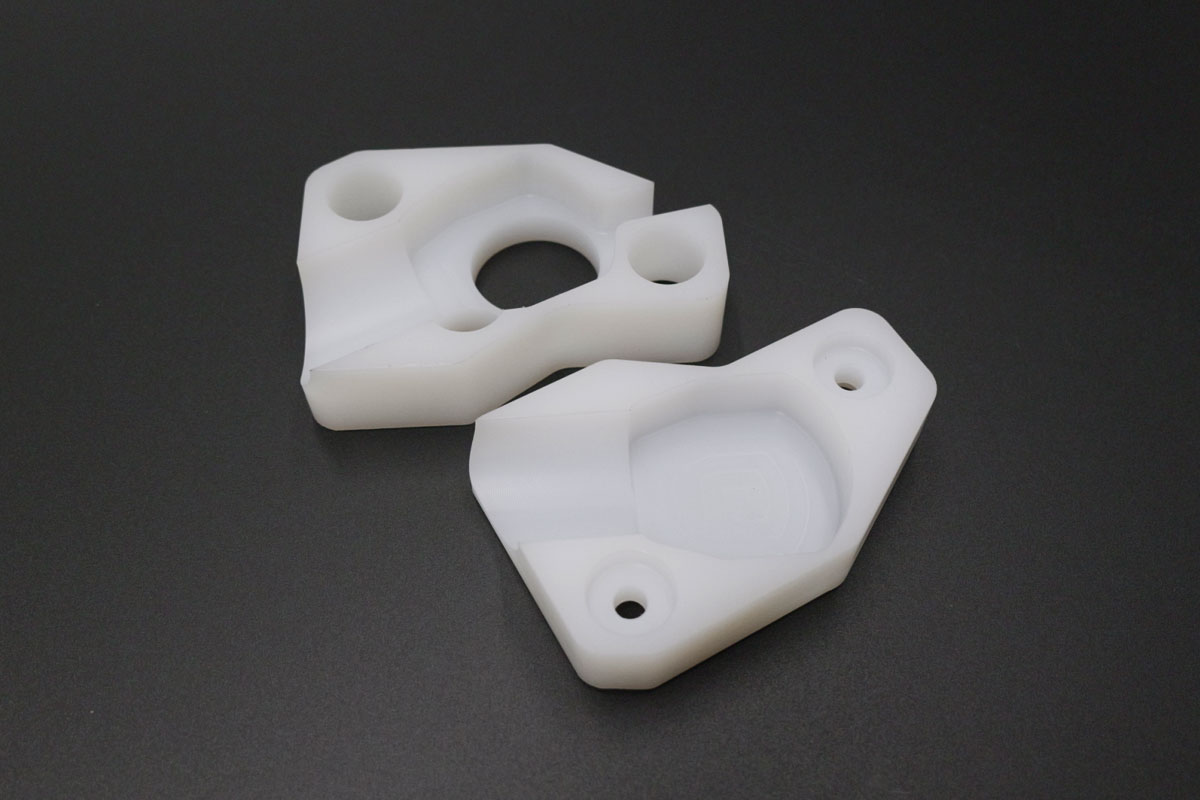

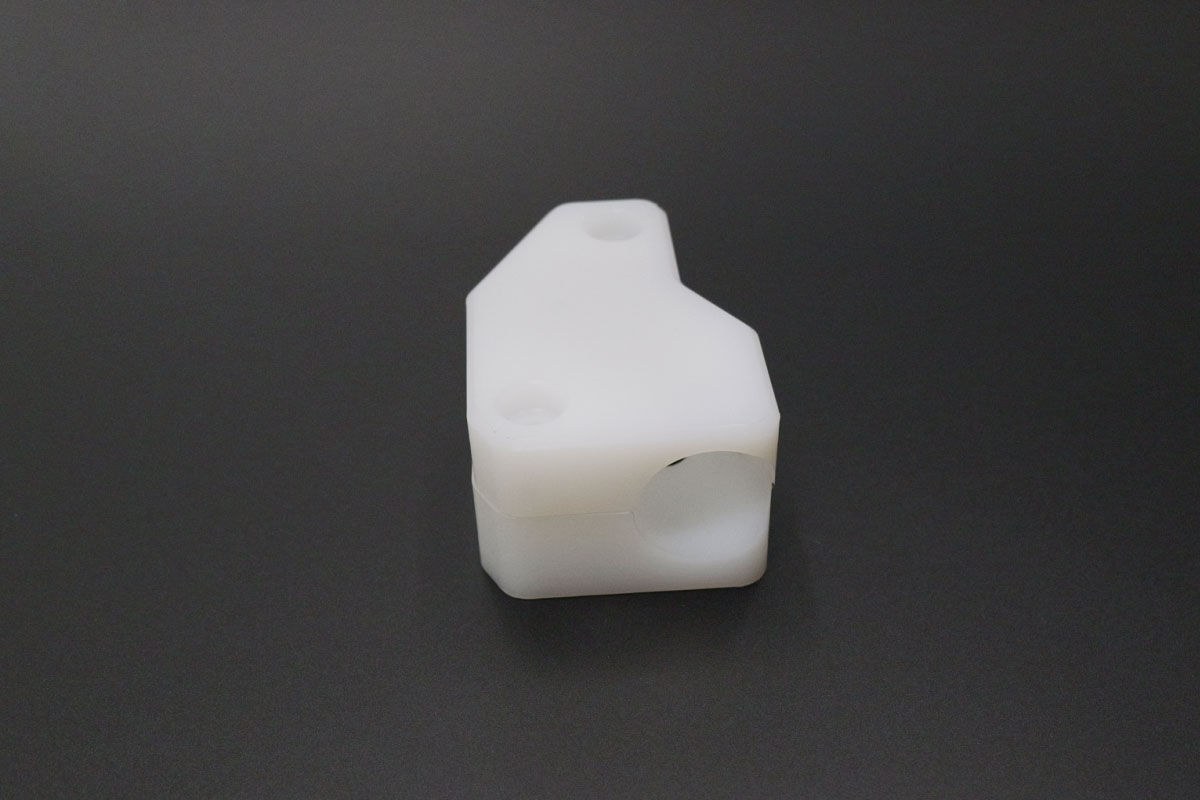

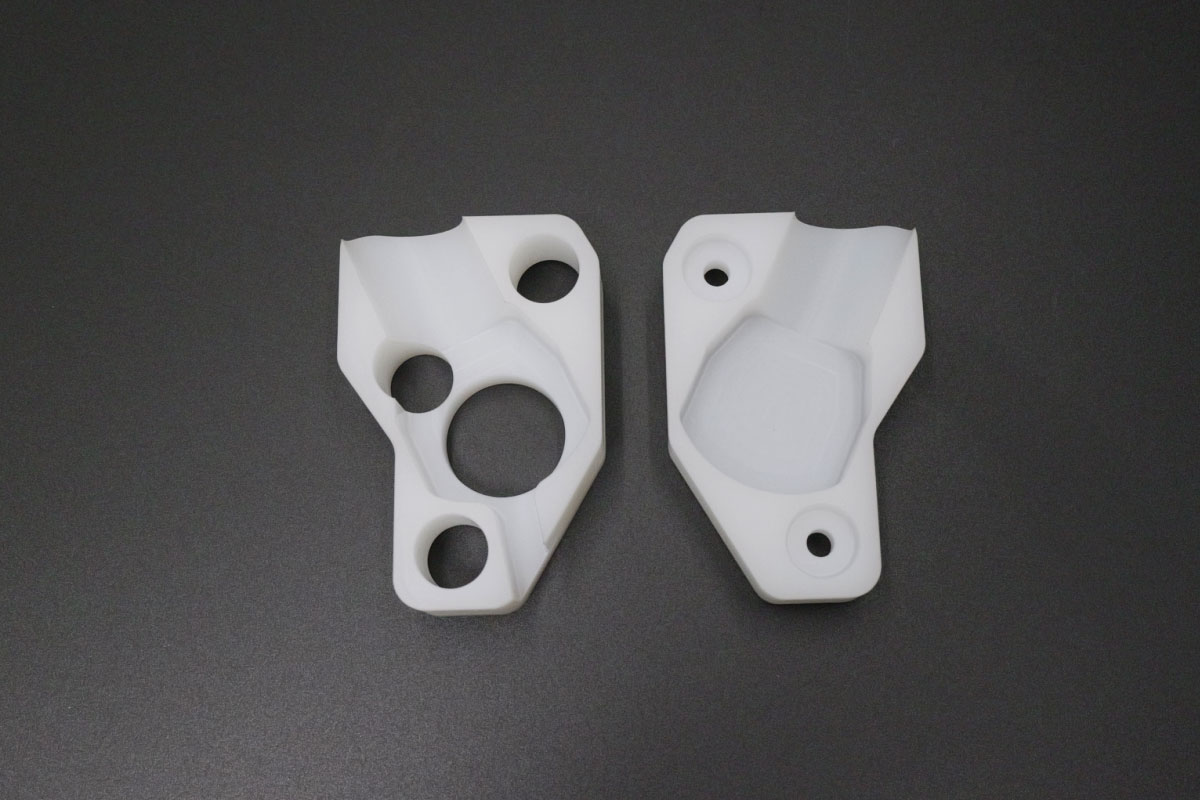

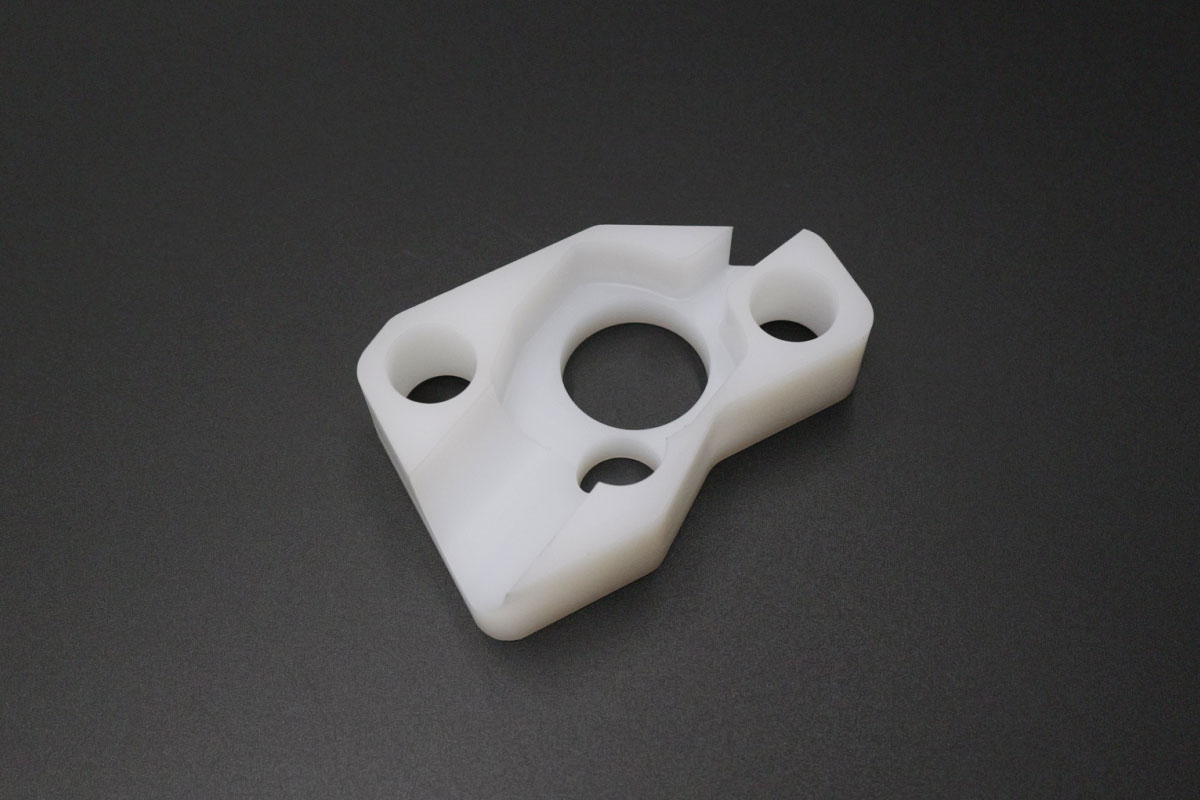

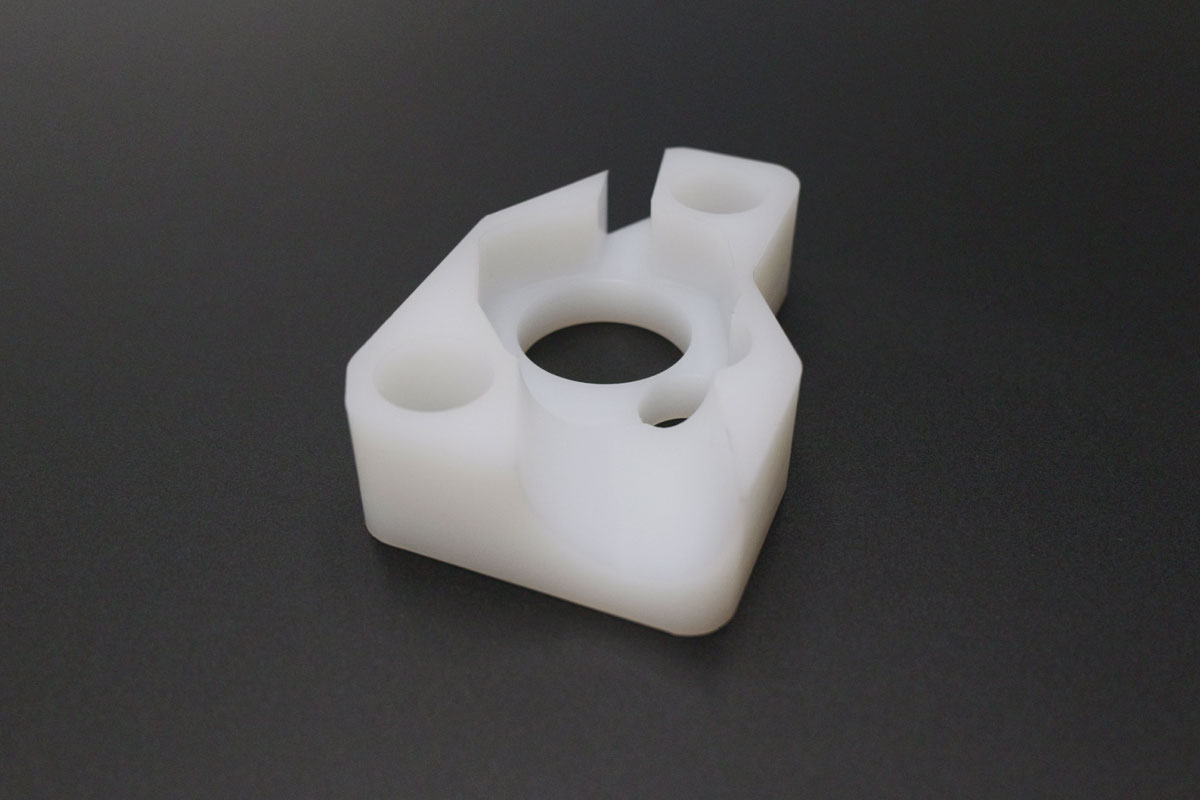

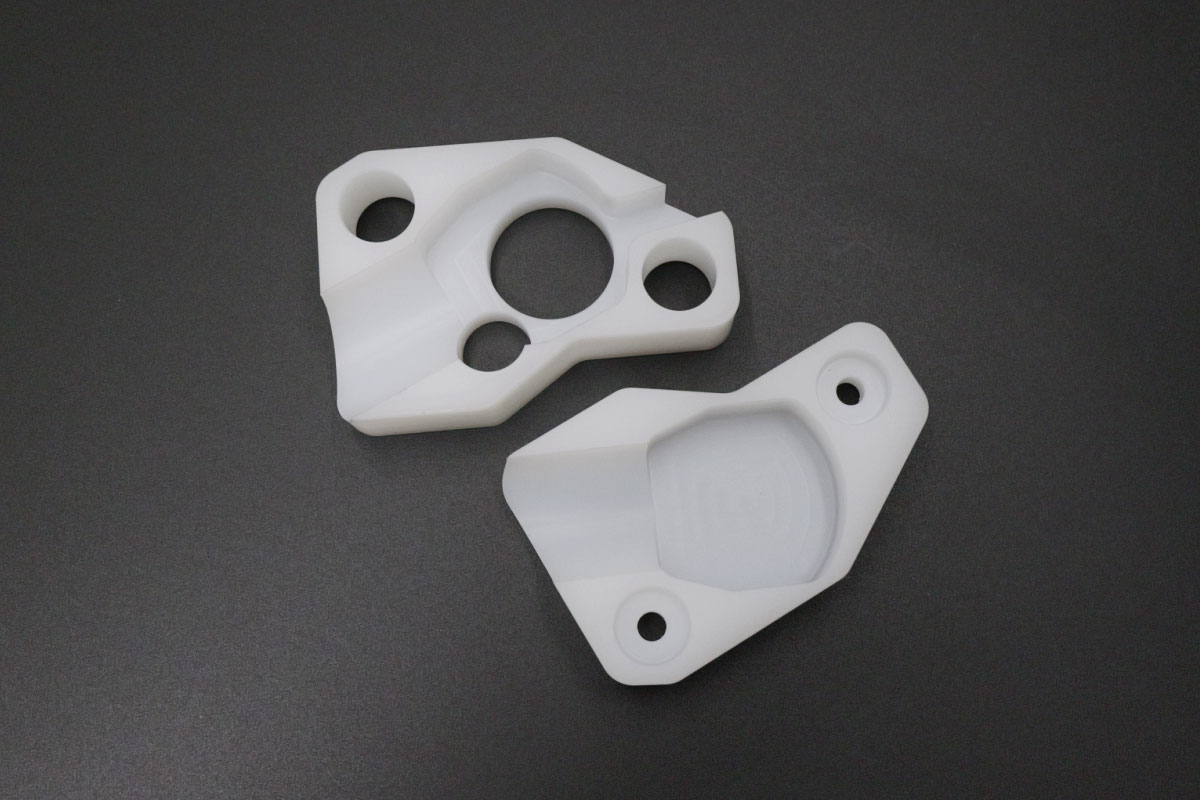

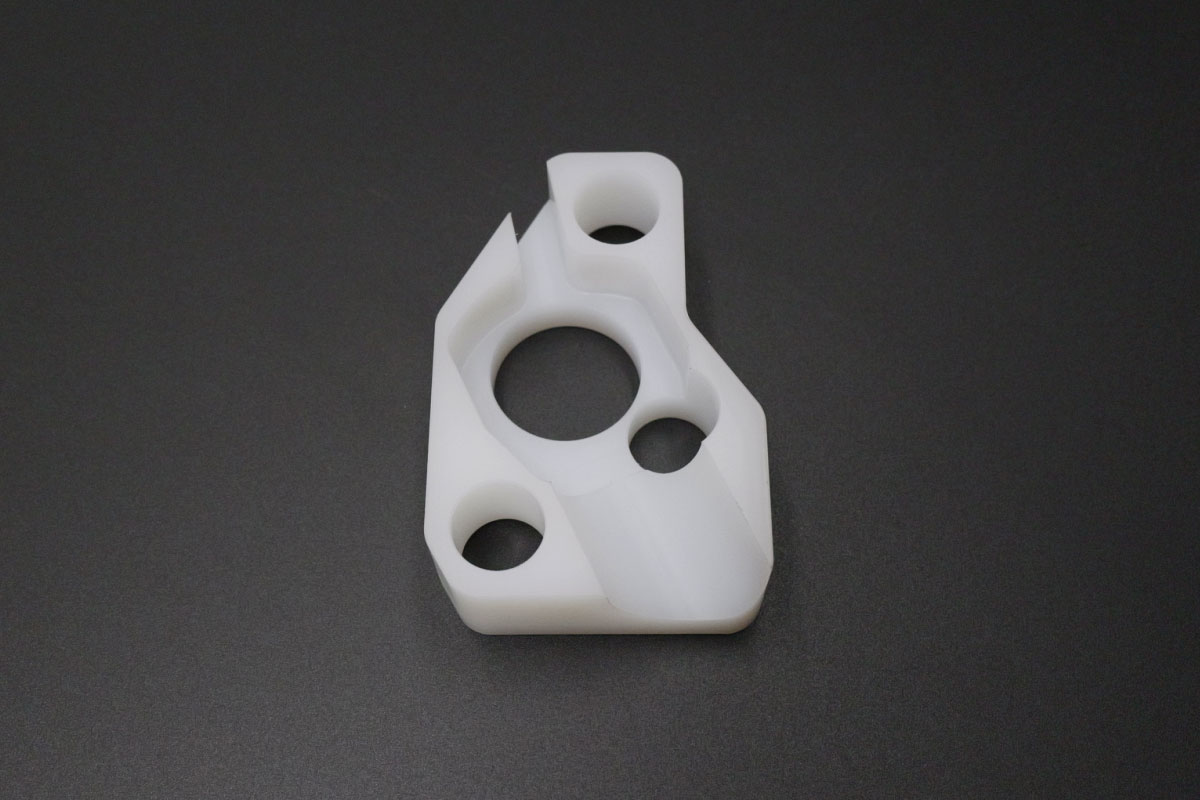

We successfully manufactured a precision PA 4.6 (polyamide 46) component for a semiconductor automation equipment application. This critical test interface component requires precise dimensional stability for reliable IC socket performance. PA46 offers exceptional high-temperature performance (continuous use up to 150-170°C, melting point 295°C), superior flow properties enabling thin-wall molding down to 0.25mm or less, and excellent stiffness and creep resistance from 80-150°C—making it ideal for compact semiconductor test sockets and precision interface components . However, its susceptibility to machining-induced deformation, high moisture absorption (affecting dimensional stability), and high crystallinity present significant processing challenges . Through ultra-sharp carbide tooling, staged stress-relief machining, low-stress fixturing, and controlled environmental conditions, we delivered dimensionally stable components meeting semiconductor-grade precision requirements.

Project Overview

Key Technical Highlights

• Material Deformation Control: PA46's susceptibility to moisture absorption (2.8% at 50% RH, up to 13% saturated) affects dimensional stability . Implemented controlled environmental conditions (20±1°C, 45-50% RH) during machining and inspection, combined with staged stress-relief sequences—roughing followed by intermediate stabilization before finishing—to prevent moisture-induced and residual stress-driven deformation.
• Process Innovation:
  • Ultra-Sharp Tooling Strategy: PA46's 70-80% crystallinity and high modulus create challenges during machining . Ultra-sharp carbide tools with positive rake angles produce clean shearing, minimizing heat generation and reducing the thermal stress that can cause deformation .
  • Low-Stress Fixturing: Custom fixtures with distributed support surfaces and minimal clamping pressure prevent clamping-induced distortion—critical for maintaining flatness in this semi-crystalline material .
  • Staged Machining Sequence: Roughing with generous allowance, followed by ambient stabilization, then precision finishing passes with light depths of cut—allowing material relaxation before final dimensioning .
  • Temperature Control: PA46's higher crystallinity means the Tg (glass transition temperature) and melting point are significantly elevated. Controlled machining parameters prevent localized heating that could exceed Tg and cause thermal deformation .
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on all critical surfaces.
  • Sharp tooling and optimized parameters eliminate burrs and surface defects common in polyamide machining .

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.015mm) and flatness (≤0.01mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for deformation and surface defects. Components stabilized in controlled environmental conditions prior to final dimensional verification.

Industry Applications

This solution demonstrates our expertise in precision engineering plastic component manufacturing for demanding semiconductor applications, ideal for:
✓ Semiconductor test sockets and IC interfaces ✓ Precision automation components ✓ High-temperature structural parts ✓ Thin-wall electronic housings

Why Partner With Us?

• Proven expertise in PA46 precision machining with deformation control
• Advanced stress-relief and stabilization strategies for engineering plastics
• Controlled-environment machining for moisture-sensitive materials
• 12+ years of precision manufacturing experience across semiconductor and automation sectors
