Precision 6061 Multi-Cavity Bracket with Cantilever Rigidity and Stress Control

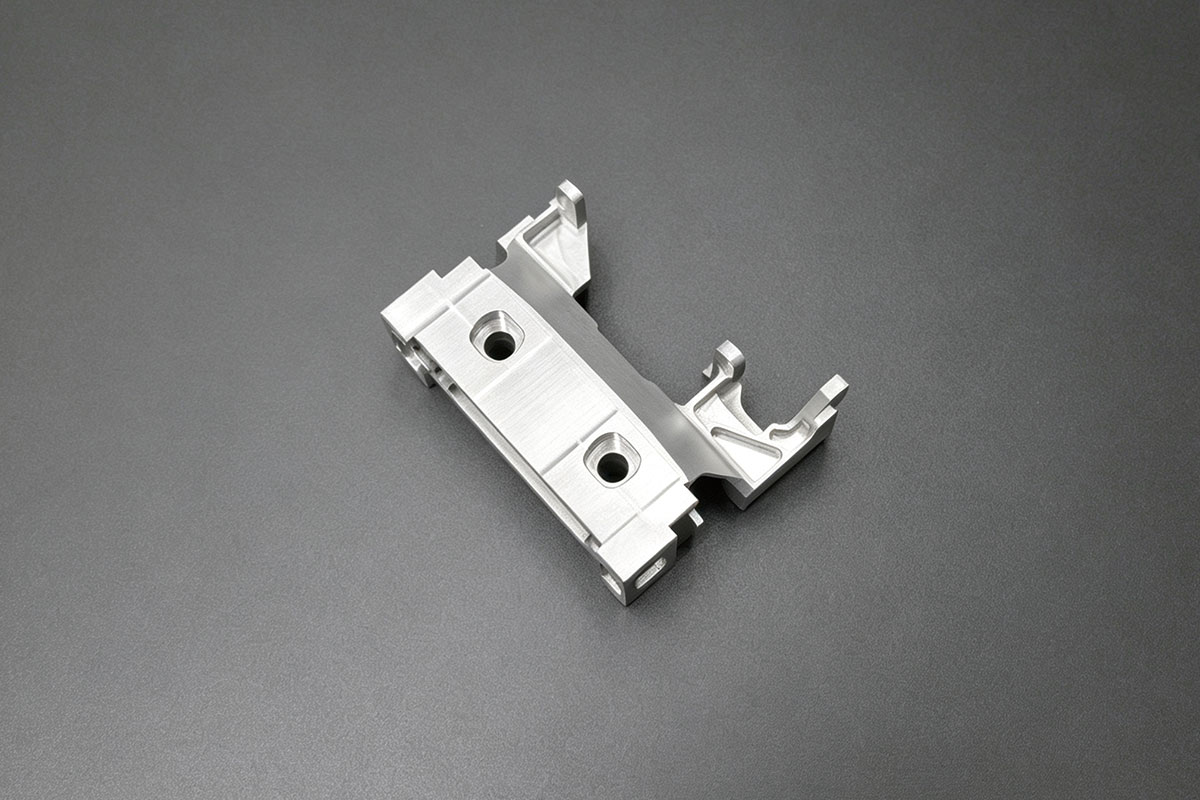

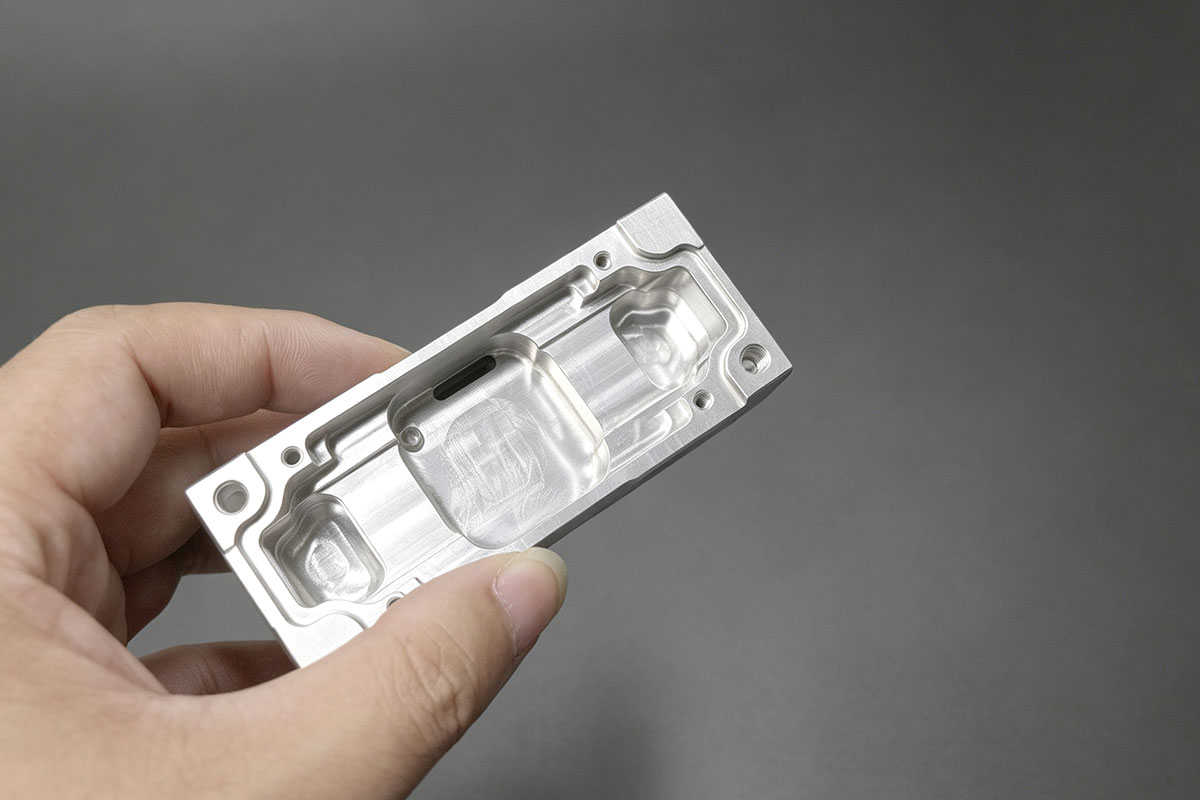

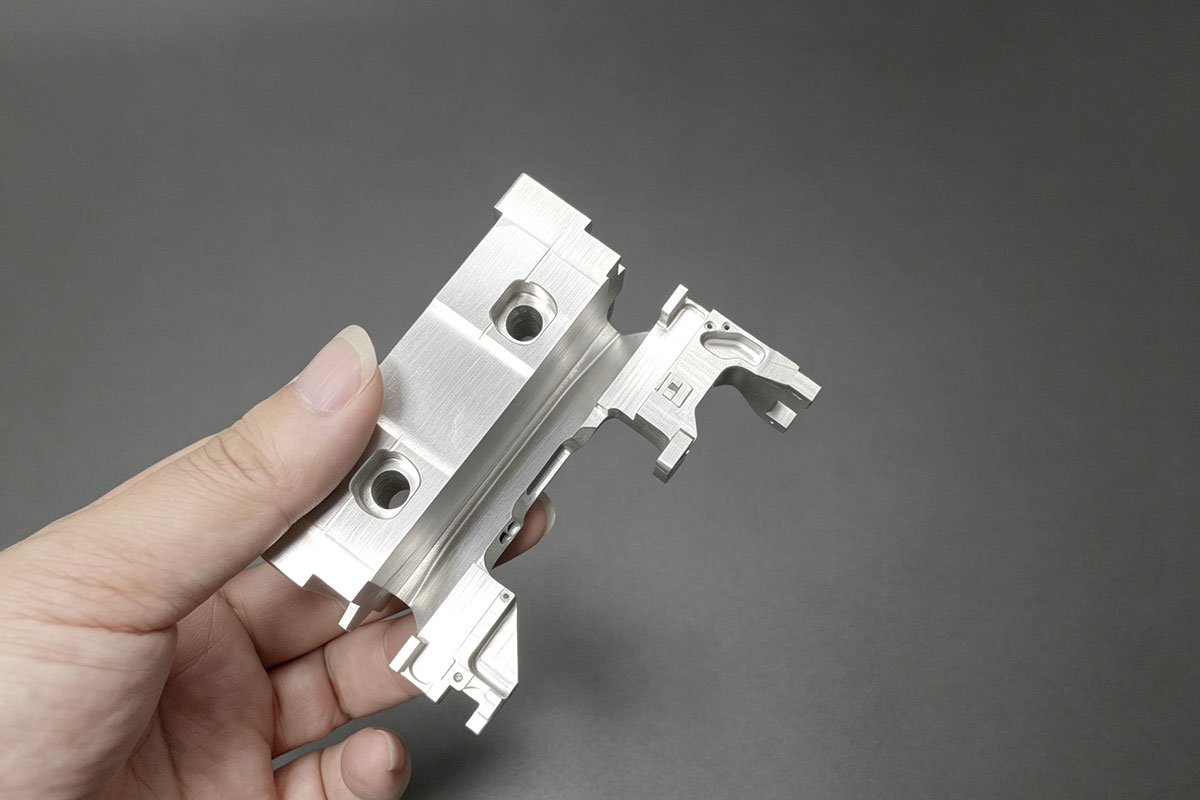

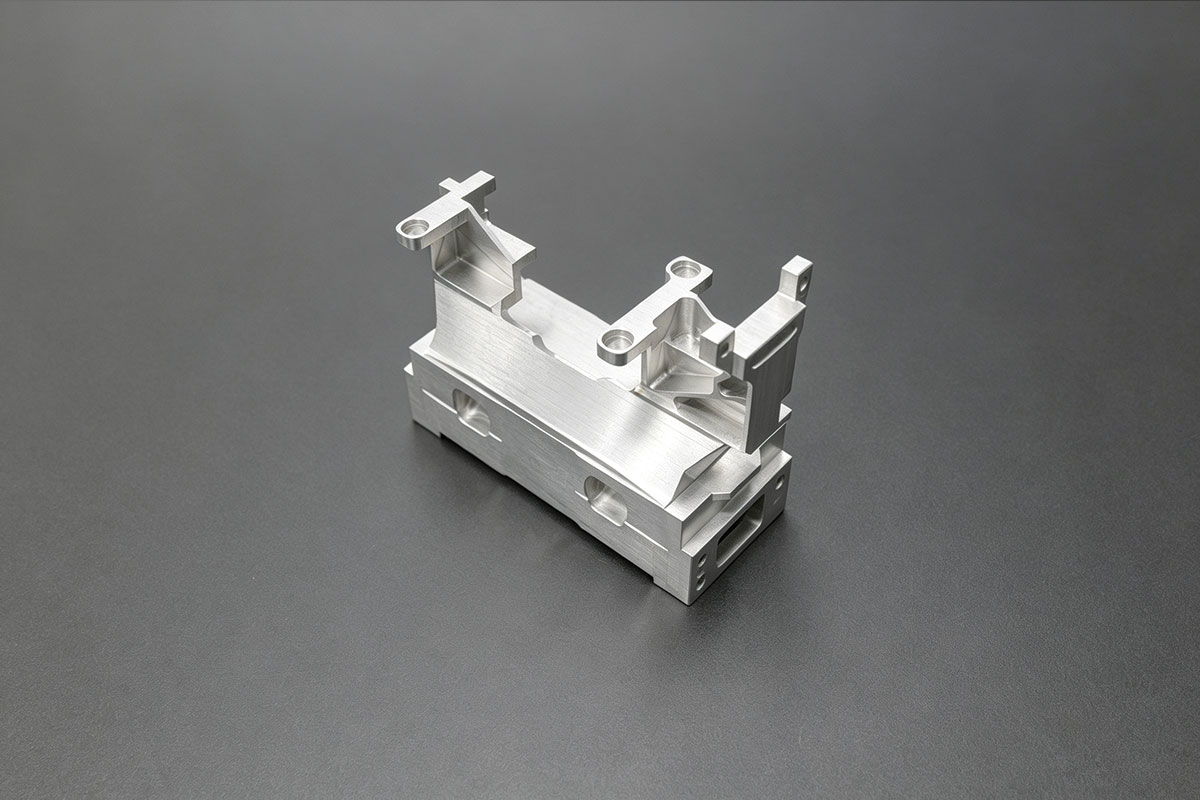

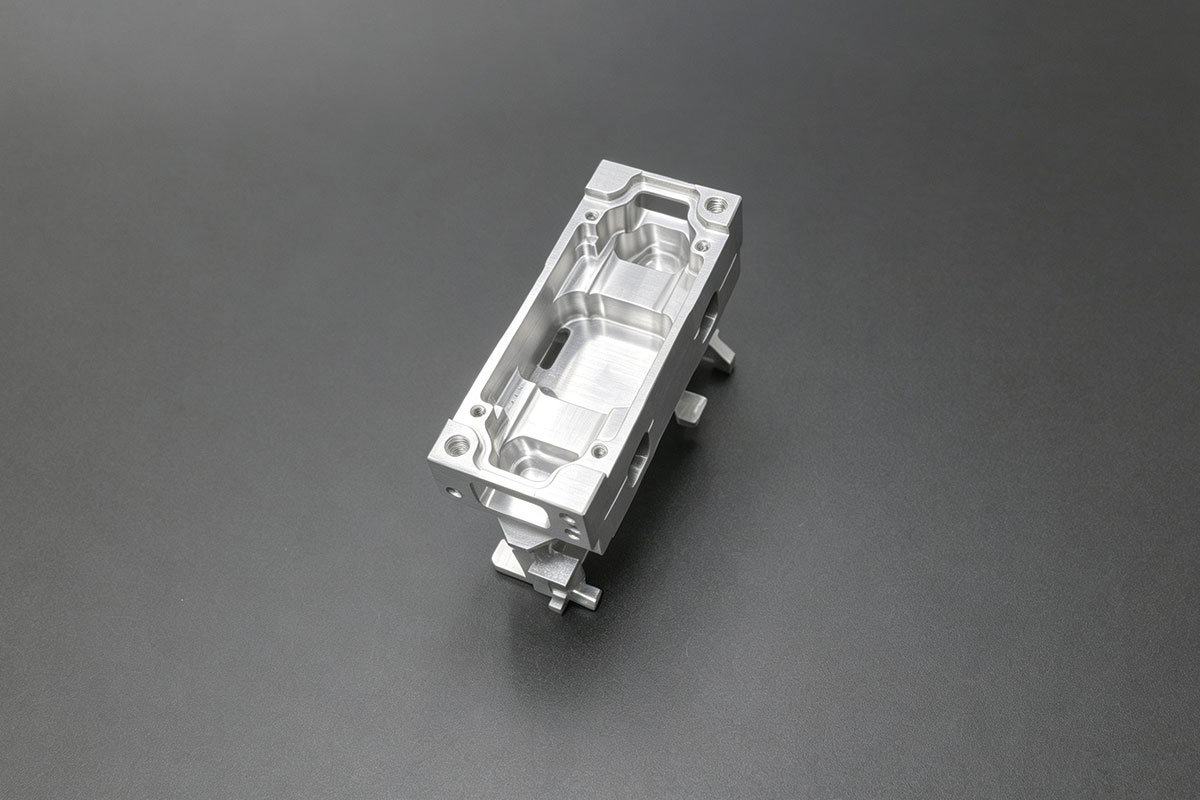

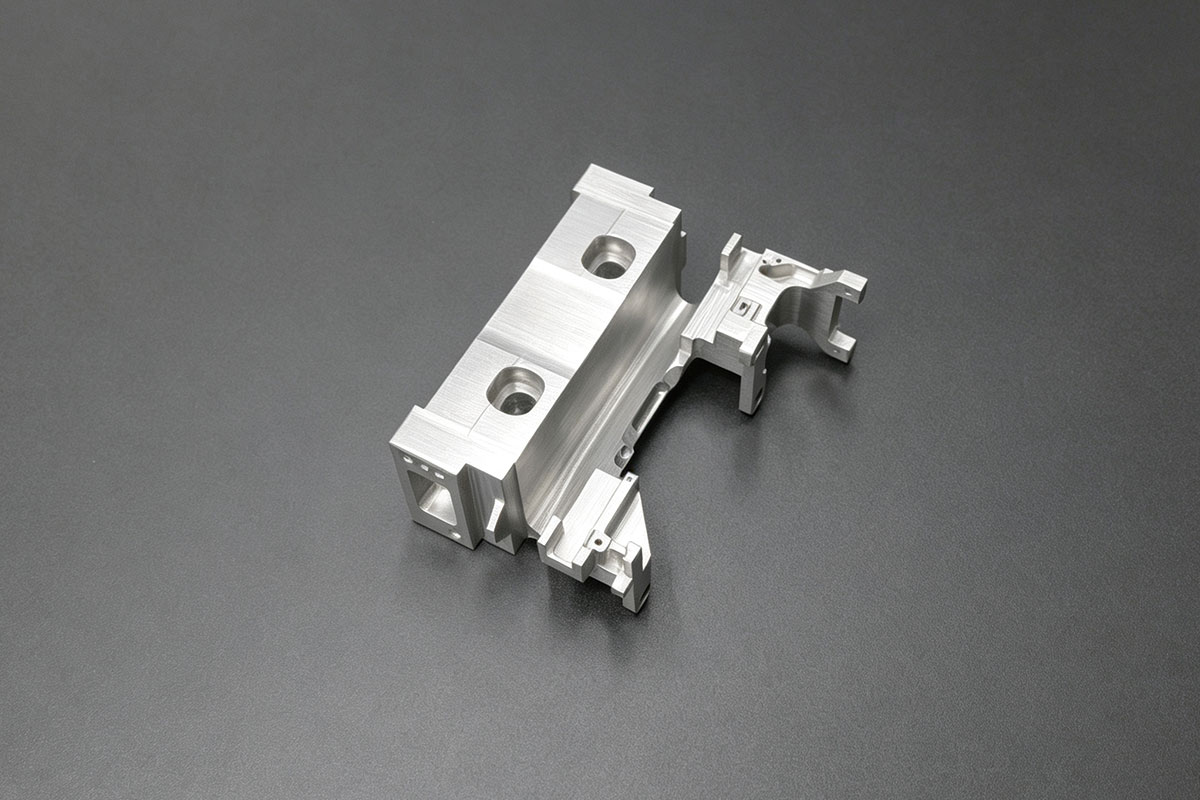

We successfully manufactured a precision 6061 multi-cavity bracket for a 3C inspection fixture application. This complex structural bracket features multiple cavities with extended distal cantilever sections and irregular contoured geometry — presenting significant machining challenges including extremely low rigidity in distal cantilever sections causing severe cutting chatter, root stress concentration leading to fracture risk, and complex shaped geometry with no unified reference plane. Through vibration-dampening toolpath strategies, stress-relief machining sequences, custom fixturing, and optimized cutting parameters, we delivered clean, stable brackets with consistent surface quality and structural integrity.

Project Overview

Key Technical Highlights

• Cantilever Chatter and Rigidity Control: Implemented vibration-dampening toolpath strategies with variable radial engagement, optimized spindle speeds, and specialized anti-vibration toolholders to eliminate severe chatter in low-rigidity distal cantilever sections — achieving stable cutting conditions and Ra≤1.6μm surface finish.
• Process Innovation:
  • Vibration-Dampening Strategy: Toolpaths with variable stepovers and optimized engagement angles tuned specifically for low-rigidity cantilever geometries eliminate harmonic vibration and chatter marks.
  • Root Stress Concentration Prevention: Staged machining sequences with controlled roughing and finishing passes, plus radiused internal corners at root junctions, distribute stress evenly and prevent fracture initiation.
  • Stress-Relief Machining: Intermediate machining pauses between roughing and finishing allow stress relaxation — preventing root cracking from residual stress accumulation.
  • Custom Fixturing: Dedicated support fixtures strategically positioned under cantilever sections provide additional rigidity during machining without interfering with tool access.
  • No-Unified-Reference Machining: Precision-machined datum features established on the most accessible surfaces serve as reference points for feature positioning, ensuring consistent geometry across all cavities.
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on all machined surfaces.
  • Chatter-free surfaces verified through inspection.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.02mm) and cavity positional accuracy (±0.015mm), supplemented by surface roughness testing (Ra≤1.6μm), visual inspection for chatter marks, and root junction integrity verification.

Industry Applications

This solution demonstrates our expertise in precision multi-cavity bracket manufacturing for inspection systems, ideal for:
✓ 3C inspection fixture brackets ✓ Complex structural mounting components ✓ Precision locating brackets ✓ Multi-cavity support structures
