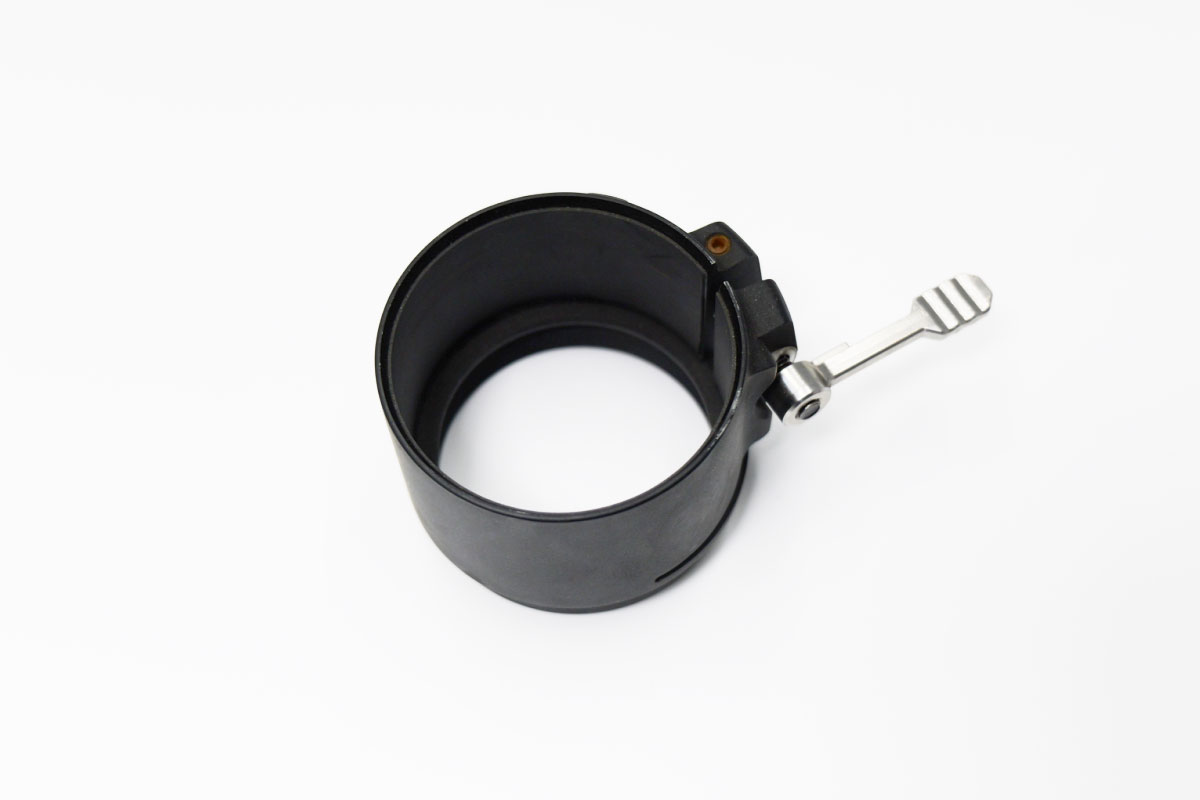

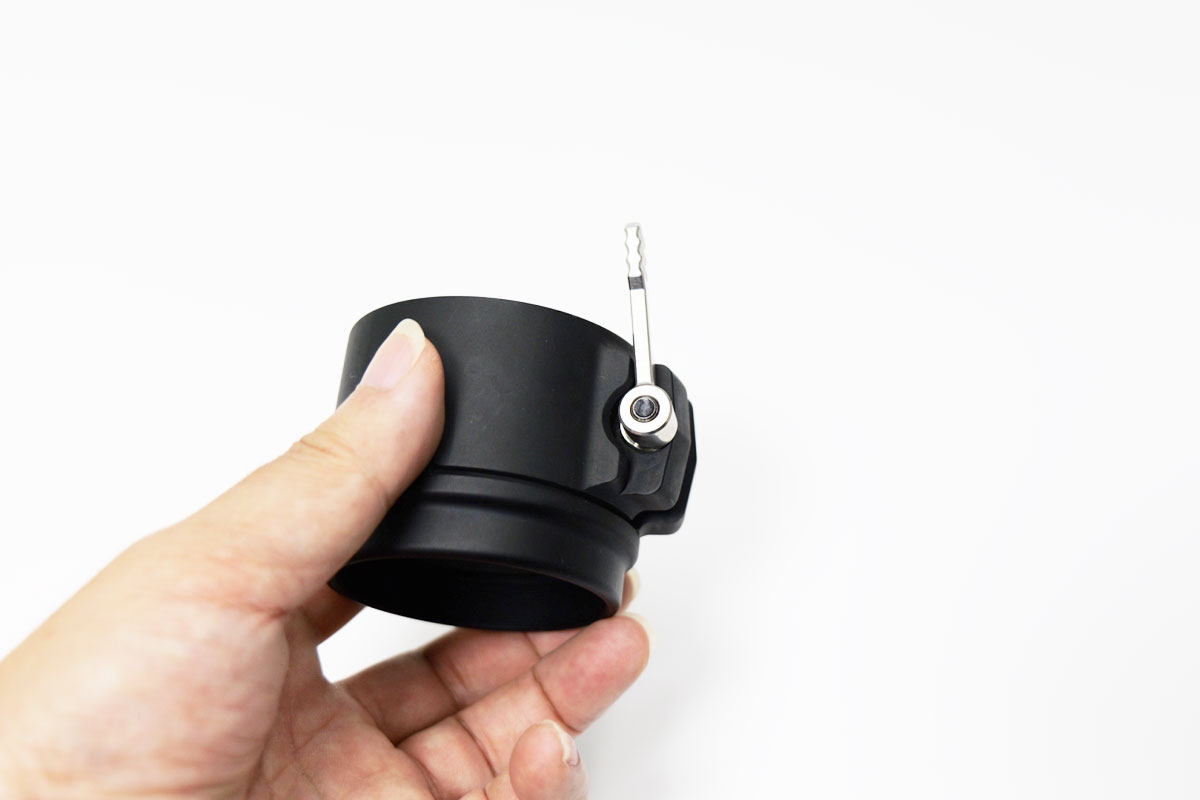

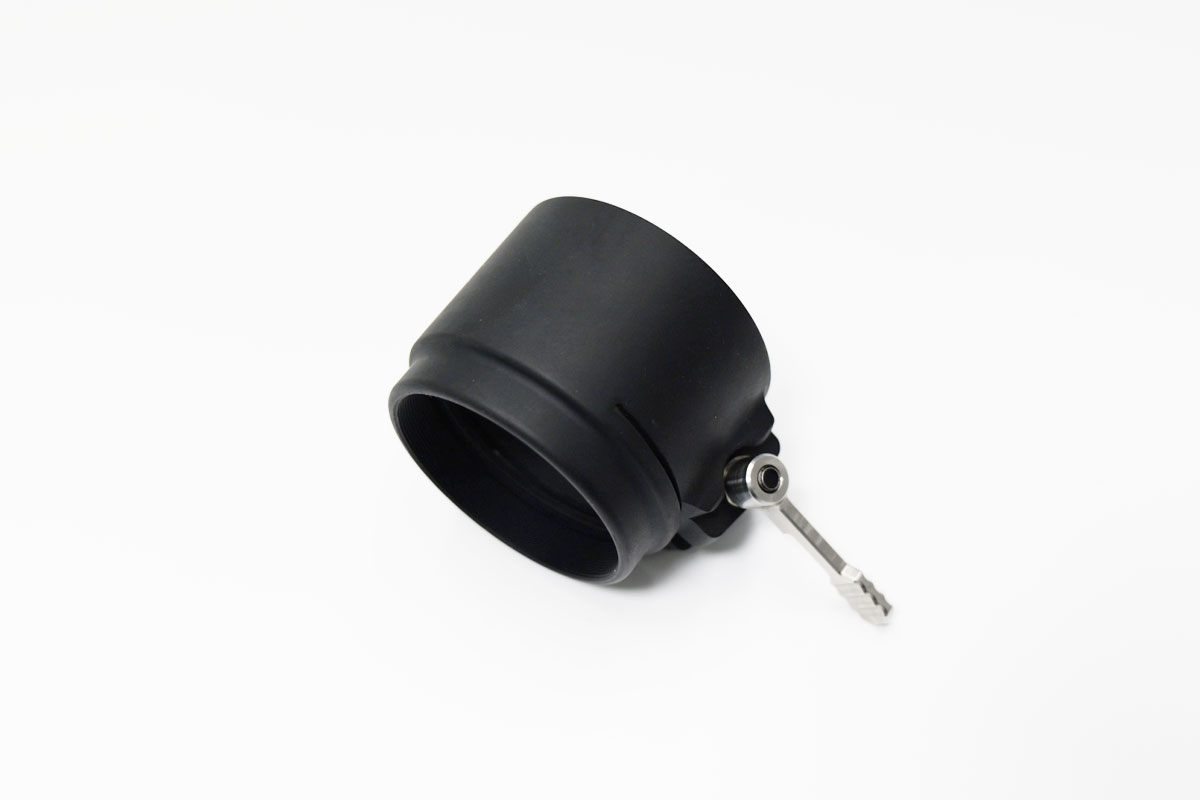

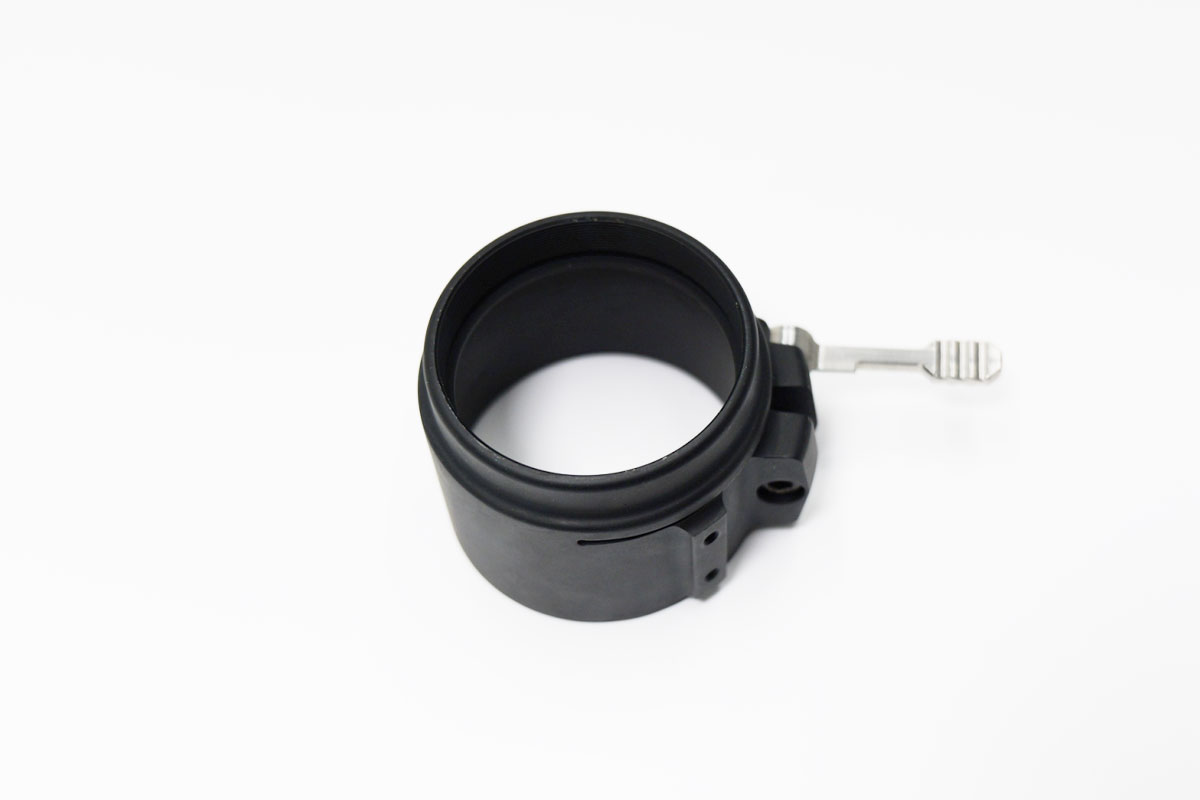

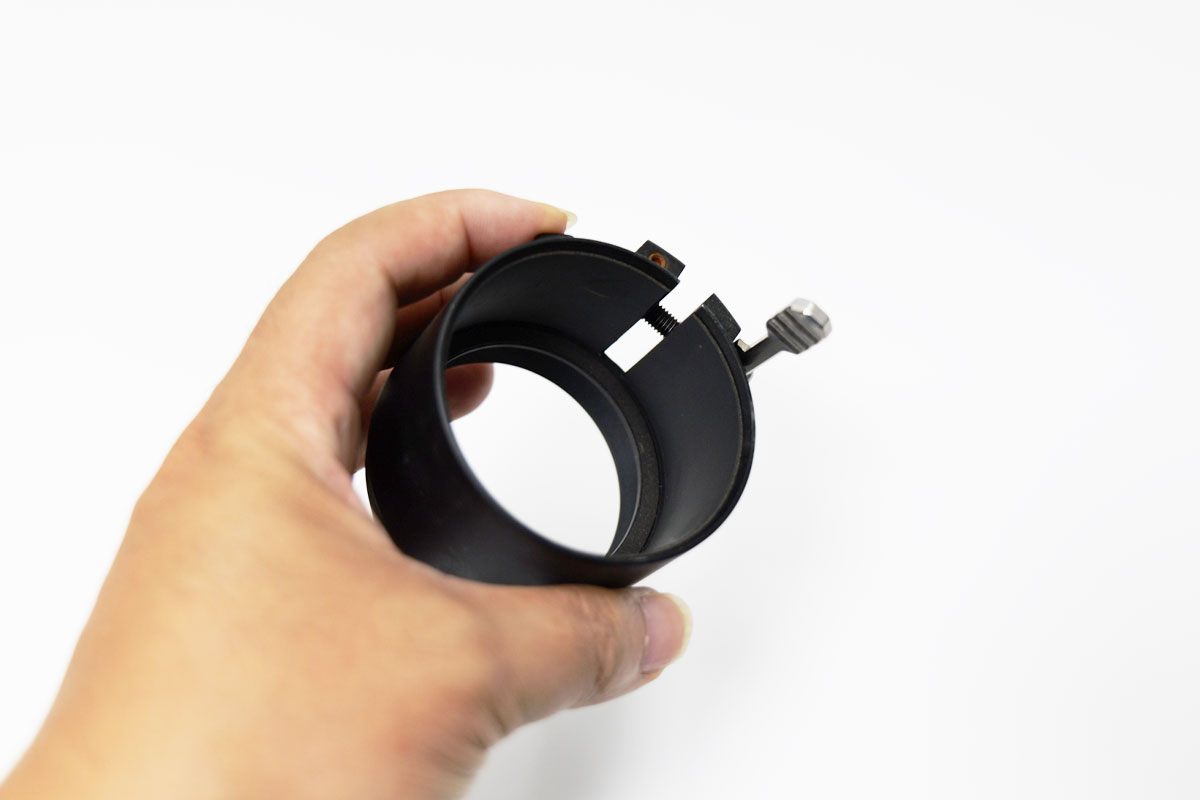

Precision 6061+304 Clamping Ring with Elasticity-Roundness Balance and Thin-Wall Chatter Control

We successfully manufactured a precision hybrid clamping ring combining a 6061 aluminum body with 304 stainless steel hardware for a 3C automation equipment application. This split-ring clamp features an elastic opening design for adjustable gripping force — presenting significant machining challenges including balancing split-ring elasticity with roundness, thin-wall chatter and deformation during machining, and corrosion protection for the aluminum component. Through custom expanding mandrel fixturing, controlled clamping strategies, vibration-dampening toolpaths, and black hard anodizing, we delivered dimensionally stable clamping rings with consistent elastic performance.

Project Overview

Key Technical Highlights

• Elasticity-Roundness Balance: Thin-wall split-ring design requires controlled slotting to achieve elastic clamping while maintaining roundness. Research shows large-diameter thin-wall ring geometries are particularly susceptible to distortion from residual stress and clamping forces. Implemented stress-relief machining sequences with slotted stress-relief grooves and post-machining stabilization periods — achieving ≤0.015mm roundness after slotting.
• Process Innovation:
  • Custom Expanding Mandrel Fixturing: Internal support mandrel with controlled expansion pressure holds the thin-wall ring during machining — preventing ovality and clamping-induced distortion [citation:3].
  • Vibration-Dampening Toolpaths: Variable radial engagement and optimized spindle speeds tuned for thin-wall ring geometries eliminate chatter during cylindrical and slot machining.
  • Staged Stress-Relief Sequence: Rough turning and milling with intermediate stress-relief pauses before final finishing — preventing elastic ring distortion from residual stress release.
  • Low-Force Clamping Strategy: Minimal clamping pressure combined with full-contact support surfaces prevents ovality while maintaining part stability [citation:5].
• Multi-Material Assembly:
  • 6061 aluminum ring body precision-machined with hardware mounting features.
  • 304 stainless steel hardware assembled with controlled torque to prevent over-compression of the aluminum body.
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on all machined surfaces.
  • Black Hard Anodized Finish (Aluminum): Type III hard anodizing with black dye creates a durable ceramic-like oxide layer (25-50μm) — providing wear resistance and corrosion protection for the aluminum ring body.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for roundness (≤0.015mm), dimensional accuracy (±0.02mm), and wall thickness (±0.015mm), supplemented by elasticity testing to verify consistent clamp force across assembly cycles, surface roughness testing (Ra≤1.6μm), and anodized coating verification.

Industry Applications

This solution demonstrates our expertise in precision hybrid clamping component manufacturing, ideal for:
✓ 3C automation clamp assemblies ✓ Adjustable gripping rings ✓ Quick-change fixture components ✓ Precision mounting and positioning rings

Why Partner With Us?

• Proven expertise in thin-wall split-ring machining with elasticity-roundness balance
• Custom expanding mandrel fixturing for distortion-free ring machining
• Multi-material assembly with 6061 aluminum + 304 stainless steel integration
• In-house black hard anodizing with MIL-spec compliance
• 12+ years of precision manufacturing experience across 3C automation sectors
