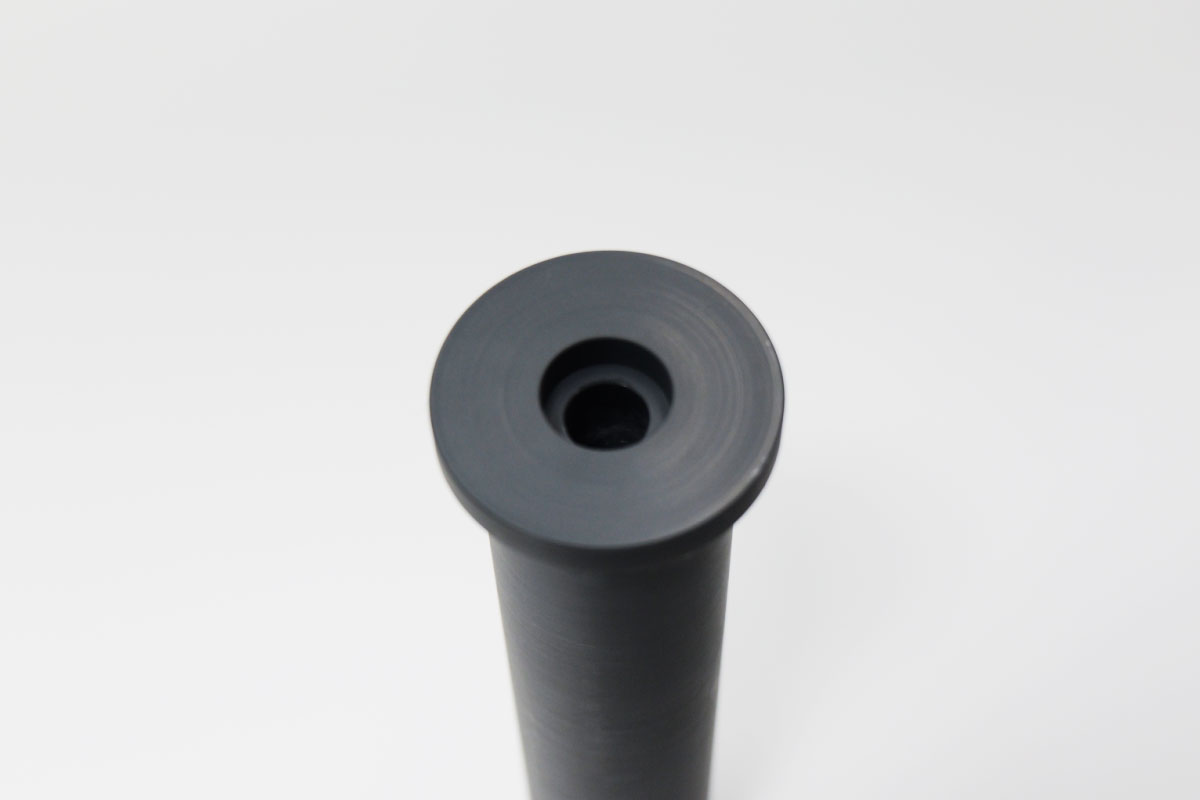

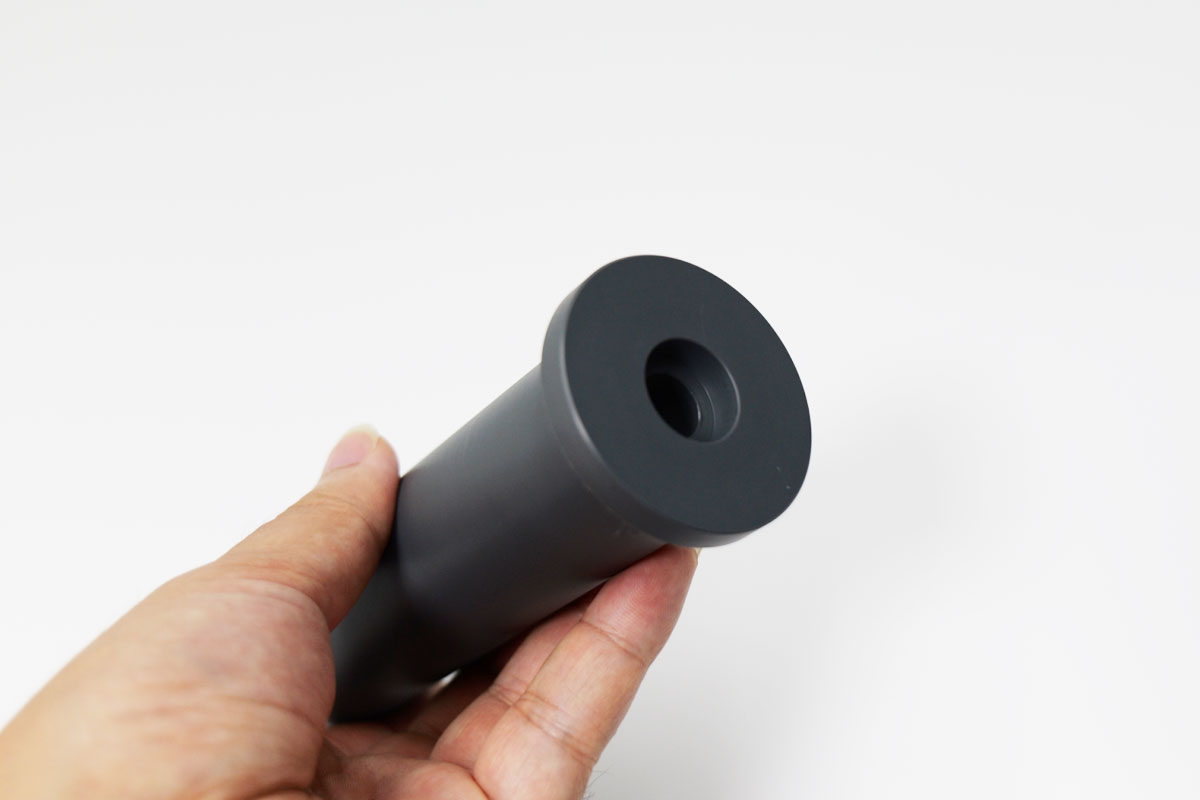

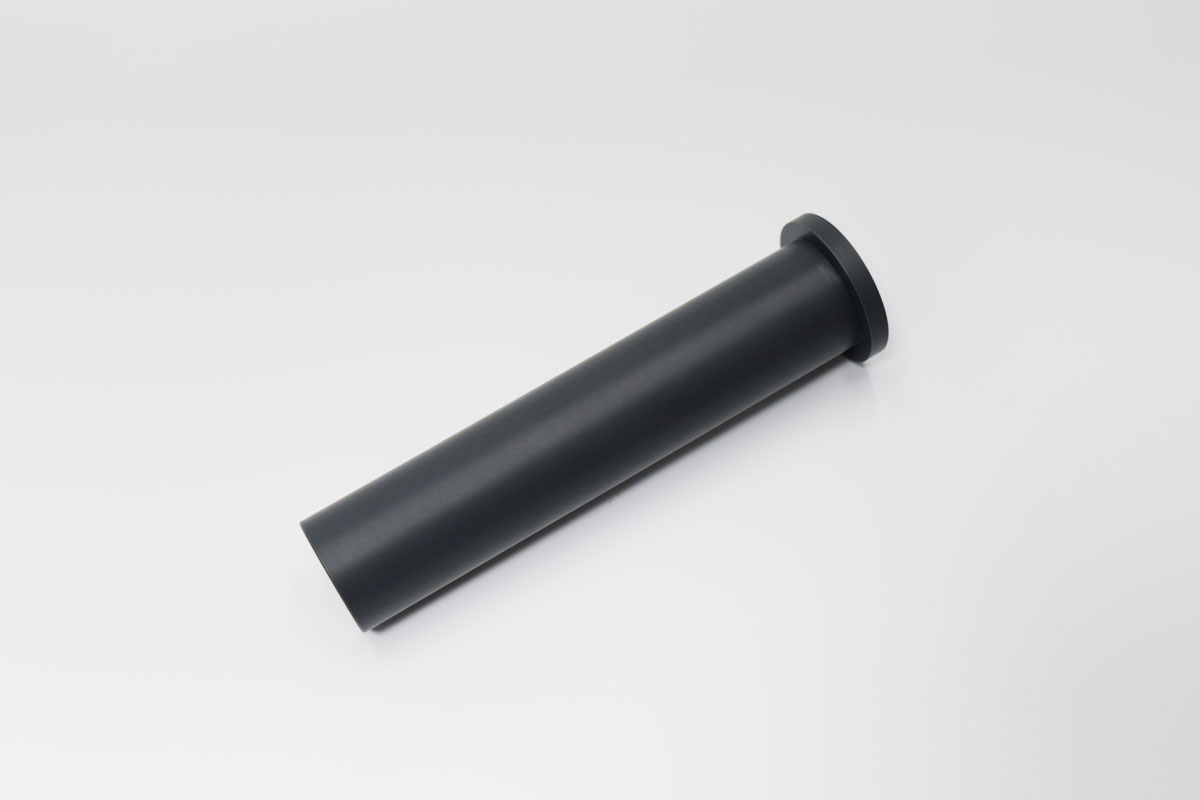

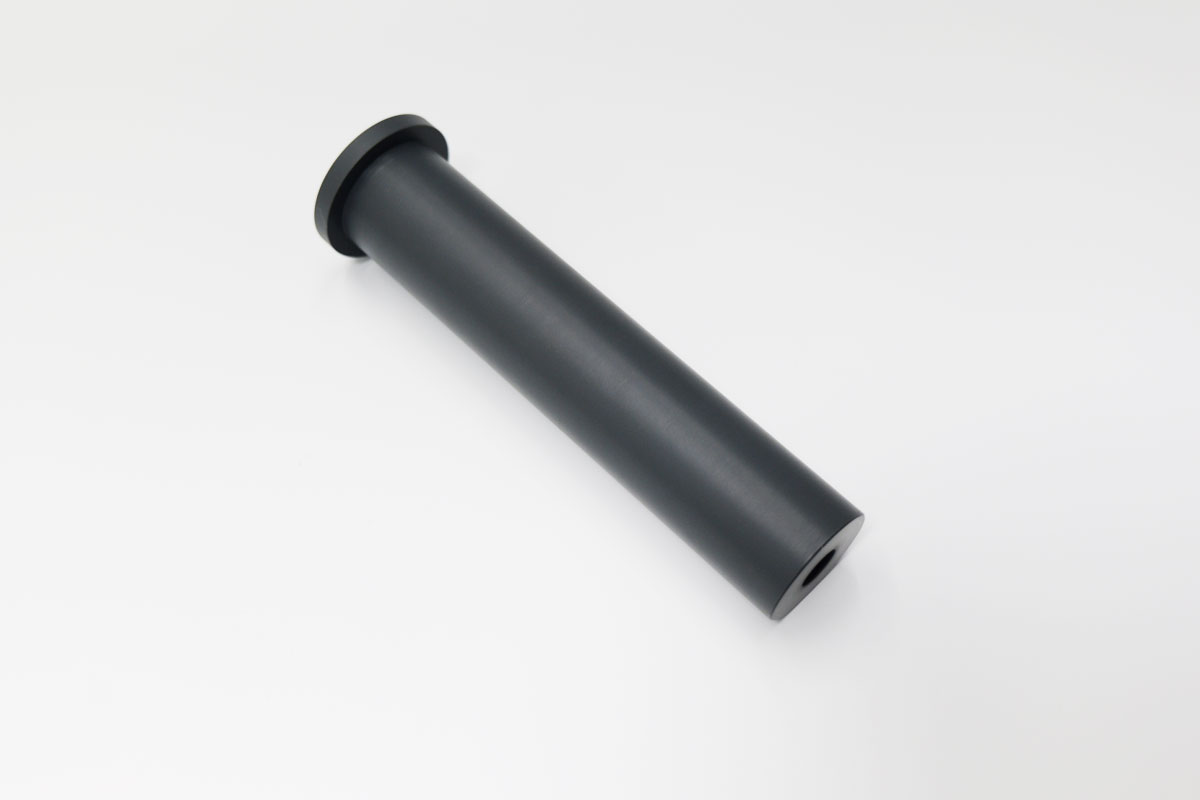

Precision 6061 Flanged Long Sleeve Bushing with Coaxiality and Cylindricity Control

We successfully manufactured a precision 6061 aluminum flanged long sleeve bushing with black hard anodized finish for a 3C automation equipment application. This elongated cylindrical component features an integral flange and requires precise inner and outer diameter alignment — presenting significant machining challenges including stringent coaxiality between inner and outer diameters and cylindricity control across the full sleeve length. Thin-walled sleeve geometries are particularly susceptible to distortion from clamping forces, cutting heat, and residual stress release. Through "bore-first" single-setup turning, custom expanding mandrel fixturing, and stress-relief machining sequences, we delivered dimensionally stable bushings with consistent geometric accuracy.

Project Overview

Key Technical Highlights

• Coaxiality and Cylindricity Control: Achieving ≤0.01mm coaxiality between inner and outer diameters requires a "bore-first" strategy — inner diameter is precision-machined first and serves as the reference datum for all subsequent operations, ensuring the outer diameter is perfectly concentric with the bore. This eliminates the cumulative errors that arise when features are machined separately .
• Process Innovation:
  • Bore-First Single-Setup Turning: Inner diameter precision-bored to final dimension in the first operation. The part remains in the same setup while outer diameter and flange features are machined, referencing the established bore centerline — eliminating re-fixturing errors that compromise coaxiality [citation:2].
  • Expanding Mandrel Fixturing: Internal support mandrel with controlled expansion pressure holds the thin-wall sleeve during external machining — distributing clamping force evenly across the bore surface and preventing ovality. Studies show expanding mandrel fixturing can reduce roundness error from 0.08mm to 0.015mm [citation:3].
  • Staged Stress-Relief Sequence: Semi-finishing followed by intermediate stress relief (allowing residual stress relaxation) before final finishing. 6061-T6 aluminum retains internal stresses from heat treatment; asymmetric material removal during machining can release these stresses and cause distortion [citation:2][citation:12].
  • Controlled Cutting Parameters: Optimized speeds and feeds for thin-wall aluminum turning — high spindle speed with light finishing passes minimizes radial cutting forces that would otherwise deform the thin wall .
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on all machined surfaces.
  • Black Hard Anodized Finish: Type III hard anodizing with black dye creates a durable ceramic-like oxide layer (25-50μm) — providing wear resistance, corrosion protection, and uniform matte black appearance.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for coaxiality (≤0.01mm), cylindricity (≤0.015mm), and dimensional accuracy (±0.01mm), supplemented by surface roughness testing (Ra≤1.6μm) and anodized coating verification.

Industry Applications

This solution demonstrates our expertise in precision thin-wall bushing manufacturing, ideal for:
✓ 3C automation bearing sleeves ✓ Precision shaft sleeves ✓ Hydraulic/pneumatic component bushings ✓ Rotating assembly sleeves
