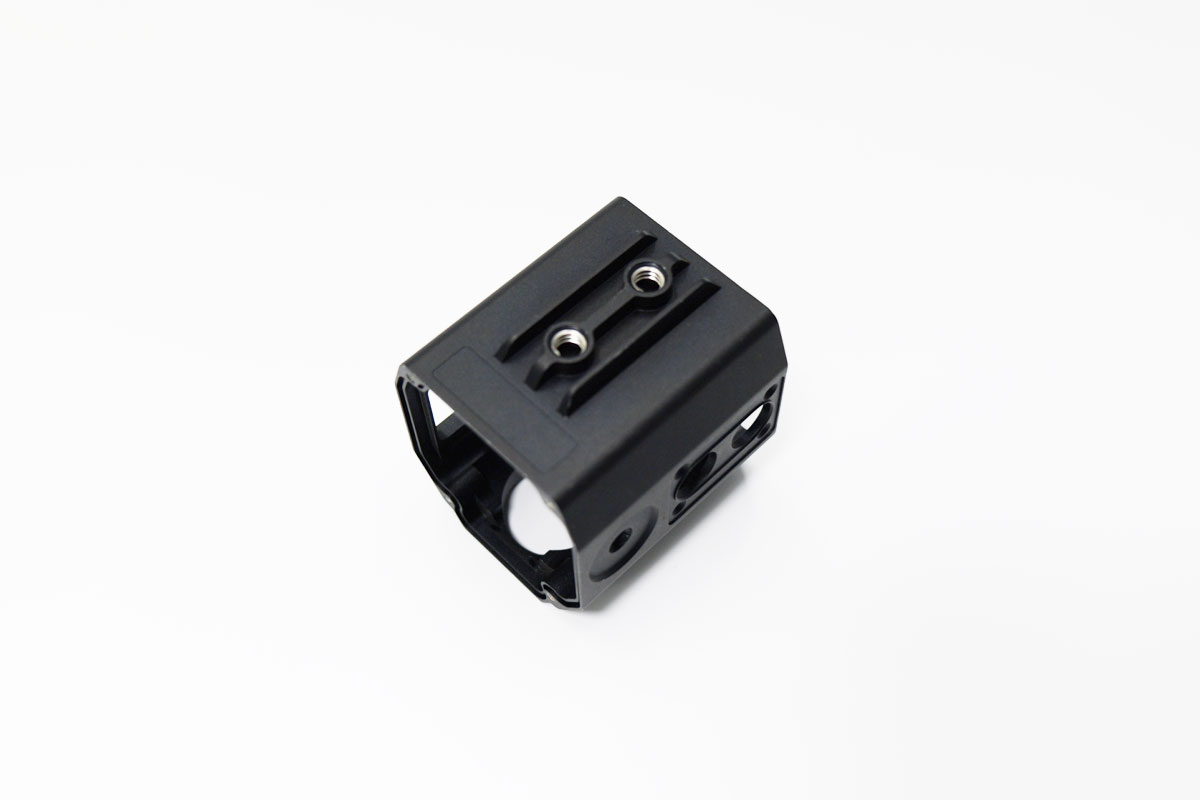

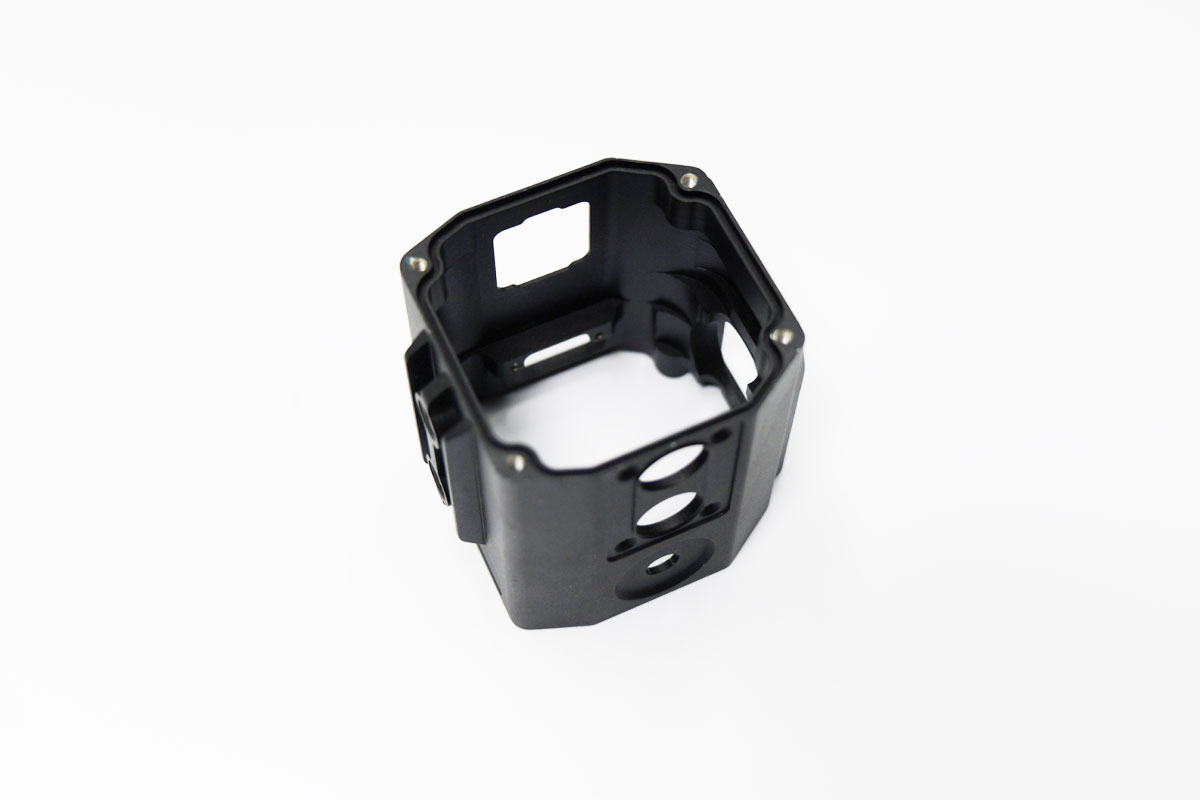

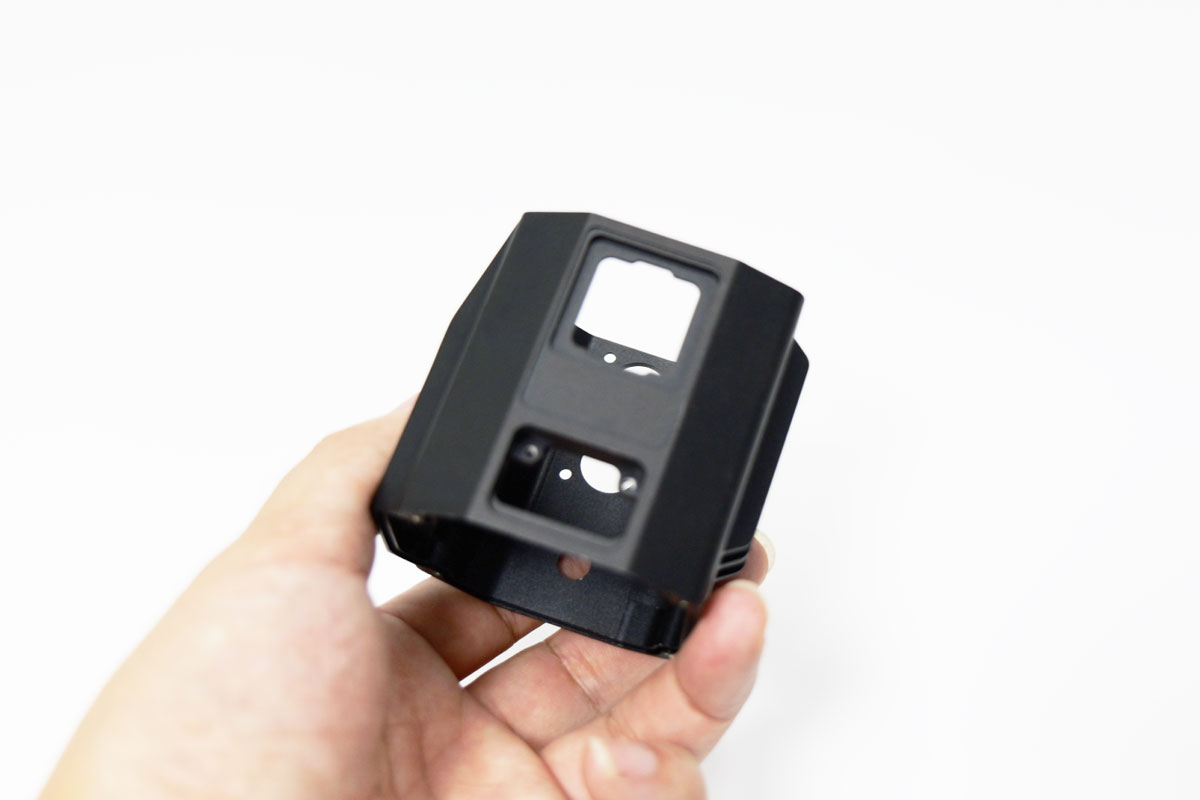

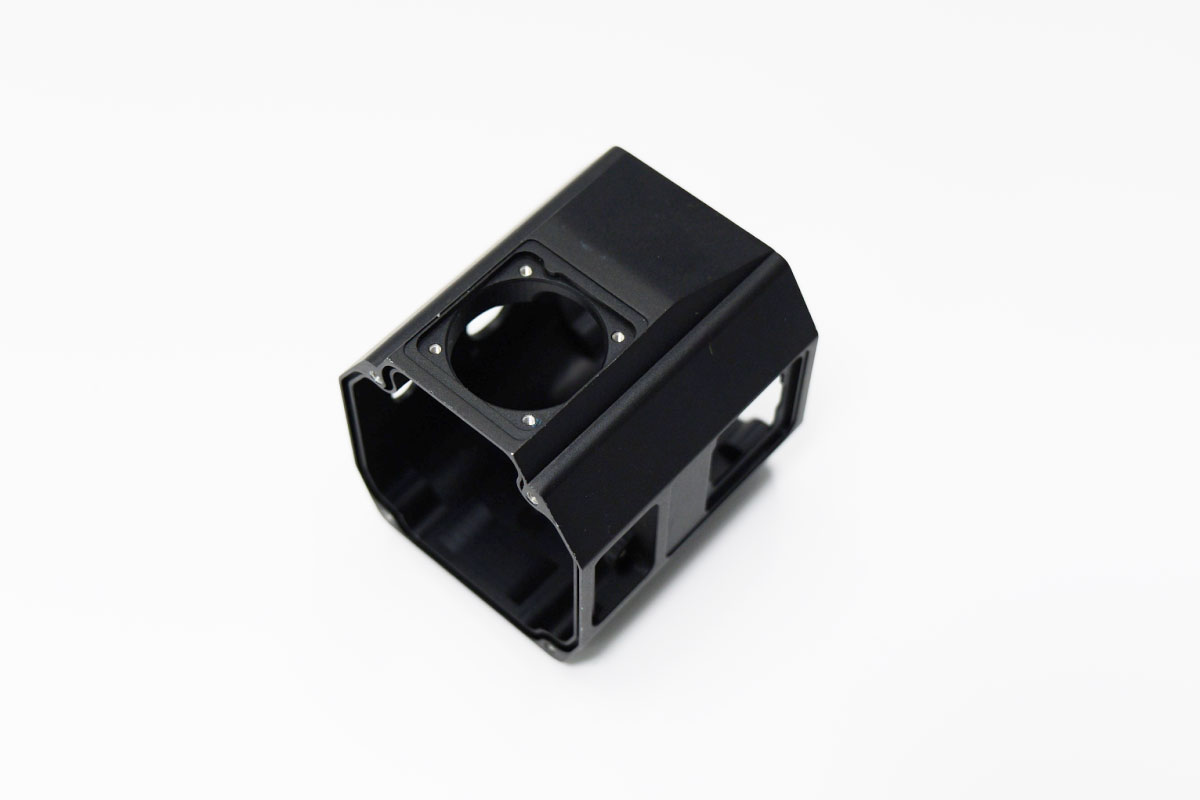

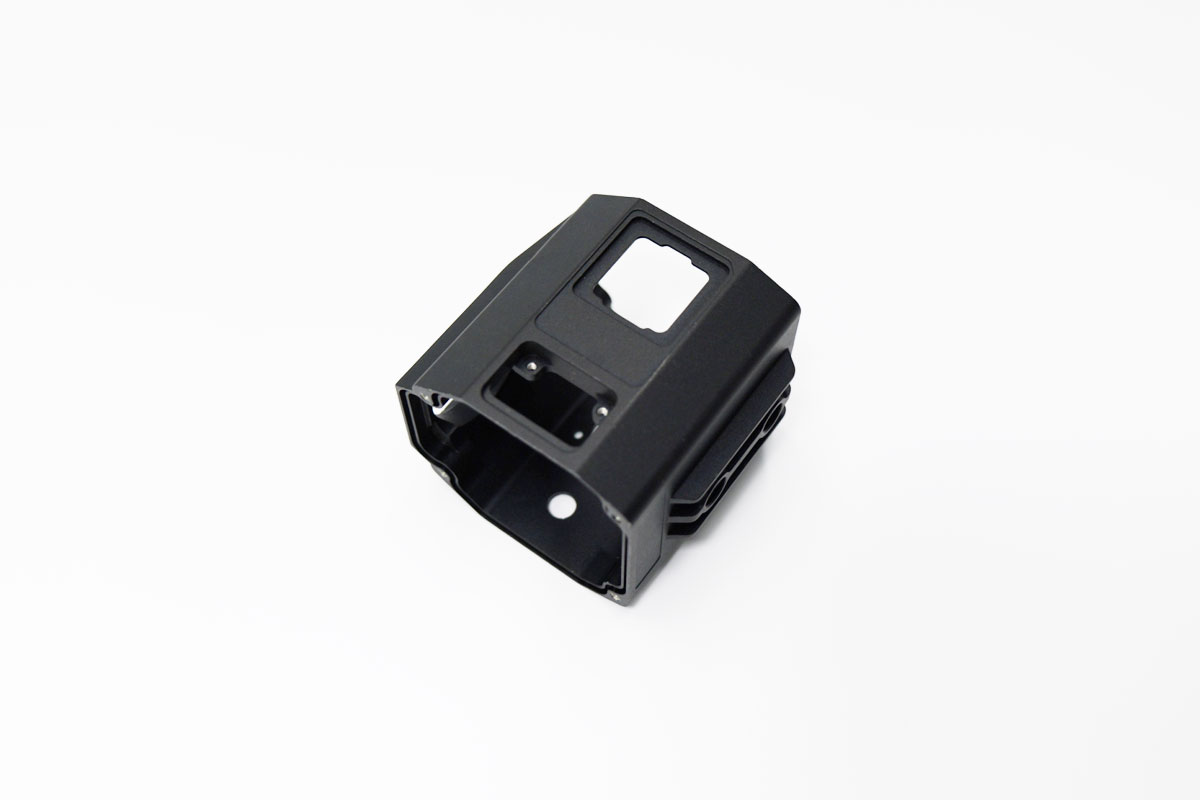

Precision 6061 Hollow Equipment Housing with Black Hard Anodizing and Thin-Wall Chatter Control

We successfully manufactured a precision 6061 aluminum hollow equipment housing with black hard anodized finish for a 3C automation equipment application. This lightweight housing features extensive thin-wall hollow sections, intricate internal cavities, and multiple intersecting cross-hole features — presenting significant machining challenges including large-area thin-wall chatter, stress-induced deformation, confined cavity corner finishing, and cross-hole burr removal. Through vibration-dampening toolpath strategies, stress-relief sequences, specialized corner tooling, and high-pressure water deburring, we delivered dimensionally stable, chatter-free housings with clean internal features and a durable black hard anodized finish.

Project Overview

Key Technical Highlights

• Thin-Wall Chatter and Deformation Control: Implemented vibration-dampening toolpaths with variable radial engagement and optimized spindle speeds for thin-wall sections — eliminating chatter marks. Combined with stress-relief machining sequences featuring staged roughing with intermediate pauses to prevent stress-induced deformation in large hollow structures.
• Process Innovation:
  • Vibration-Dampening Strategy: Variable stepover and engagement angles maintain consistent cutting forces across thin walls, eliminating harmonic vibration.
  • Internal Cavity Corner Finishing: Specialized lollipop and tapered end mills with optimized contouring achieve clean corners ≤0.5mm in confined internal geometries.
  • Cross-Hole Deburring: High-pressure water deburring removes burrs at all intersecting hole junctions without damaging thin-wall sections.
  • Low-Stress Fixturing: Custom fixtures with support under hollow sections prevent clamping distortion.
• Surface Quality:
  • Precision finishing achieves chatter-free Ra≤1.6μm surface finish.
  • Black hard anodized coating provides durable wear and corrosion resistance.

Quality Verification

Each component underwent CMM inspection for dimensional accuracy (±0.02mm) and flatness (≤0.01mm), supplemented by surface roughness testing (Ra≤1.6μm), borescope inspection for internal corner quality and cross-hole deburring, and anodized coating verification.

Industry Applications

This solution demonstrates our expertise in precision lightweight housing manufacturing, ideal for:
✓ 3C automation equipment housings ✓ Lightweight electronic enclosures ✓ Control system cavities ✓ Precision instrument housings

Why Partner With Us?

• Proven expertise in thin-wall chatter control and deformation prevention
• Advanced internal cavity finishing and cross-hole deburring capabilities
• In-house black hard anodizing with MIL-spec compliance
• 12+ years of precision manufacturing experience across 3C automation sectors
