Precision 45# Steel Goggle Profiling Fixture with Tool Wear Management and Full Anti-Corrosion Protection

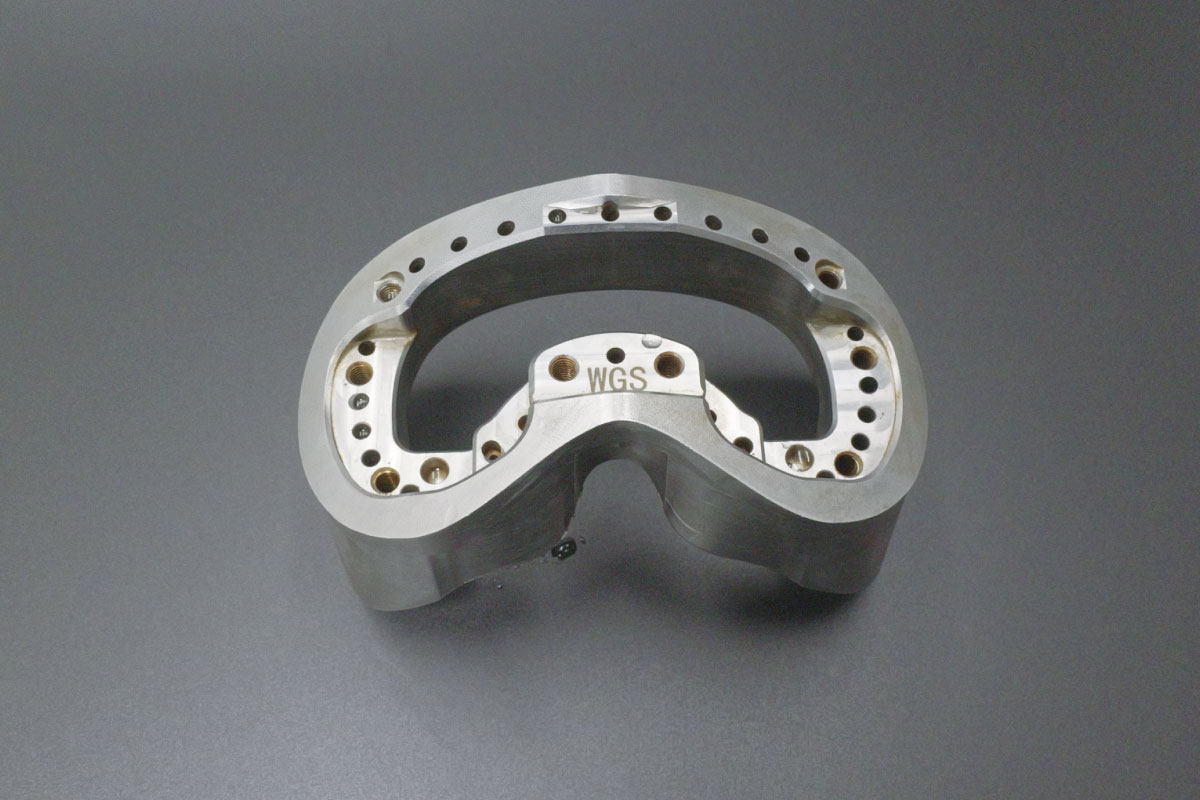

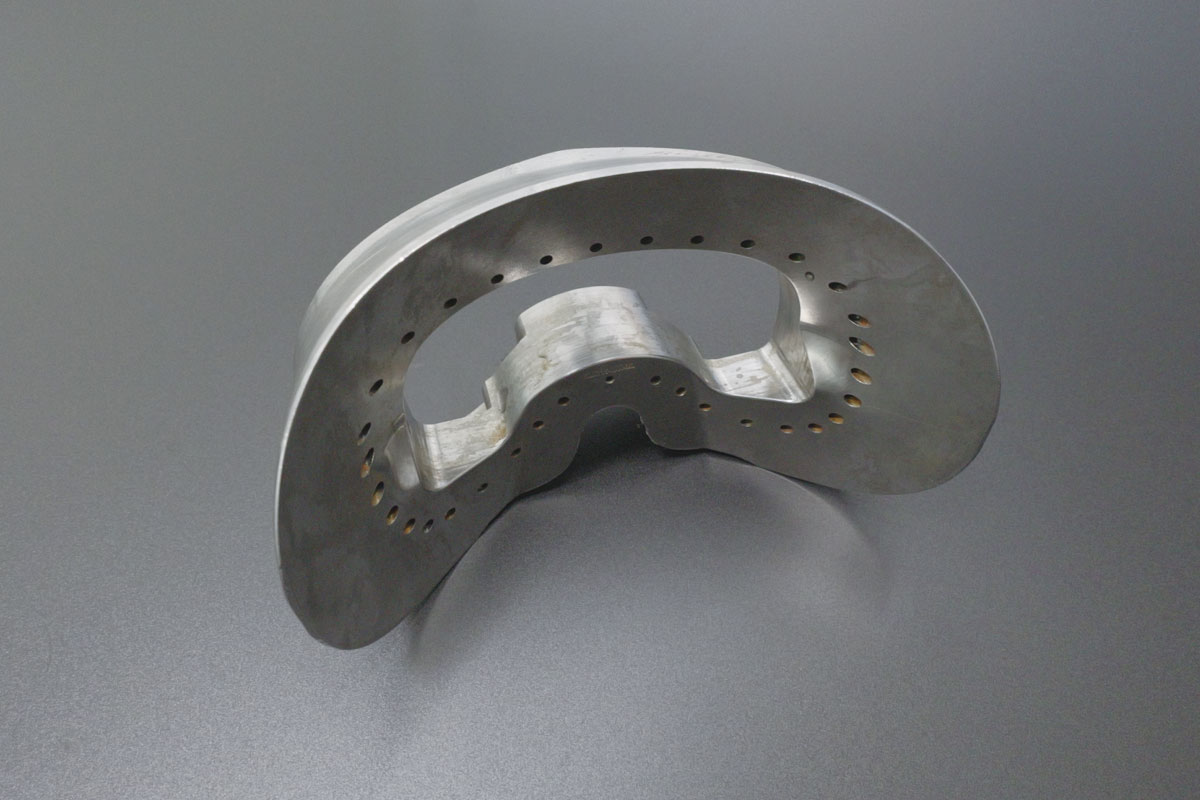

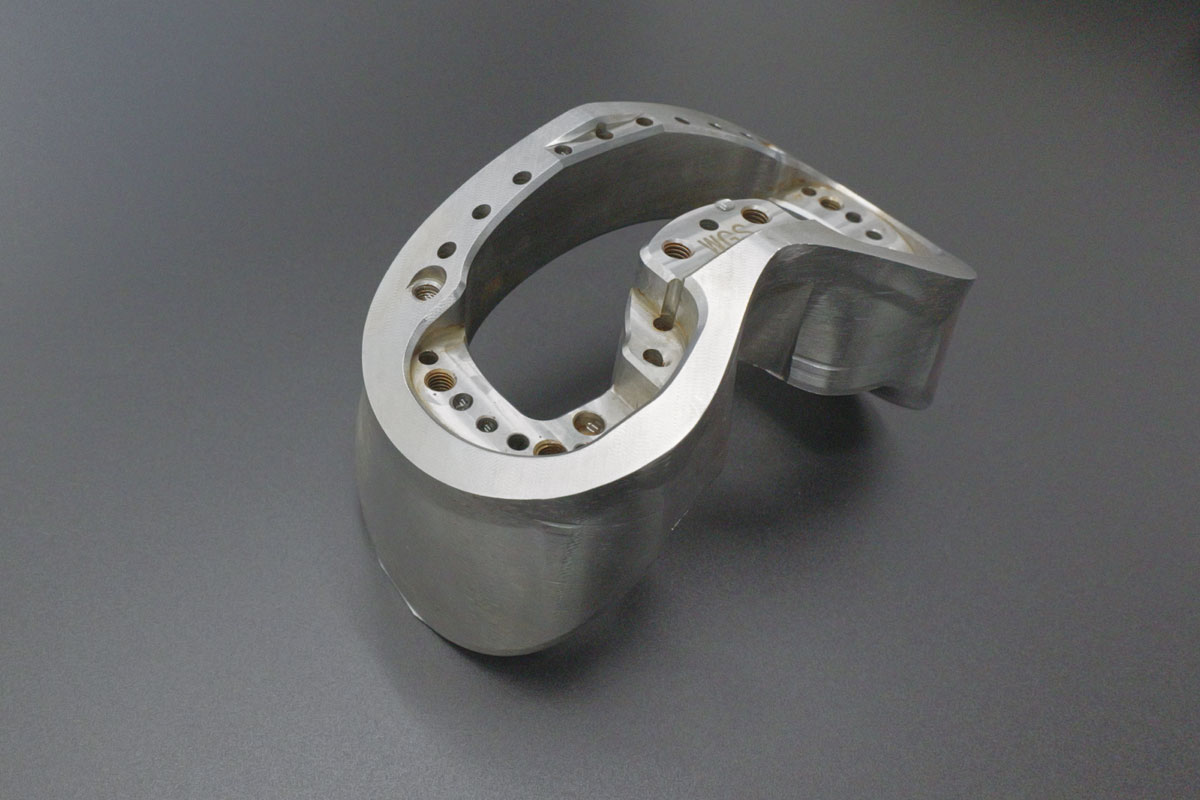

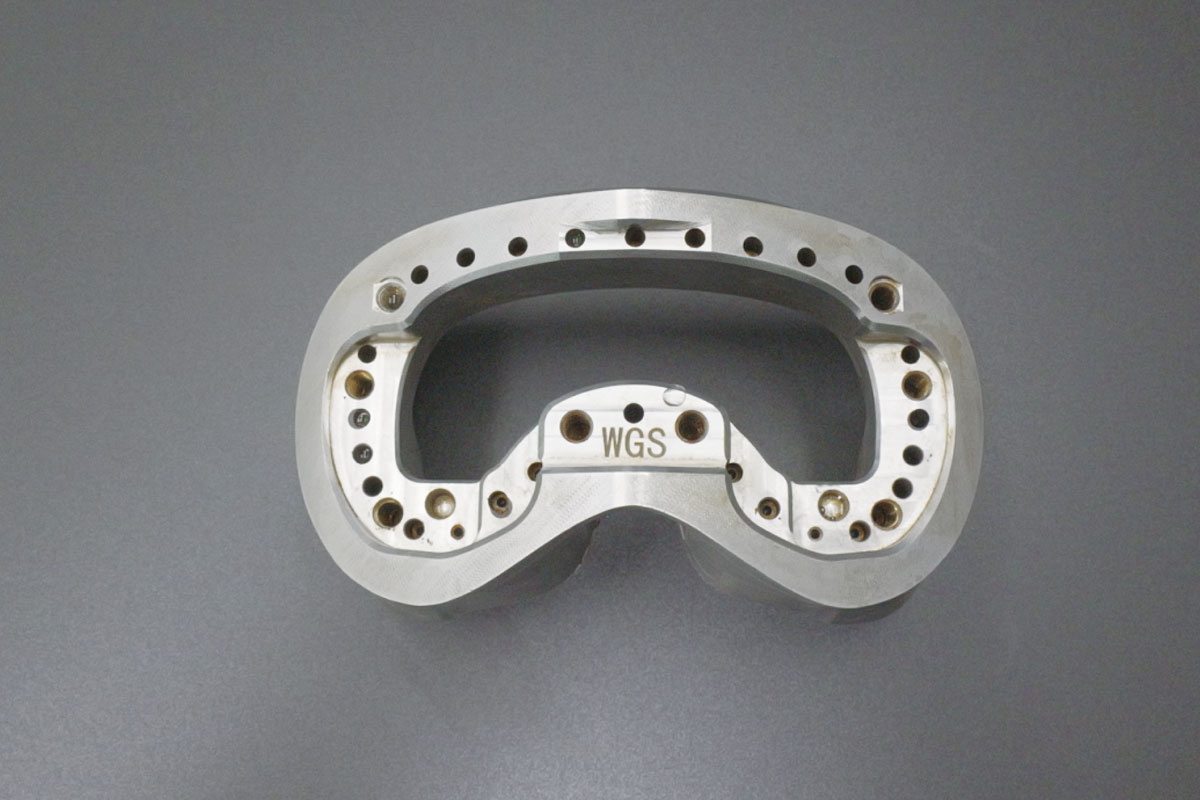

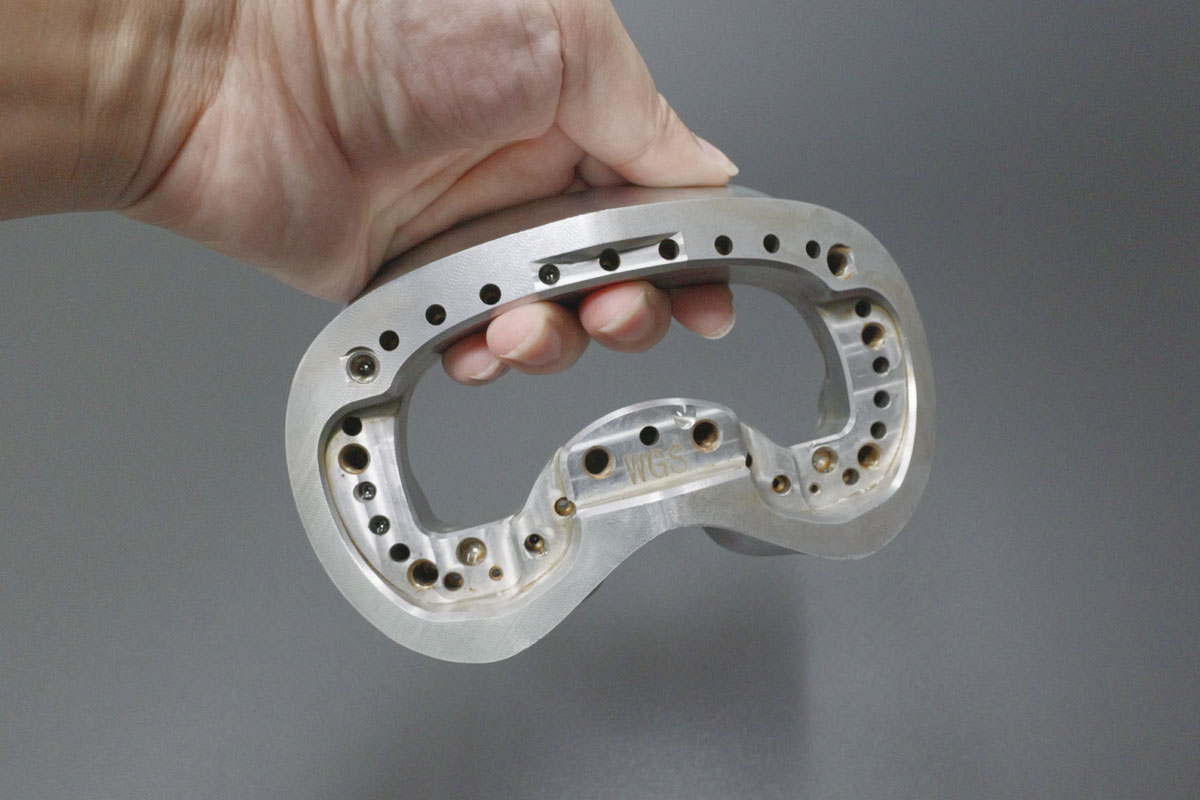

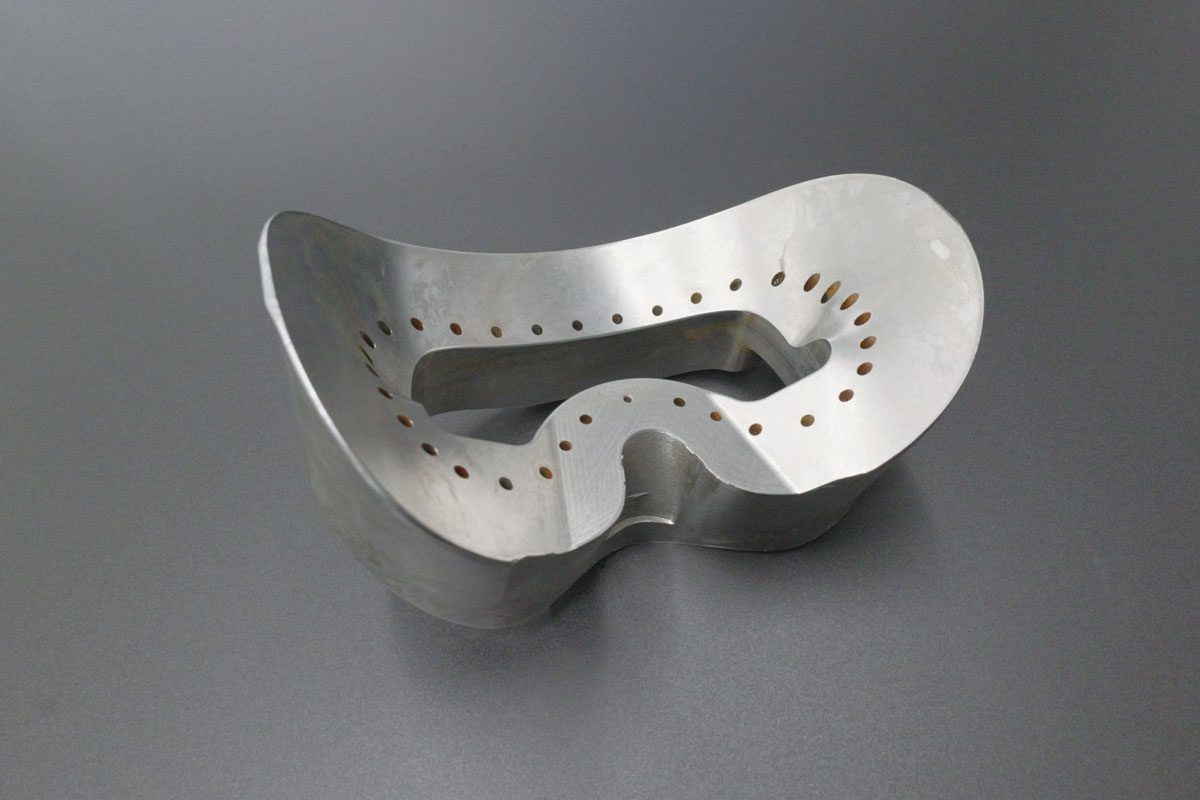

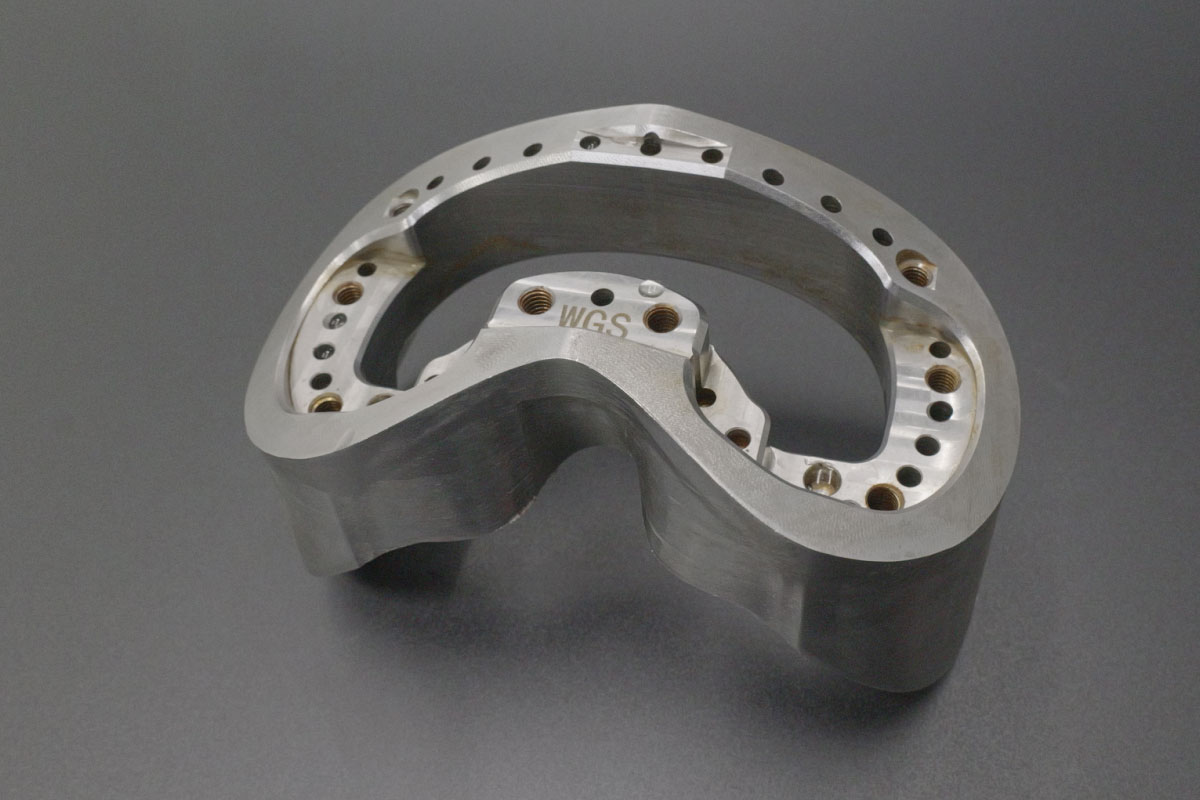

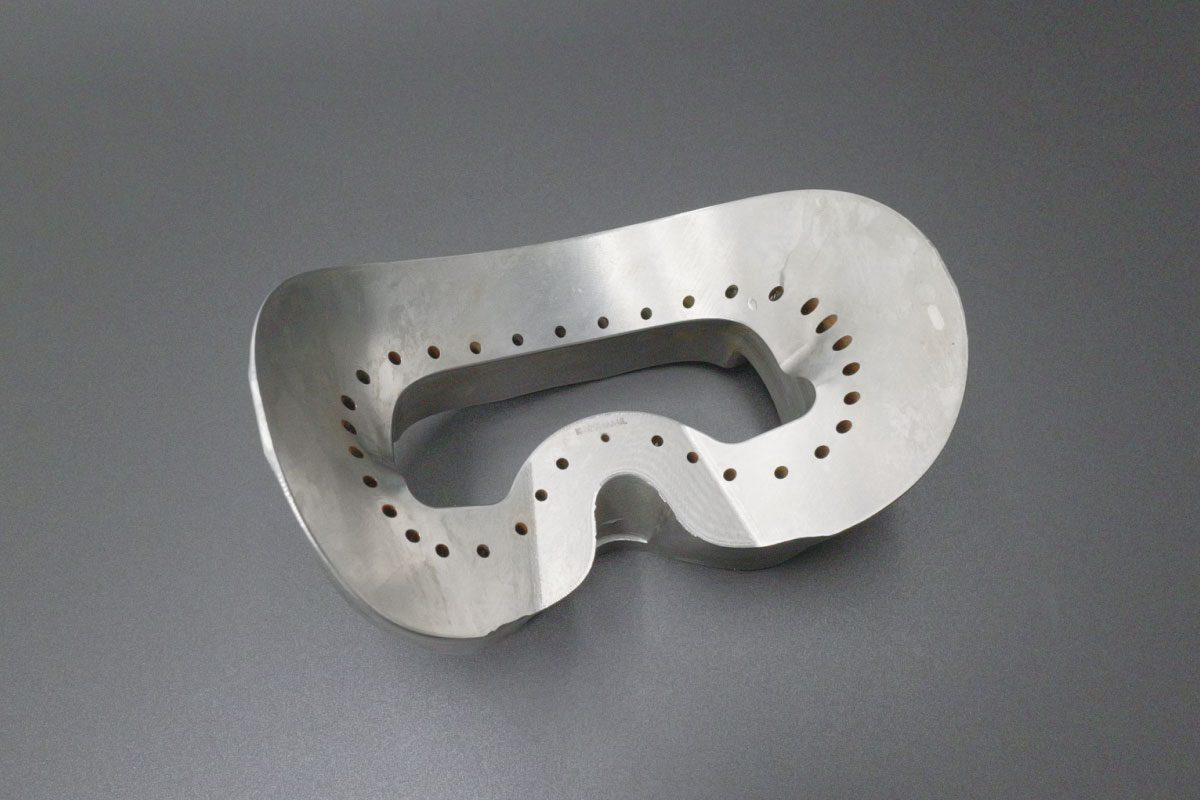

We successfully manufactured a precision 45# steel goggle profiling fixture for an FPV drone goggle assembly line application. This custom fixture features complex profiling contours and dense multi-hole arrays for precise goggle body positioning — presenting significant manufacturing challenges including high tool wear during 45# steel machining, drilling deviation in dense hole arrays, and stringent full-coverage anti-corrosion requirements. 45# steel's moderate hardness and toughness characteristics cause rapid tool wear and built-up edge formation when using conventional tooling. Through wear-resistant coated tooling, stepped drilling strategies, and comprehensive anti-corrosion treatment, we delivered durable, dimensionally accurate fixtures meeting production line durability requirements.

Project Overview

Key Technical Highlights

• Tool Wear Management in 45# Steel: 45# steel's material characteristics cause rapid tool wear and built-up edge formation when using conventional HSS tooling. Implemented wear-resistant tungsten carbide milling cutters with AlTiN or TiSiN coatings — delivering up to 3.2x longer tool life and significantly reducing tool change downtime[citation:1]. The coating's high hardness and thermal resistance combat the adhesive wear and diffusion wear typical in 45# steel machining[citation:1][citation:12].
• Process Innovation:
  • Wear-Resistant Tooling Strategy: TiAlSi-based nano-coated carbide tools with Fine Edge Treatment (FET) maintain cutting edge sharpness, reducing built-up edge formation and work hardening in 45# steel[citation:1][citation:6]. Coated tools demonstrate excellent oxidation wear resistance and thermal stability at elevated cutting temperatures[citation:12].
  • Drilling Deviation Prevention: Dense hole array drilling challenges include drill wander and breakage in 45# steel. Implemented precision center-drilling with rigid stub-length drills followed by stepped peck-drilling sequences (using 50% depth increments) — preventing drill walk and maintaining ±0.01mm positional accuracy[citation:6][citation:2]. For 45# steel, recommended drilling parameters: low speeds (20-30m/min cutting speed), moderate feeds (0.1-0.2mm/r), with full coolant coverage for chip evacuation and heat dissipation[citation:5][citation:6].
  • Comprehensive Anti-Corrosion Protection: Full-coverage surface protection applied to prevent corrosion in production environment. 45# steel requires complete anti-corrosion treatment for long-term fixture durability. Applied uniform zinc or cadmium plating with controlled surface preparation — salt spray testing confirms 360+ hours corrosion resistance with properly applied cadmium plating[citation:7].
  • Controlled Machining Parameters: Optimized cutting parameters for 45# steel — moderate cutting speeds (100-150m/min for milling) prevent overheating and maintain tool life, with proper coolant application to manage heat and chip evacuation[citation:1][citation:12].
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on all machined surfaces.
  • Full-coverage anti-corrosion plating ensures long-term fixture durability in production environment.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.015mm) and dense hole array positional accuracy (±0.01mm), supplemented by surface roughness testing (Ra≤1.6μm) and salt spray testing for anti-corrosion coating verification.

Industry Applications

This solution demonstrates our expertise in precision steel fixture manufacturing for high-volume production lines, ideal for:
✓ FPV goggle assembly fixtures ✓ Consumer electronics production tooling ✓ Precision locating and profiling fixtures ✓ High-wear industrial tooling

Why Partner With Us?

• Proven expertise in 45# steel precision machining with tool wear management
• Advanced dense hole array drilling with deviation prevention
• Comprehensive anti-corrosion surface treatment capabilities
• 12+ years of precision manufacturing experience across consumer electronics and industrial equipment sectors
