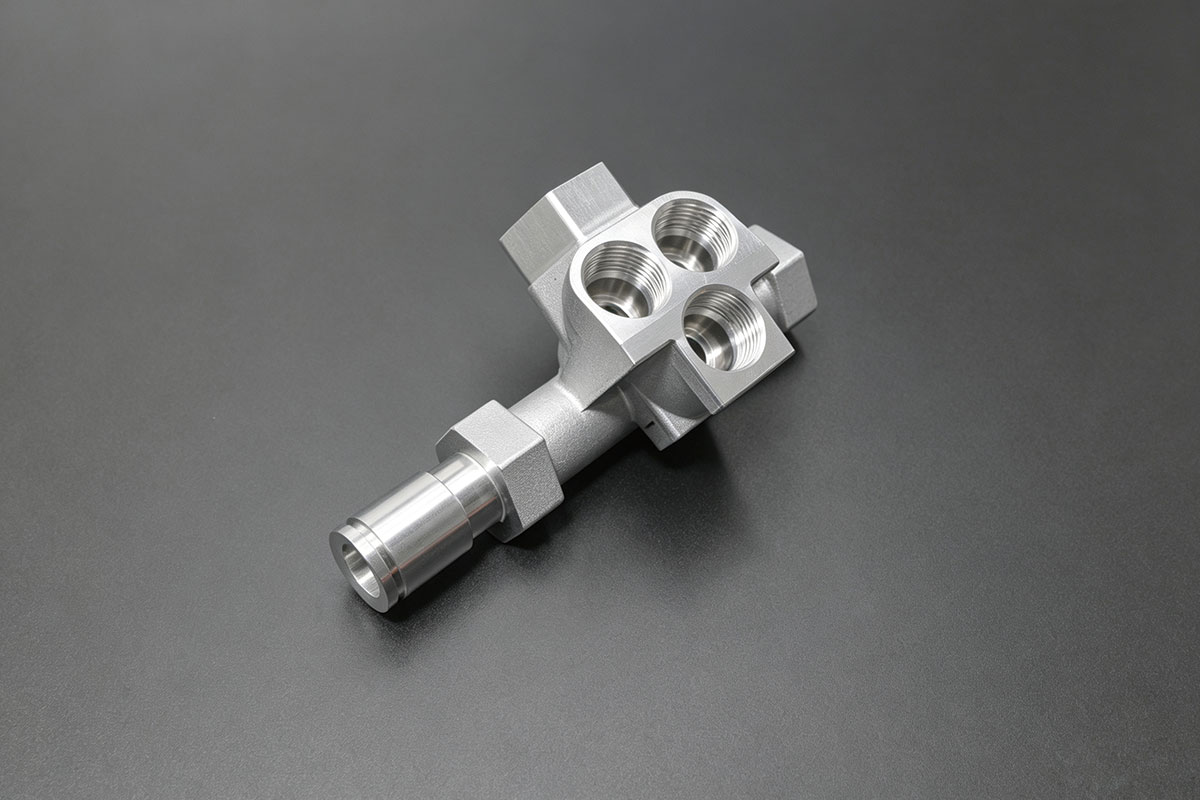

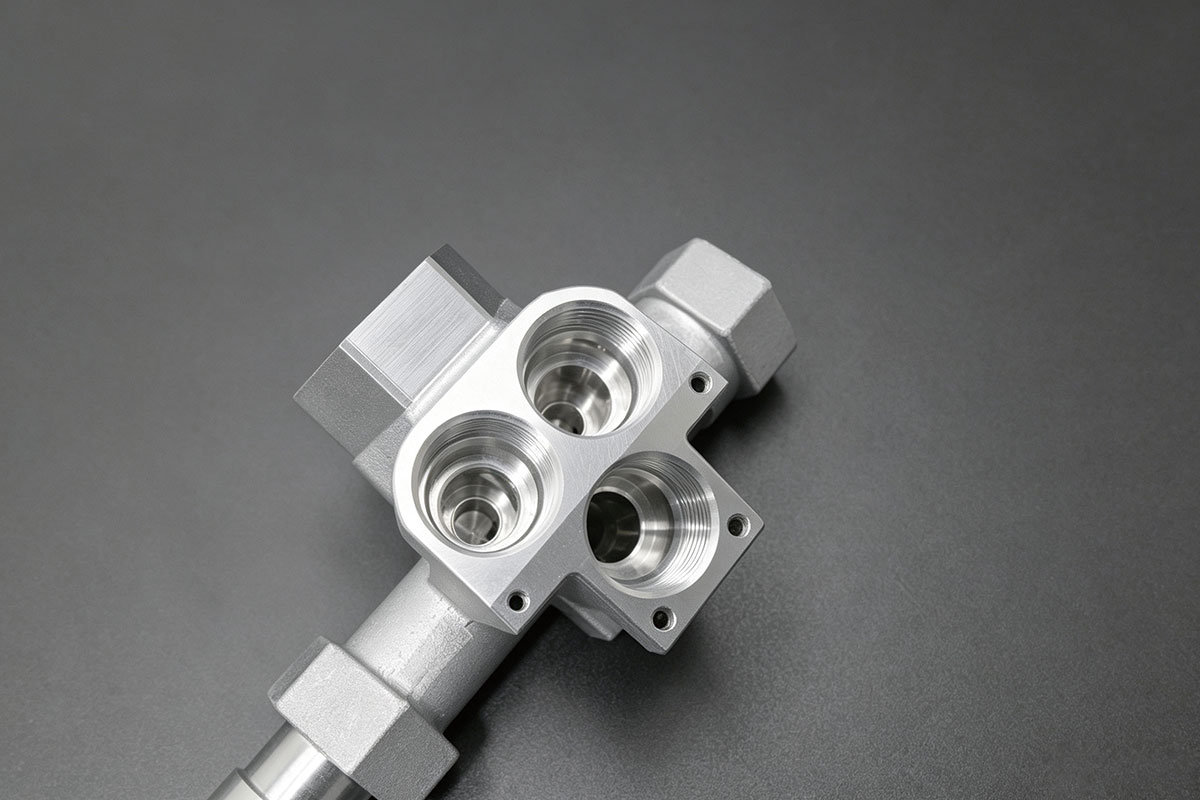

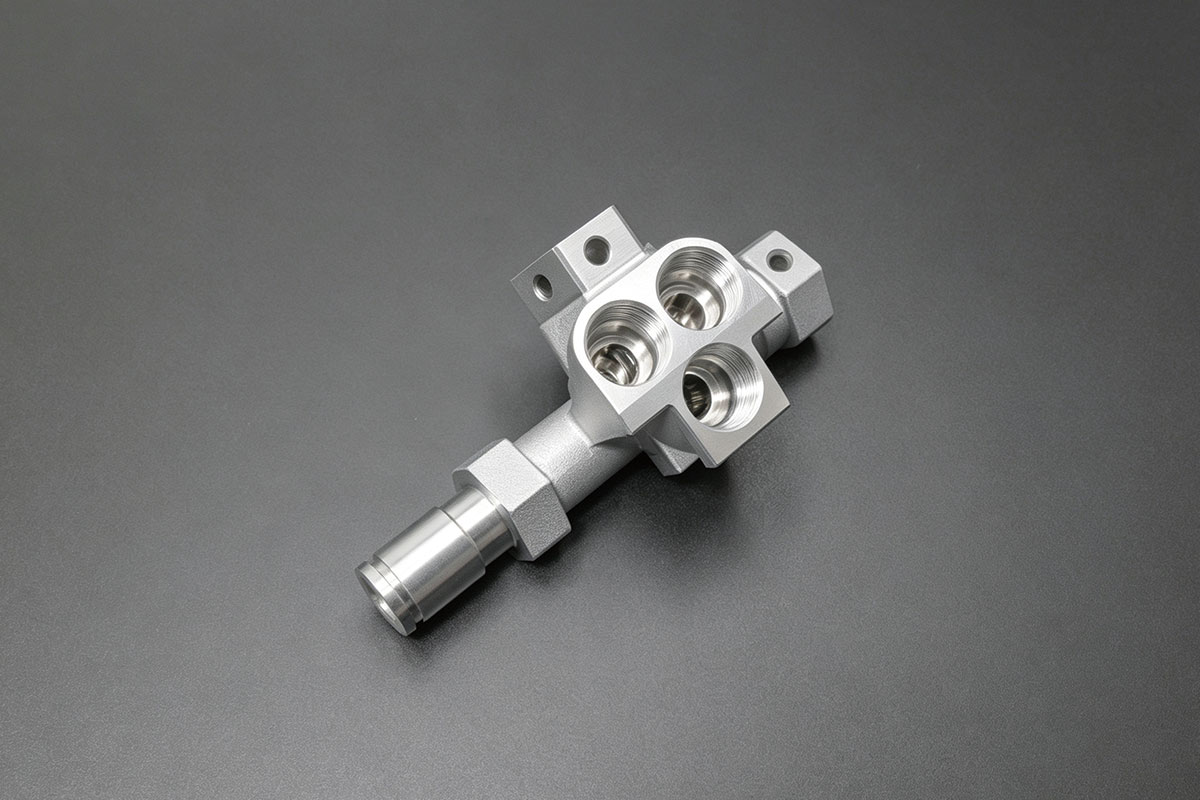

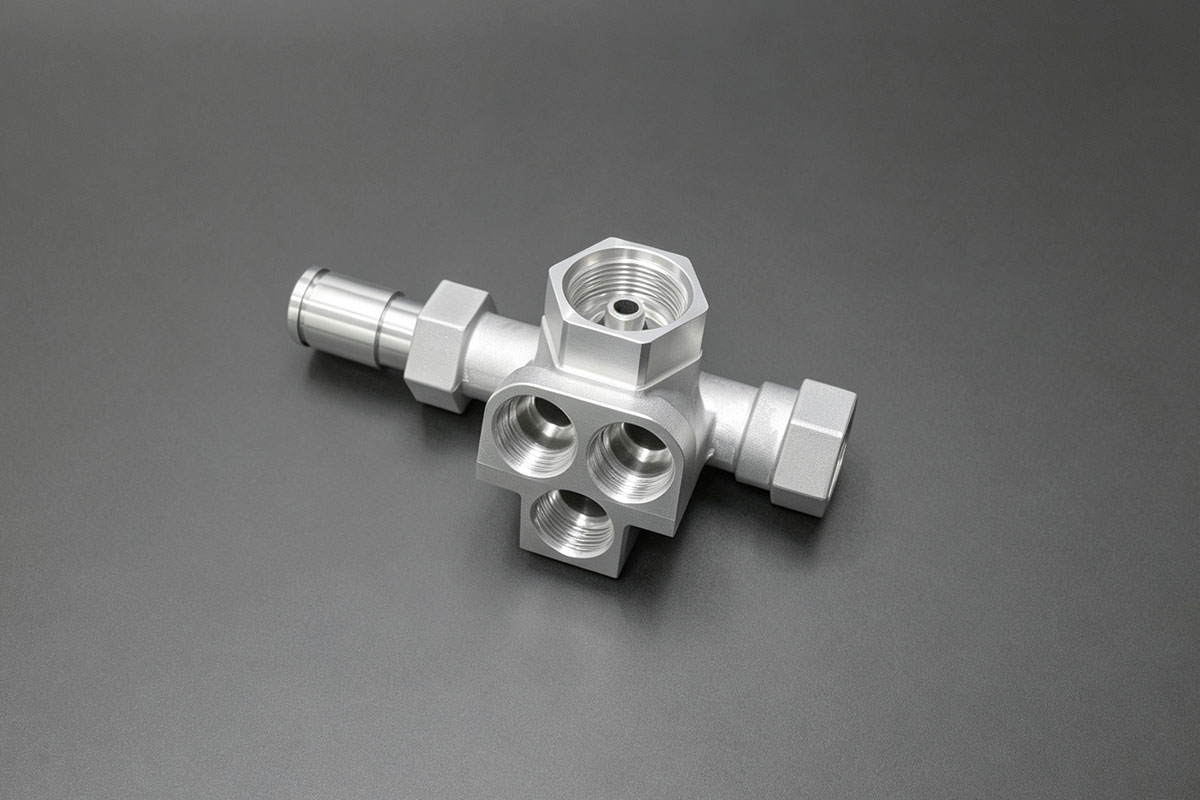

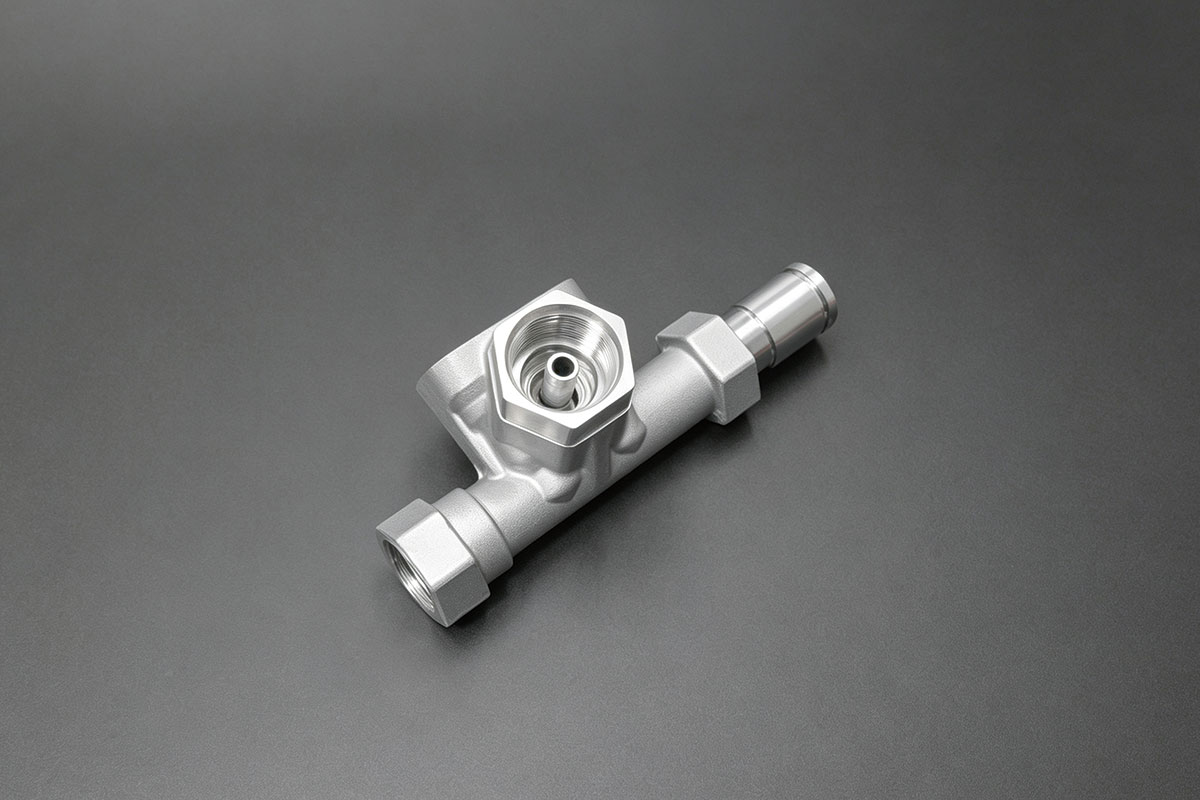

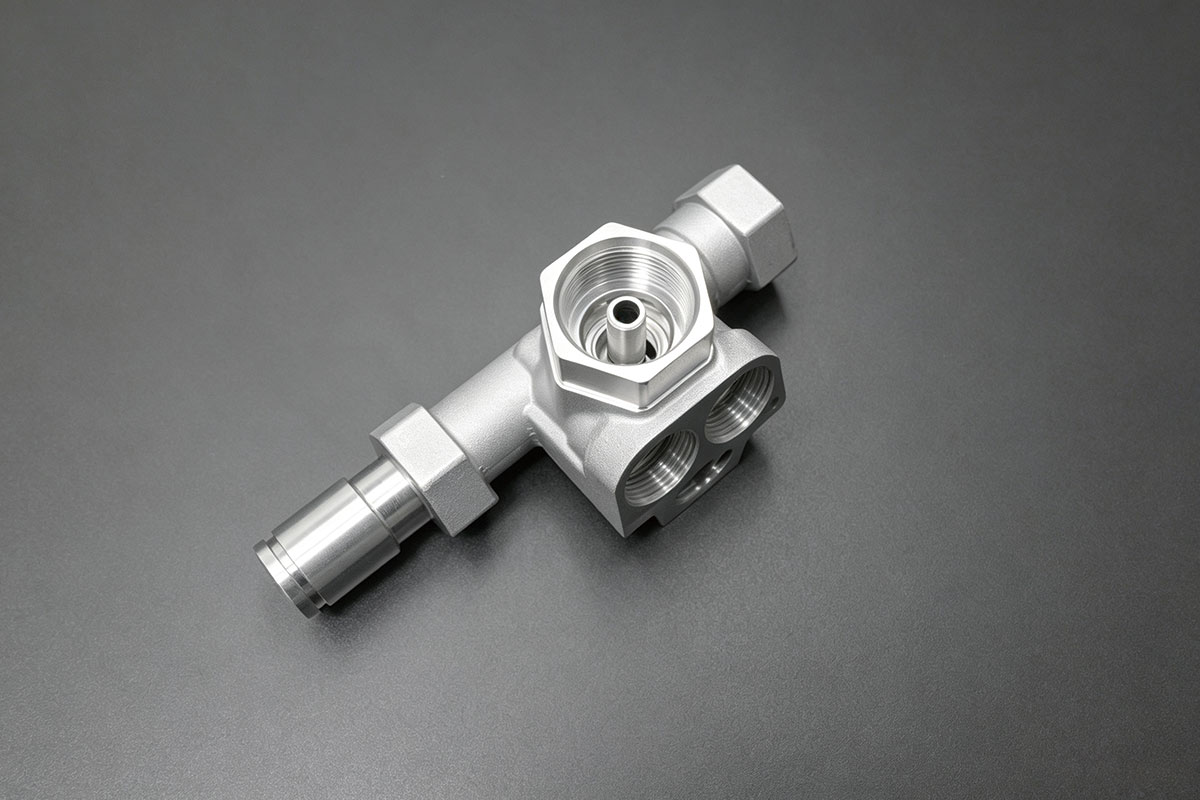

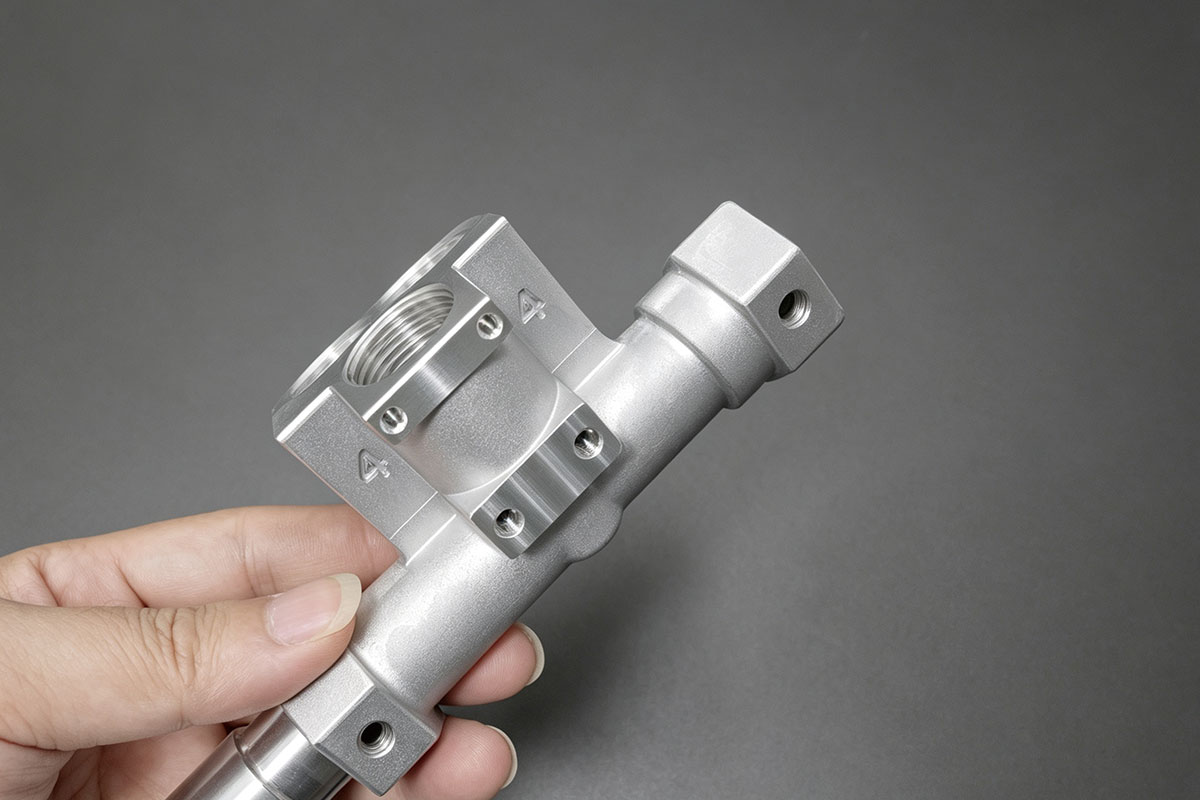

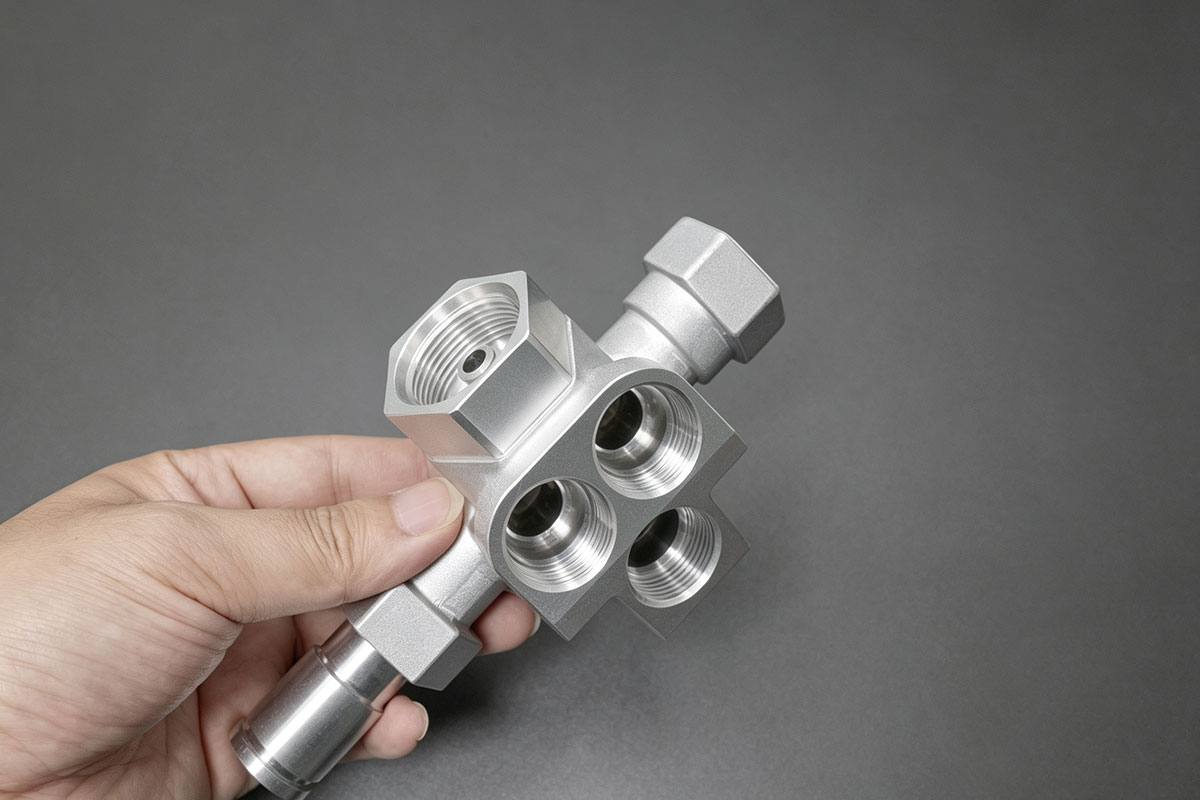

Precision Three-Way Fluid Valve Manifold with Complex Internal Flow Channels and Seal Surface Micron-Level Control

We successfully manufactured a precision three-way fluid valve manifold for a 3C automation cooling and pneumatic system application. Machined from aluminum profile with integrated casting and CNC turning/milling operations, this fluid distribution manifold features complex intersecting internal flow channels and precision sealing end faces — presenting significant manufacturing challenges including stringent no-burr requirements in internal intersecting flow channels, internal flow channel surface finish demands, and micron-level sealing end-face flatness control. Through optimized casting and machining processes, high-pressure water deburring, and precision finishing, we delivered clean, high-quality manifolds meeting fluid system performance requirements.

Project Overview

Key Technical Highlights

• Internal Flow Channel No-Burr Achievement: Implemented high-pressure water deburring for intersecting internal channels — water jets programmed to reach cross-hole junctions and effectively removing burrs without compromising internal surface quality or dimensional accuracy [citation:10][citation:2]. This eliminated the contamination risks and flow disruption that manual deburring inevitably introduces in complex fluid channels.
• Process Innovation:
  • Integrated Cast + Turn-Mill Workflow: Aluminum profile casting establishes near-net external geometry, followed by precision CNC turning and milling operations for sealing faces, port threads, and channel access features — maintaining geometric alignment across all fluid interfaces.
  • Micron-Level Seal Surface Finishing: Precision grinding of sealing end-faces achieves ≤0.01mm flatness and Ra≤0.8μm surface finish — ensuring leak-proof mating in fluid system assembly [citation:11].
  • Internal Surface Integrity: Controlled machining parameters prevent tool marks and surface defects inside flow channels — maintaining fluid flow efficiency and preventing particle generation.
  • High-Pressure Water Deburring: CNC-programmed water jets with adjustable pressure and angle access internal channel intersections, effectively removing burrs at cross-hole junctions without damaging channel walls or introducing residues [citation:10].
• Surface Quality:
  • Sealing end-faces achieve ≤0.01mm flatness with Ra≤0.8μm surface finish.
  • Internal channels verified burr-free through industrial borescope inspection.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for sealing face flatness (≤0.01mm) and dimensional accuracy (±0.015mm), supplemented by surface roughness testing (Ra≤0.8μm on sealing faces), industrial borescope inspection for internal channel cleanliness, and flow testing to verify unrestricted fluid passage.

Industry Applications

This solution demonstrates our expertise in precision fluid distribution component manufacturing, ideal for:
✓ 3C automation cooling system manifolds ✓ Pneumatic distribution blocks ✓ Fluid control valve bodies ✓ Precision fluid distribution components

Why Partner With Us?

• Proven expertise in fluid manifold manufacturing with internal flow channel control
• Advanced high-pressure water deburring for intersecting internal channels
• Micron-level sealing surface flatness (≤0.01mm) capability
• 12+ years of precision manufacturing experience across automation and fluid power sectors
