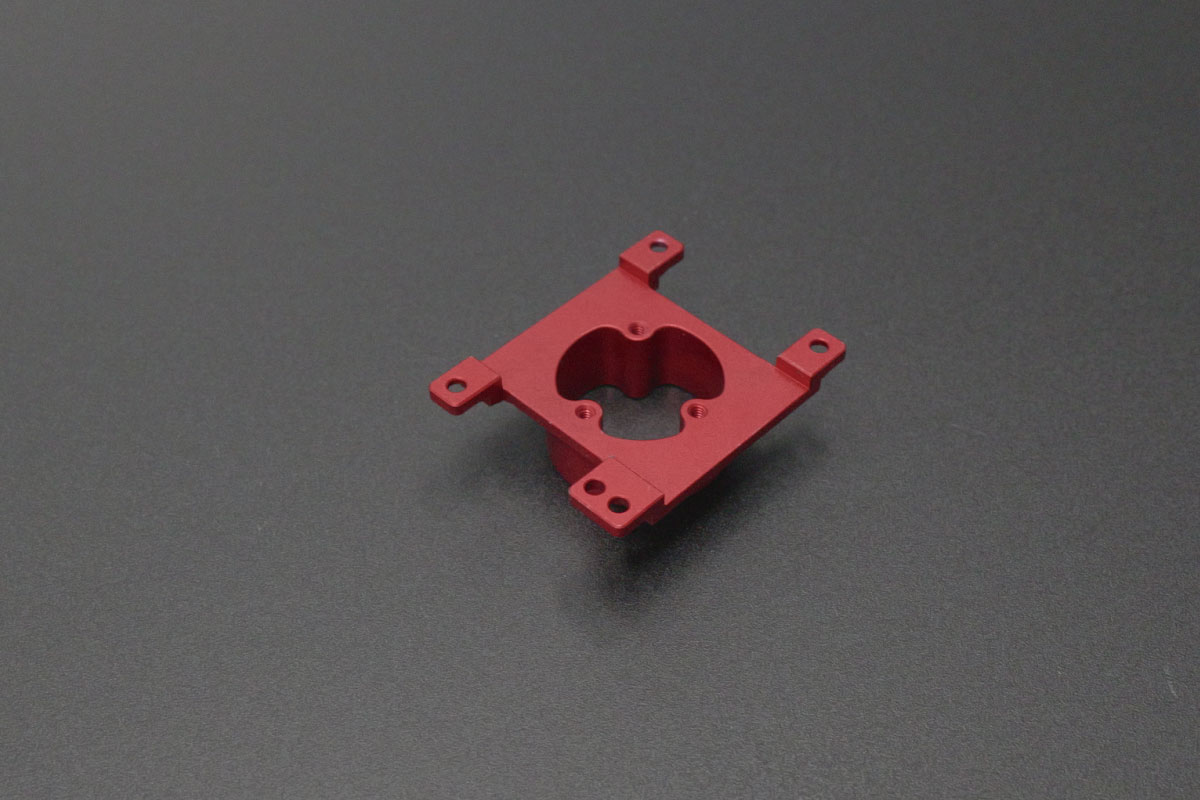

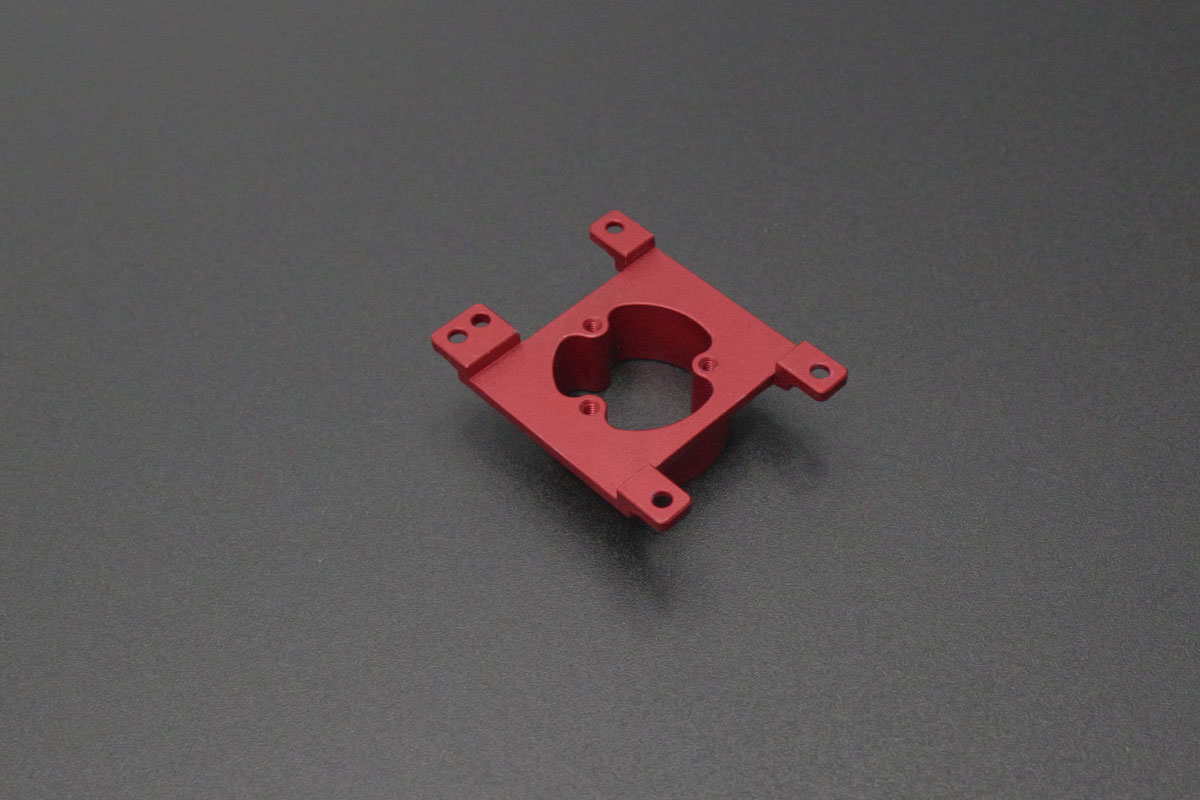

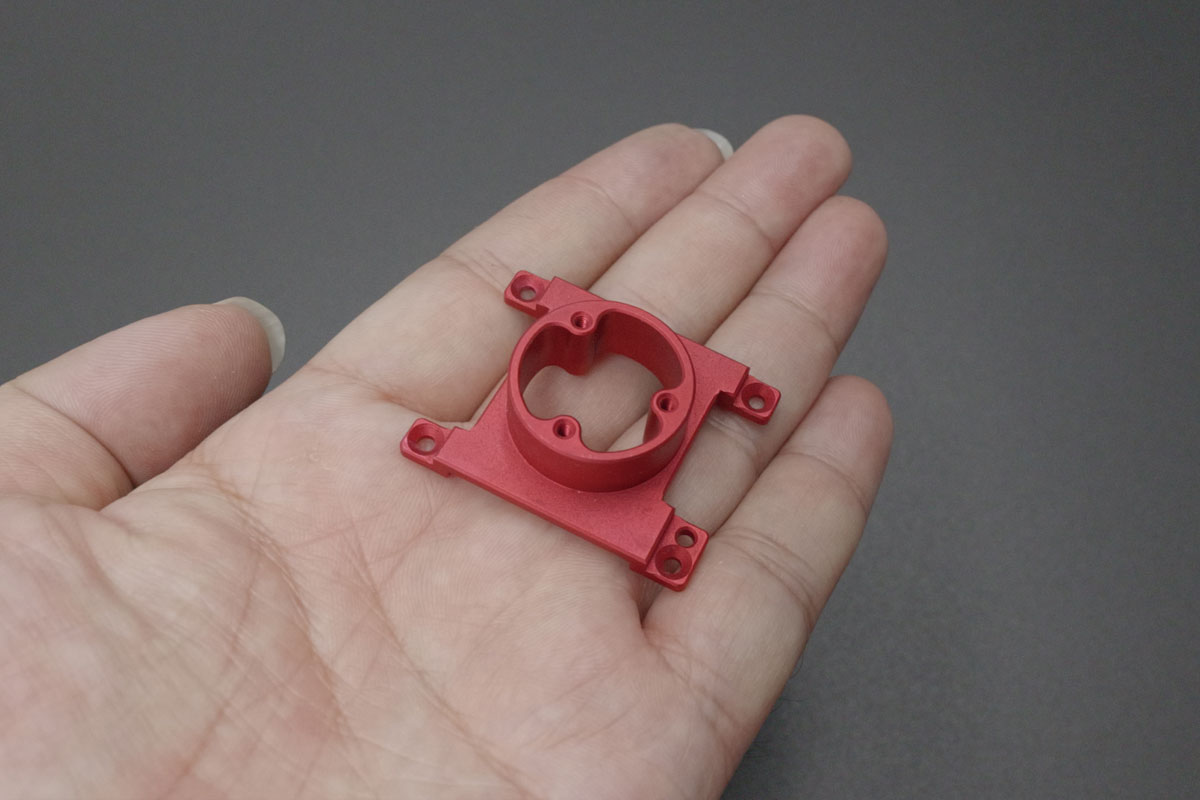

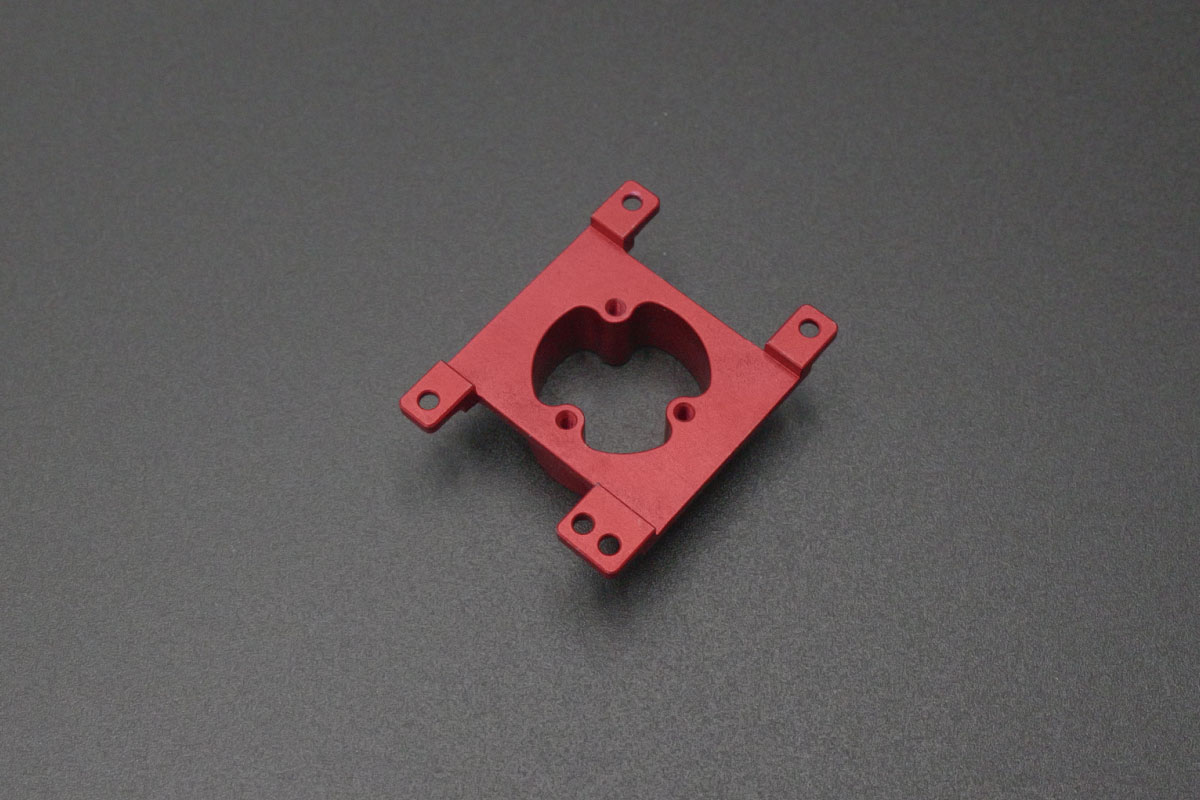

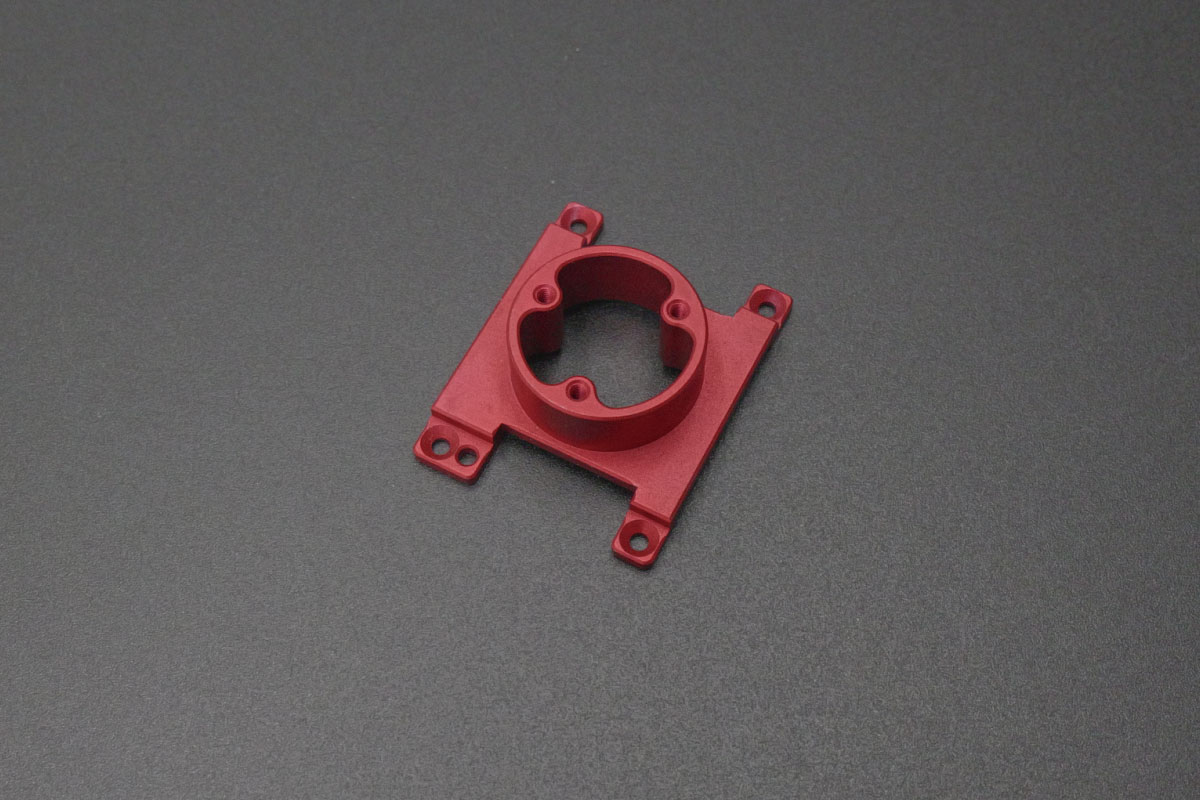

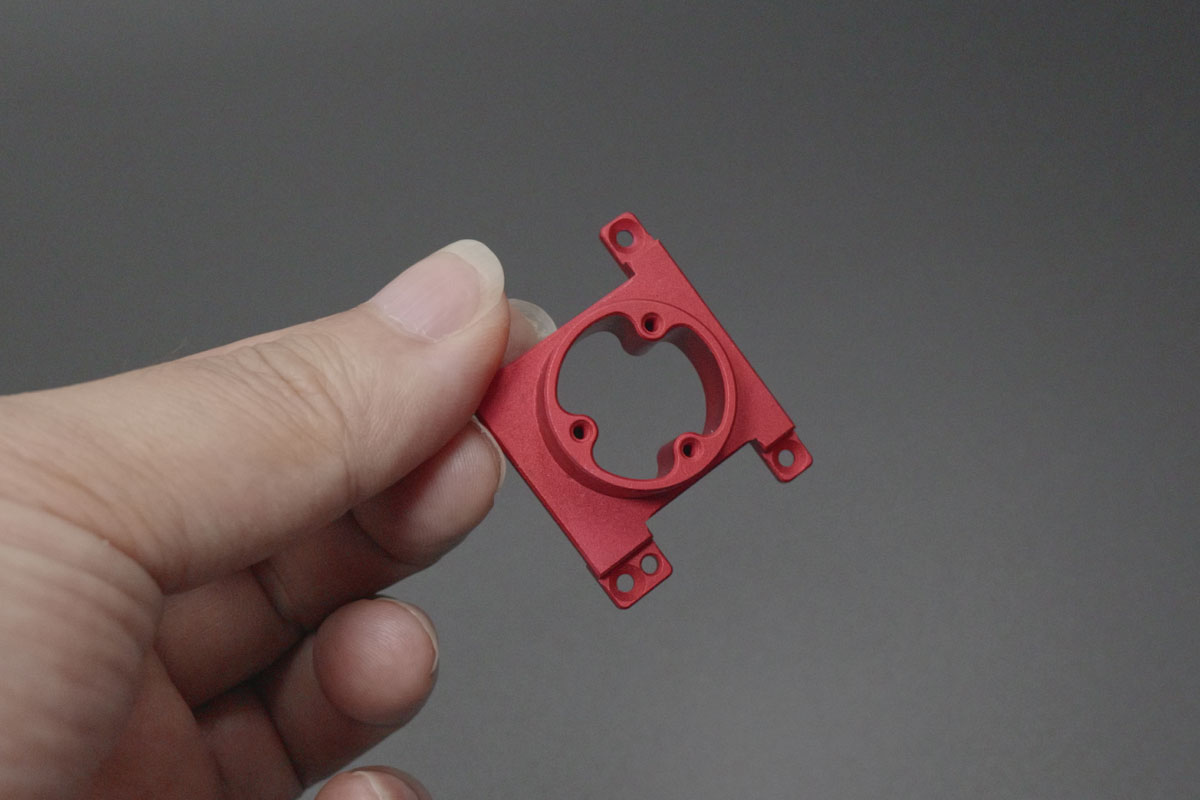

Precision 6061 Aluminum Four-Lug Ring Mounting Bracket with Red Hard Anodizing

We successfully manufactured a precision 6061 aluminum four-lug ring mounting bracket with red hard anodized finish for a UAV mounting system application. This lightweight structural component features four thin suspended lugs extending from a central ring boss — presenting significant machining challenges including clamping-induced deformation of thin suspended lugs and vibration instability during high-speed milling. Through custom low-stress fixturing, optimized cutting parameters, and balanced toolpath strategies, we delivered dimensionally stable brackets with a durable red hard anodized coating for enhanced wear and corrosion protection.

Project Overview

Key Technical Highlights

• Thin Suspended Lug Deformation Prevention: Designed custom low-stress fixturing with strategically placed support points under each of the four thin lugs, eliminating clamping-induced distortion during roughing and finishing operations while maintaining secure part retention.
• Process Innovation:
  • Balanced Toolpath Strategy: Symmetrical material removal sequences across all four lugs maintain balanced cutting forces and stress distribution, minimizing distortion of thin suspended features.
  • Vibration Dampening Approach: Optimized spindle speeds and feed rates tuned specifically for the thin-lug geometry minimize harmonic vibration, ensuring stable cutting conditions and consistent surface finish.
  • Single-Setup Machining: Complete bracket geometry — including ring boss, four lugs, and mounting hole patterns — machined in a single fixturing setup, ensuring perfect geometric alignment across all features.
• Red Hard Anodized Finish:
  • Type III hard anodizing with red dye creates a durable ceramic-like oxide layer (25-50μm) providing exceptional wear resistance, corrosion protection, and distinctive visual identification.
  • Hard anodic coating achieves surface hardness equivalent to HRC 65-70, significantly extending service life in demanding UAV operating environments.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for lug positional accuracy (±0.015mm), flatness (≤0.01mm), and overall dimensional tolerance (±0.02mm), supplemented by coating thickness testing (25-50μm), color consistency verification, and visual inspection for surface quality.

Industry Applications

This solution demonstrates our expertise in precision lightweight structural bracket manufacturing with decorative hard anodizing, ideal for:
✓ UAV camera mounting brackets ✓ Gimbal support rings ✓ Sensor mounting platforms ✓ Lightweight structural brackets

Why Partner With Us?

• Proven expertise in thin-walled lug machining with distortion prevention
• Advanced low-stress fixturing solutions for delicate suspended features
• In-house red hard anodizing capabilities with MIL-spec compliance
• 12+ years of precision manufacturing experience across UAV and aerospace sectors
