Precision 6061 Four-Axis UAV Frame with Red Hard Anodizing and Thin-Wall Stress Management

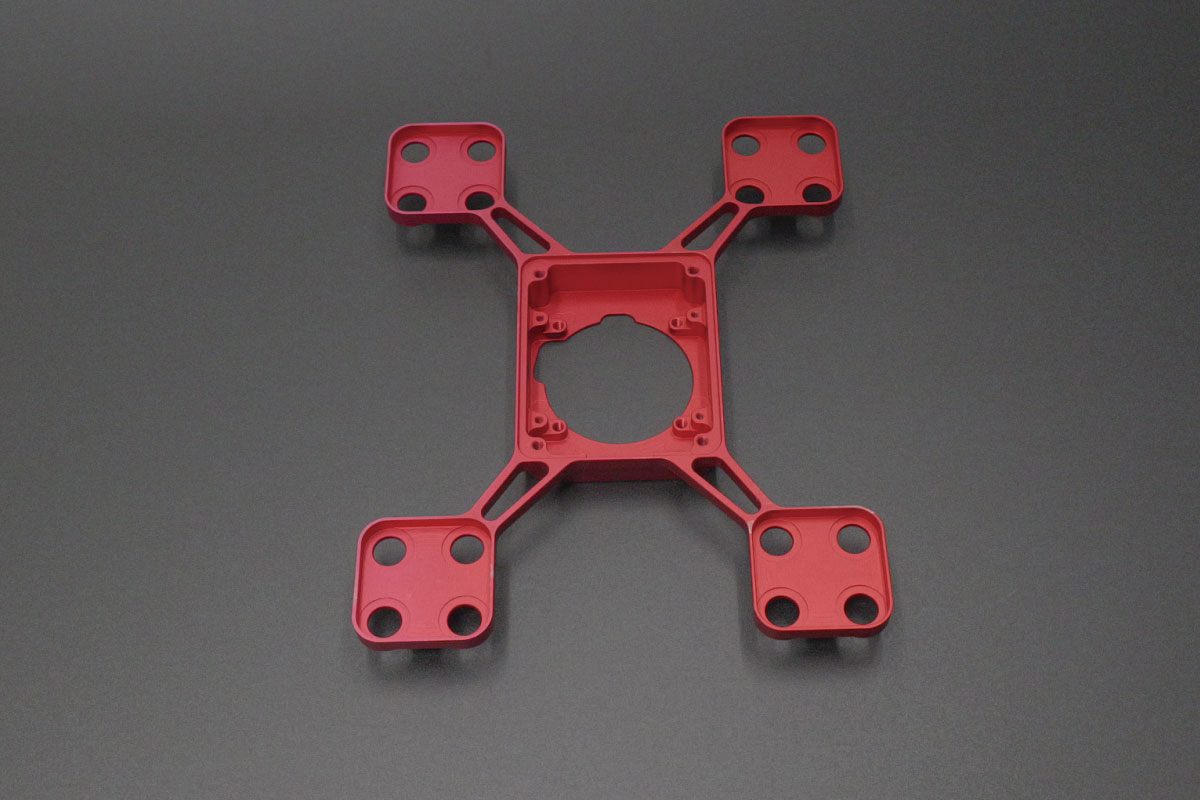

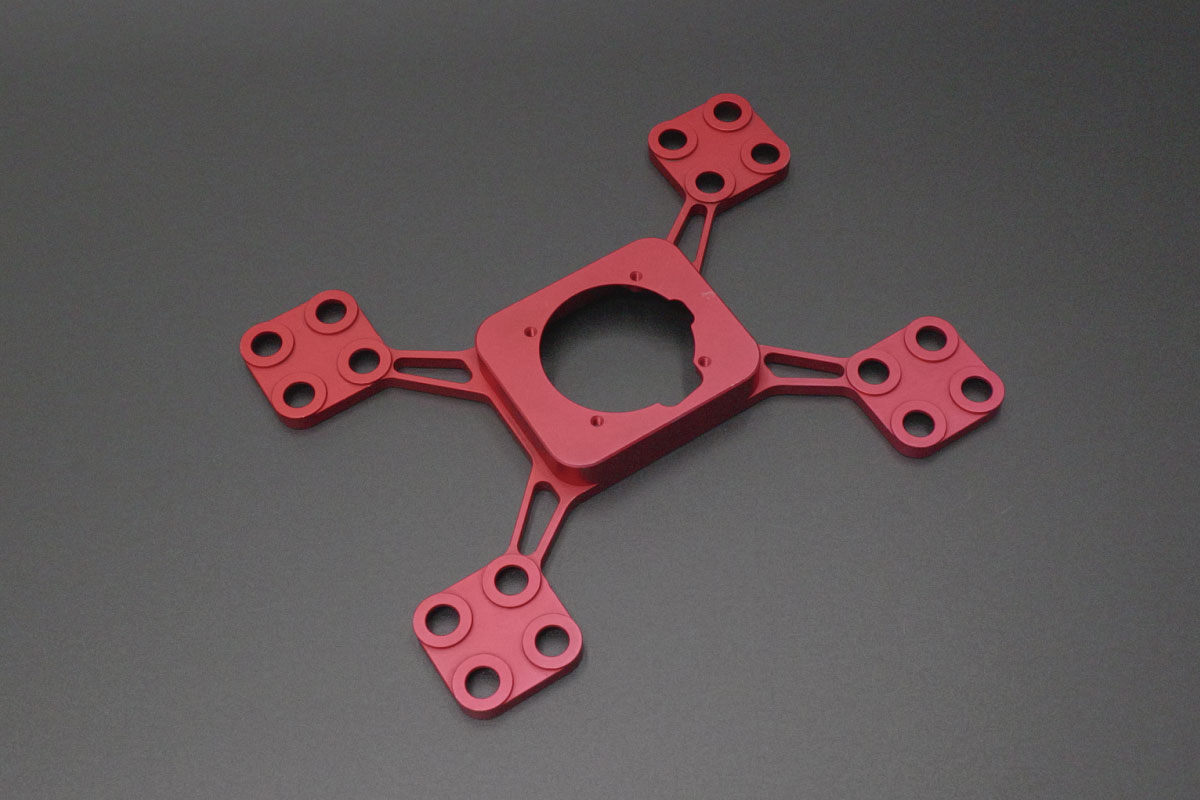

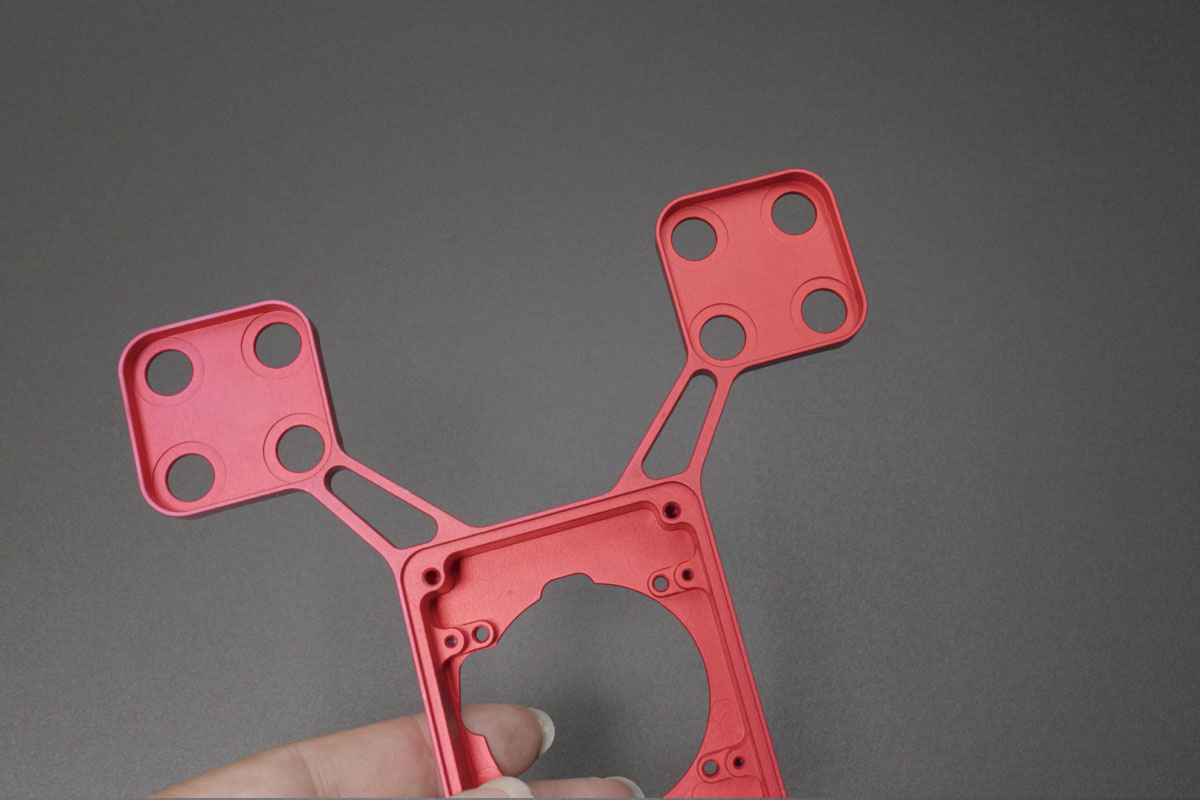

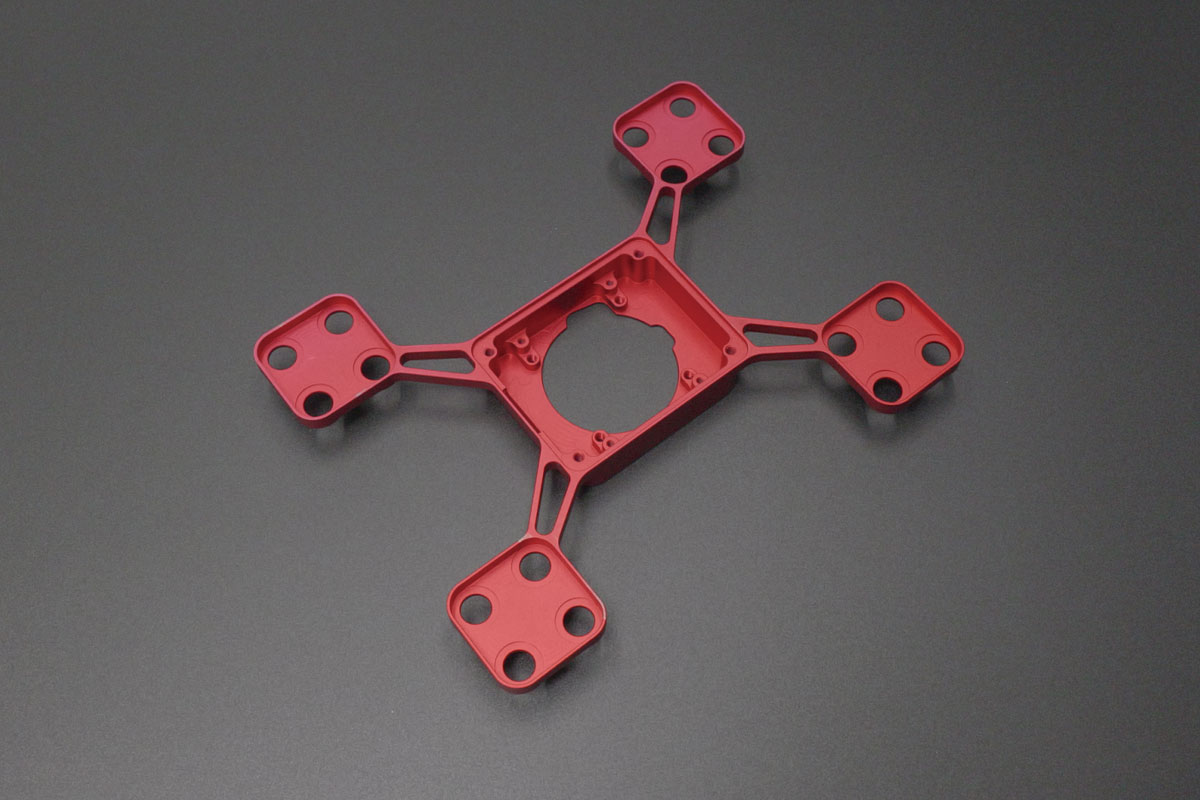

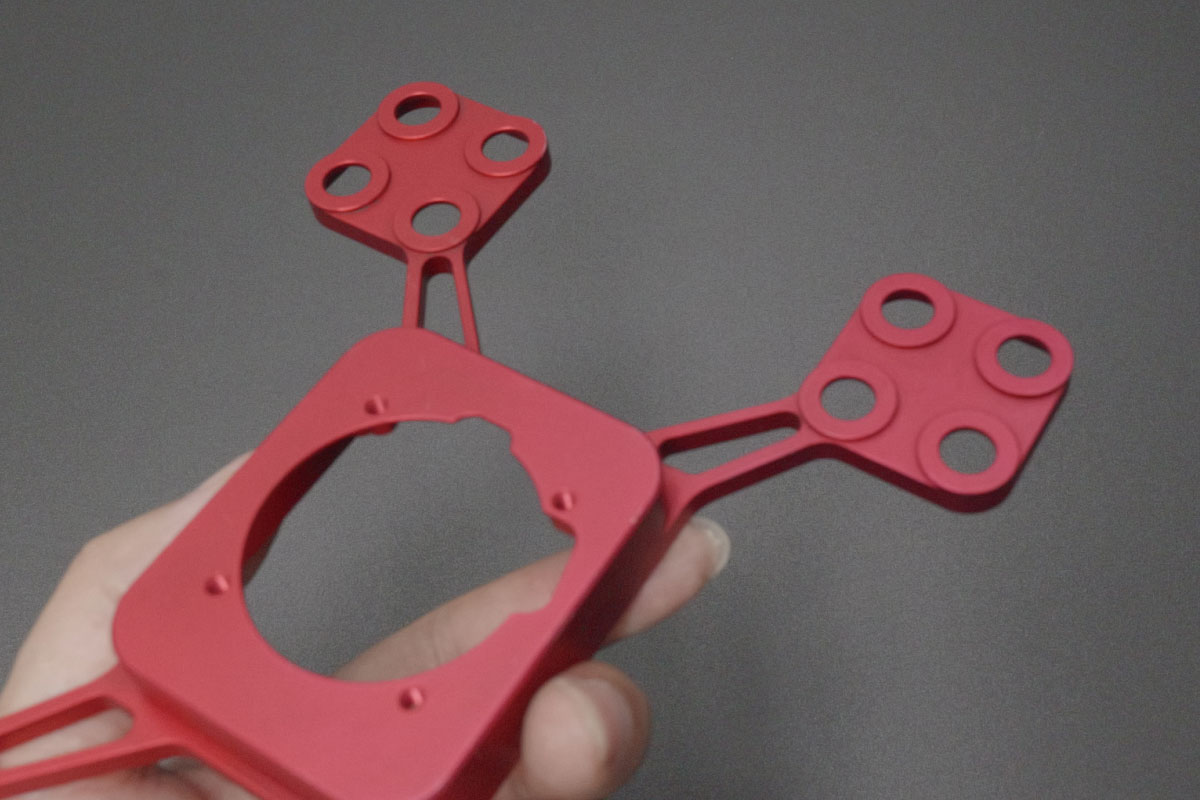

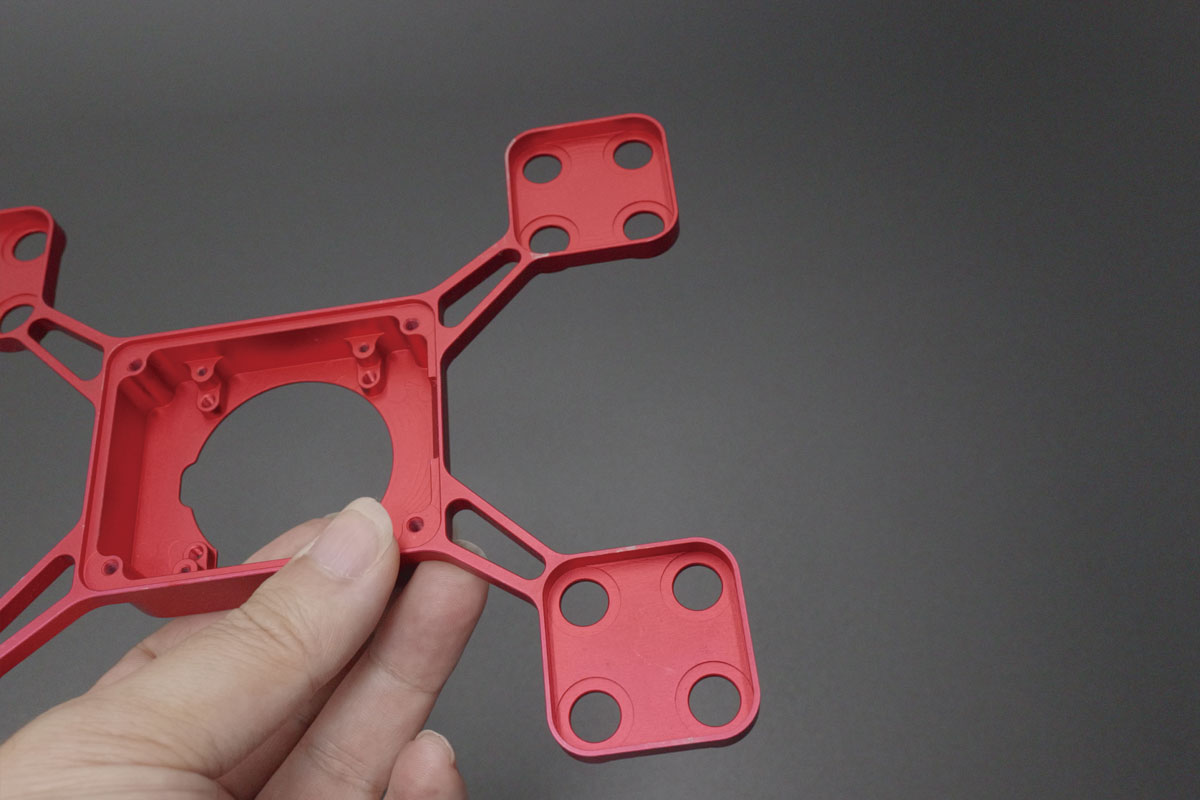

We successfully manufactured a precision 6061 aluminum four-axis UAV frame with red hard anodized finish for an unmanned aerial vehicle platform application. This lightweight structural frame features thin-wall ribs, narrow elongated cutouts, and a complex open architecture — presenting significant machining challenges including stress-induced distortion in thin-wall ribs, overall frame twisting, fragile lightweight structure handling risks, narrow elongated slot corner clean-out, and chatter mark control. Through stress-relief machining sequences, advanced fixturing solutions, vibration-dampening toolpath strategies, and controlled handling protocols, we delivered dimensionally stable, distortion-free frames with consistent surface quality.

Project Overview

Key Technical Highlights

• Thin-Wall Stress Distortion Prevention: Implemented staged stress-relief machining sequences with balanced material removal across symmetrical frame sections, preventing rib deformation and overall frame twisting during machining.
• Process Innovation:
  • Stress-Relief Machining Sequence: Roughing operations performed in alternating patterns across the frame, with intermediate stress-relief pauses before finishing passes to allow stress equilibration.
  • Vibration-Dampening Toolpath Strategy: Optimized tool engagement angles and variable feed rates tuned specifically for thin-wall rib geometries, eliminating chatter marks and ensuring Ra≤1.6μm surface finish on all visible surfaces.
  • Narrow Slot Corner Clean-Out: Specialized small-diameter finishing tools with optimized contouring toolpaths achieve clean internal corners (≤0.5mm radius) in narrow elongated slots — eliminating material buildup and stress risers.
  • Lightweight Structure Protection: Dedicated low-contact handling fixtures and protective wrapping protocols prevent accidental denting and deformation of fragile thin-wall sections during machining and post-processing.
• Surface Quality:
  • Precision finishing achieves chatter-free surface finish (Ra≤1.6μm) across all visible frame surfaces.
  • Red hard anodizing (Type III) provides durable ceramic-like oxide layer (25-50μm) with exceptional wear resistance and distinctive visual identification.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for overall frame flatness (≤0.02mm), rib wall thickness (±0.015mm), and slot corner verification, supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for chatter marks, corner quality, and handling damage.

Industry Applications

This solution demonstrates our expertise in precision lightweight UAV frame manufacturing, ideal for:
✓ Four-axis UAV platforms ✓ Racing drone frames ✓ Lightweight structural airframes ✓ Aerial photography platforms

Why Partner With Us?

• Proven expertise in thin-wall rib machining with stress-distortion prevention
• Advanced vibration-dampening toolpath strategies for chatter-free finishing
• Custom fragile structure handling and fixturing solutions
• In-house red hard anodizing capabilities with MIL-spec compliance
• 12+ years of precision manufacturing experience across UAV and aerospace sectors
