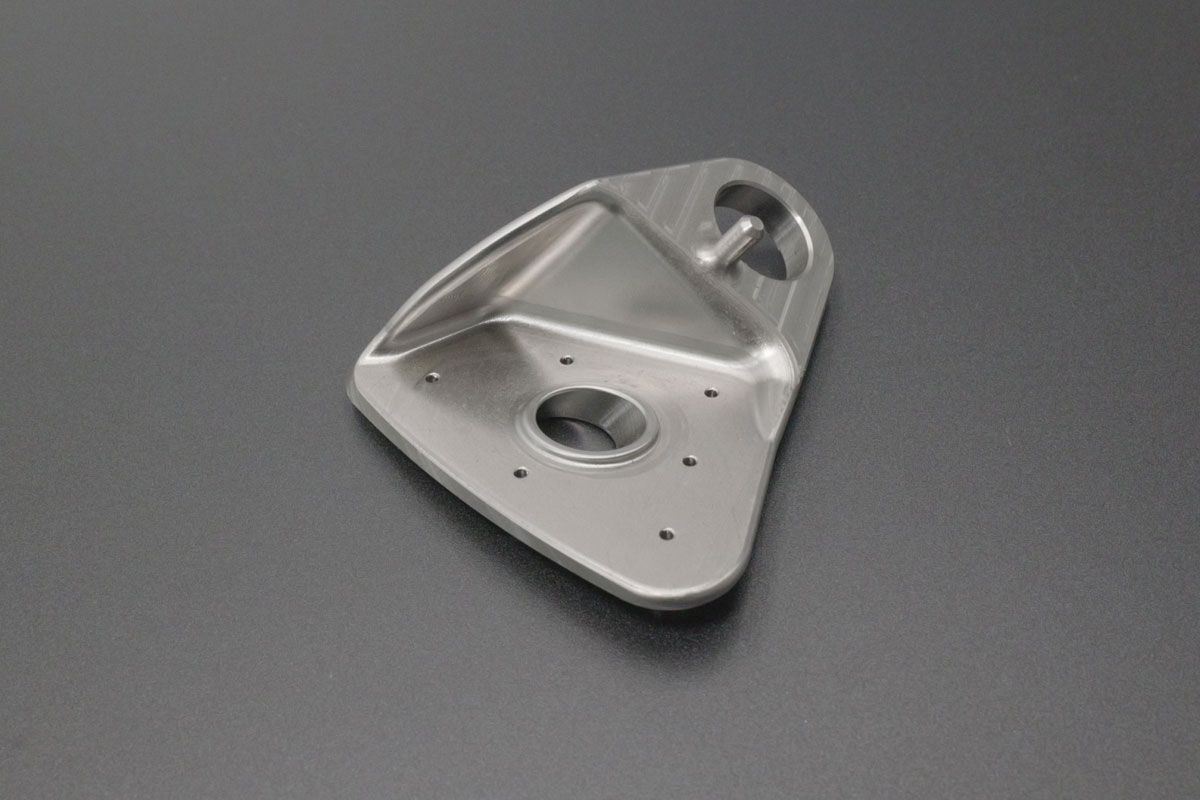

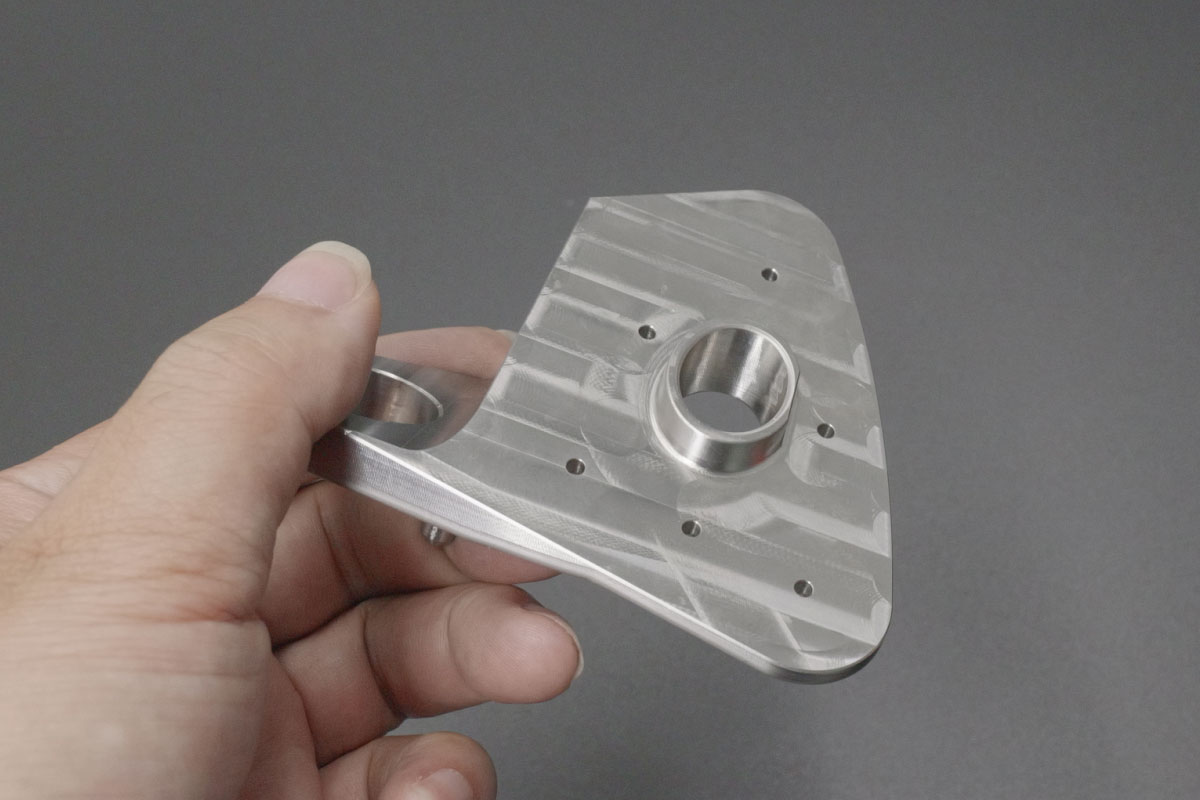

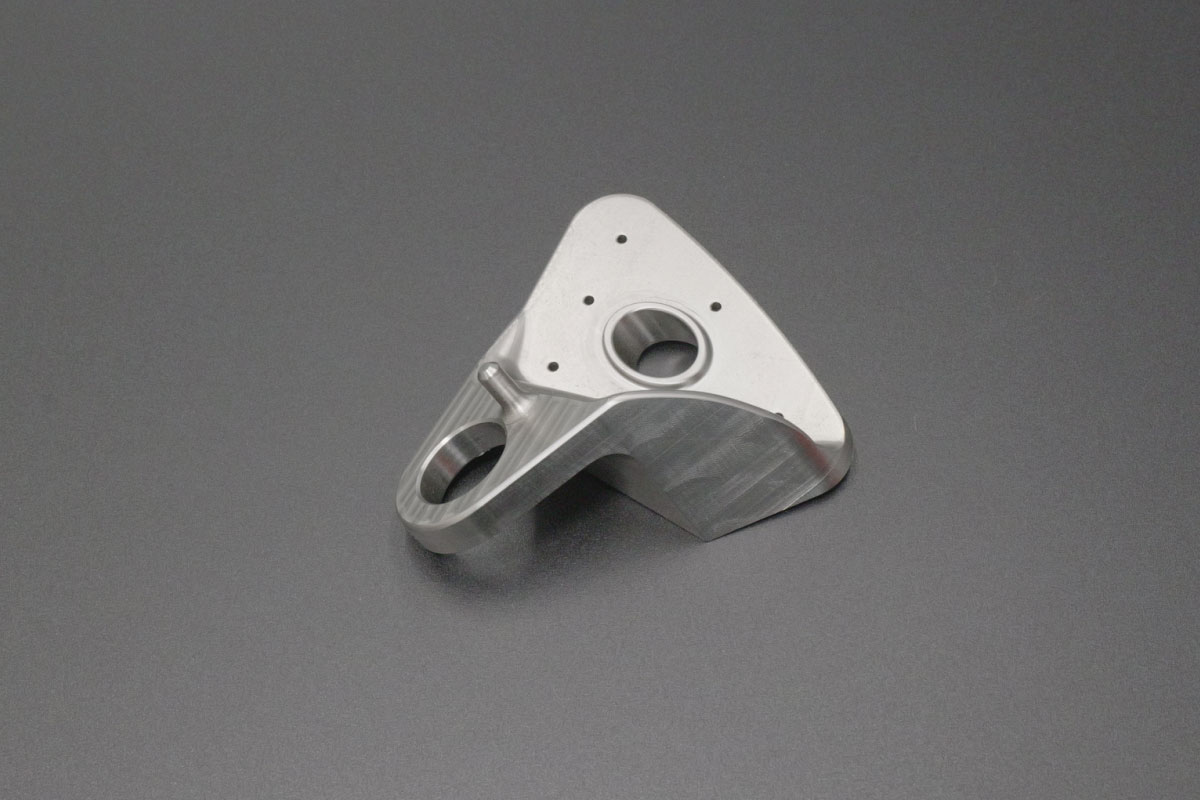

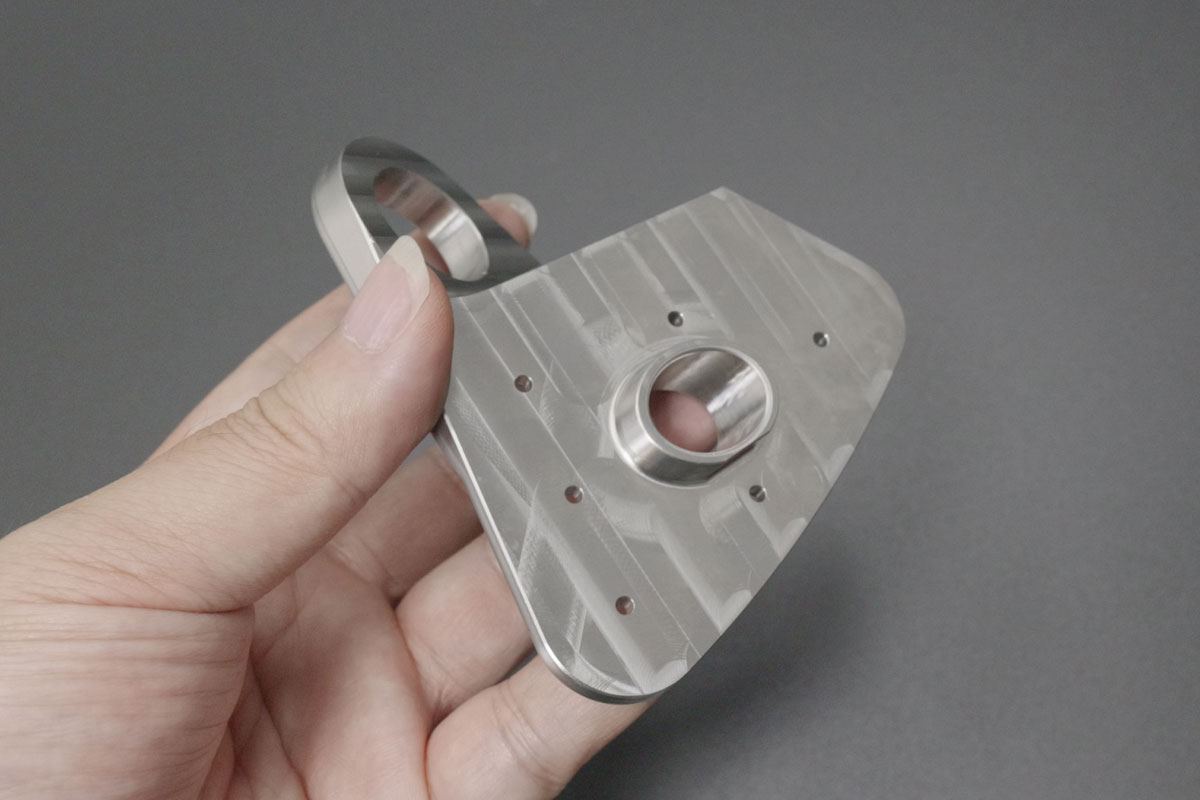

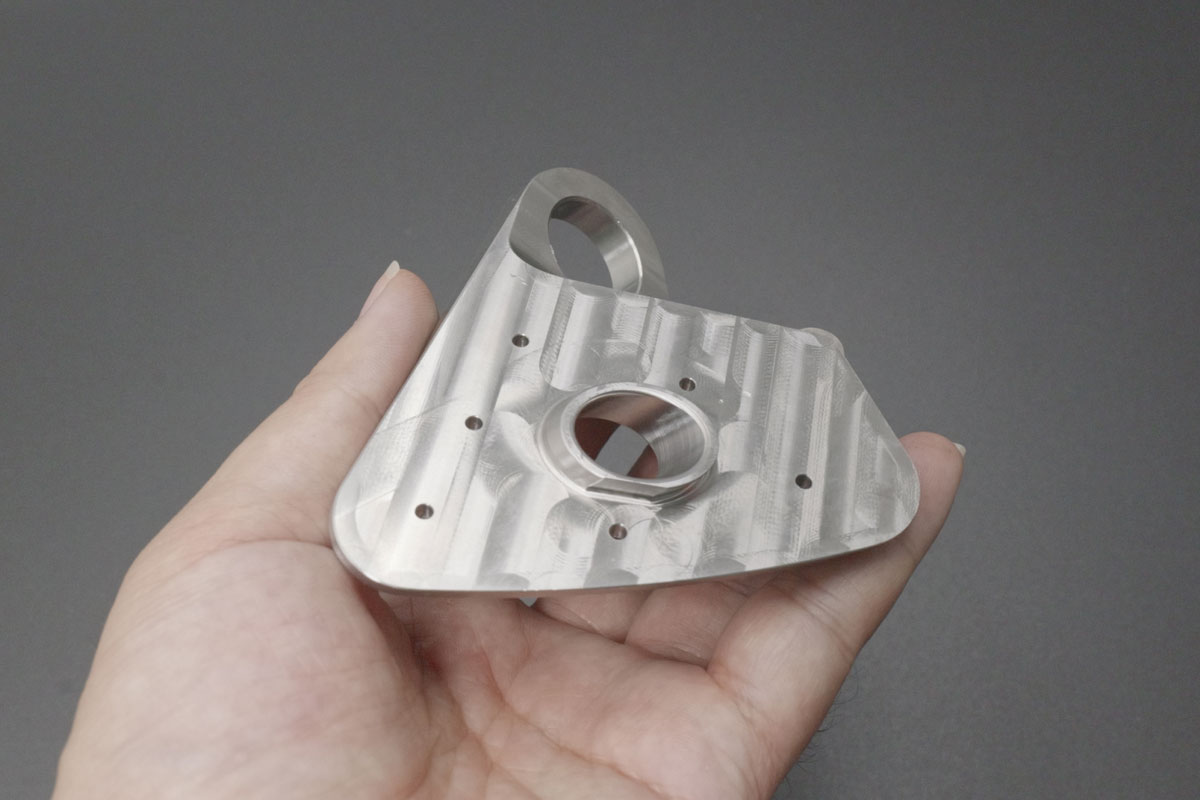

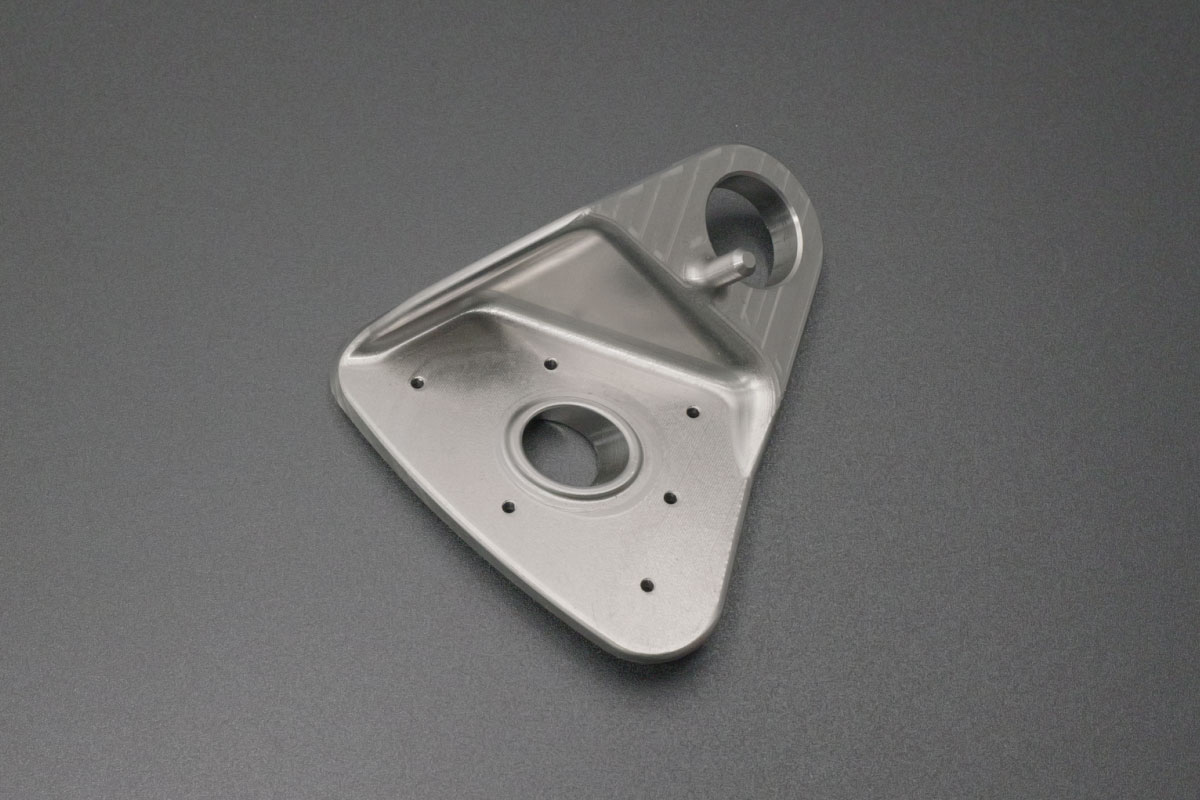

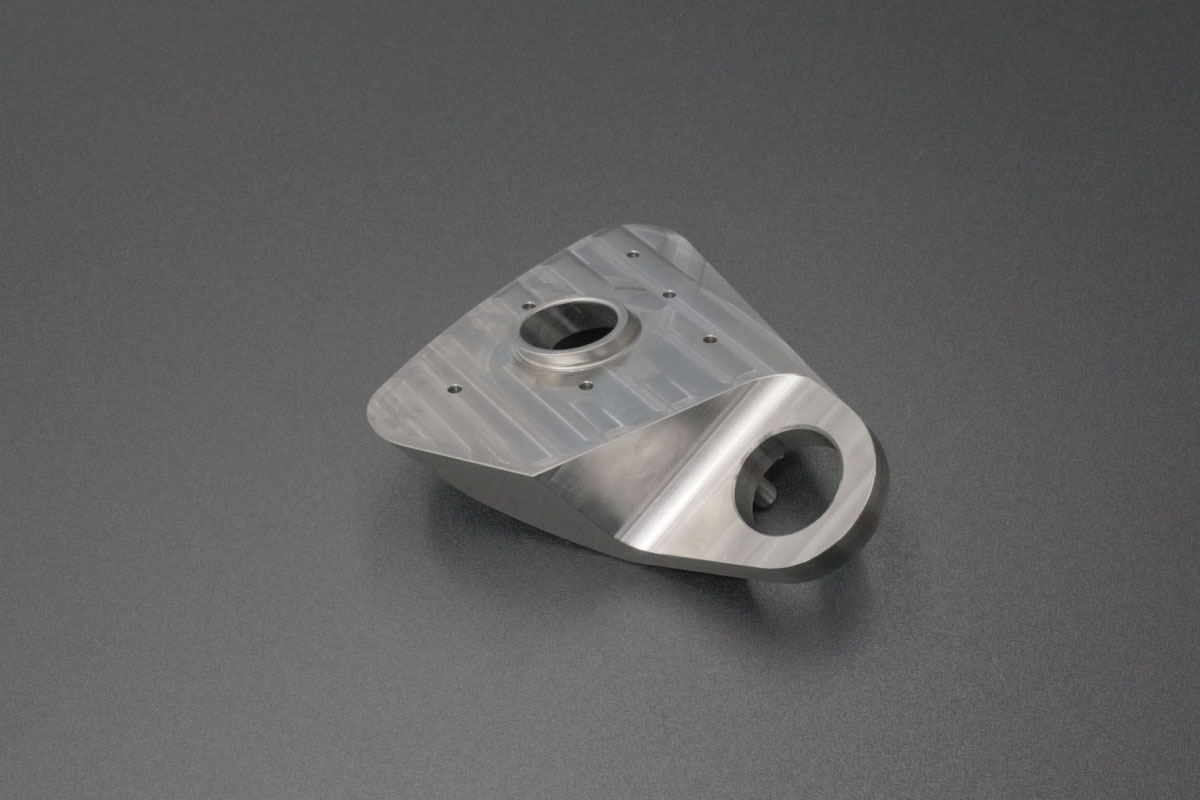

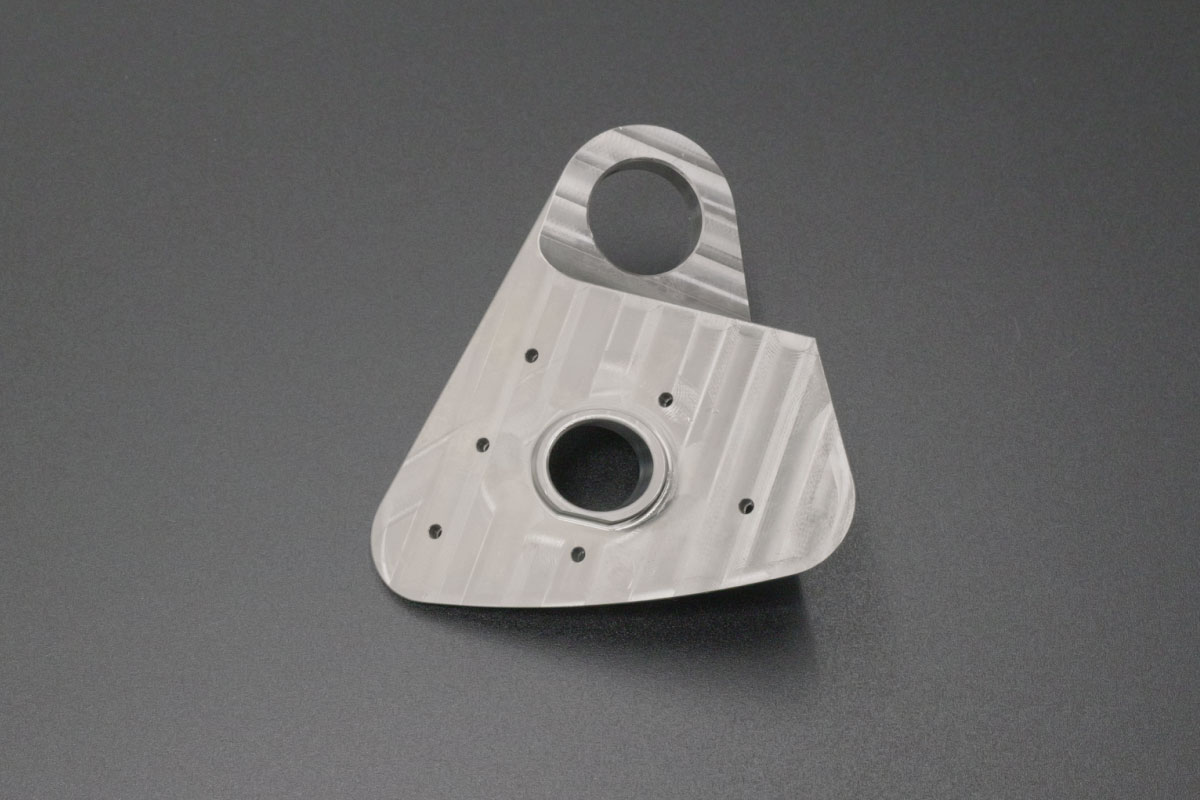

Precision Titanium Alloy Triangular Airborne Suspension Adapter Lug Plate

We successfully manufactured a precision titanium alloy triangular airborne suspension adapter lug plate for an industrial UAV application. This lightweight, high-strength structural component serves as a critical suspension interface between the UAV airframe and external payloads — demanding exceptional strength-to-weight ratio and fatigue resistance. Machining this titanium alloy (Ti-6Al-4V) component presented significant challenges including severe tool adhesion (built-up edge) and accelerated tool wear — characteristic difficulties of titanium alloy machining. Through optimized dynamic milling strategies, high-pressure coolant delivery, and specialized tooling solutions, we successfully delivered dimensionally accurate lug plates with consistent surface quality.

Project Overview

Key Technical Highlights

• Tool Wear and Adhesion Management: Titanium's low thermal conductivity concentrates heat at the cutting edge, while its high chemical activity at elevated temperatures causes material adhesion (galling), leading to accelerated tool wear [citation:1][citation:2][citation:5]. We implemented dynamic milling strategies with constant tool engagement angles, reducing heat concentration and achieving 35% higher material removal rates with extended tool life [citation:2].
• Process Innovation:
  • High-Pressure Coolant Delivery: 70+ bar high-pressure coolant targeted directly at the cutting zone breaks the vapor barrier, prevents chip adhesion, and rapidly evacuates heat from the tool-workpiece interface — critical for preventing tool failure in titanium machining [citation:2][citation:4][citation:11].
  • Specialized Tooling Selection: Ultra-fine grain carbide tools with appropriate coating systems (e.g., TiAlN/AlTiN) resist chemical adhesion and diffusion wear, maintaining cutting edge integrity under high thermal loads [citation:1][citation:9].
  • Dynamic Toolpath Optimization: Radial chip thinning strategies with light radial engagement and optimized axial depths maintain consistent chip loads, reducing vibration and preventing localized heat buildup [citation:2][citation:11].
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on all machined surfaces.
  • Optimized cutting parameters minimize work hardening and surface defects common in titanium machining.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.015mm) and hole positional accuracy (±0.01mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for edge quality.

Industry Applications

This solution demonstrates our expertise in precision titanium alloy component manufacturing for UAV systems, ideal for:
✓ UAV suspension and mounting brackets ✓ Airborne payload interfaces ✓ Structural lightweight components ✓ Aerospace-grade attachment hardware

Why Partner With Us?

• Proven expertise in titanium alloy machining with tool wear and adhesion control
• Advanced dynamic milling and high-pressure coolant strategies
• Specialized tooling solutions for difficult-to-machine materials
• 12+ years of precision manufacturing experience across UAV and aerospace sectors
