Precision 6061 Bent Sensor Mounting Bracket with Black Hard Anodizing and Form Tolerance Control

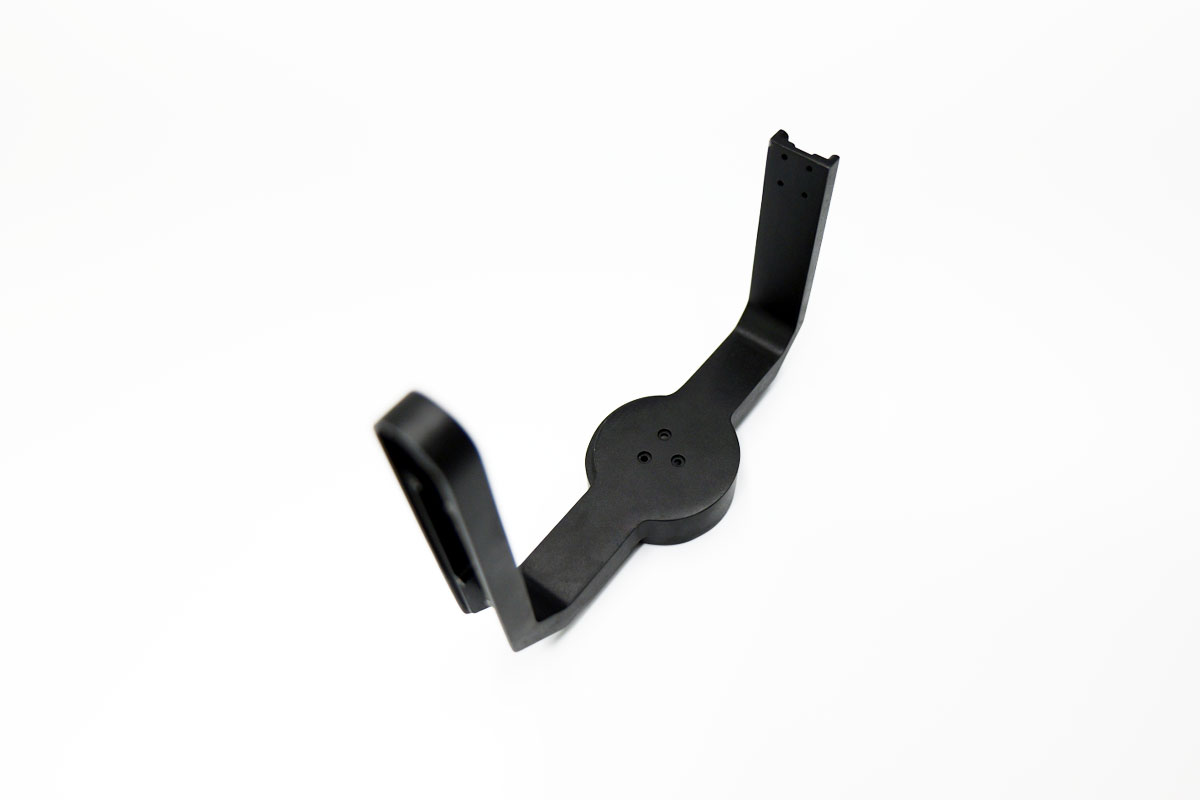

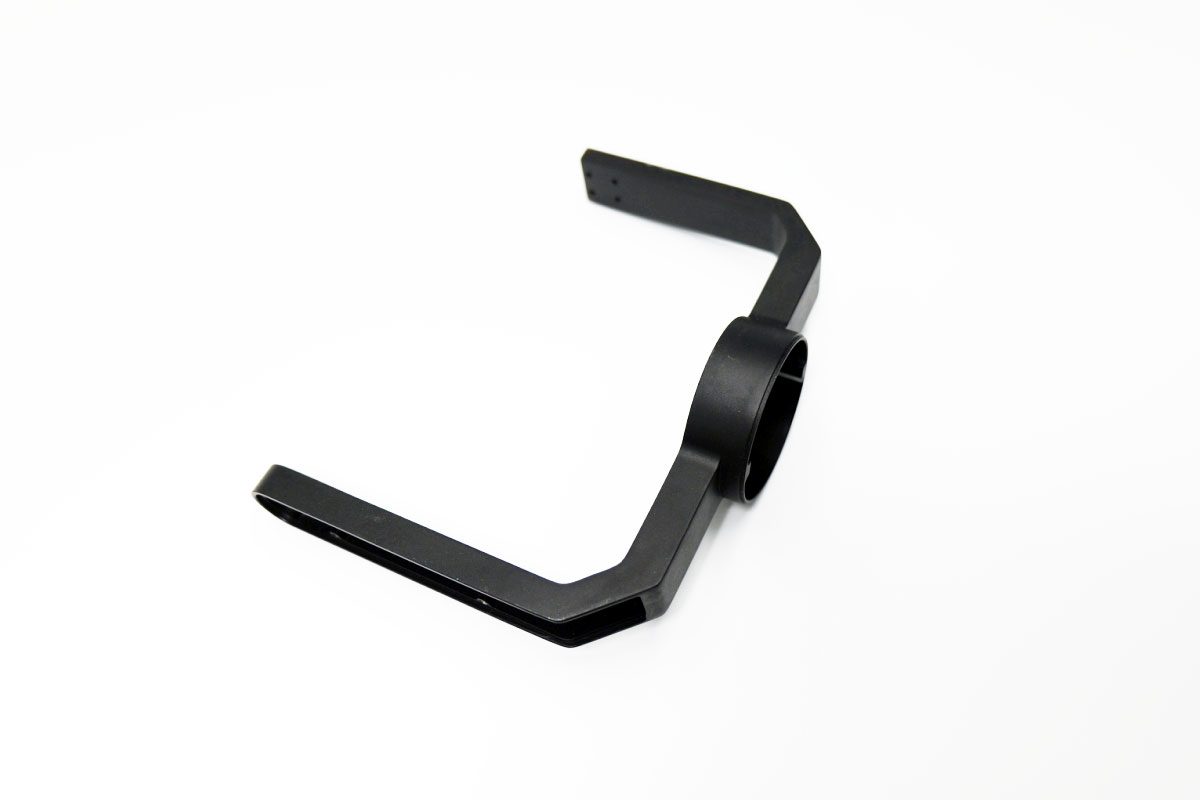

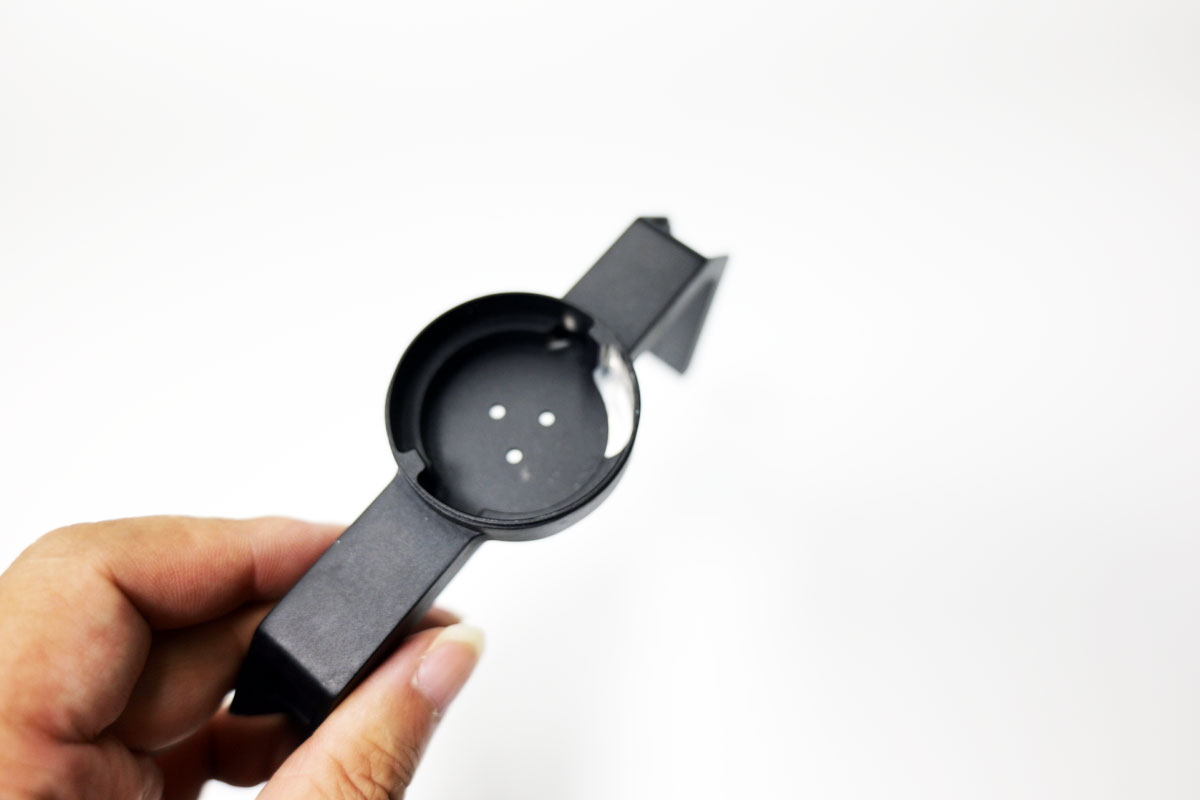

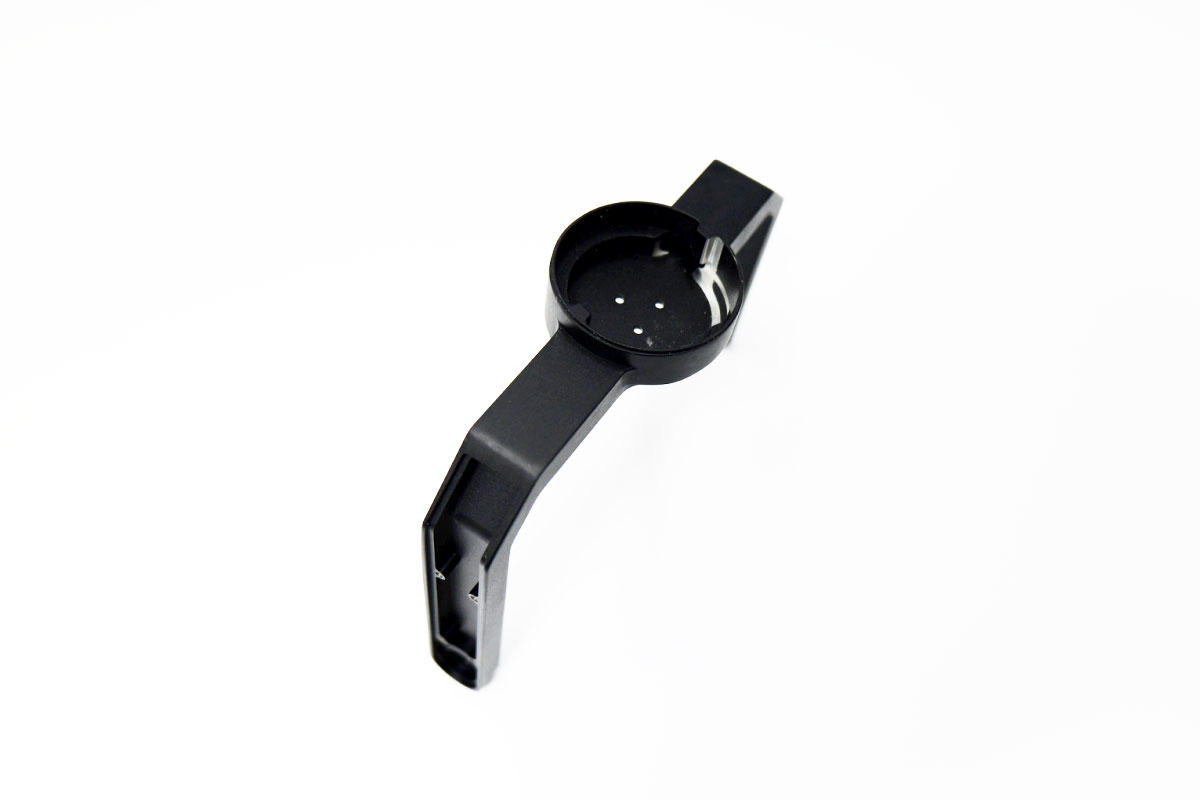

We successfully manufactured a precision 6061 aluminum bent sensor mounting bracket with black hard anodized finish for a UAV sensor system application. This complex bracket features multiple bent surfaces at varying angles and thin-wall folded sections — presenting significant machining challenges including tight form and positional tolerances across complex multi-bend geometries, and chatter and deformation during milling of thin-wall bent sections. Through custom fixturing, optimized toolpath strategies, and vibration-dampening techniques, we delivered dimensionally stable brackets with consistent geometric accuracy and clean surface finish.

Project Overview

Key Technical Highlights

• Multi-Bend Form and Positional Control: Achieved ≤0.02mm form tolerance across all bent surfaces and ±0.02mm positional accuracy for mounting features through precision fixturing and optimized machining sequences that maintain geometric relationships between complex folded surfaces.
• Process Innovation:
  • Custom Form-Fixturing: Dedicated fixtures with full-contact support under each bent surface prevent deflection during machining while maintaining part orientation for consistent feature alignment.
  • Vibration-Dampening Strategy: Optimized spindle speeds, feed rates, and variable radial engagement toolpaths tuned for thin-wall bent sections eliminate chatter marks and prevent surface finish degradation.
  • Thin-Wall Deformation Prevention: Balanced material removal sequences with low radial engagement and controlled depths of cut minimize cutting forces on fragile bent sections, maintaining ≤0.02mm wall thickness tolerance.
• Surface Quality:
  • Precision finishing achieves chatter-free surface finish (Ra≤1.6μm) on all visible and mounting surfaces.
  • Black Hard Anodized Finish: Type III hard anodizing with black dye creates a durable ceramic-like oxide layer (25-50μm) providing exceptional wear resistance, corrosion protection, and uniform matte black appearance.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for form tolerance (≤0.02mm per bend surface), positional accuracy (±0.02mm), and perpendicularity (≤0.01mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for chatter marks and coating quality.

Industry Applications

This solution demonstrates our expertise in precision bent bracket manufacturing with complex surface control, ideal for:
✓ UAV sensor mounting brackets ✓ Camera positioning brackets ✓ Payload mounting interfaces ✓ Custom sensor housing brackets

Why Partner With Us?

• Proven expertise in multi-bend surface form and positional control
• Advanced thin-wall vibration-dampening and deformation prevention strategies
• Custom form-fixturing solutions for complex folded geometries
• In-house black hard anodizing with MIL-spec compliance
• 12+ years of precision manufacturing experience across UAV, aerospace, and sensor sectors
