Precision 6061 Curved Gimbal Adjustment Bracket with Contour Profile and Stress Deformation Control

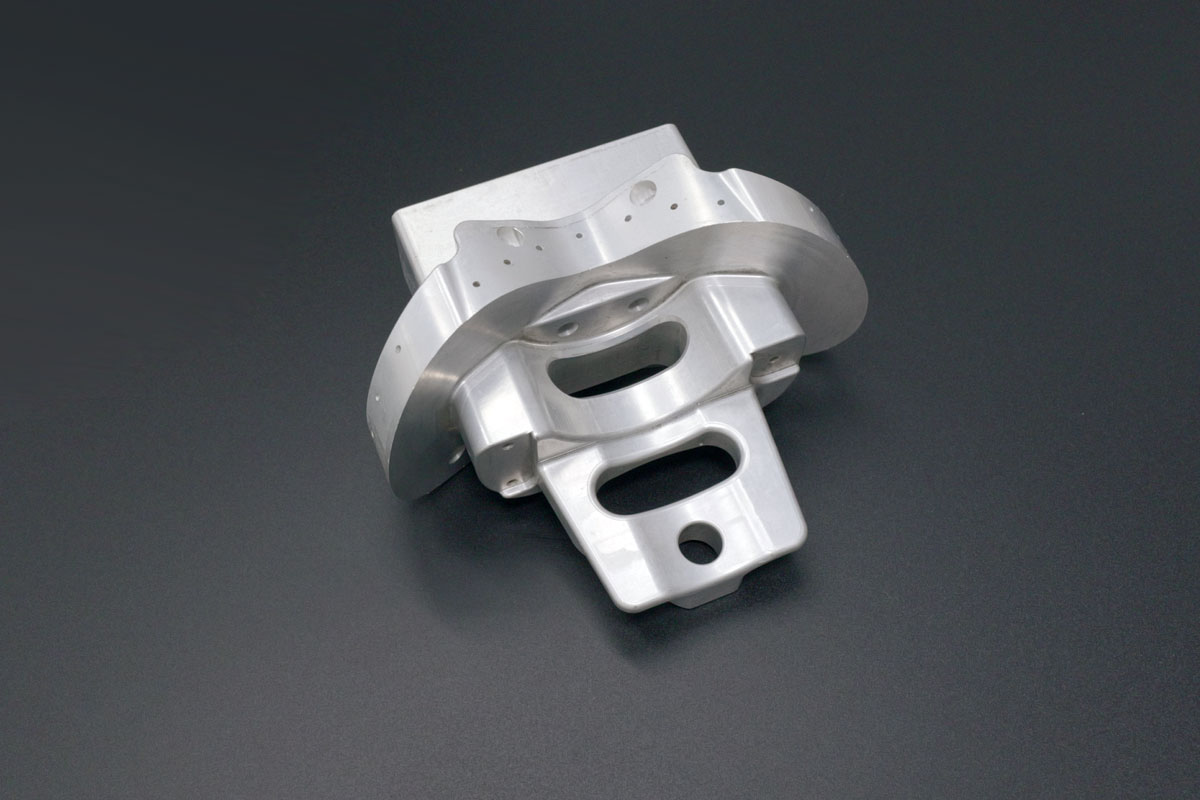

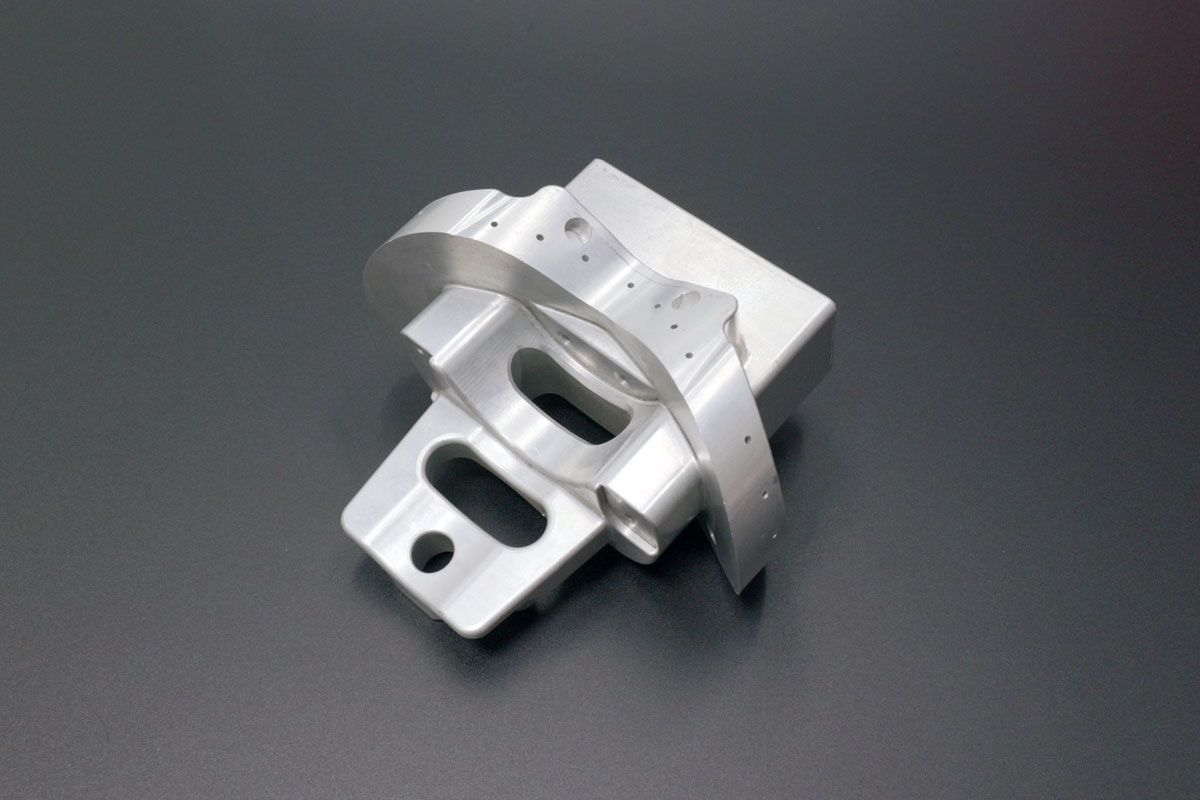

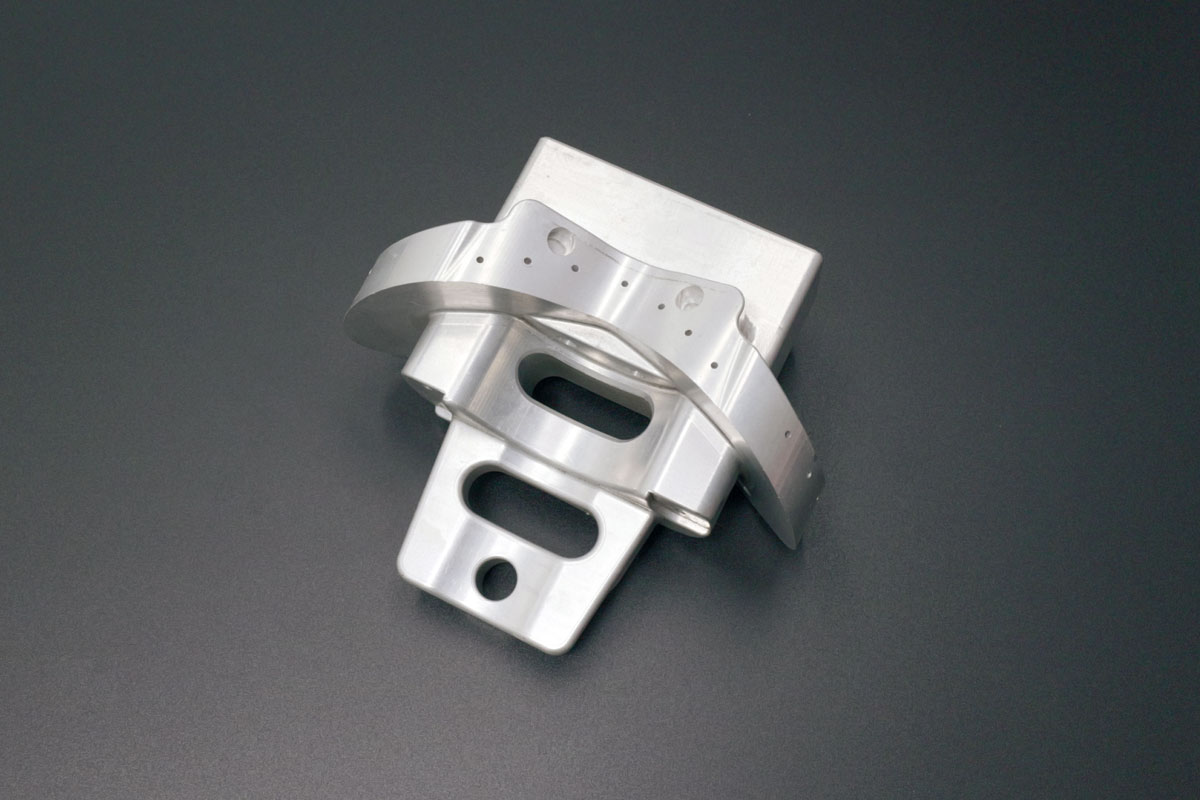

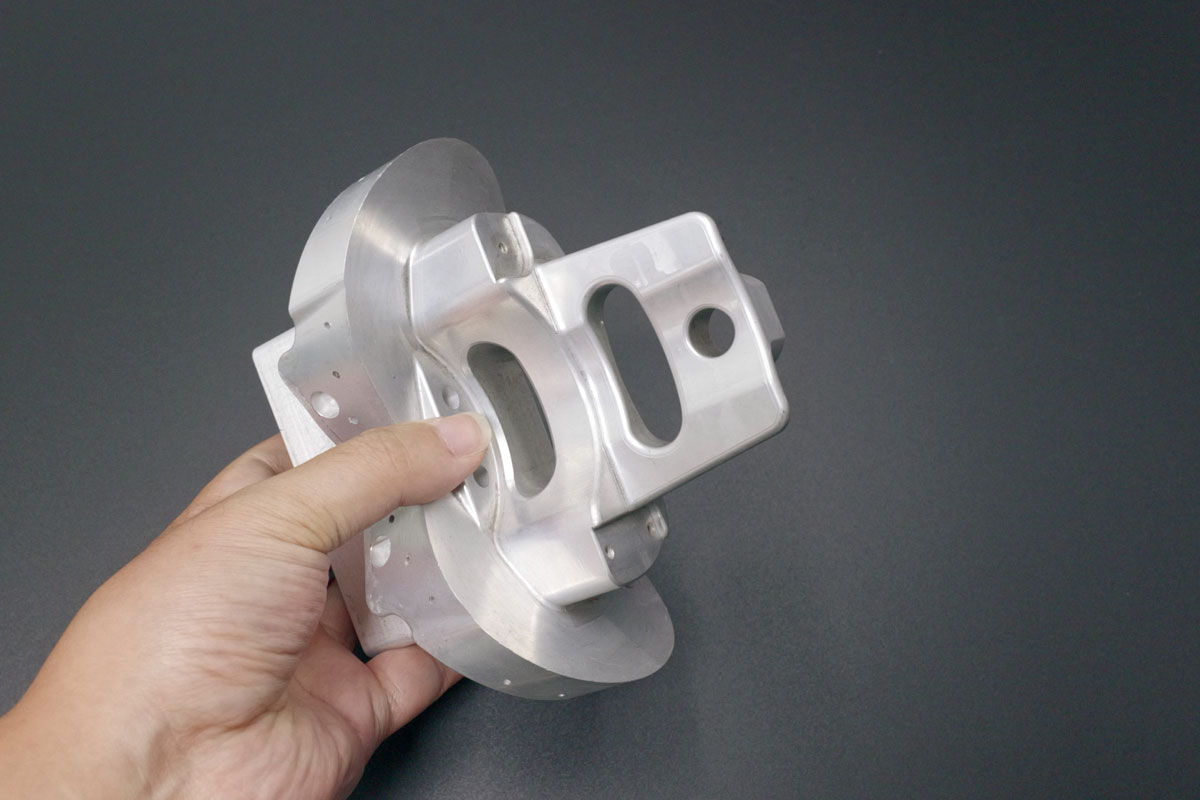

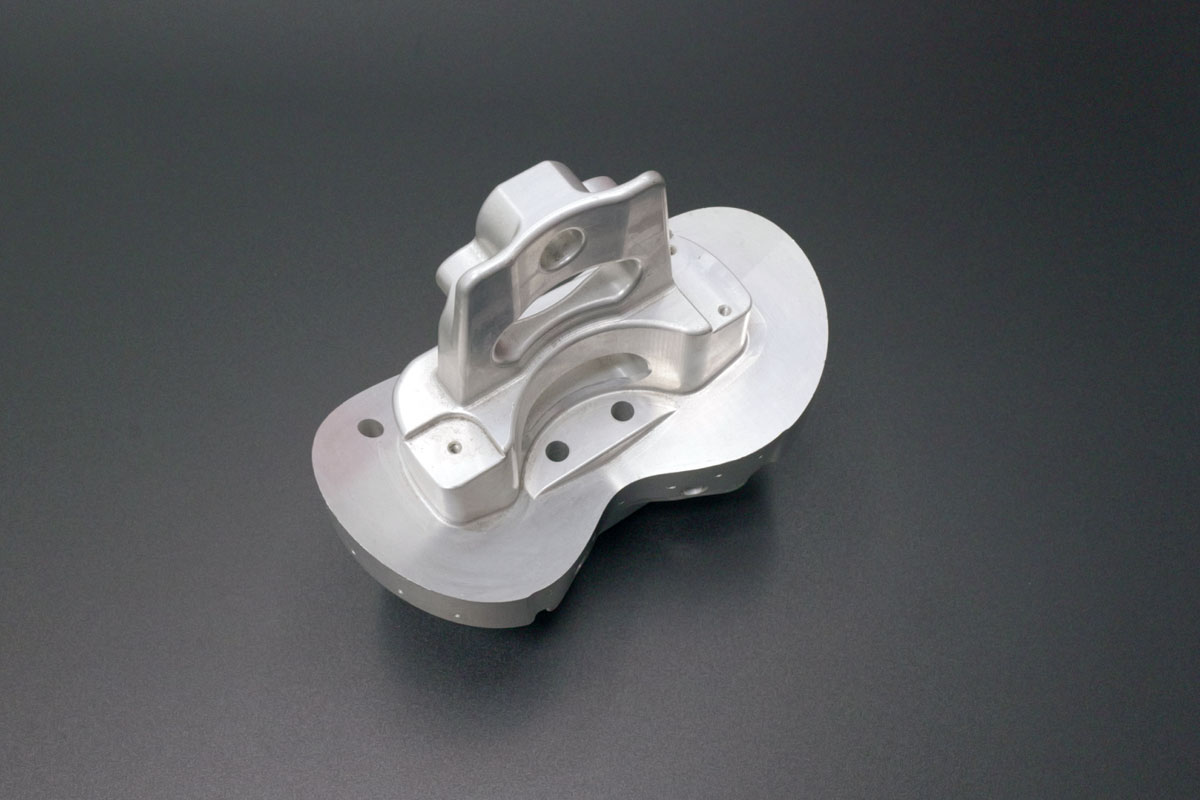

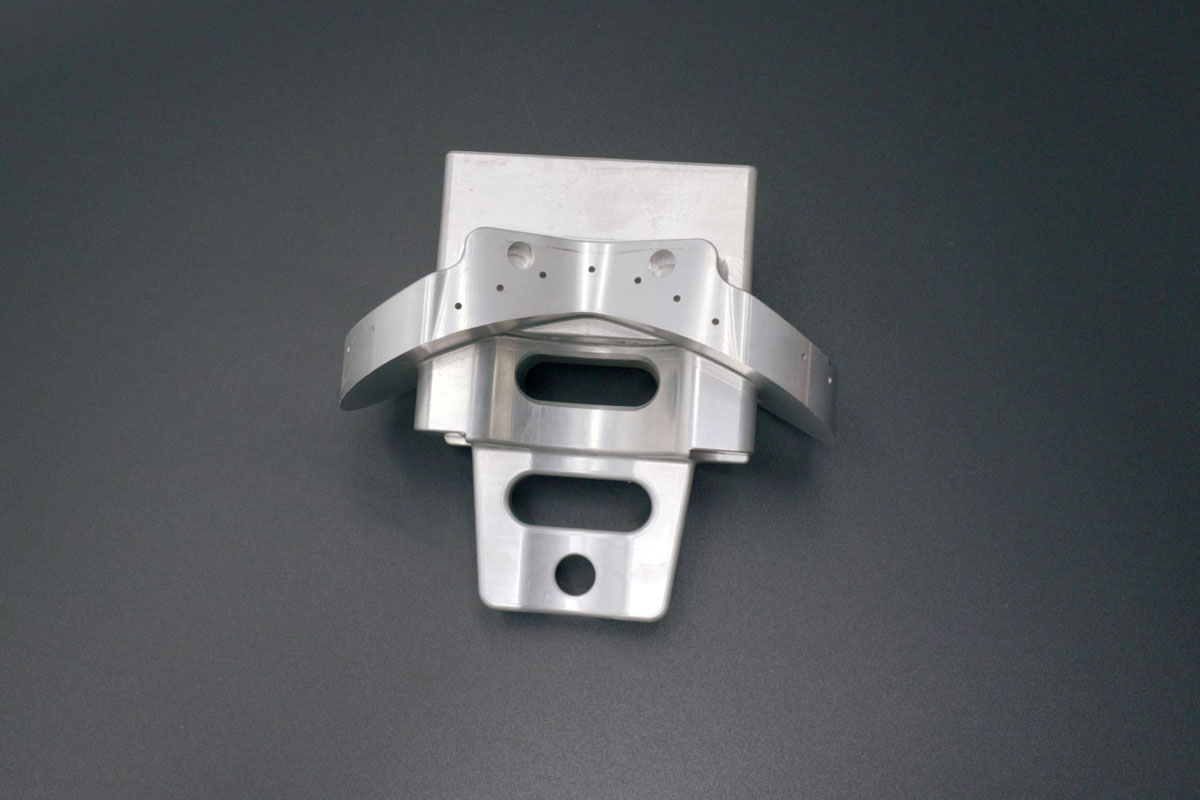

We successfully manufactured a precision 6061 aluminum curved gimbal adjustment bracket for an industrial UAV EO/IR payload clamping system application. This complex curved bracket serves as an adjustable clamp mount for gimbal payloads — featuring intricate curved surfaces and a hybrid structural configuration with multiple integrated features. The component presented significant machining challenges including stringent curved surface profile accuracy requirements and stress-induced deformation in complex hybrid structures during cutting. Through precision 5-axis contouring, stress-relief machining sequences, and custom fixturing, we delivered dimensionally stable brackets with accurate curved profiles and consistent structural integrity.

Project Overview

Key Technical Highlights

• Curved Surface Profile Control: Achieved ±0.02mm profile accuracy on complex curved surfaces through precision 5-axis contouring with optimized stepovers and continuous toolpath engagement — ensuring accurate curvature for proper gimbal clamp fit.
• Process Innovation:
  • 5-Axis Contouring Strategy: Continuous 5-axis toolpaths with optimized tool orientation maintain consistent engagement angles across curved surfaces — eliminating scalloping and achieving profile accuracy.
  • Stress-Relief Machining Sequence: Staged roughing operations with intermediate stress-relief pauses prevent stress-induced deformation in the complex hybrid structure — maintaining geometric stability through final finishing.
  • Balanced Material Removal: Alternating roughing patterns across symmetrical sections distribute cutting forces evenly, preventing distortion from residual stress.
  • Custom Fixturing: Dedicated fixtures with support points following the curved contour provide stable clamping without distorting the hybrid structure.
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on all curved surfaces.
  • Controlled toolpaths eliminate tool marks and maintain profile consistency.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for curved surface profile accuracy (±0.02mm), dimensional tolerance (±0.02mm), and flatness (≤0.01mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for surface quality and distortion.

Industry Applications

This solution demonstrates our expertise in precision curved gimbal component manufacturing, ideal for:
✓ UAV EO/IR payload clamp brackets ✓ Curved gimbal adjustment mounts ✓ Precision optical payload interfaces ✓ Camera gimbal support structures

Why Partner With Us?

• Proven expertise in curved surface profile control with ±0.02mm accuracy
• Advanced stress-relief machining for complex hybrid structures
• Precision 5-axis contouring for complex curved geometries
• 12+ years of precision manufacturing experience across UAV and optical payload sectors
