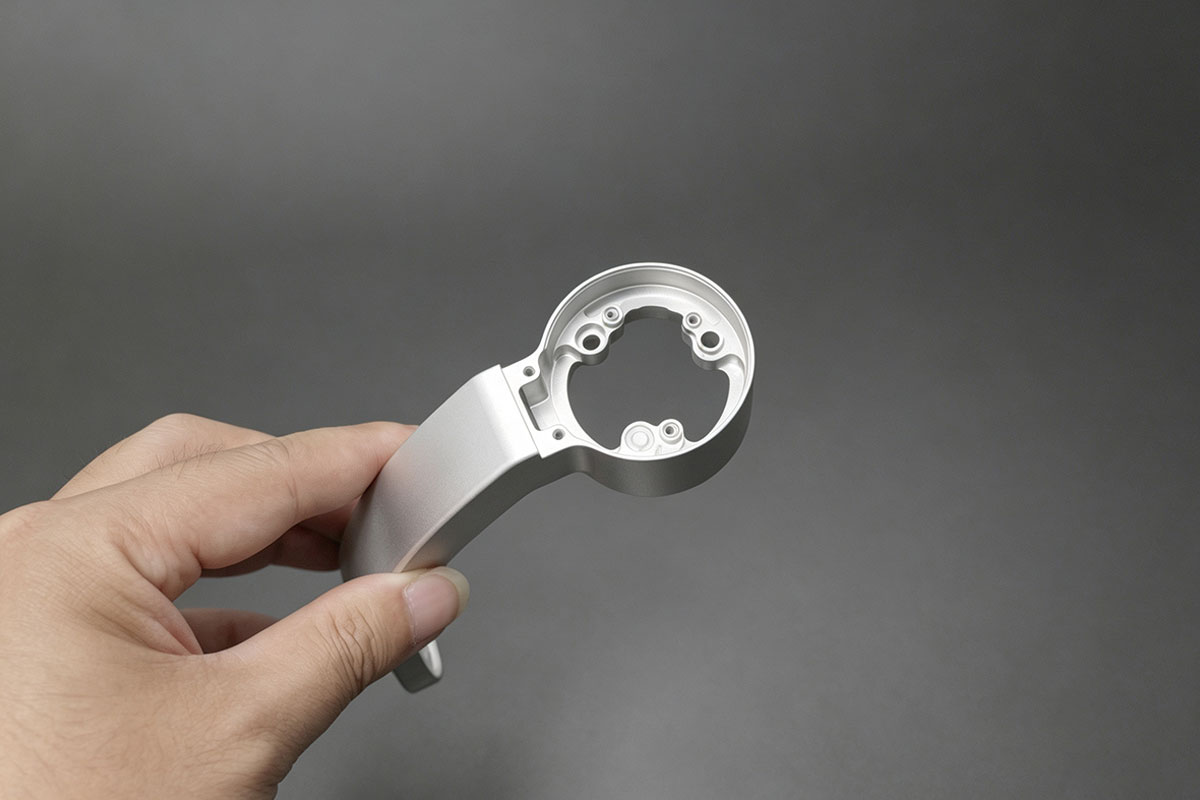

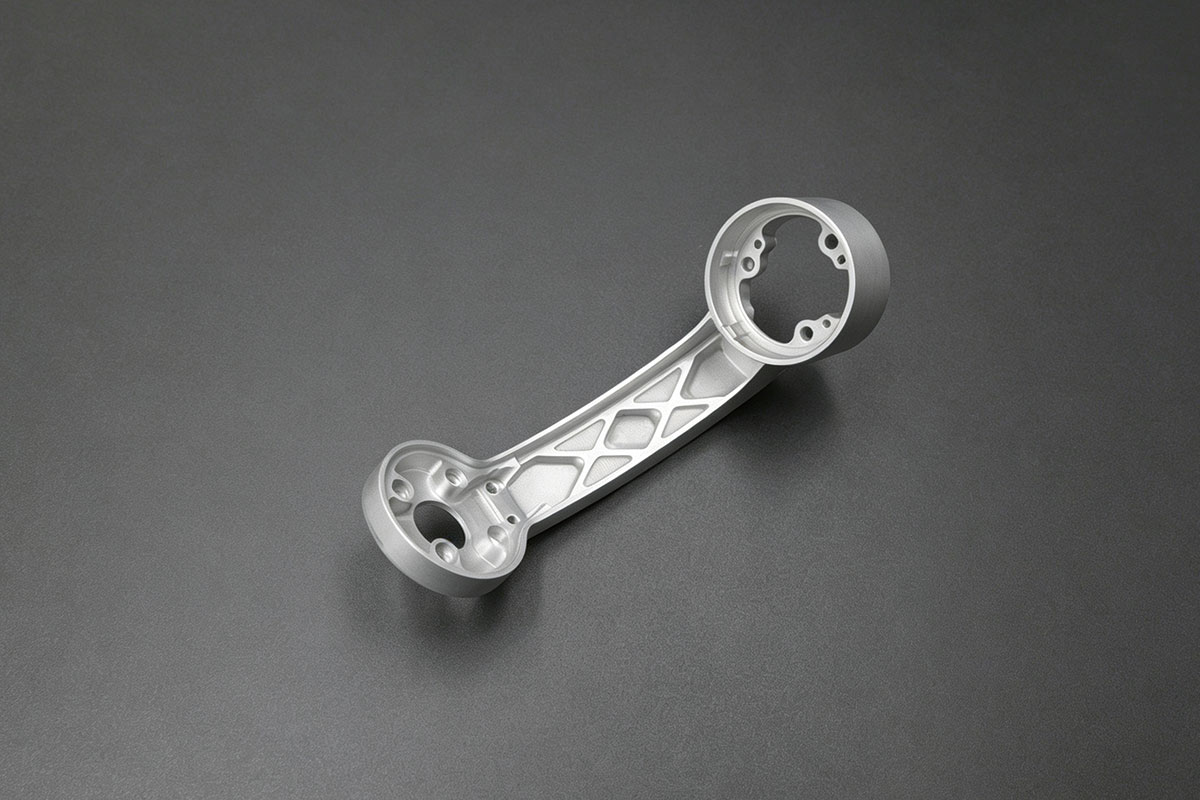

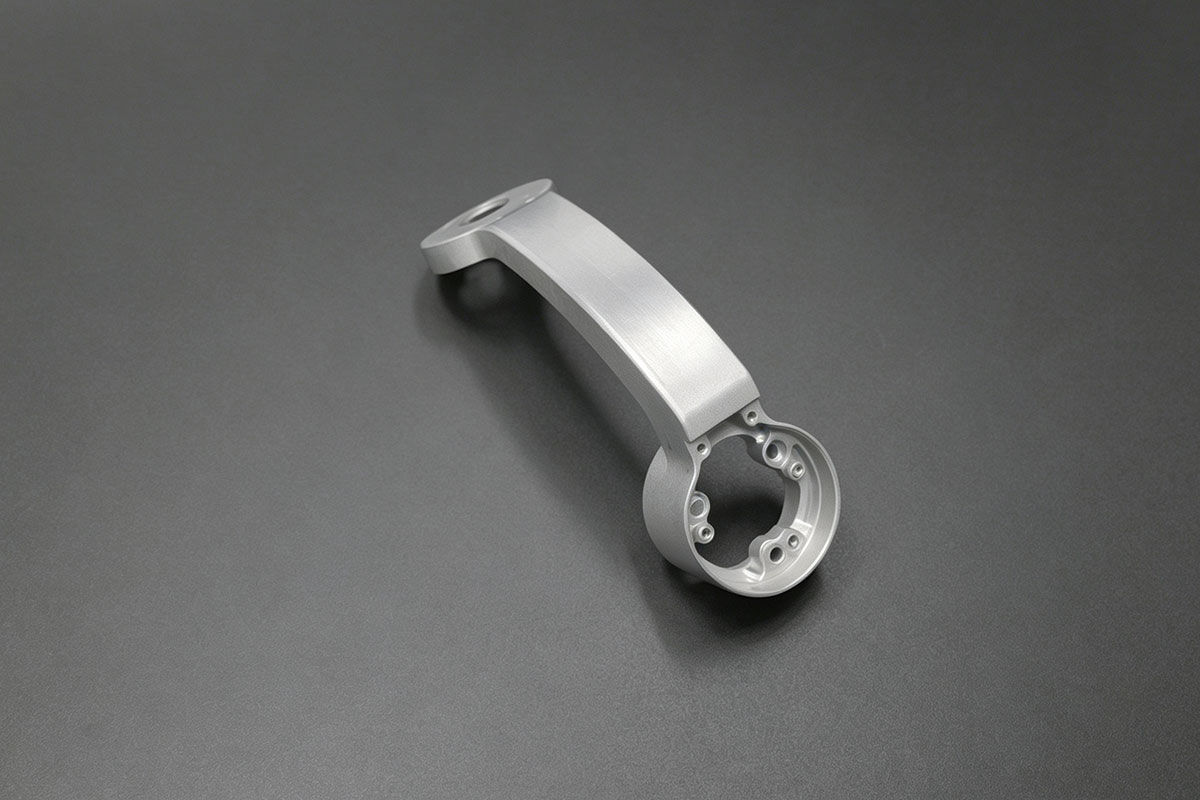

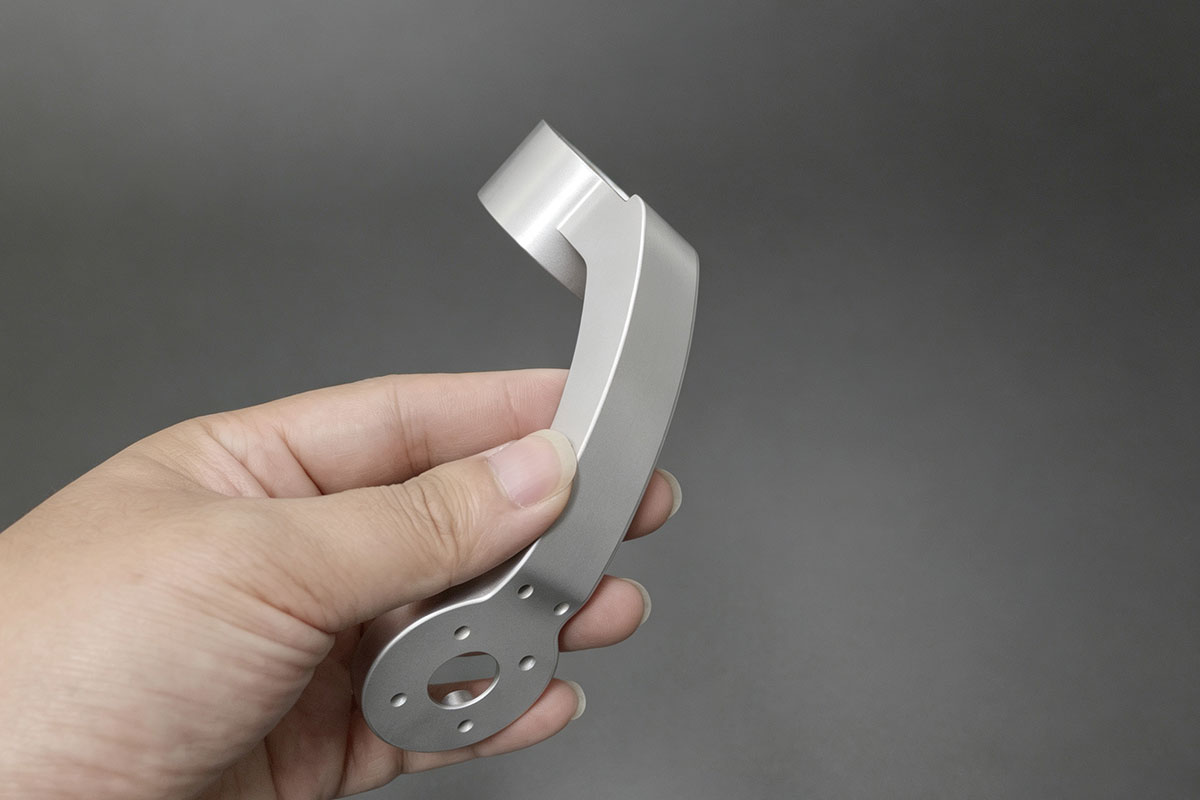

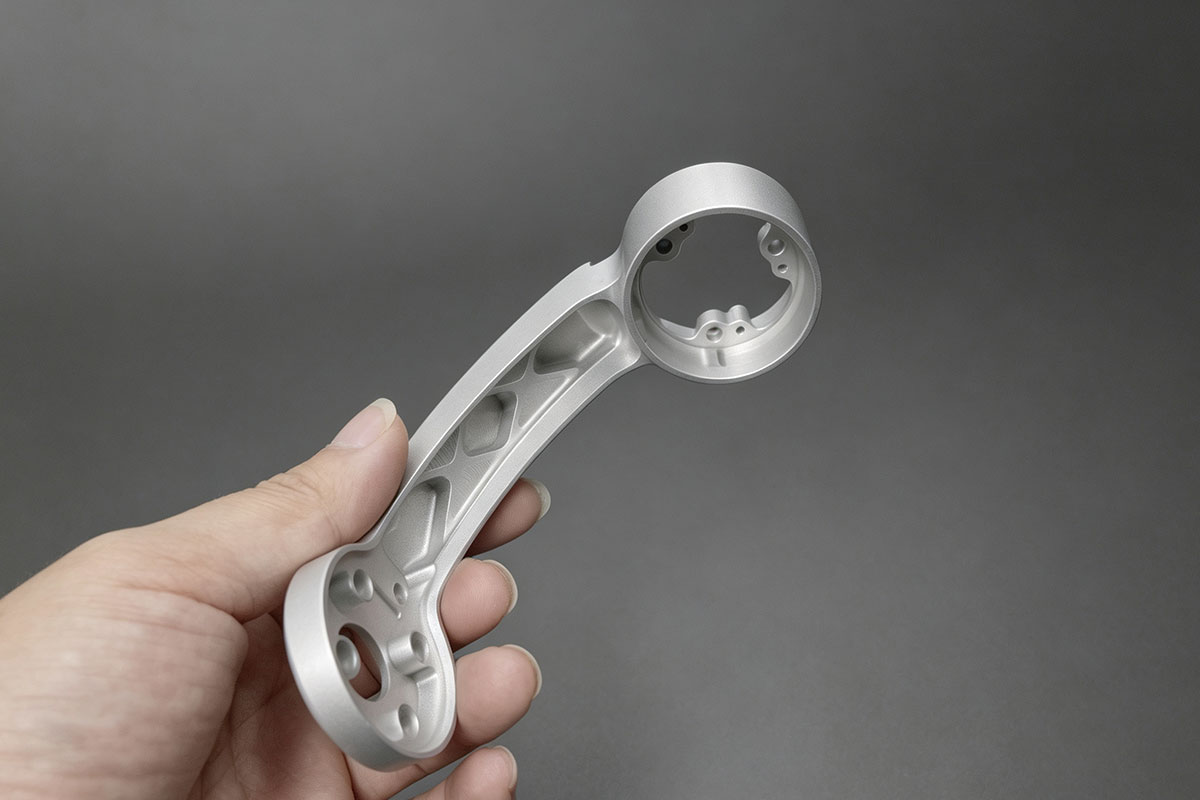

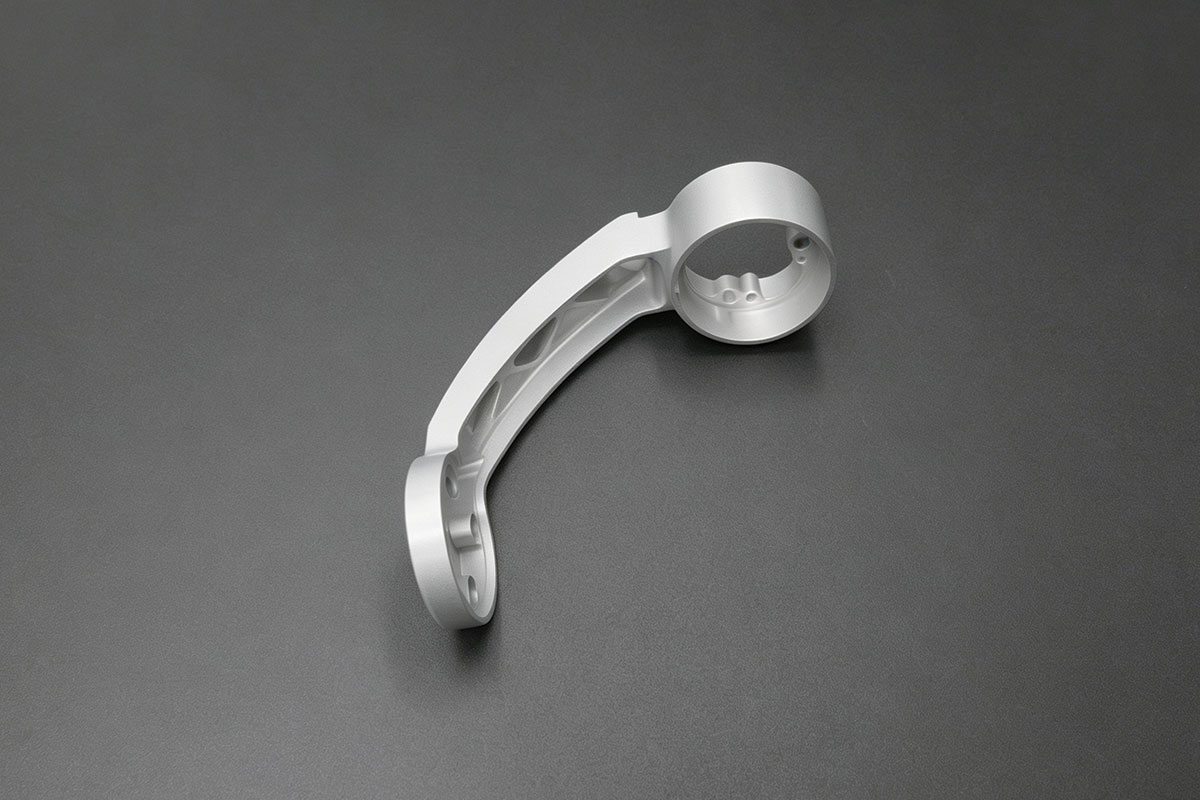

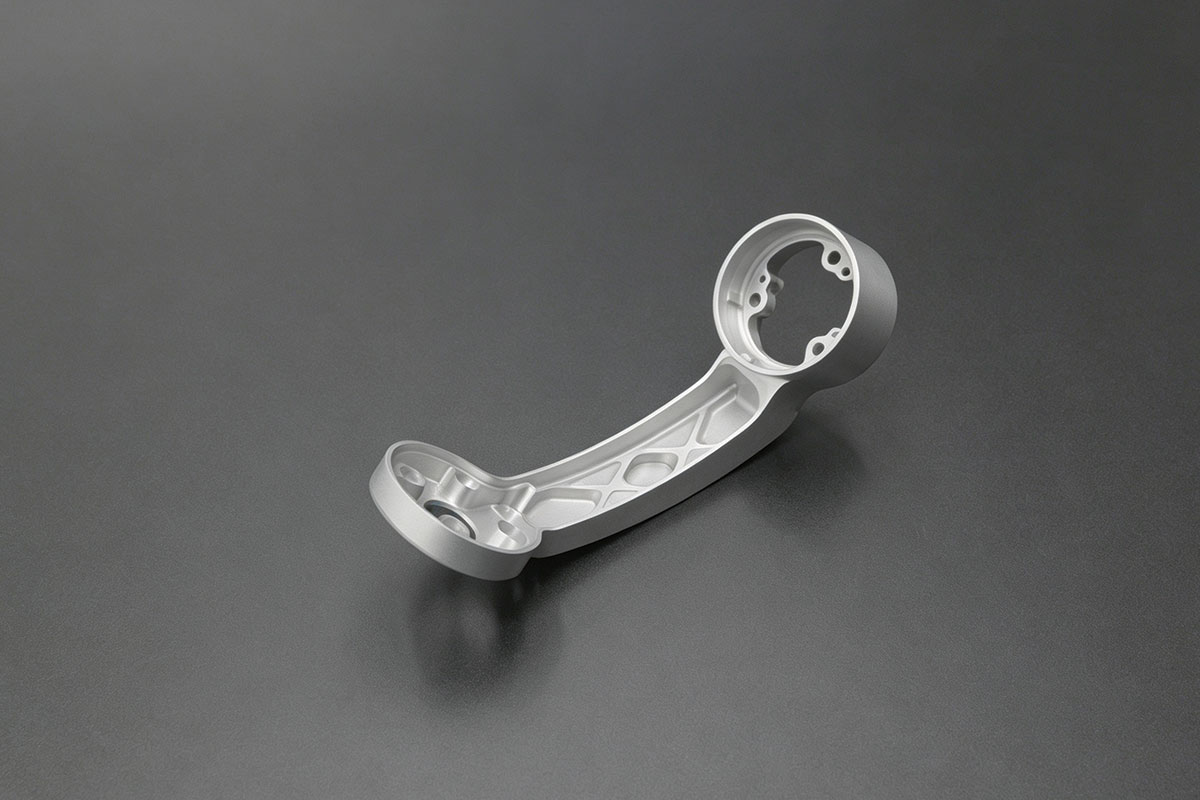

Precision 6061 UAV Heading Arm with Stress Distortion and Curved Surface Finishing Control

We successfully manufactured a precision 6061 aluminum UAV heading arm for an unmanned aerial vehicle structural application. This large bent structural component features complex curved surfaces and an enclosed circular cavity — presenting significant machining challenges including stress-induced distortion during large bent structure machining, curved surface wall clean-out, finishing challenges on contoured surfaces, and machining confined enclosed circular cavities. Through stress-relief machining sequences, specialized toolpath strategies, vibration control, and custom tooling, we delivered dimensionally stable heading arms with clean, finished surfaces.

Project Overview

Key Technical Highlights

• Stress-Induced Distortion Control: Implemented symmetrical stress-relief machining sequences with balanced material removal across the large bent structure, combined with intermediate stress-relief pauses before finishing — preventing overall twist and distortion.
• Process Innovation:
  • Stress-Relief Machining Sequence: Staged roughing operations with alternating patterns across symmetrical sections, followed by stress-relief pauses, then precision finishing.
  • Curved Surface Wall Clean-Out: Custom lollipop/tapered end mills with optimized contouring toolpaths achieve clean internal corners (≤0.5mm radius) on curved side walls — eliminating material buildup and stress risers.
  • Contoured Surface Finishing: Variable stepover toolpaths with optimized tool engagement maintain consistent surface finish across complex curved surfaces — achieving Ra≤1.6μm.
  • Enclosed Circular Cavity Machining: Specialized long-reach tooling with optimized chip evacuation strategies access confined internal cavity geometries — ensuring complete material removal and surface finish.
  • Vibration-Dampening Strategy: Optimized spindle speeds and feed rates tuned for the large bent structure eliminate chatter and maintain surface quality.
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on all curved surfaces.
  • Enclosed cavity surfaces verified clean and defect-free through inspection.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.02mm) and flatness (≤0.01mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for corner quality, surface finish, and distortion.

Industry Applications

This solution demonstrates our expertise in precision UAV structural component manufacturing, ideal for:
✓ UAV heading arms / structural arms ✓ Curved structural components ✓ Lightweight airframe parts ✓ Complex bent structures

Why Partner With Us?

• Proven expertise in large bent structure machining with stress-distortion control
• Advanced curved surface finishing and wall clean-out capabilities
• Specialized tooling for confined enclosed cavity machining
• 12+ years of precision manufacturing experience across UAV and aerospace sectors
