Precision 6061 UAV Front Housing with Black Hard Anodizing and Thin-Wall Machining Control

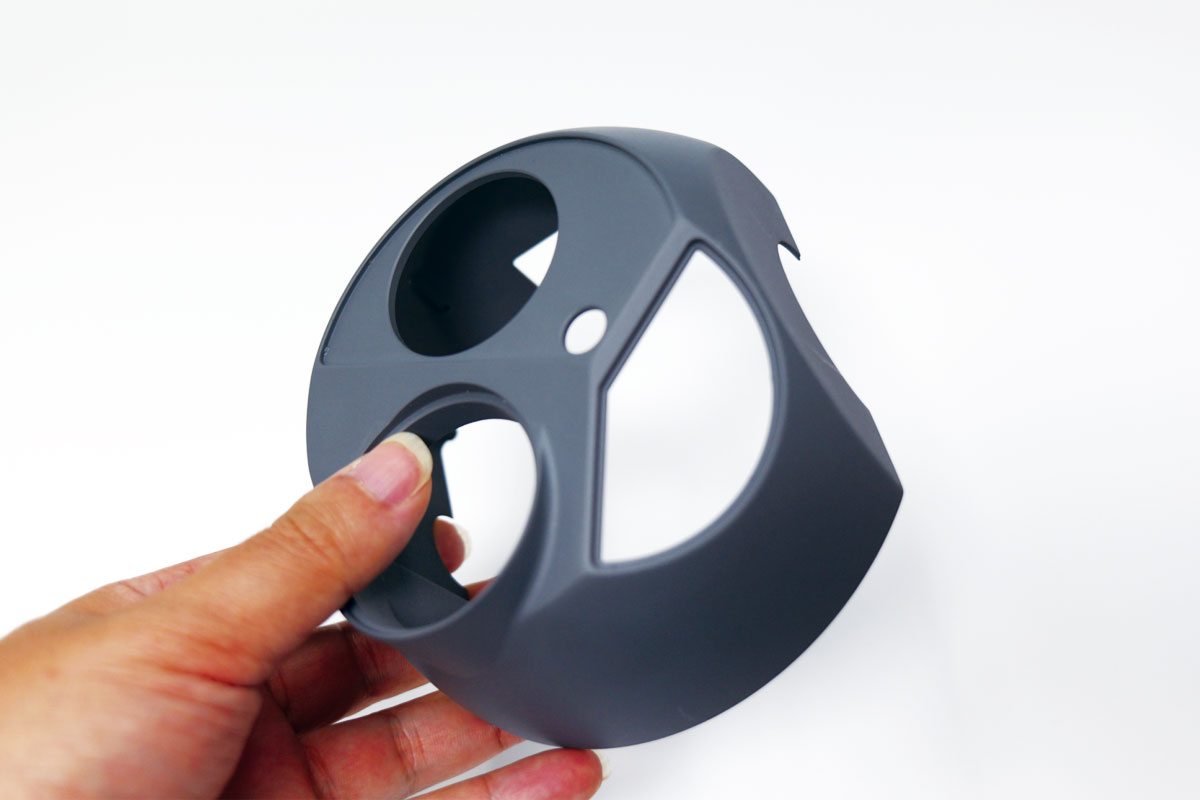

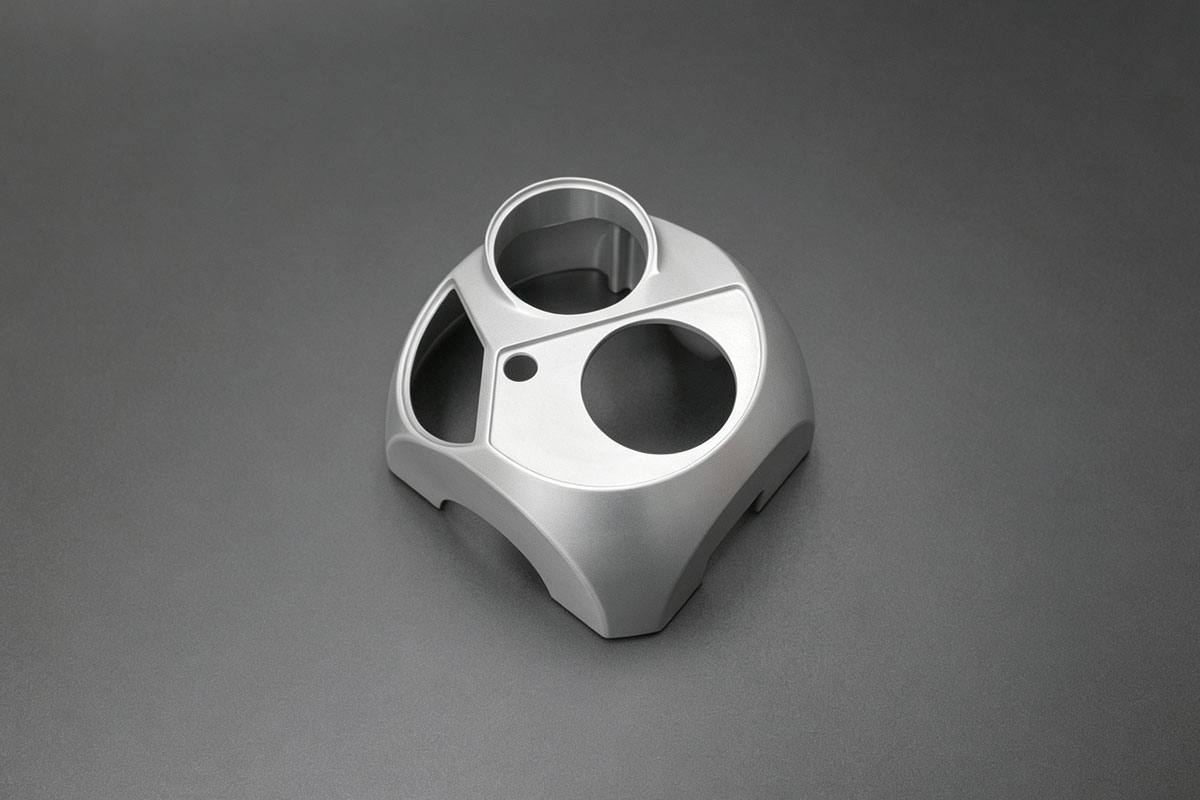

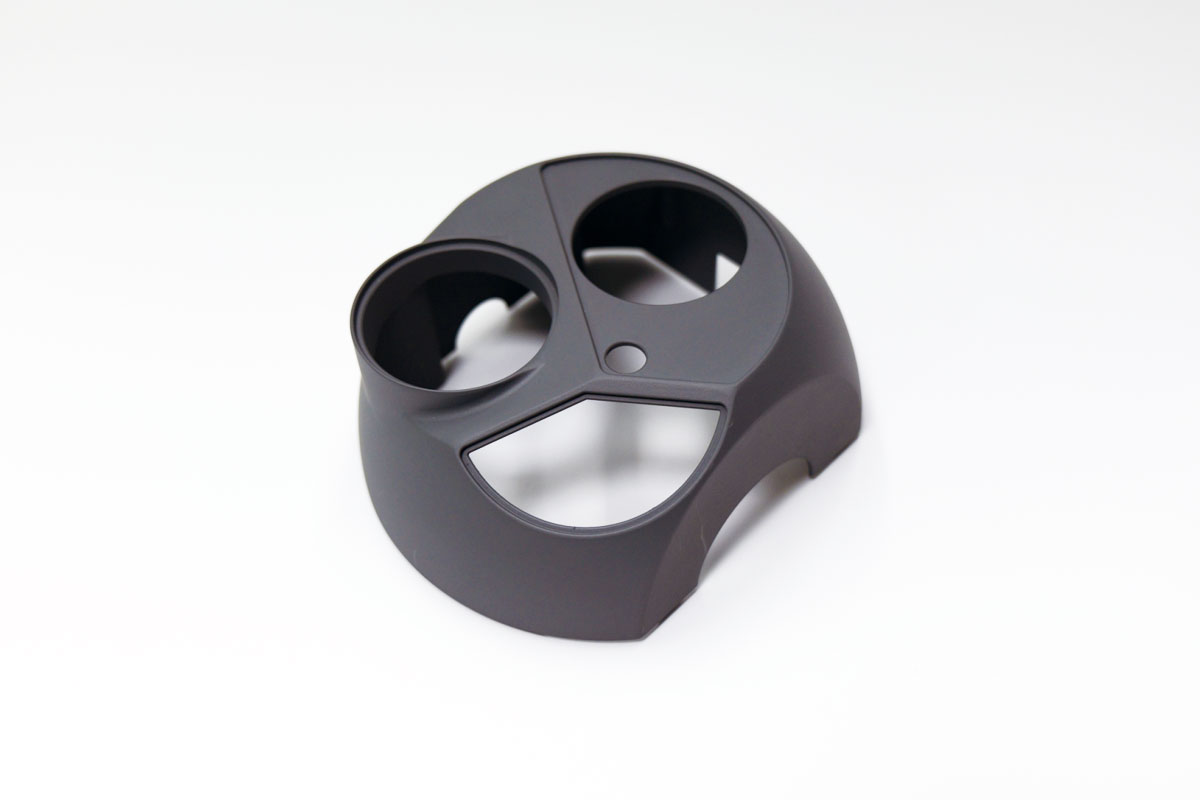

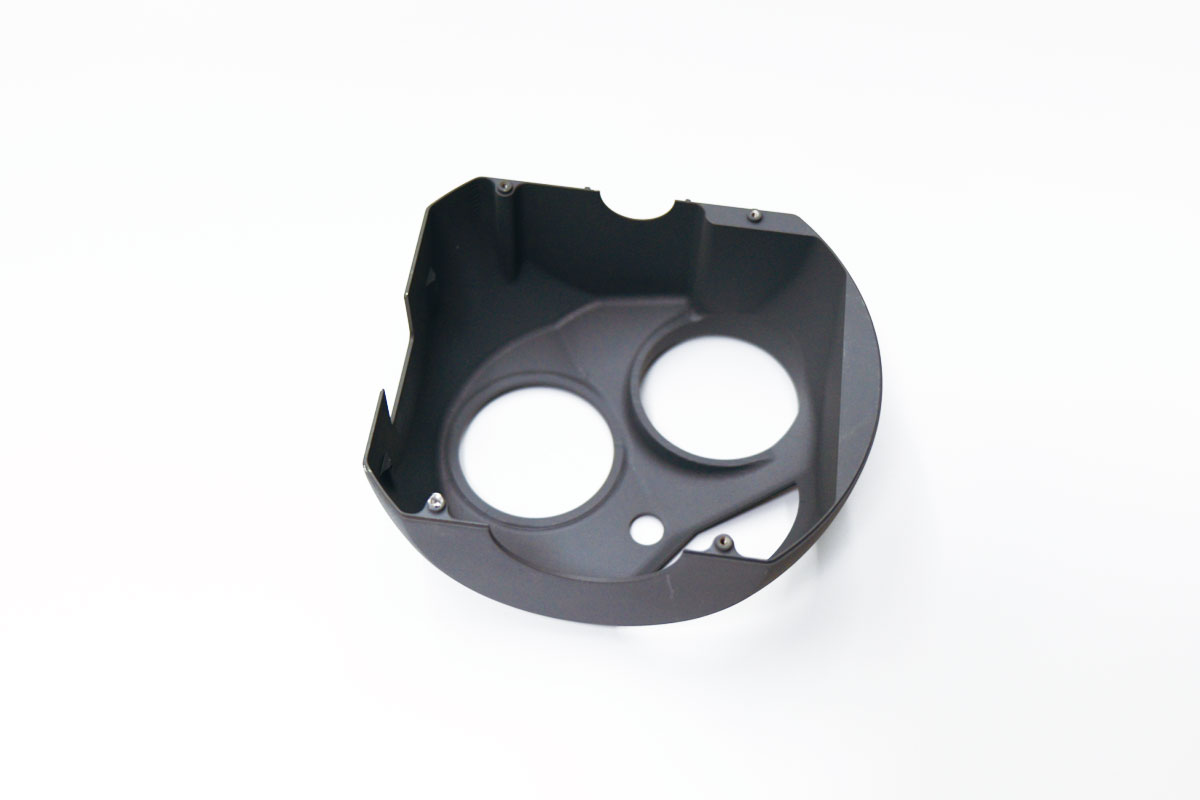

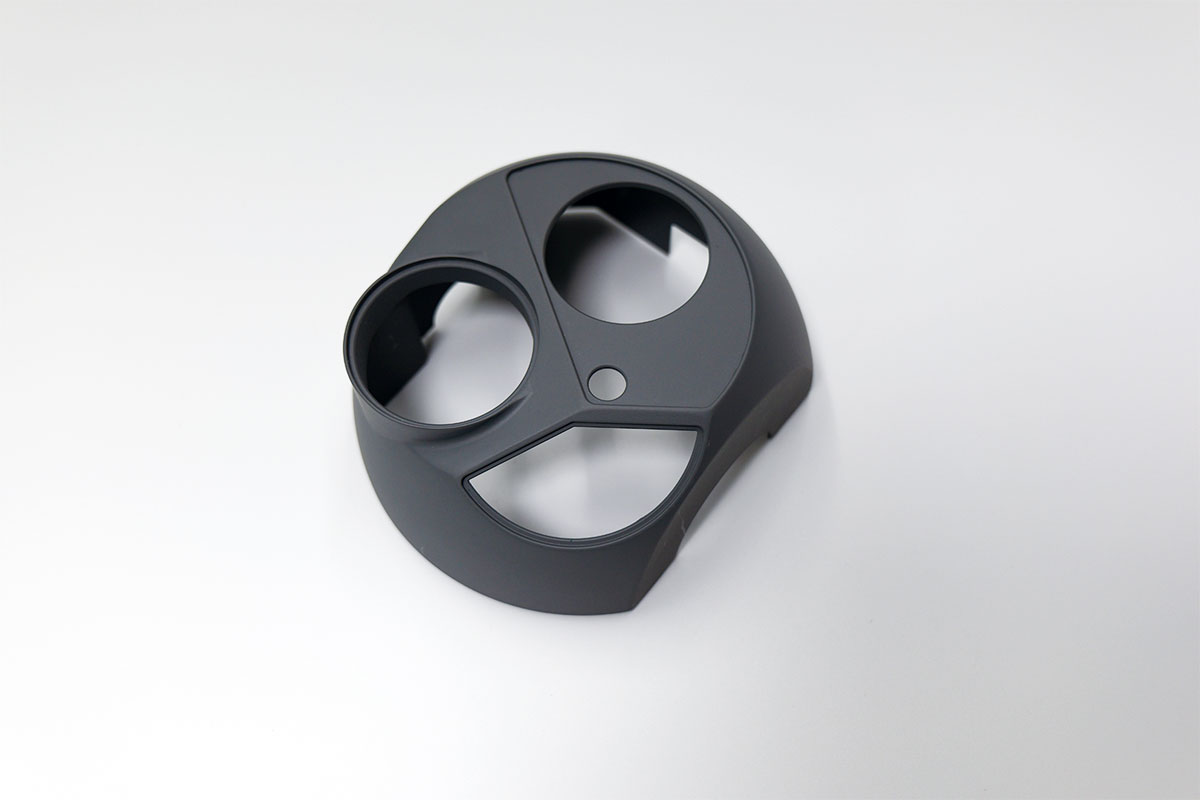

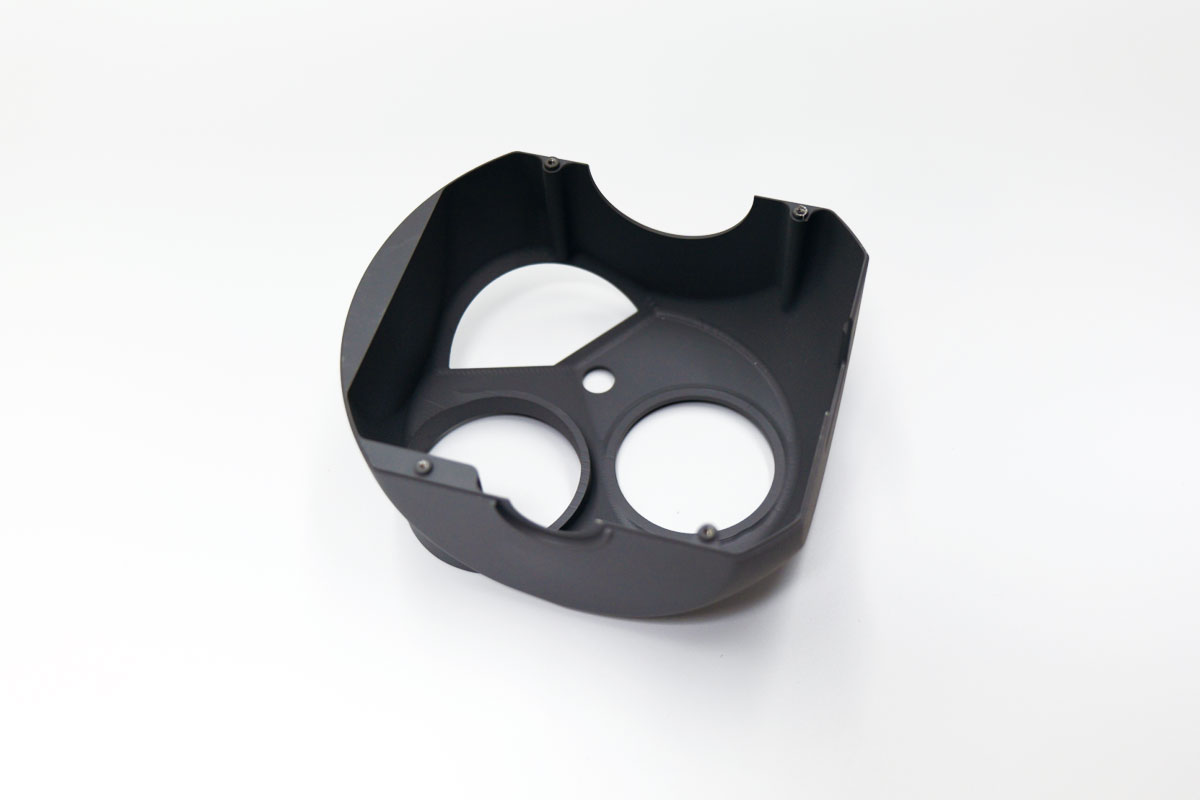

We successfully manufactured a precision 6061 aluminum UAV front housing with black hard anodized finish for an unmanned aerial vehicle platform application. This lightweight front housing features large-area thin-wall hollow structures and complex contoured geometry — presenting significant machining challenges including chatter and vibration during thin-wall milling, deformation of fragile hollow sections, and difficult corner finishing in complex shaped internal transitions. Through optimized toolpath strategies, vibration-dampening techniques, stress-relief sequences, and custom fixturing, we delivered distortion-free housings with clean internal corners and consistent surface quality.

Project Overview

Key Technical Highlights

• Thin-Wall Chatter and Deformation Prevention: Implemented vibration-dampening toolpath strategies with variable helix tooling and optimized spindle speeds to eliminate chatter in large-area thin-wall sections, combined with balanced material removal sequences to prevent deformation of hollow structures.
• Process Innovation:
  • Vibration-Dampening Strategy: Toolpaths with variable radial engagement and optimized stepovers tuned specifically for thin-wall geometries, plus specialized chatter-suppression toolholders for stable cutting conditions.
  • Complex Shaped Corner Finishing: Custom lollipop and tapered end mills with optimized contouring toolpaths achieve clean internal corners (≤0.5mm radius) in complex shaped transitions — eliminating stress risers and material buildup.
  • Stress-Relief Machining Sequence: Staged roughing and finishing operations with intermediate stress-relief pauses prevent distortion of large thin-wall sections.
  • Low-Stress Fixturing: Custom support fixtures with strategic backing under hollow sections minimize clamping distortion while providing stable part retention.
• Surface Quality:
  • Precision finishing achieves chatter-free surface finish (Ra≤1.6μm) across all visible housing surfaces.
  • Black hard anodizing (Type III) provides durable ceramic-like oxide layer (25-50μm) with exceptional wear resistance, corrosion protection, and uniform matte black appearance.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.02mm), flatness (≤0.02mm), and wall thickness verification, supplemented by surface roughness testing (Ra≤1.6μm), visual inspection for chatter marks and corner quality, and anodized coating verification.

Industry Applications

This solution demonstrates our expertise in precision lightweight UAV housing manufacturing, ideal for:
✓ UAV front housings / nose cones ✓ Lightweight enclosures ✓ Camera housings ✓ Sensor mounting structures

Why Partner With Us?

• Proven expertise in thin-wall machining with chatter and deformation prevention
• Advanced complex corner finishing capabilities for contoured geometries
• In-house black hard anodizing with MIL-spec compliance
• 12+ years of precision manufacturing experience across UAV and aerospace sectors
