Precision 6061 Integrated Equipment Enclosure for Lithium Battery Manufacturing

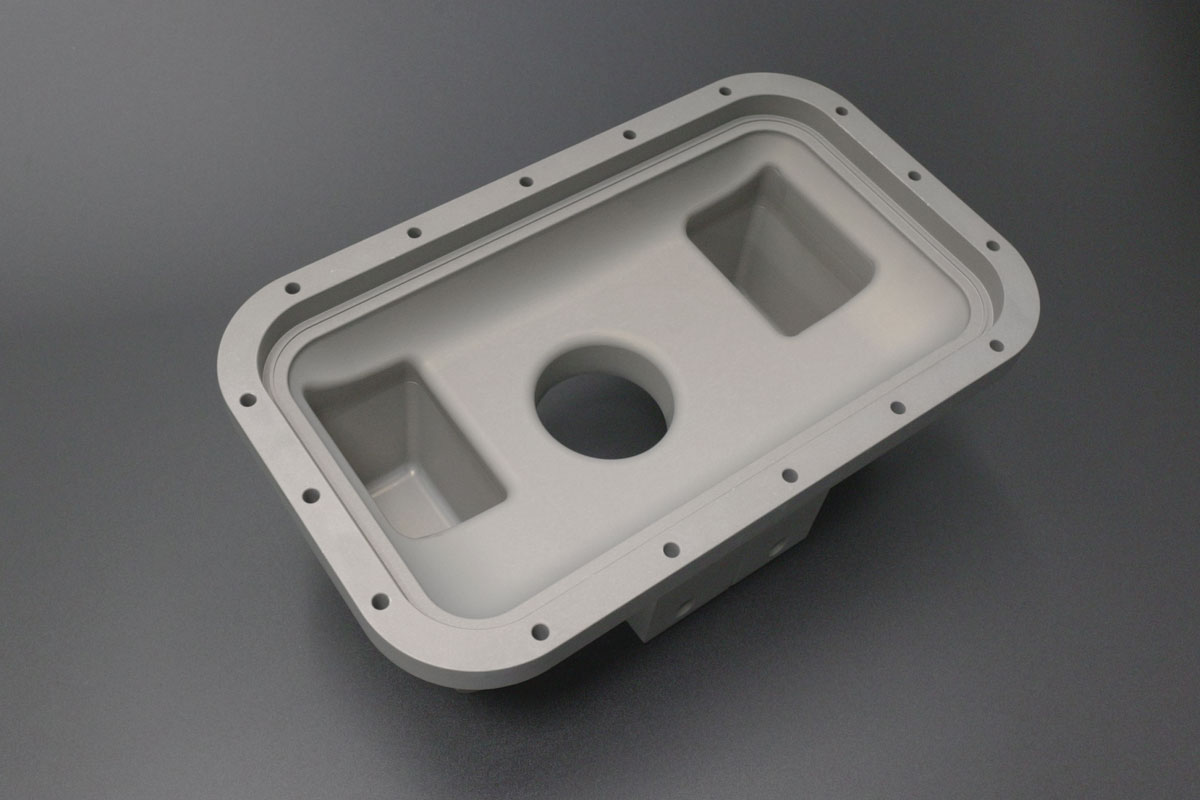

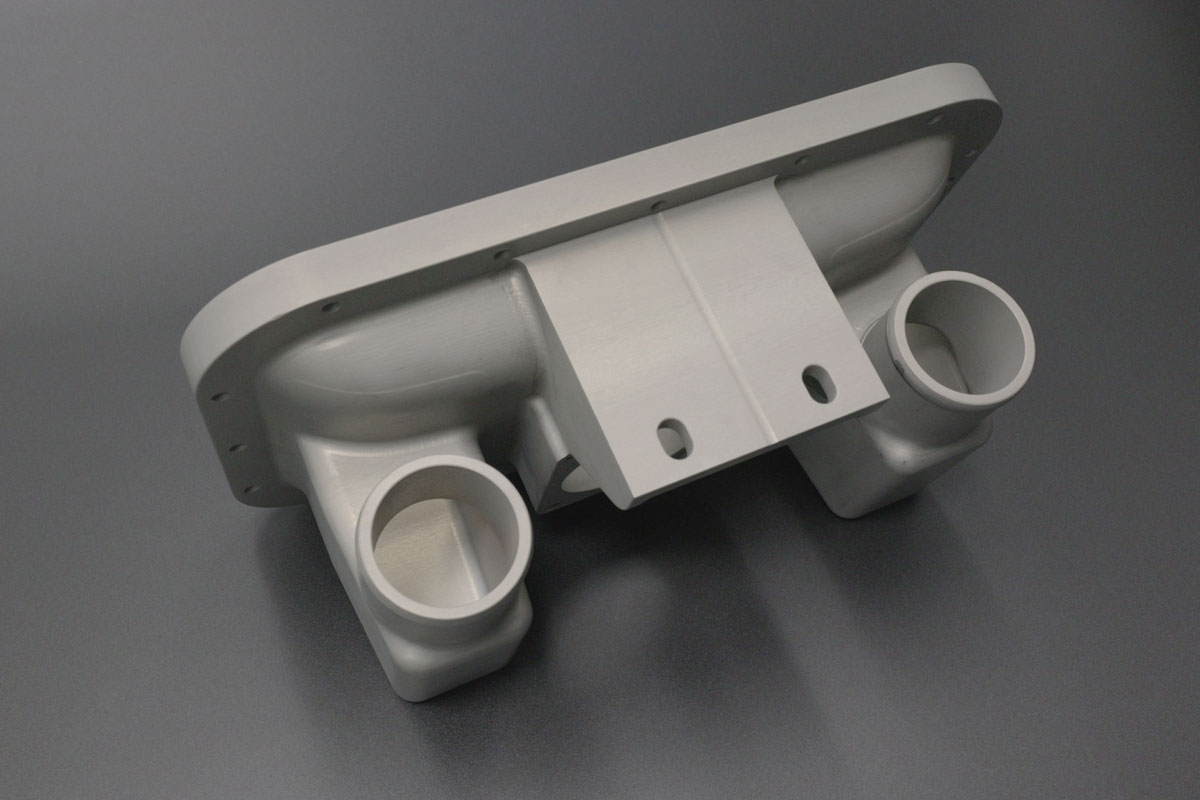

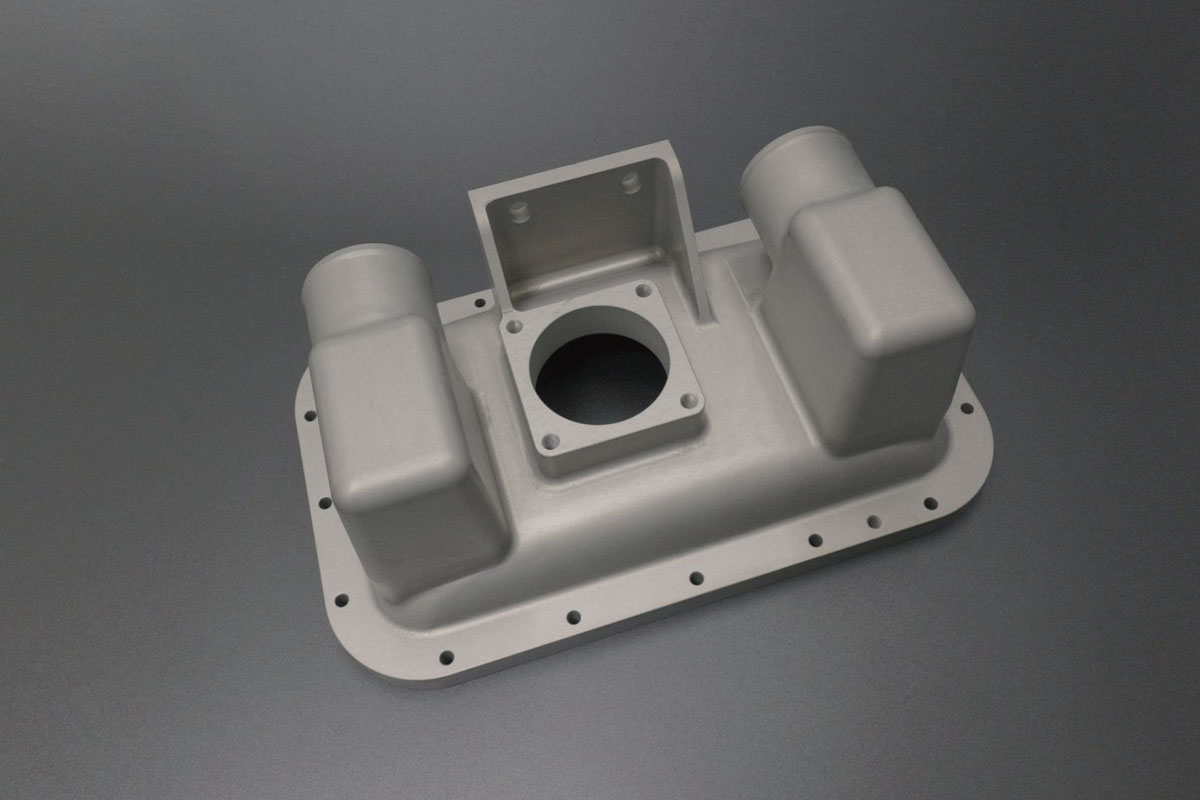

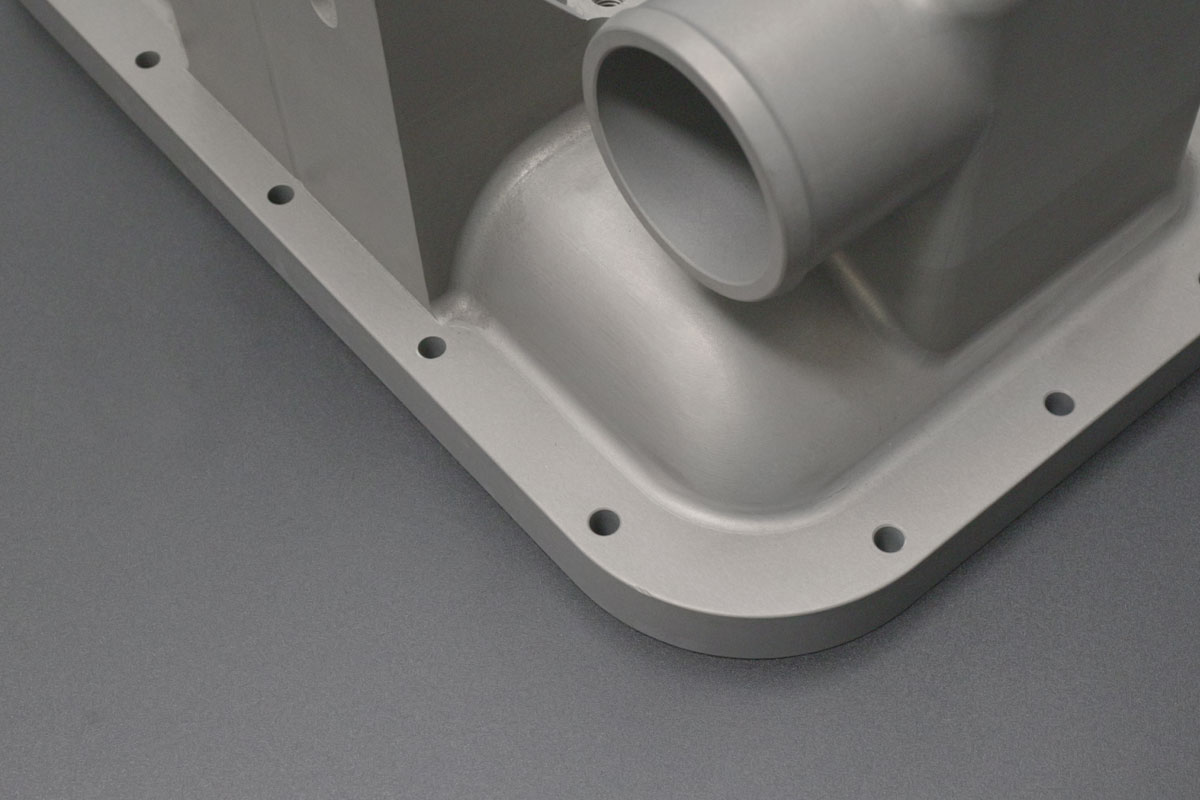

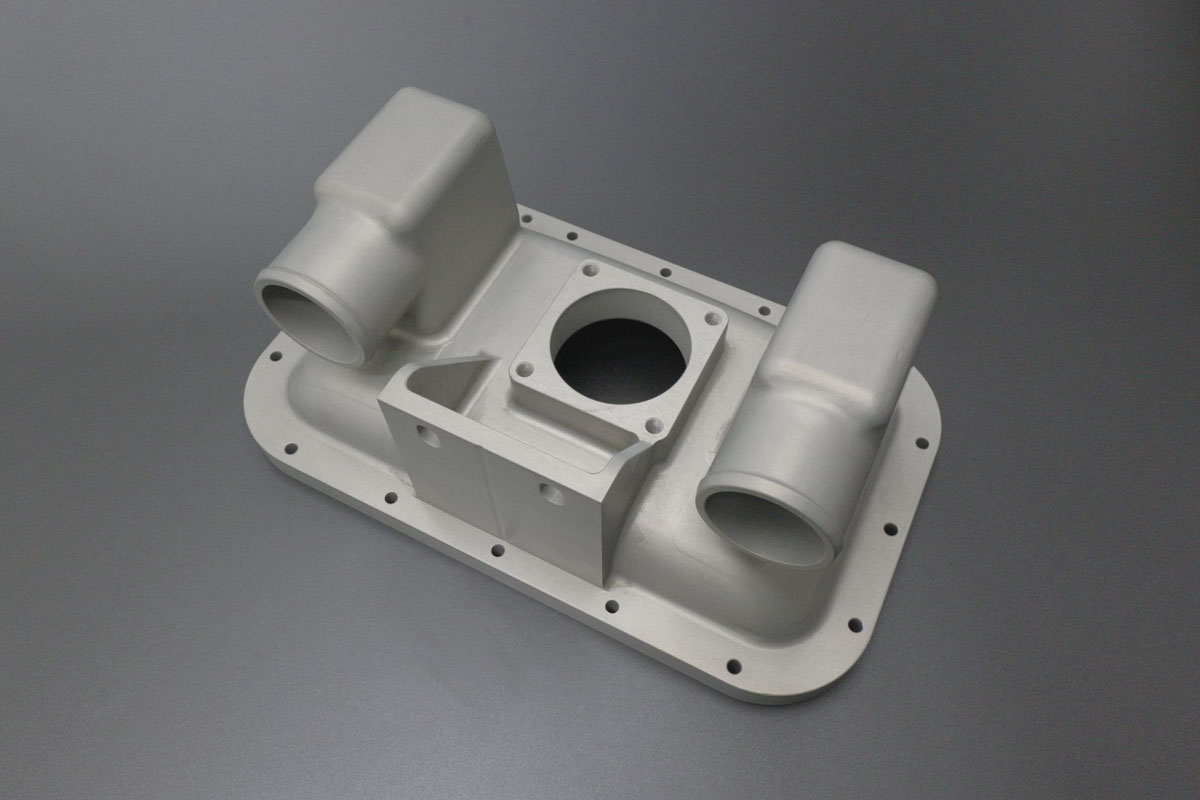

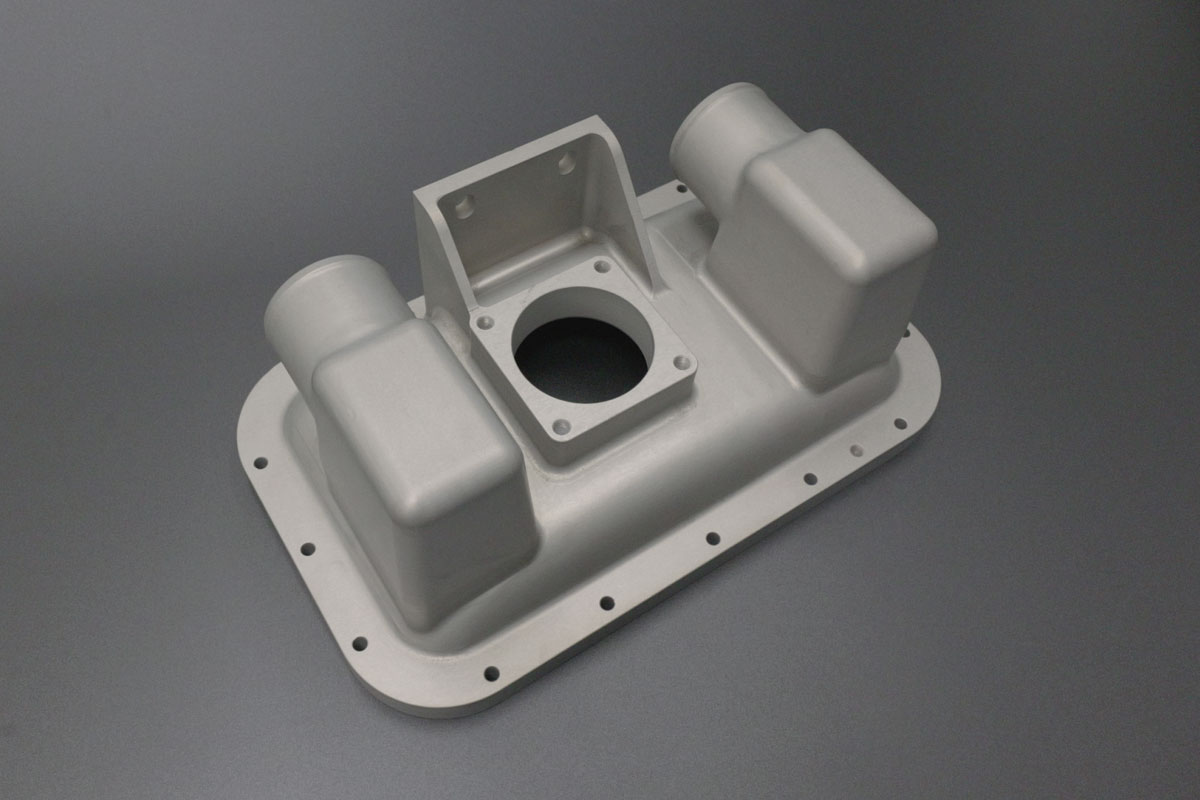

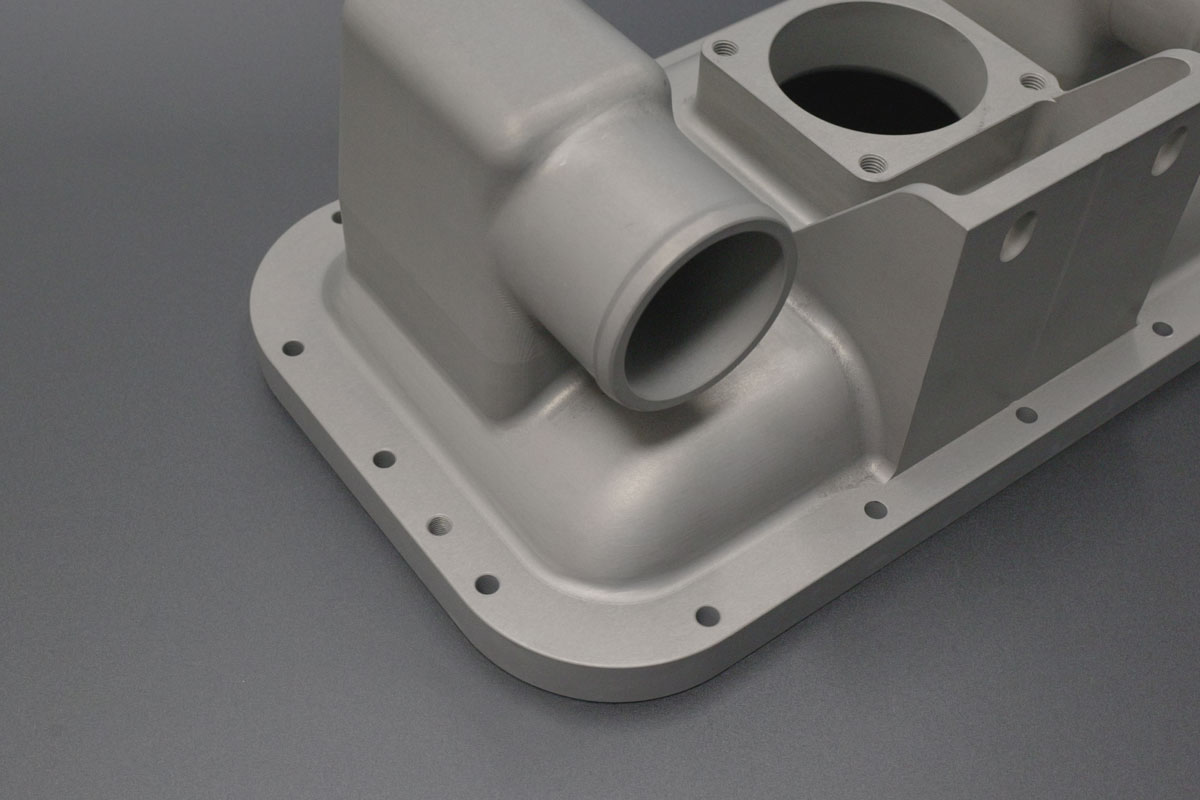

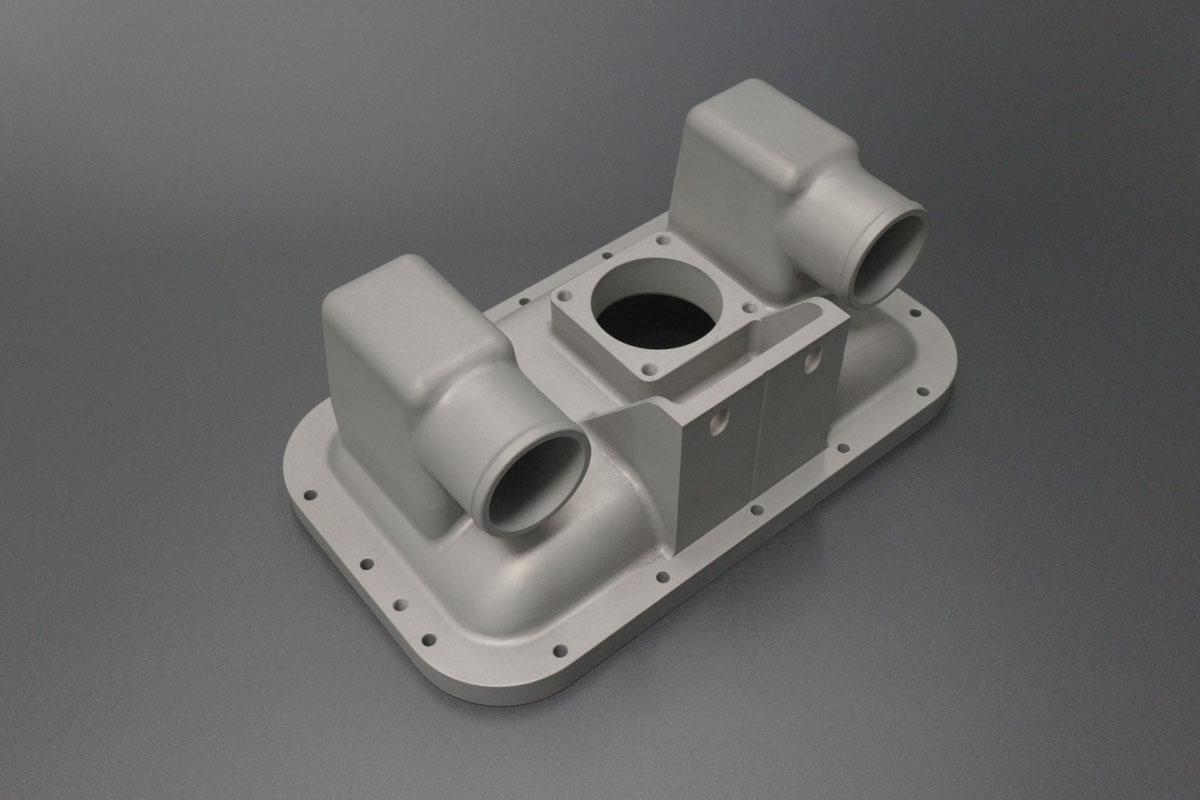

We successfully manufactured a precision 6061 aluminum integrated equipment enclosure with bead-blasted natural anodized finish for a lithium battery manufacturing equipment application. This large-format monolithic enclosure features deep cavities with thin-wall sections and multiple integrated mounting features — presenting significant machining challenges including deep-cavity thin-wall chatter during milling, cavity deformation from stress release, and precise positional matching across multiple distributed features. Through vibration-dampening toolpath strategies, stress-relief machining sequences, low-stress fixturing, and single-setup precision machining, we delivered dimensionally stable enclosures with consistent geometric accuracy and uniform surface finish.

Project Overview

Key Technical Highlights

• Deep-Cavity Chatter and Deformation Control: Implemented vibration-dampening toolpath strategies with variable helix tooling and optimized spindle speeds for thin-wall deep cavities, combined with staged stress-relief machining sequences to prevent cavity deformation from residual stress release.
• Process Innovation:
  • Vibration-Dampening Strategy: Toolpaths with variable radial engagement and optimized stepovers tuned specifically for deep thin-wall geometries — eliminating chatter marks and maintaining Ra≤1.6μm surface finish.
  • Stress-Relief Machining Sequence: Roughing operations followed by intermediate stress-relief pauses before finishing, preventing stress-induced cavity distortion and maintaining flatness ≤0.01mm.
  • Low-Stress Fixturing: Custom support fixtures with strategic backing under cavity floors minimize clamping distortion while providing stable part retention.
  • Single-Setup Precision Machining: All features — cavities, mounting holes, and interfaces — machined in a single fixturing setup, ensuring ±0.015mm positional accuracy across all distributed features.
• Surface Quality:
  • Bead-Blasted Finish: Uniform media blasting creates consistent matte surface texture while removing tool marks and preparing surface for anodizing.
  • Natural Anodized Coating: Type II natural (clear) anodizing provides enhanced corrosion protection and wear resistance while preserving the aluminum's natural metallic appearance.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.02mm), flatness (≤0.01mm), and feature positional accuracy (±0.015mm), supplemented by surface roughness testing (Ra≤1.6μm), visual inspection for chatter marks and surface defects, and anodized coating verification.

Industry Applications

This solution demonstrates our expertise in precision integrated enclosure manufacturing for battery equipment, ideal for:
✓ Lithium battery production equipment enclosures ✓ Process chamber housings ✓ Electronic control enclosures ✓ Integrated machine bases

Why Partner With Us?

• Proven expertise in deep-cavity thin-wall machining with chatter and deformation prevention
• Advanced stress-relief machining sequences for large-format monolithic components
• Single-setup precision machining for multi-feature positional matching
• In-house bead-blasting and anodizing capabilities
• 12+ years of precision manufacturing experience across lithium battery and industrial equipment sectors
