Precision 7075 Aluminum Oil Pump Valve Body with Complex Internal Cavity Surface Control

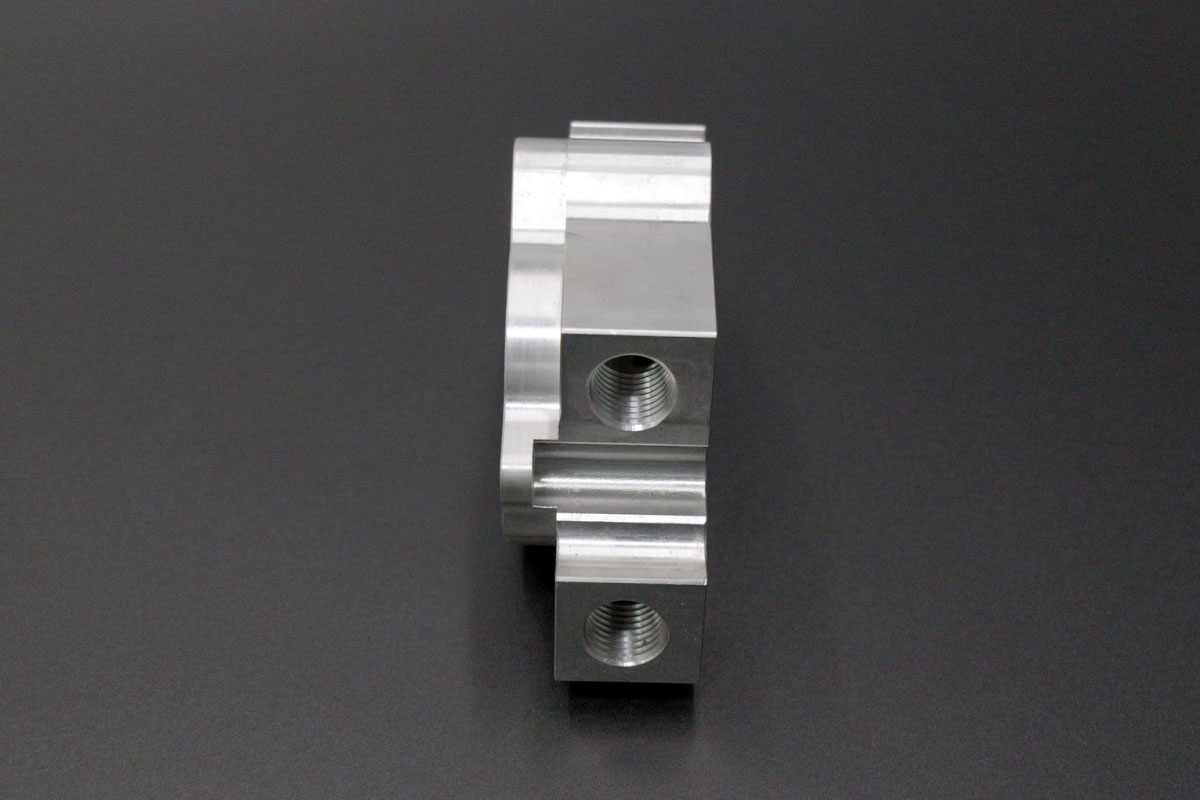

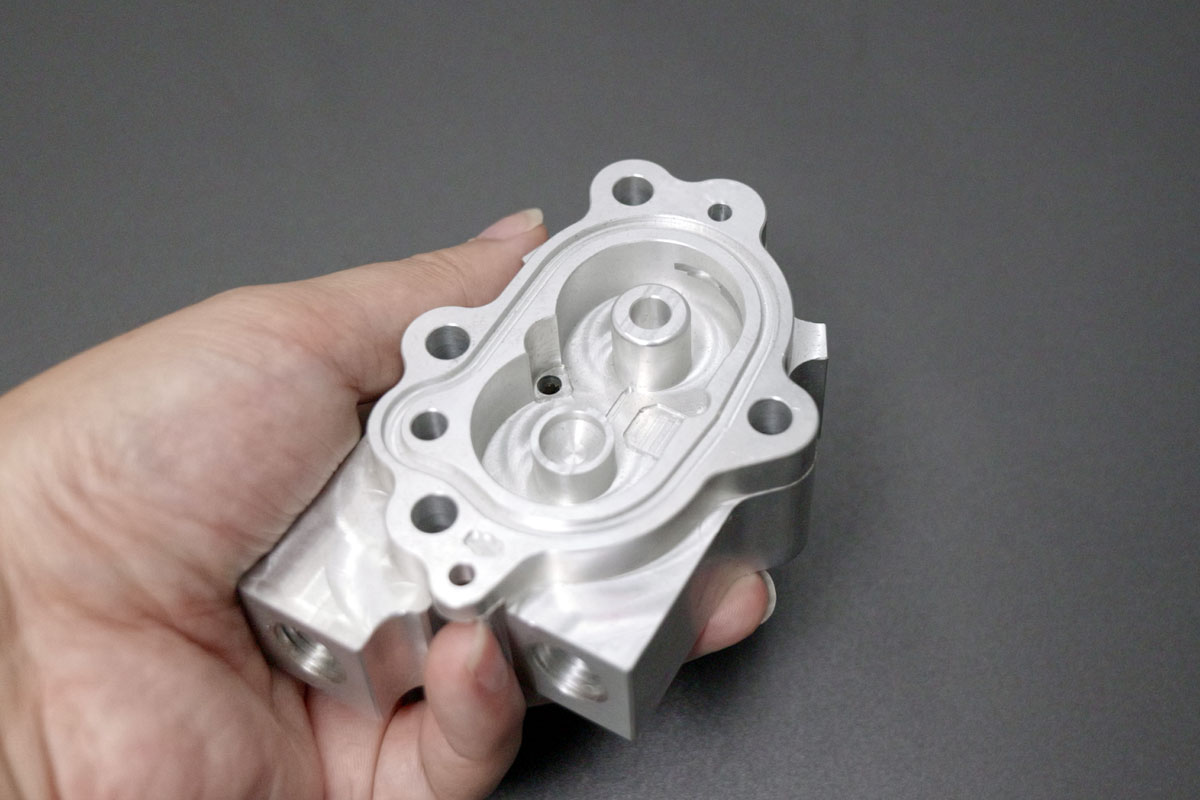

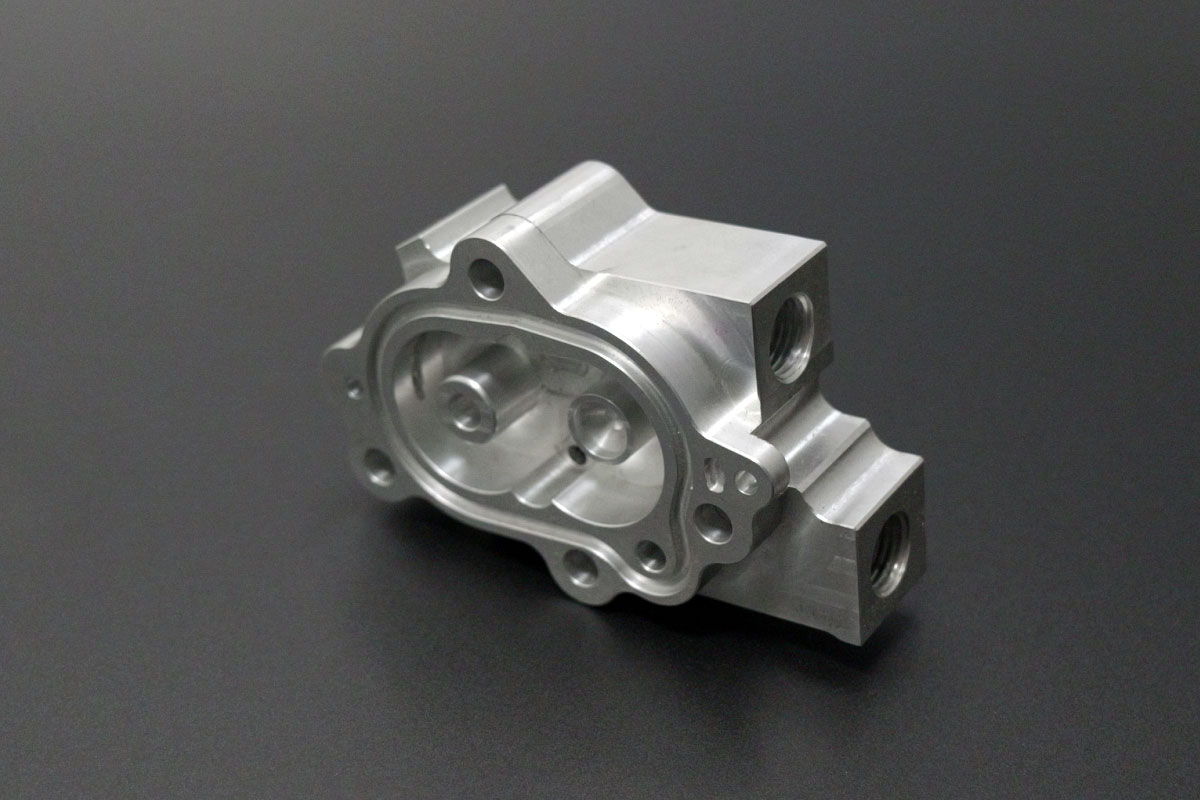

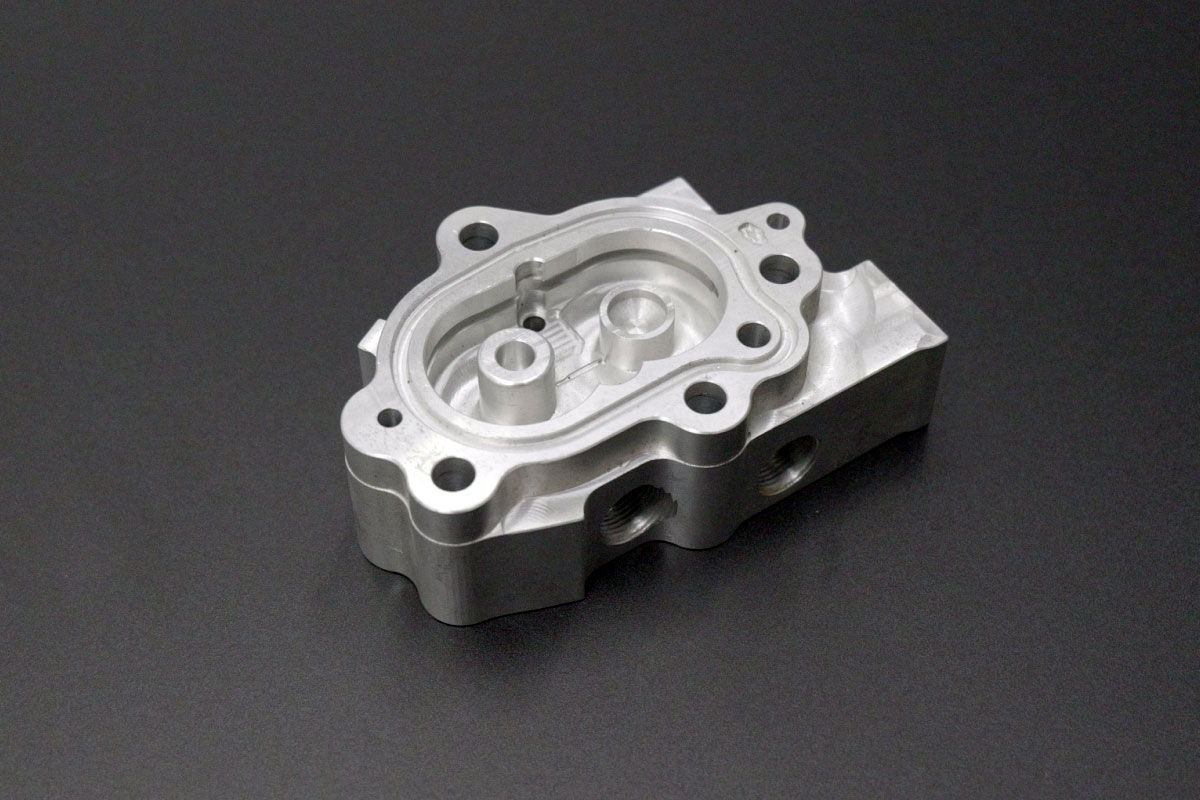

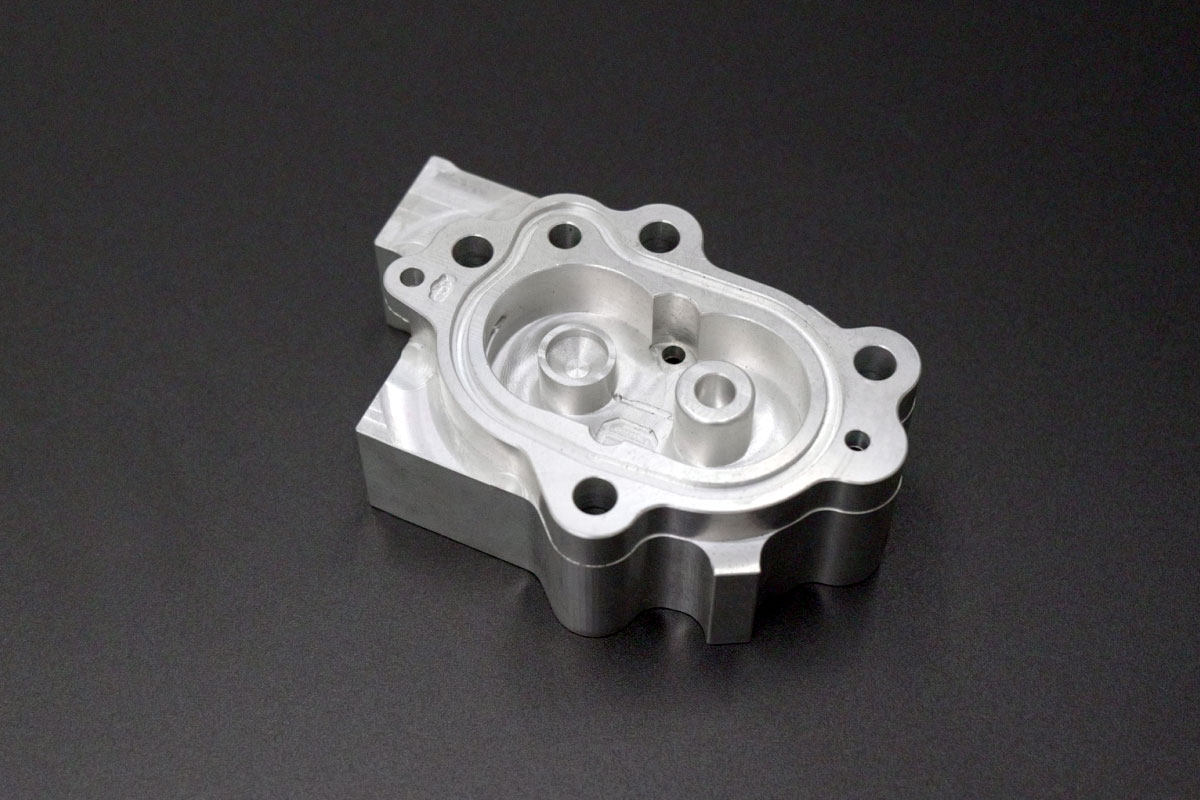

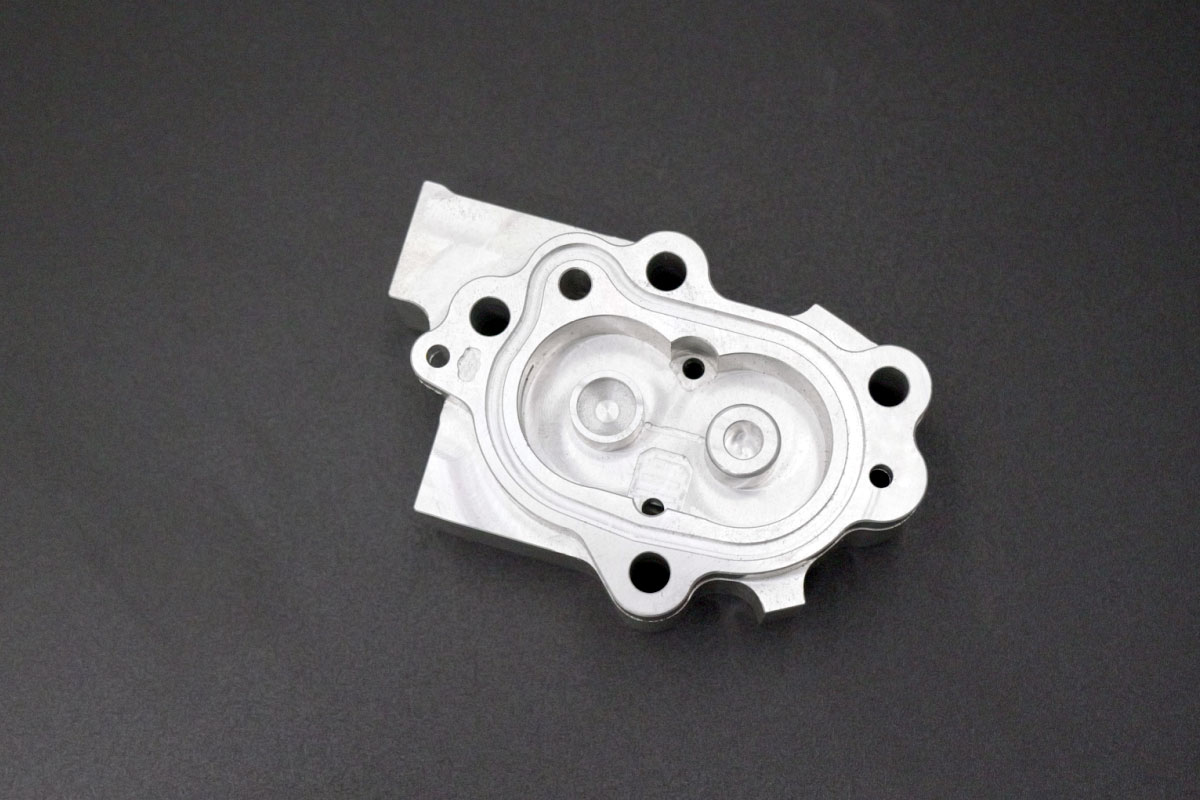

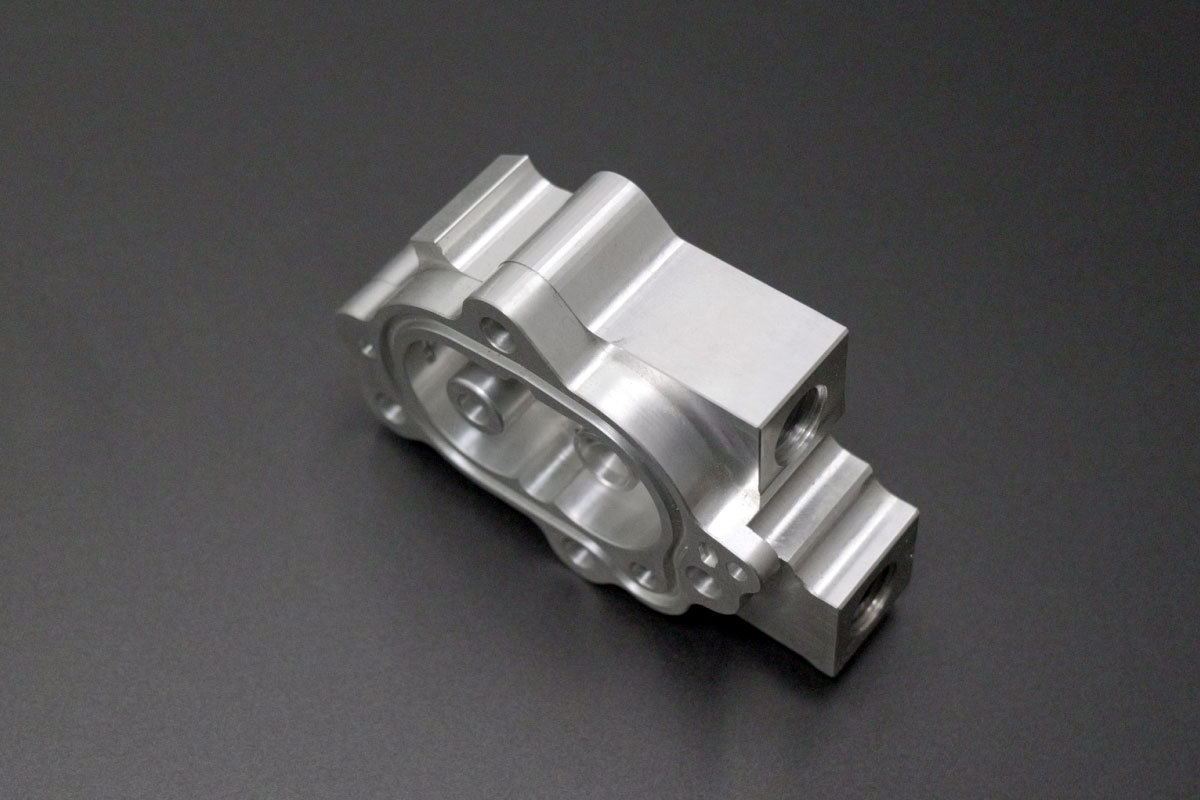

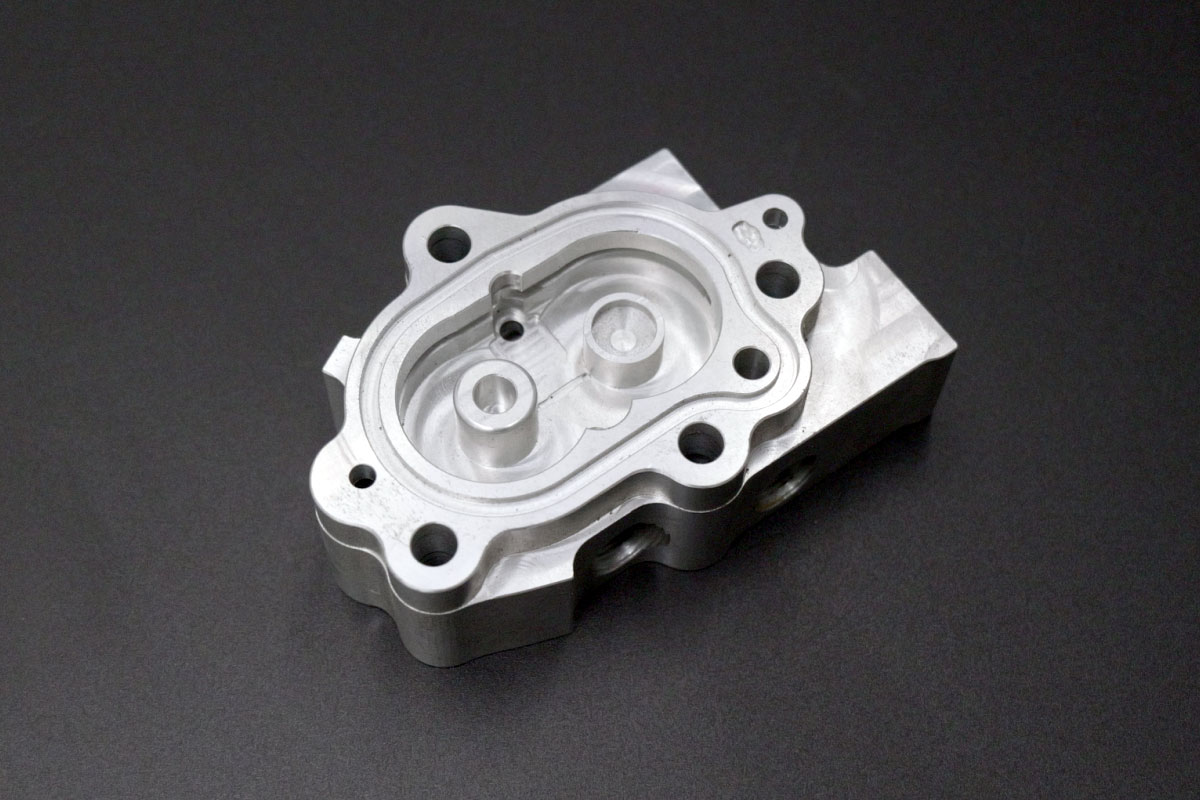

We manufactured a precision 7075 aluminum oil pump valve body for an automotive fuel system application. This fluid control component features intricate internal curved oil cavities that direct flow within the pump assembly — presenting a core machining challenge: precise control of internal cavity surface geometry and finish. 7075-T6 aluminum offers exceptional strength (comparable to steel) but carries significant internal stresses from heat treatment [citation:12]. When machining complex internal geometries, uneven stress release can cause distortion, while the alloy's hardness generates higher cutting forces that affect surface finish [citation:2][citation:7]. We implemented adaptive toolpath strategies with controlled radial engagement and optimized cutting parameters — managing cutting forces to prevent cavity surface defects while maintaining geometric accuracy.

Project Overview

Key Technical Highlights

• Internal Curved Cavity Surface Control: 7075-T6's high strength and internal stress characteristics require careful parameter selection [citation:12]. Research shows that for 7075 aluminum thin-wall and curved geometries, axial depth of cut has the greatest influence on cutting forces, while spindle speed and radial depth of cut significantly affect surface quality and deformation [citation:2][citation:7]. We applied moderate feed rates, high spindle speeds, and controlled radial engagement (approximately 40% for multi-layer finishing) to maintain cavity surface integrity.
• Stress-Induced Deformation Prevention: 7075 aluminum retains internal stresses from heat treatment that release unevenly during material removal, causing warpage [citation:12]. We implemented staged roughing with intermediate stress-relief pauses before cavity finishing — allowing stress dissipation while maintaining geometric accuracy.
• Toolpath Strategy: Multi-layer finishing passes with light depths of cut and optimized stepovers achieved the required internal surface finish without overloading the thin-walled cavity sections [citation:2][citation:7].

Quality Verification

CMM inspection verified cavity geometry and dimensional tolerances. Surface roughness testing confirmed Ra≤1.6μm on all internal curved oil passages.

Industry Applications

Ideal for automotive oil pump valve bodies, hydraulic fluid control components, and high-pressure fluid distribution systems.

Why Partner With Us?

• Proven expertise in 7075 aluminum complex cavity machining
• Optimized toolpath strategies for internal curved surface control
• Stress-relief machining for distortion prevention
• 12+ years serving automotive and fluid power sectors
