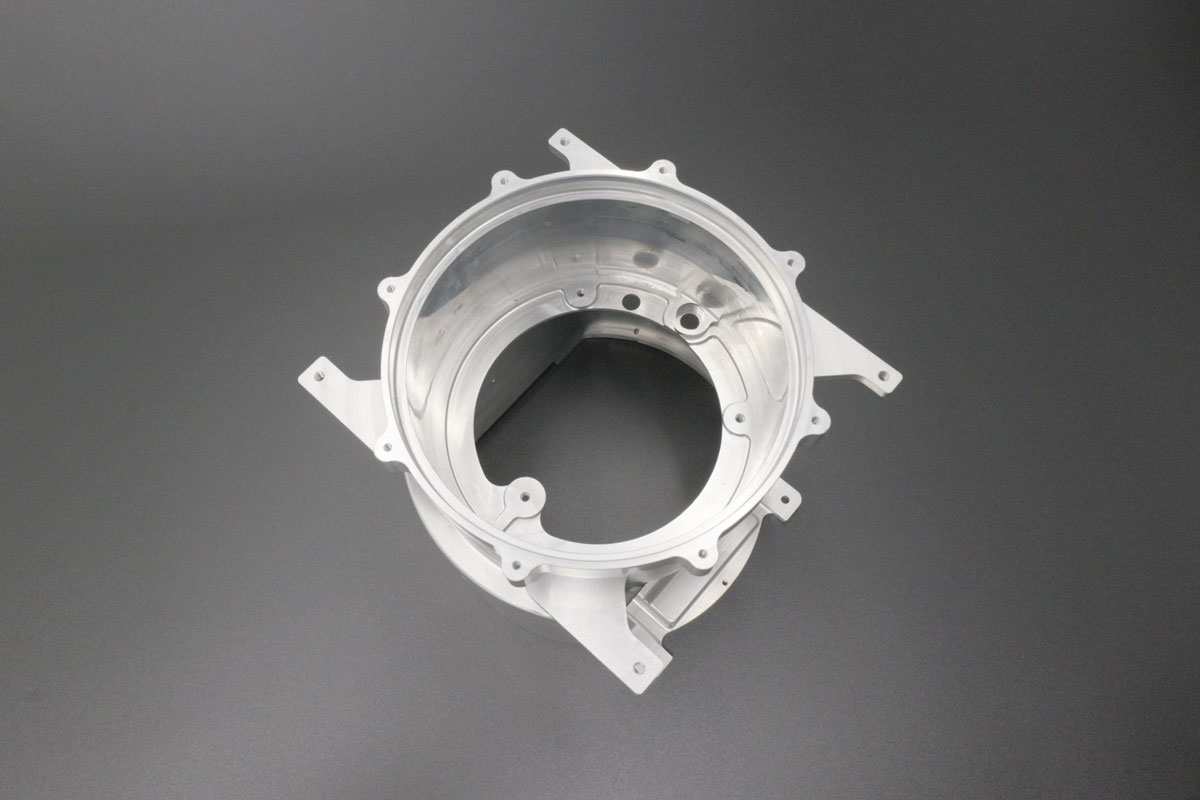

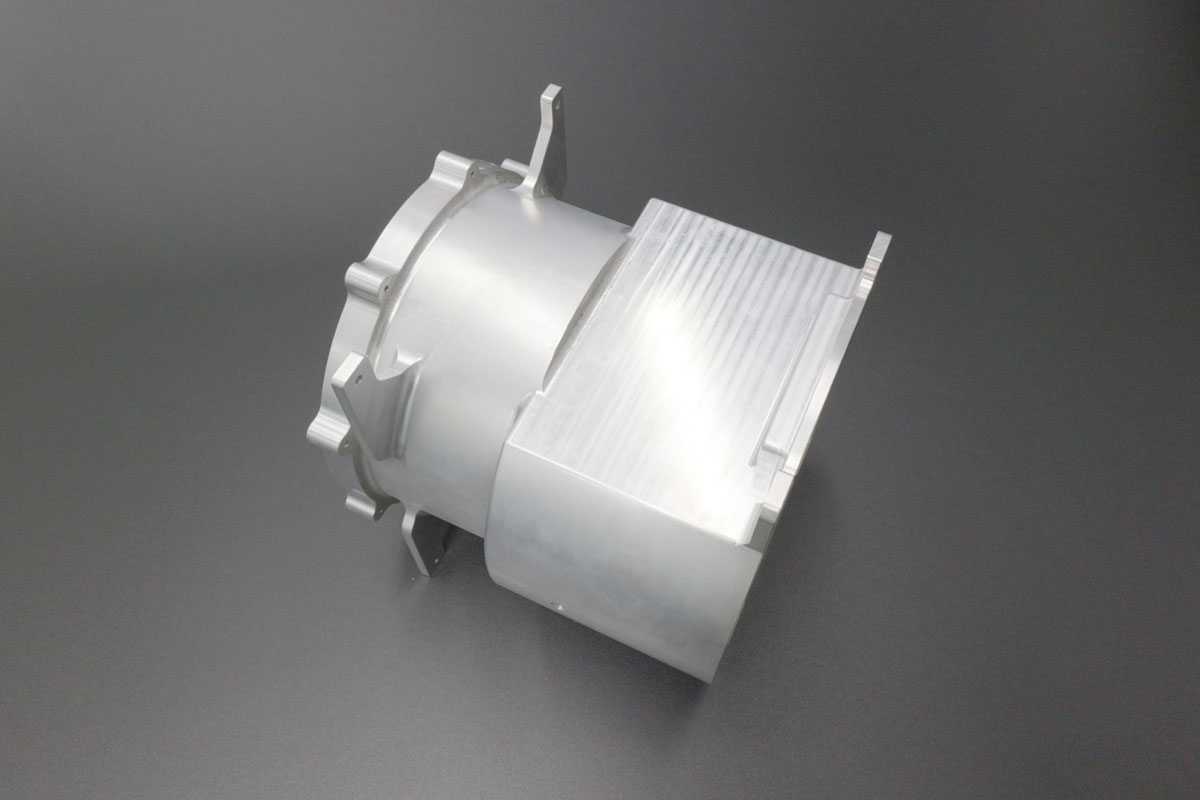

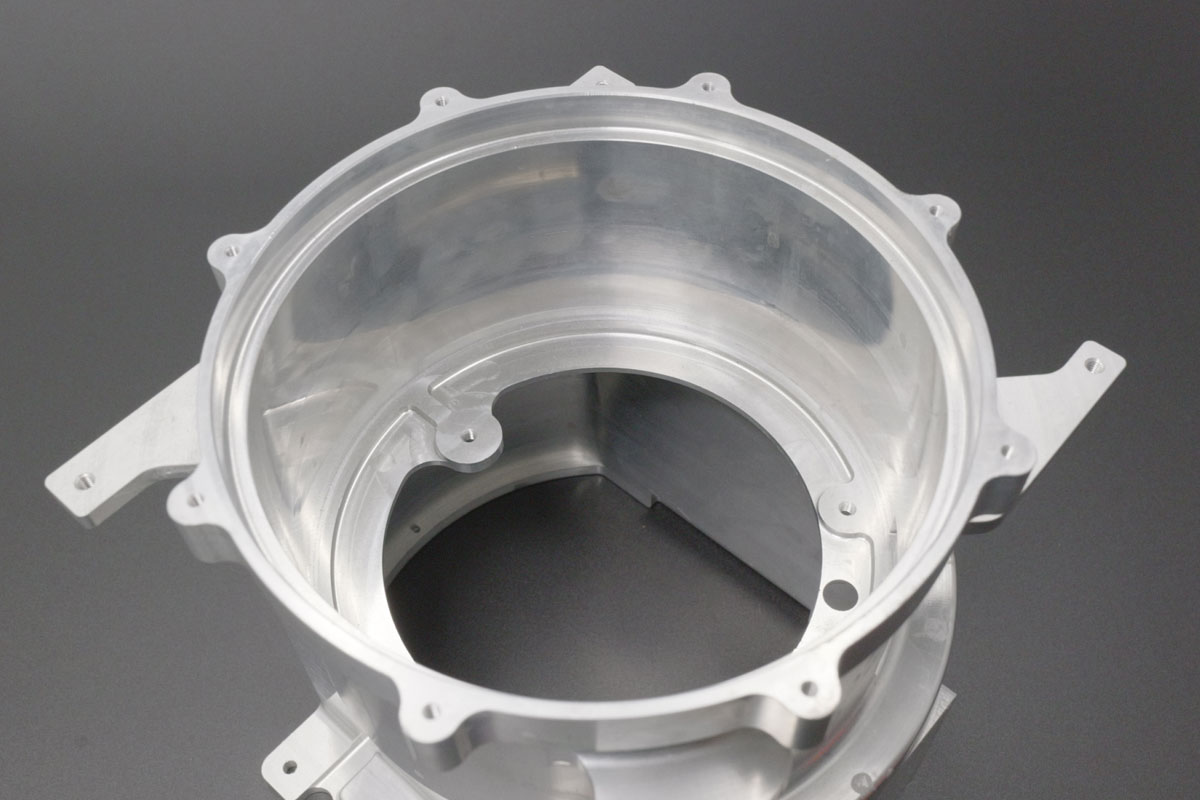

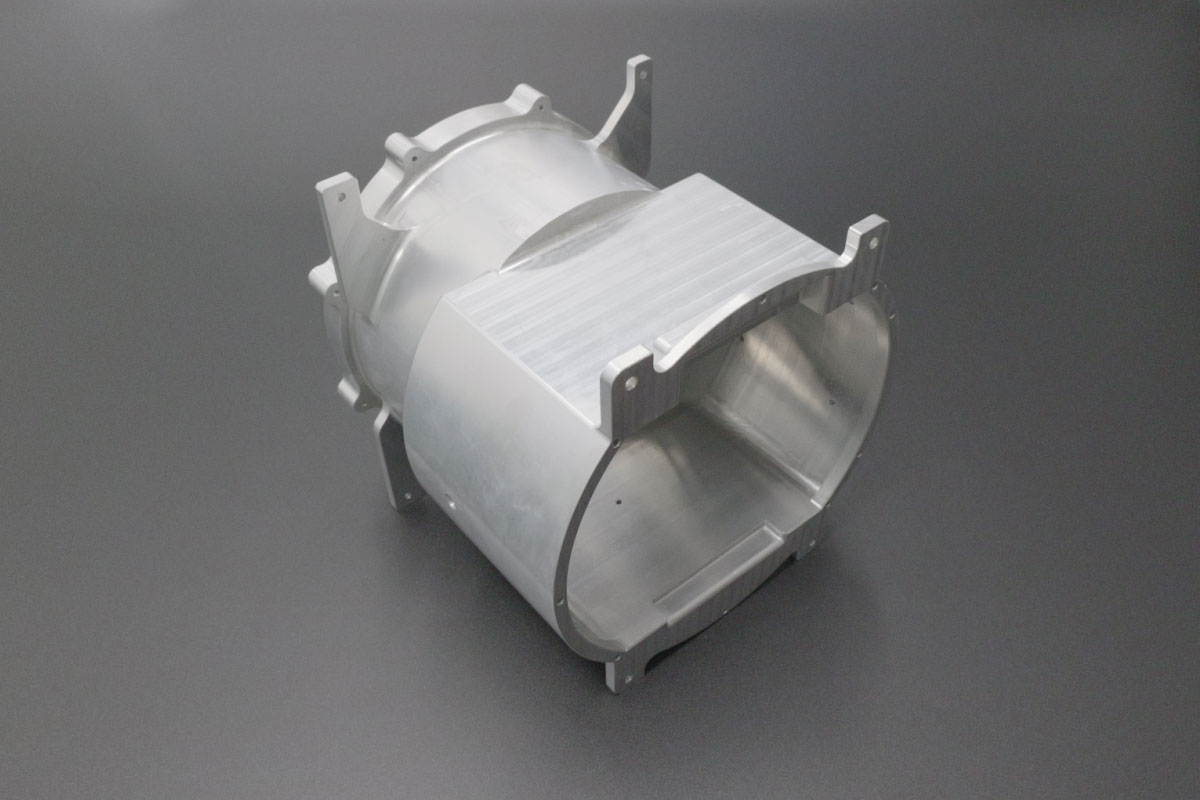

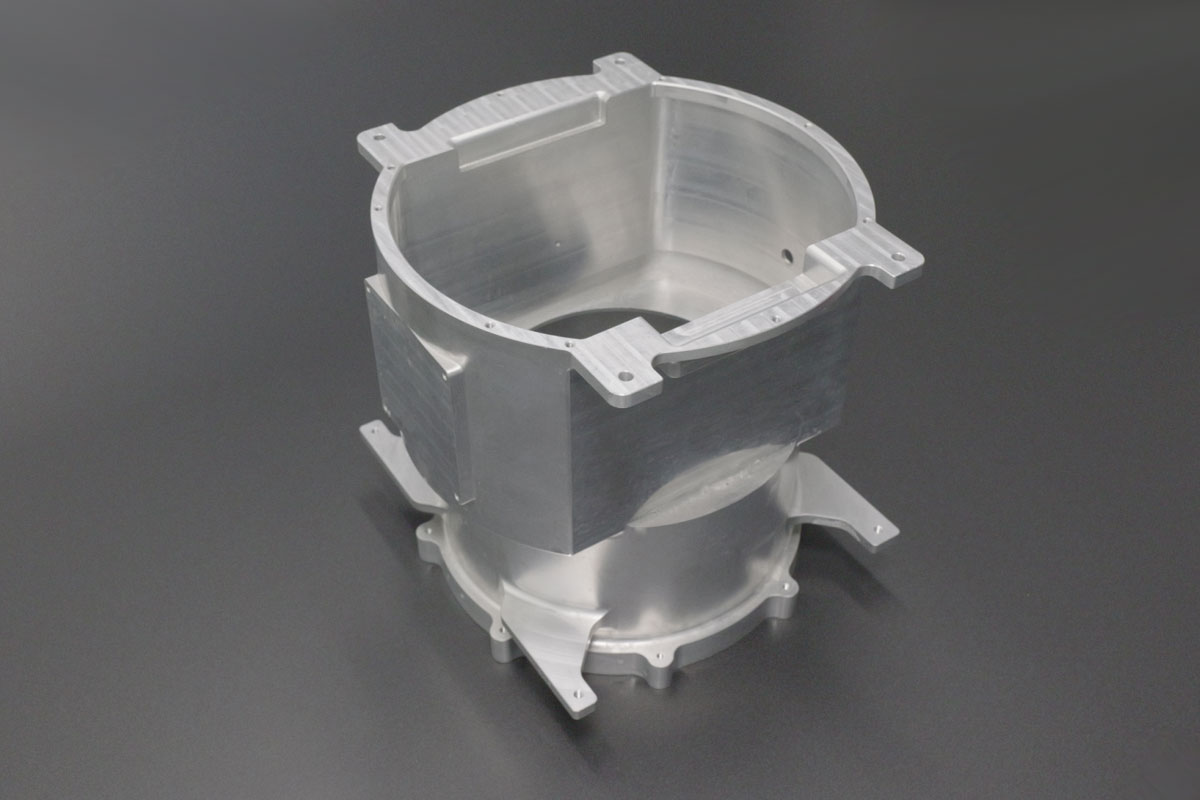

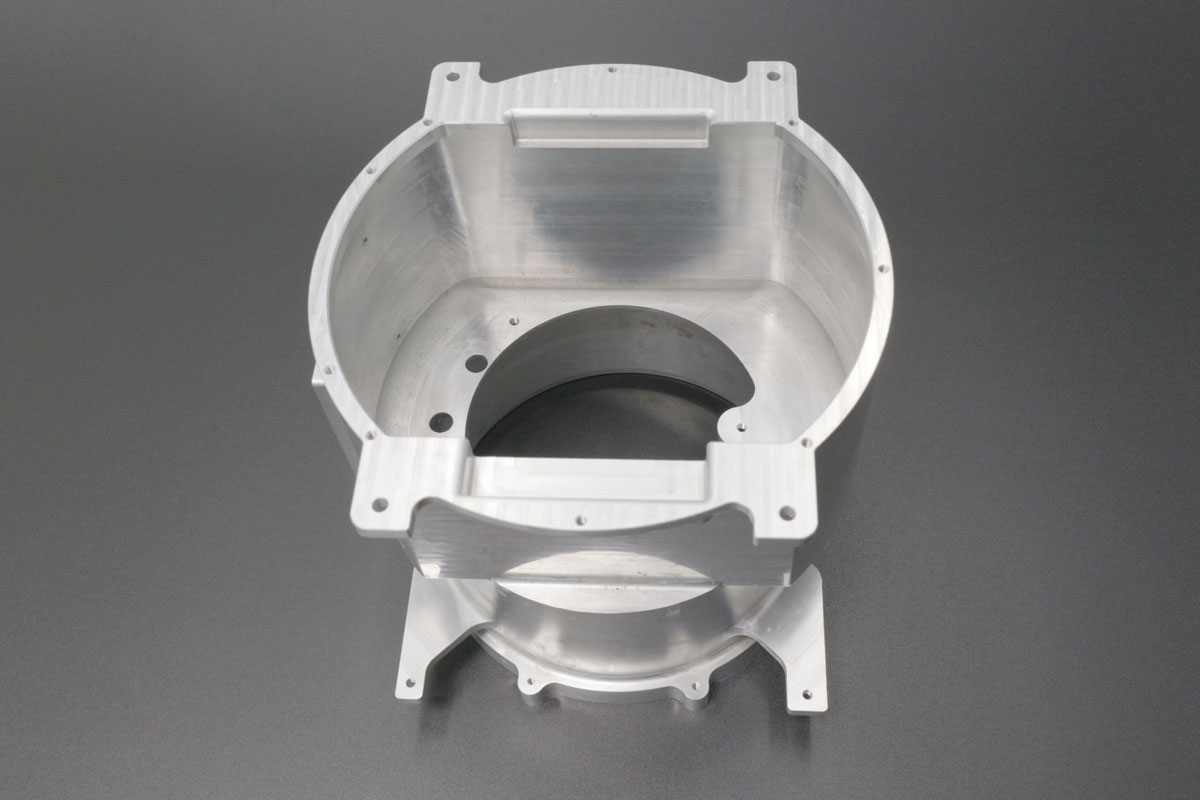

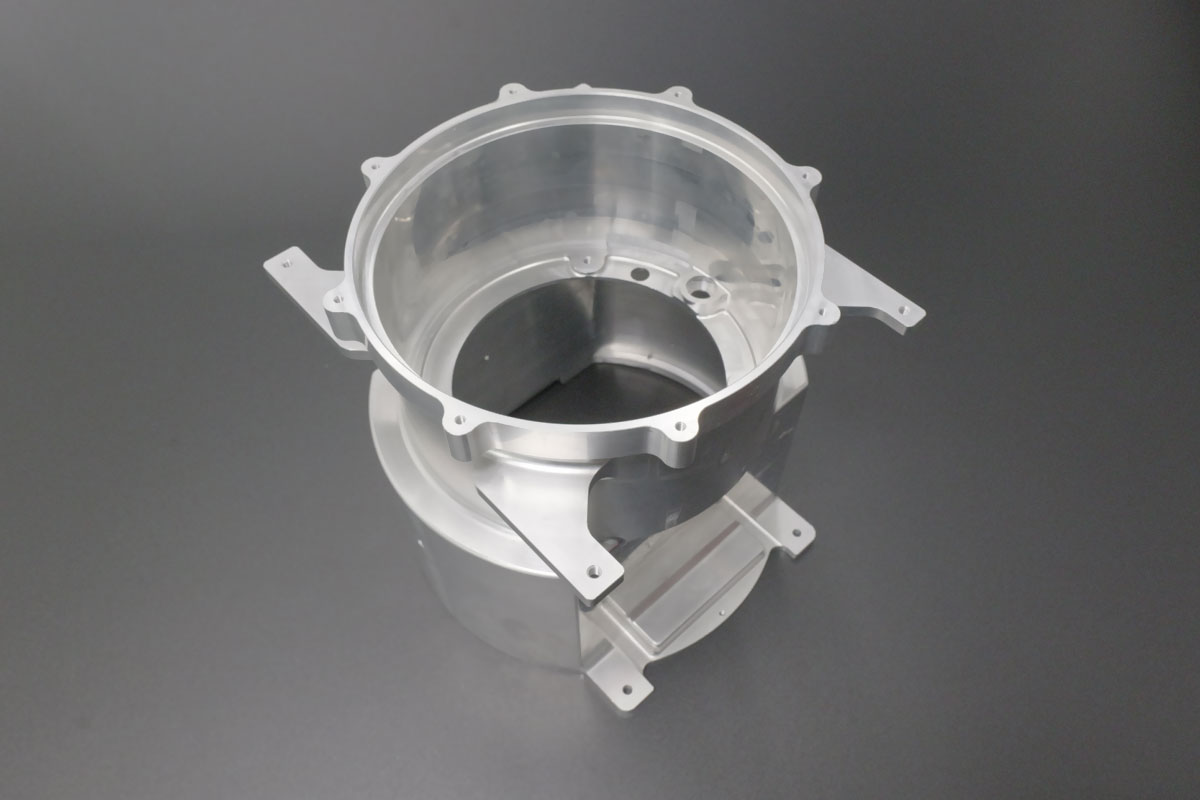

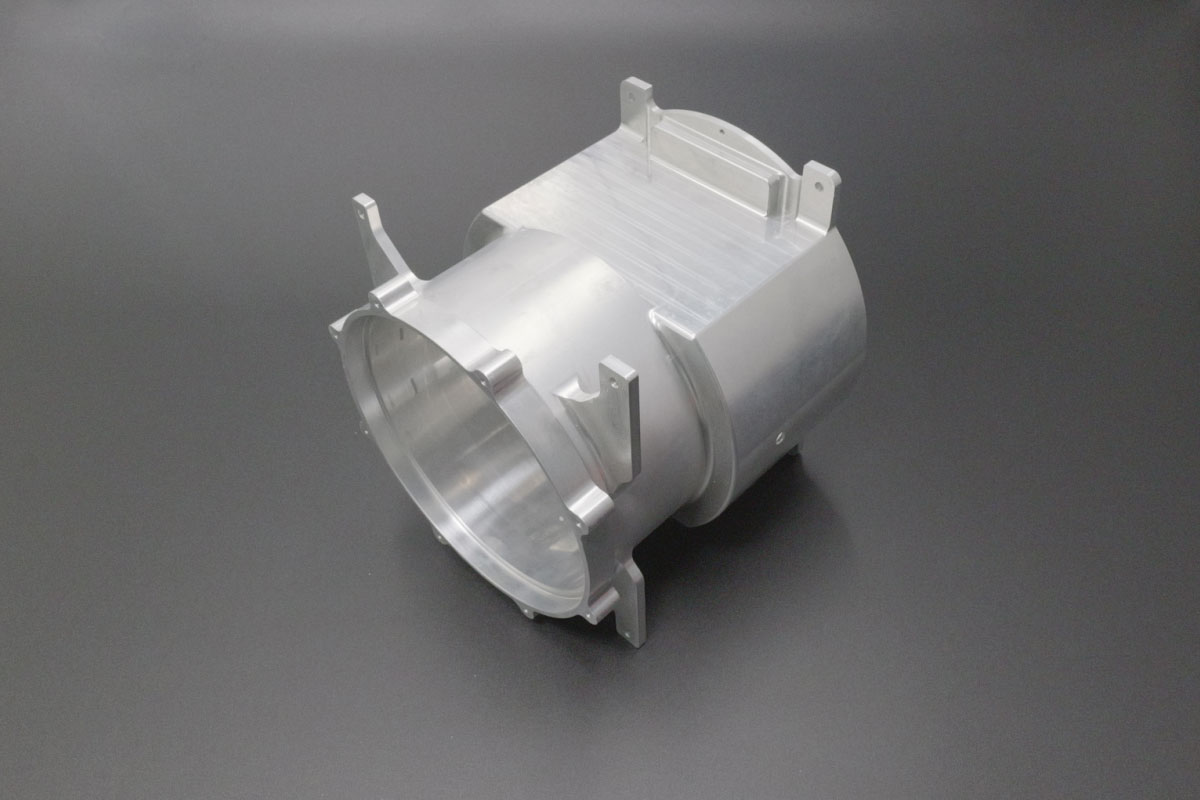

Precision 6061 Motor Cylinder Housing with Long-Reach Machining and Thin-Wall Distortion Control

We successfully manufactured a precision 6061 aluminum motor cylinder housing for a new energy vehicle drive motor application. This deep, thin-wall cylindrical housing requires extensive internal feature machining with long-reach tooling — presenting significant machining challenges including tool deflection from long-reach tooling, stress-induced warpage from cutting forces, ovality and roundness control, chatter during extended cylinder machining, and thin-wall clamping distortion. Through optimized long-reach tooling solutions, vibration-dampening strategies, stress-relief machining sequences, and custom low-stress fixturing, we delivered dimensionally stable, round housings meeting drive motor tolerance requirements.

Project Overview

Key Technical Highlights

• Long-Reach Tool Deflection and Warpage Control: Implemented custom stiffened long-reach tooling with optimized flute geometry and balanced machining sequences to minimize tool deflection and cutting-force-induced warpage — preventing elliptical bore distortion and maintaining roundness ≤0.015mm.
• Process Innovation:
  • Long-Reach Tooling Optimization: Custom extended-reach tools with carbide shanks and optimized length-to-diameter ratios minimize deflection while maintaining accessibility to deep internal features.
  • Stress-Relief Machining Sequence: Roughing operations followed by stress-relief pauses before finishing prevent stress-induced warpage in the thin-wall cylinder structure.
  • Vibration-Dampening Strategy: Optimized spindle speeds, variable feed rates, and specialized anti-vibration toolholders eliminate chatter during extended cylinder machining, ensuring consistent surface finish and roundness.
  • Low-Stress Thin-Wall Fixturing: Custom expanding mandrel fixturing with distributed support along the cylinder bore minimizes clamping distortion while providing stable part retention for external and internal feature machining.
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on bearing surfaces.
  • Controlled cutting parameters prevent surface defects and maintain cylindricity ≤0.01mm.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for roundness (≤0.015mm), cylindricity (≤0.01mm), and dimensional accuracy (±0.02mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for chatter marks and surface quality.

Industry Applications

This solution demonstrates our expertise in precision thin-wall cylinder manufacturing for EV drive systems, ideal for:
✓ New energy vehicle drive motor housings ✓ Electric motor cylinder components ✓ Long-reach internal feature machining ✓ Thin-wall cylindrical enclosures

Why Partner With Us?

• Proven expertise in long-reach thin-wall cylinder machining with deflection and warpage control
• Advanced vibration-dampening strategies for extended cylinder applications
• Custom low-stress fixturing solutions for distortion prevention
• 12+ years of precision manufacturing experience across EV and automotive sectors
