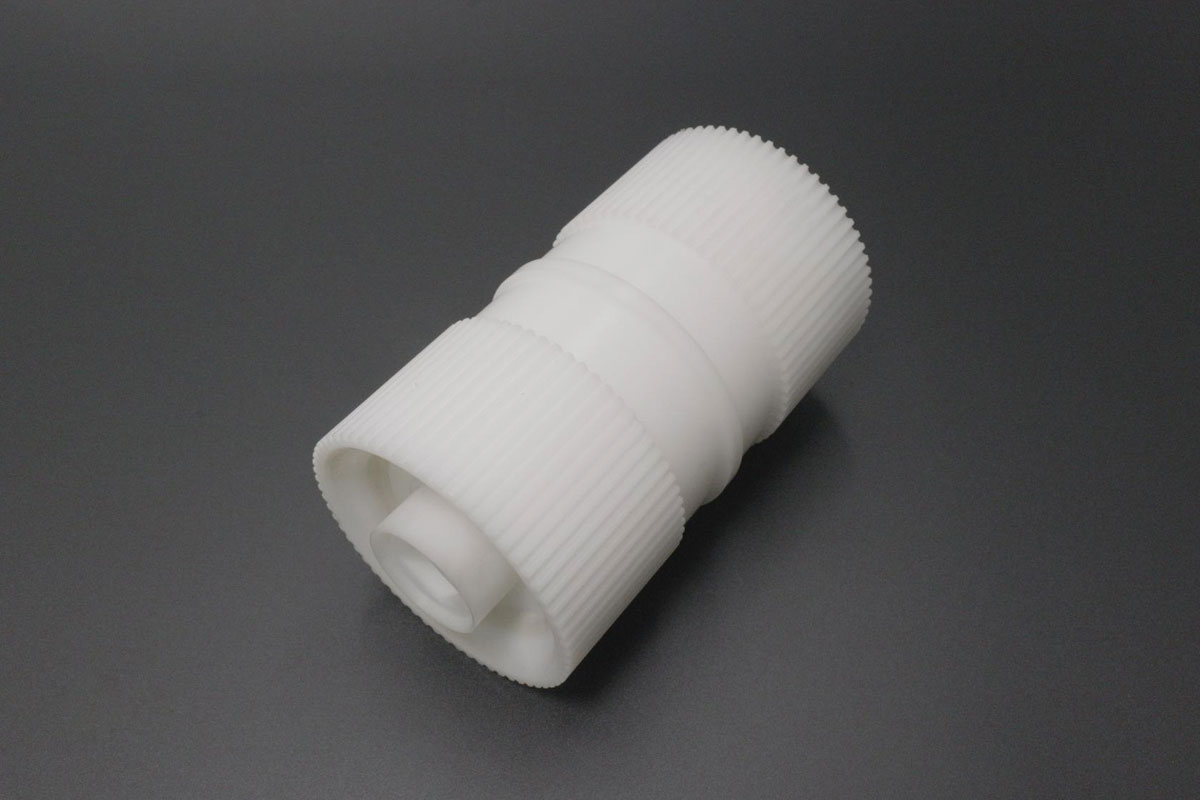

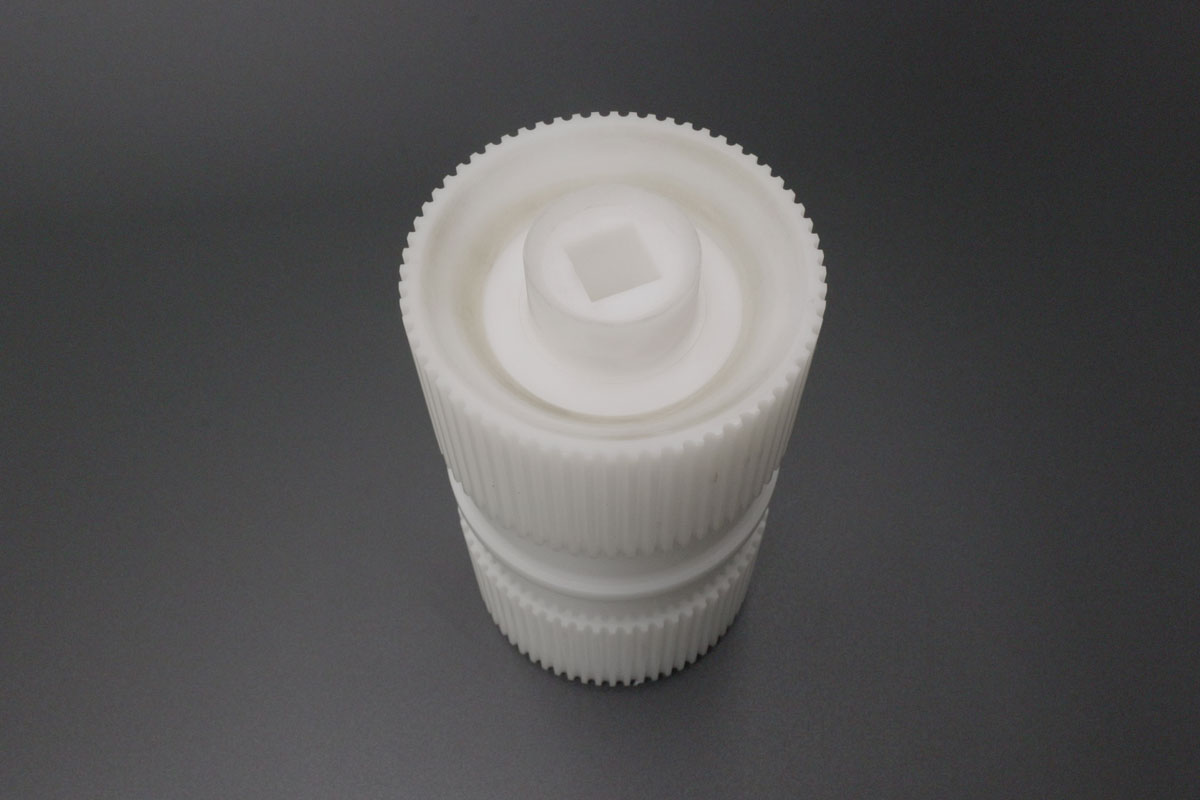

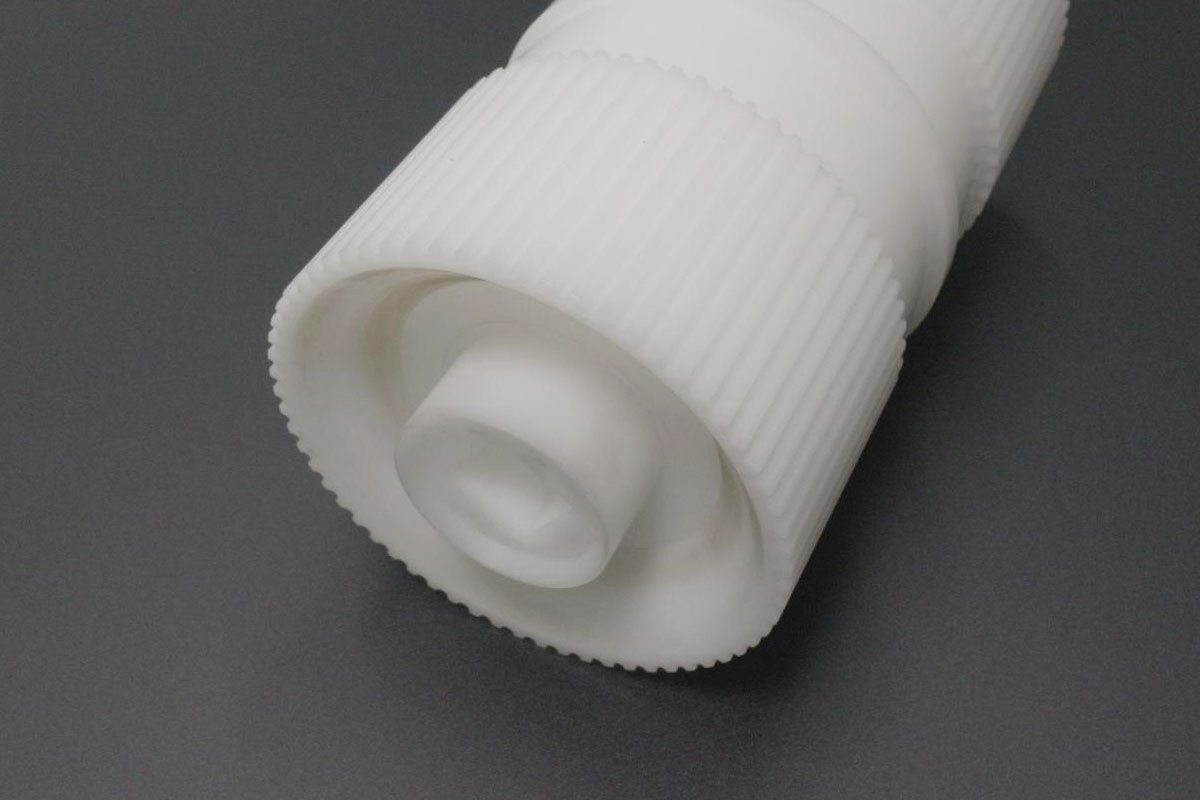

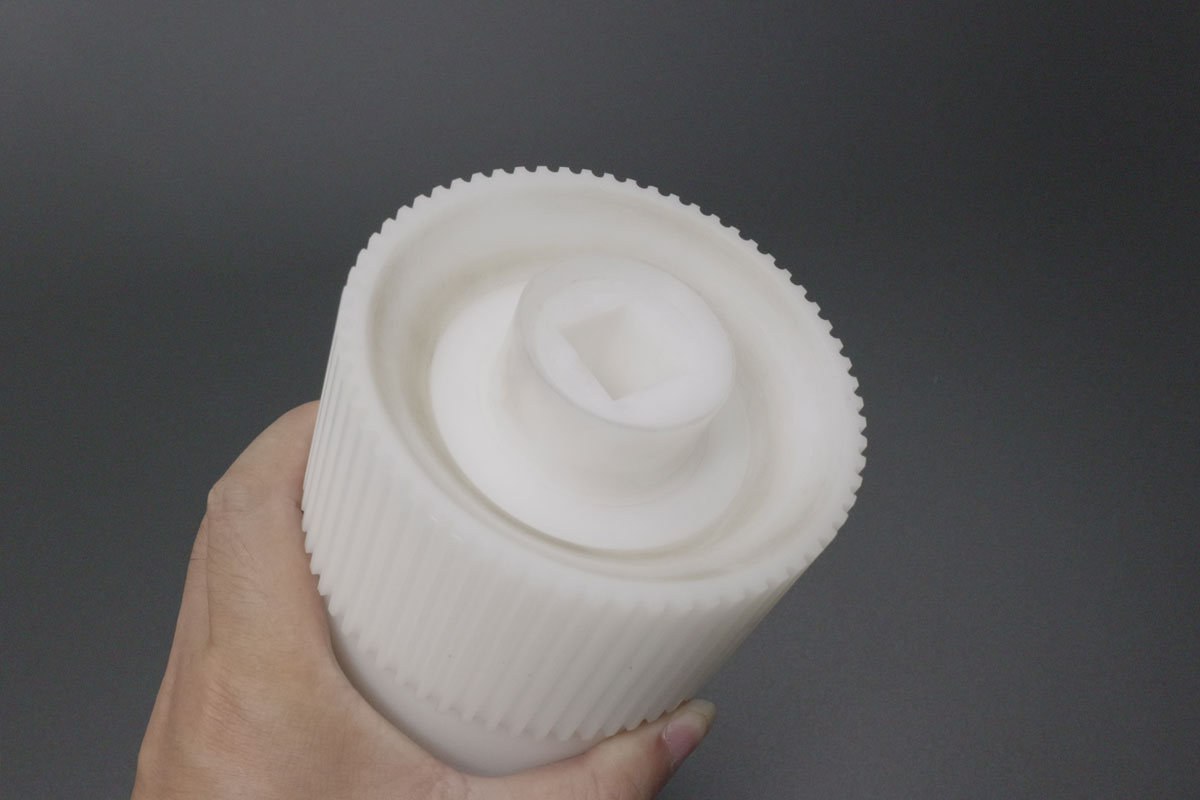

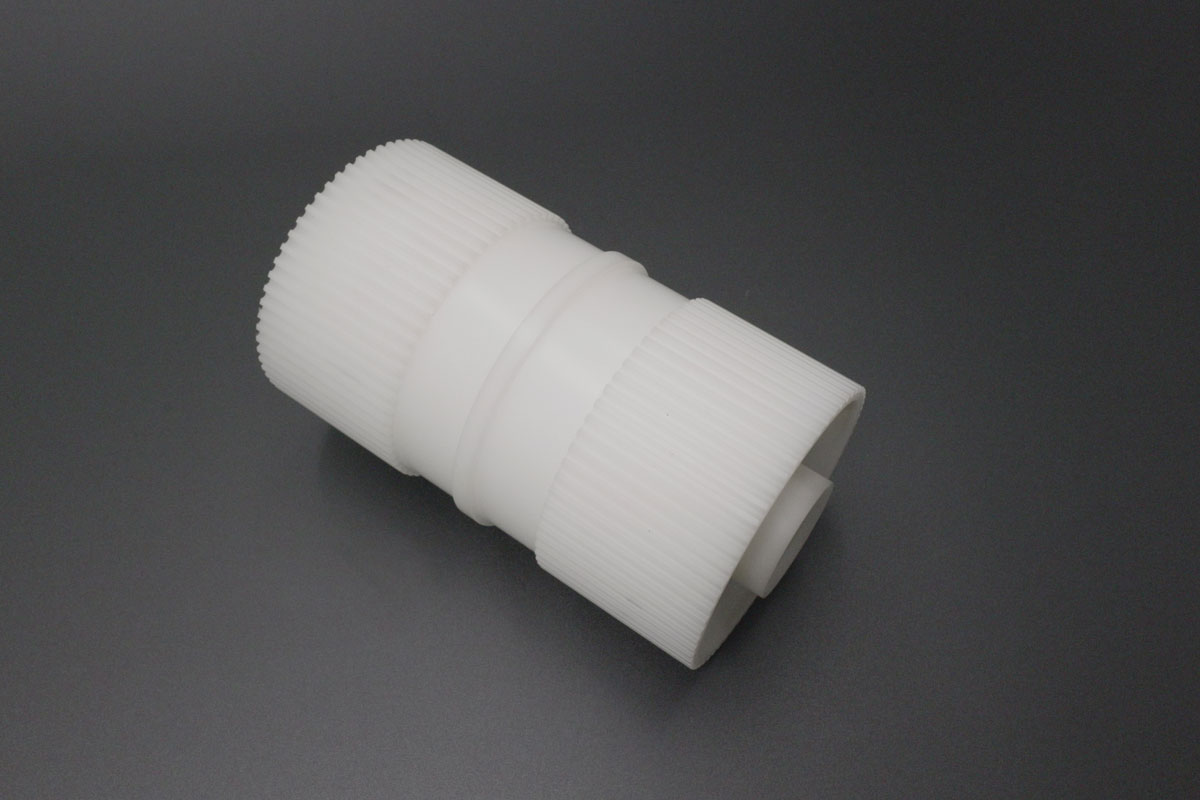

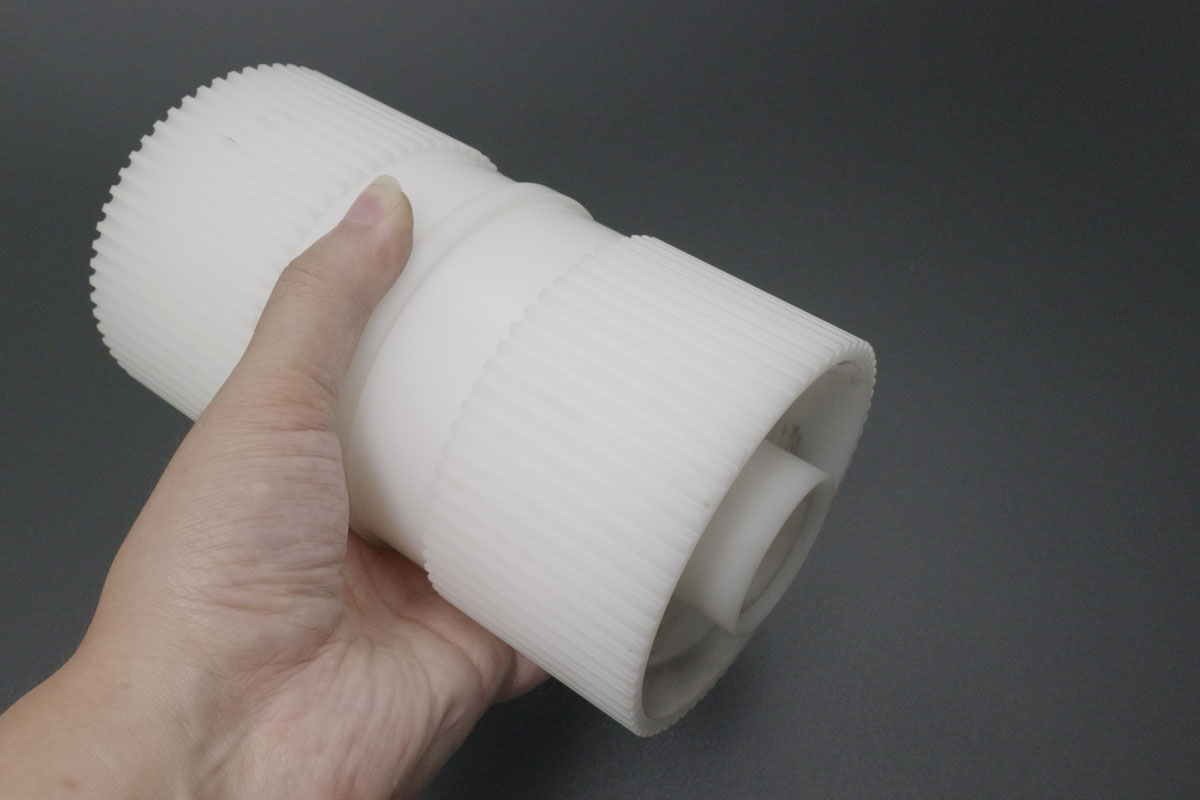

Precision White PTFE Anti-Corrosion Bushing with External Tooth and Spring-Back Control

We successfully manufactured a precision white PTFE anti-corrosion bushing for a lithium battery equipment application. As a preferred material for ultra-clean fluid control and chemical-resistant components, PTFE offers exceptional corrosion resistance and self-lubricating properties [citation:7]. However, its unique characteristics — low hardness, high resilience, poor thermal conductivity, and large linear expansion coefficient — present significant machining challenges including external tooth surface fuzzing (material pull-out and fibrous burrs) and cutting-induced spring-back leading to fitment loosening [citation:5][citation:9]. Through optimized tooling selection, staged machining with stress-relief stabilization, and dry cutting strategies, we delivered dimensionally stable, burr-free bushings with consistent interference fit performance.

Project Overview

Key Technical Highlights

• External Tooth Fuzzing Prevention: PTFE's toughness causes it to stretch rather than shear cleanly during cutting, producing fibrous burrs and surface fuzzing [citation:12]. We implemented ultra-sharp carbide tooling with optimized rake angles and positive geometry, combined with dry cutting (leveraging PTFE's self-lubricating properties) to produce short, discontinuous chips and clean tooth surfaces — eliminating material pull-out and fuzzing [citation:3][citation:5].
• Process Innovation:
  • Staged Two-Step Machining: Roughing with generous material allowance, followed by 12–24 hour ambient stress-relief stabilization to allow creep and spring-back to occur before final finishing — preventing the "today-good, tomorrow-loose" fitment failure [citation:2].
  • Low-Stress Fixturing: Soft jaw/expanding mandrel fixturing with minimal clamping force prevents deformation during machining — eliminating the root cause of spring-back and ovality .
  • Controlled External Tooth Milling: Two-flute end mills with light finishing passes and optimized feed rates minimize cutting forces, preventing tooth deformation and fibrous burr formation [citation:3].
  • Temperature-Controlled Environment: Machining and inspection performed at stable ambient temperature (20±1°C) — PTFE has a phase transition near 19-23°C causing significant volume change, making temperature control critical for dimensional stability [citation:2][citation:8].
• Surface Quality:
  • External teeth verified burr-free with no fuzzing through microscopic inspection.
  • Dimensional verification performed after stabilization period confirms consistent fitment.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.015mm) after ambient stabilization period, supplemented by microscopic inspection of external tooth surfaces for fuzzing and burr-free condition, and fitment verification to confirm consistent interference fit performance.

Industry Applications

This solution demonstrates our expertise in precision PTFE component manufacturing for demanding chemical-resistant applications, ideal for:
✓ Lithium battery equipment anti-corrosion bushings ✓ Chemical-resistant sleeve bearings ✓ Semiconductor wet processing components ✓ Ultra-clean fluid control parts

Why Partner With Us?

• Proven expertise in PTFE precision machining with spring-back and fuzzing control
• Staged machining with stress-relief stabilization for dimensional stability
• Specialized dry cutting and sharp tooling strategies for clean surfaces
• 12+ years of precision manufacturing experience across lithium battery and semiconductor sectors
