Precision 6061 Pipe Mounting Base with Thin-Wall Warpage Control and Cross-Slot Deburring

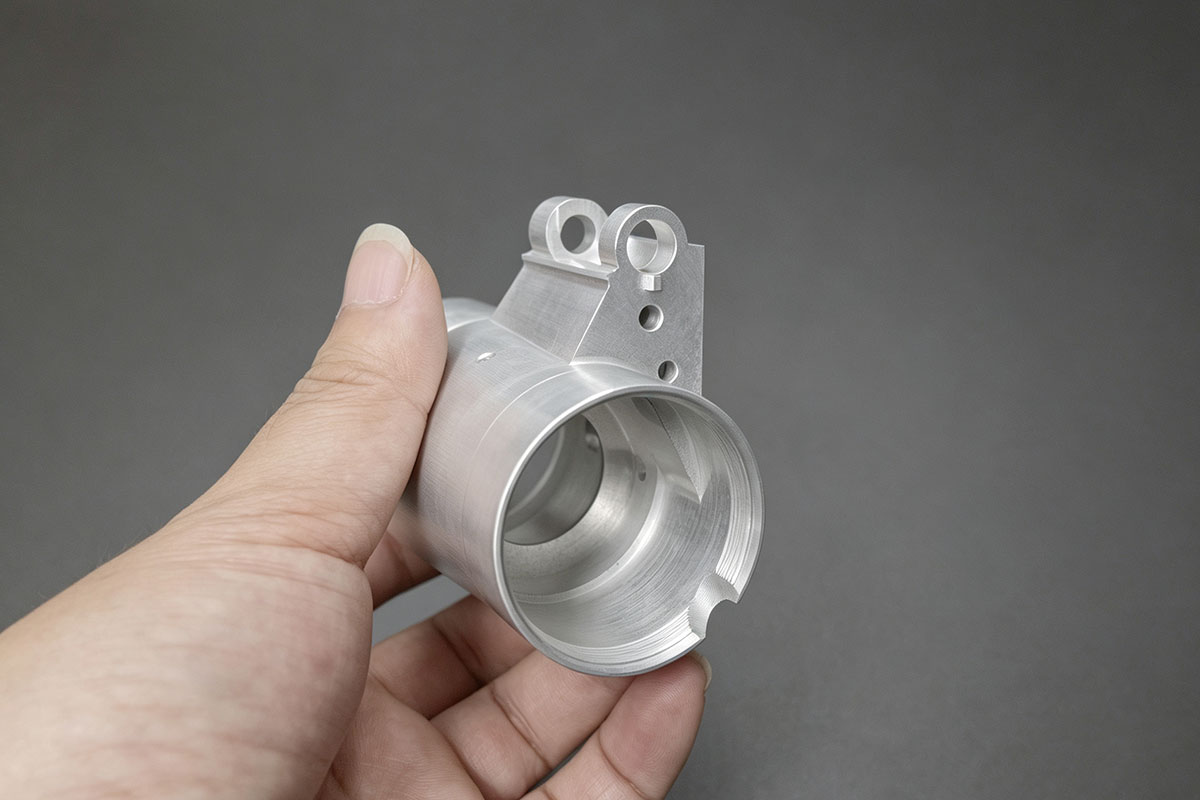

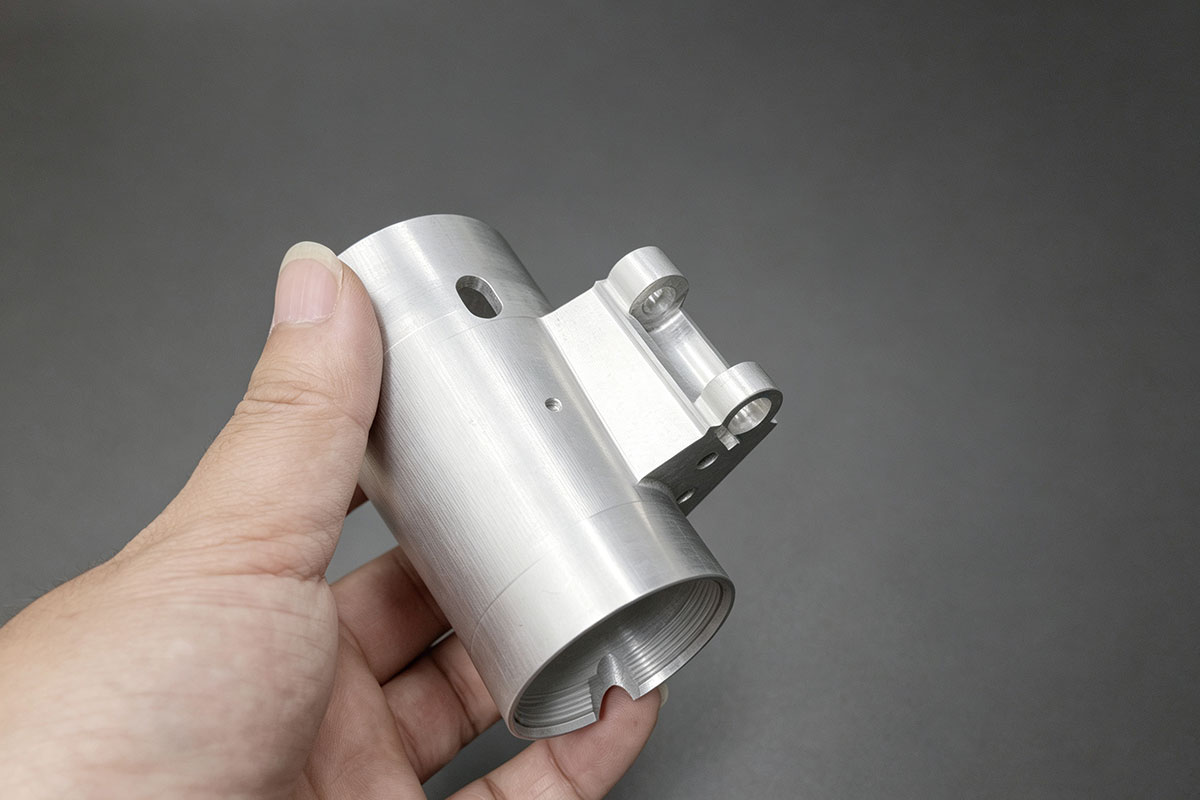

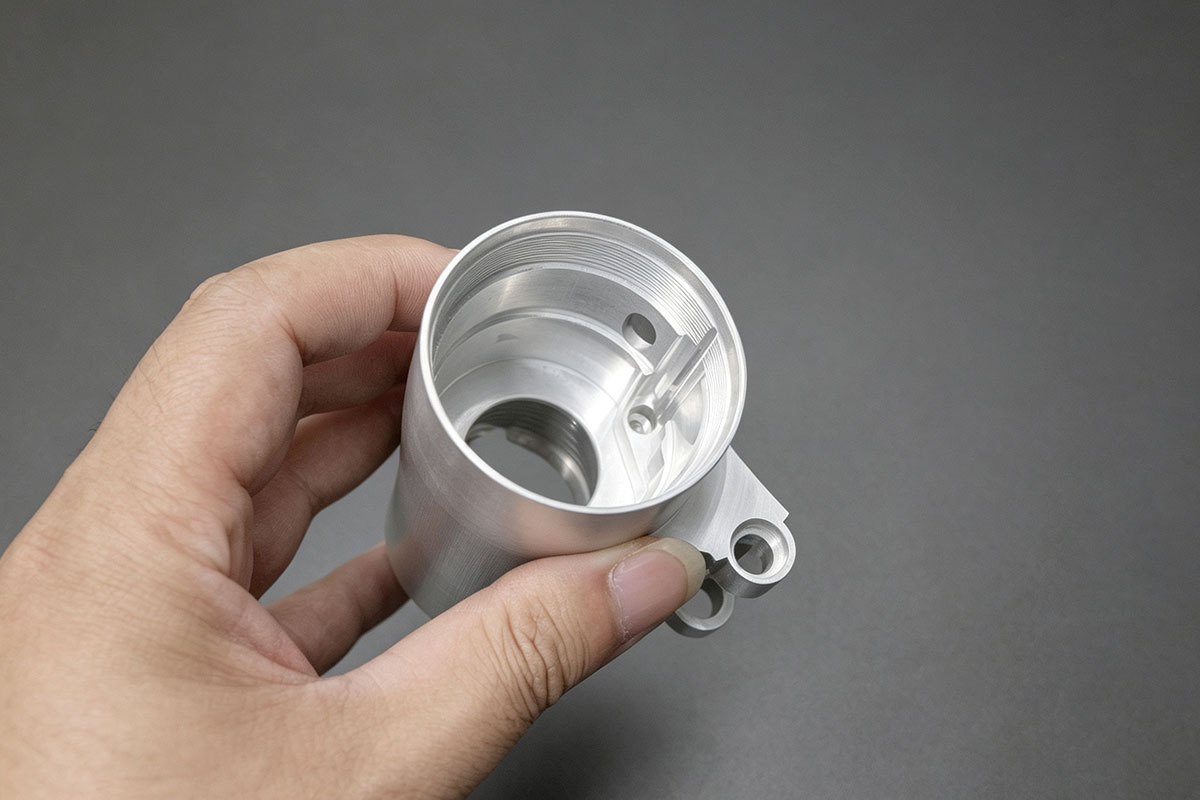

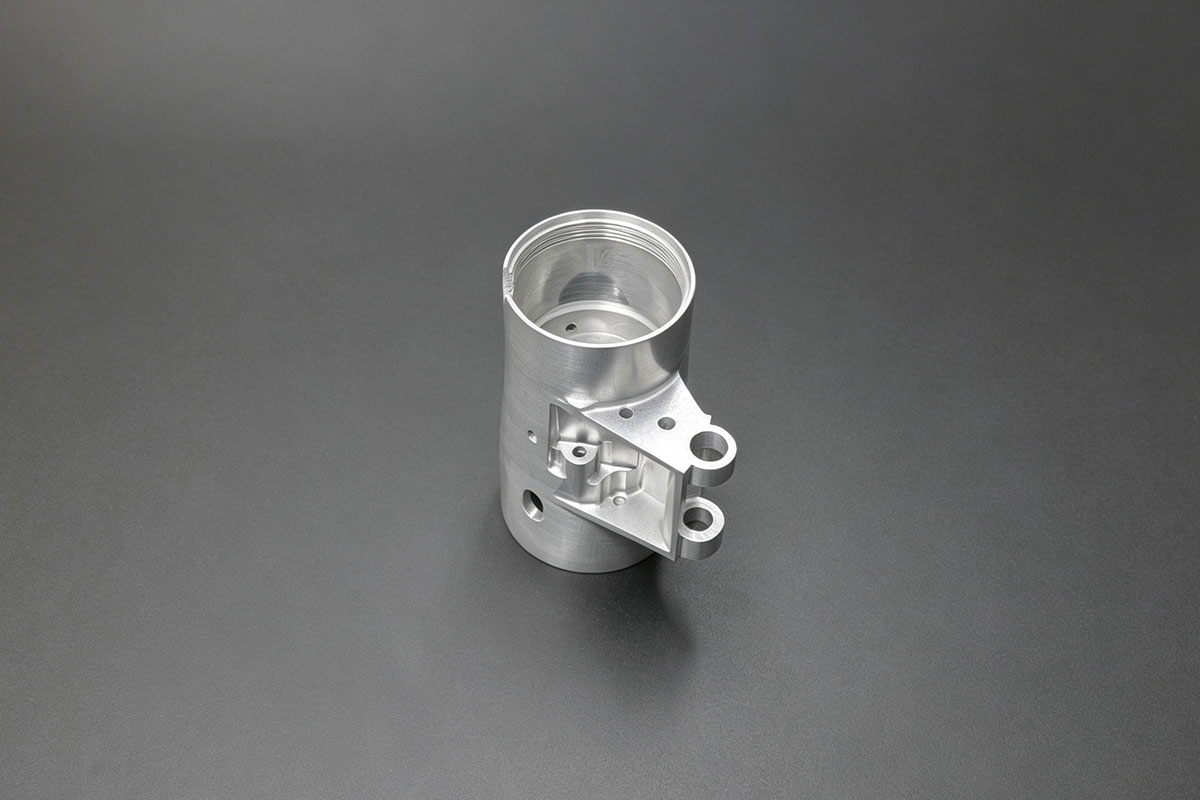

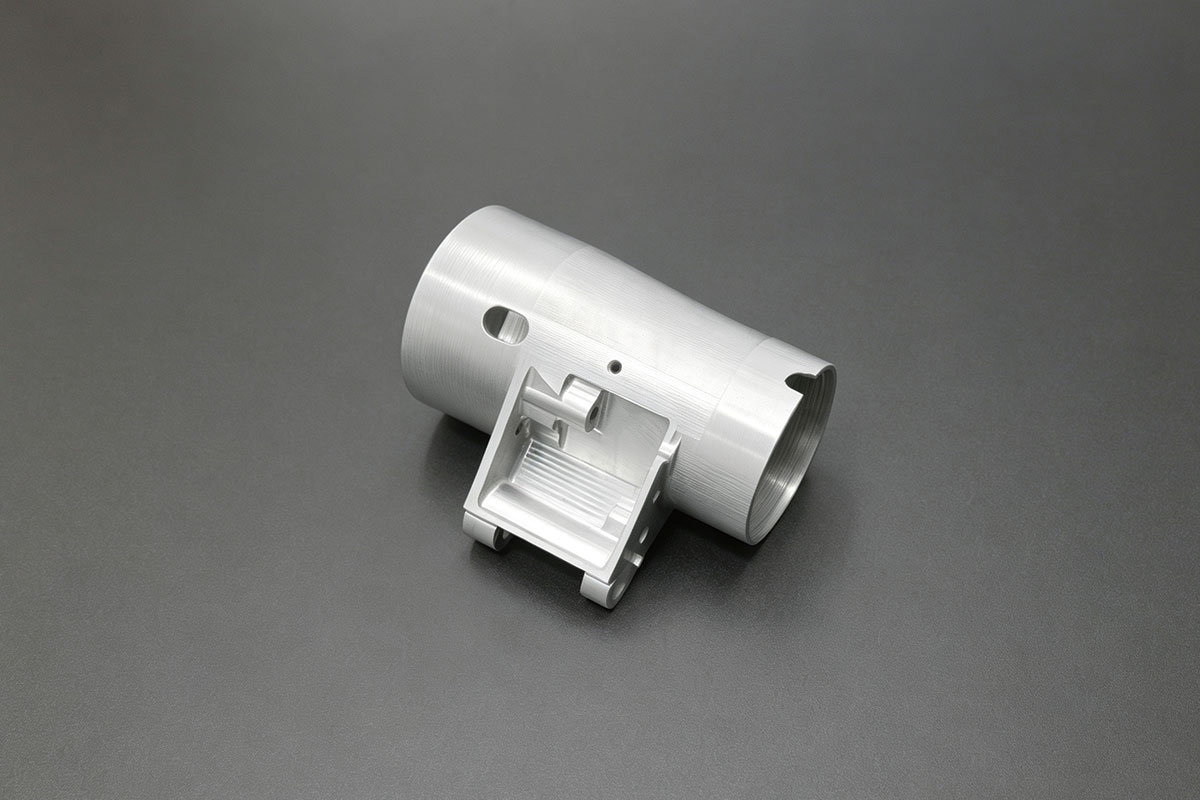

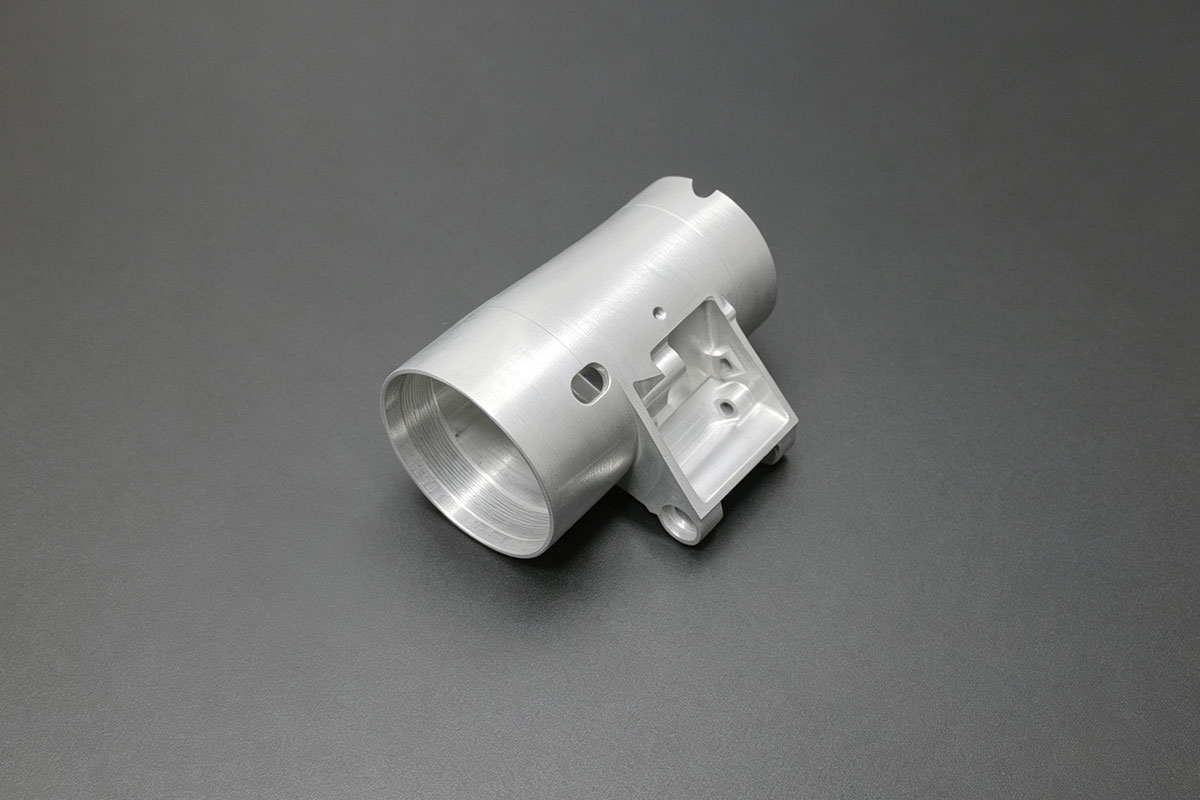

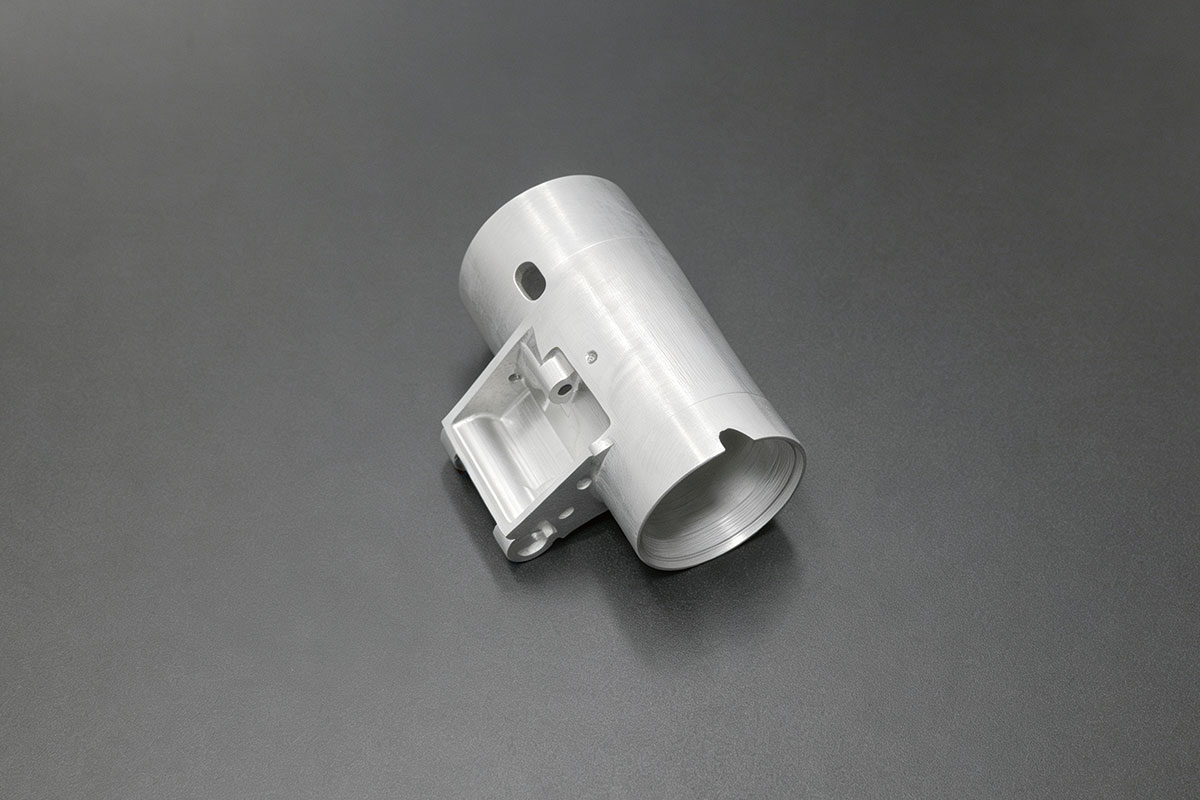

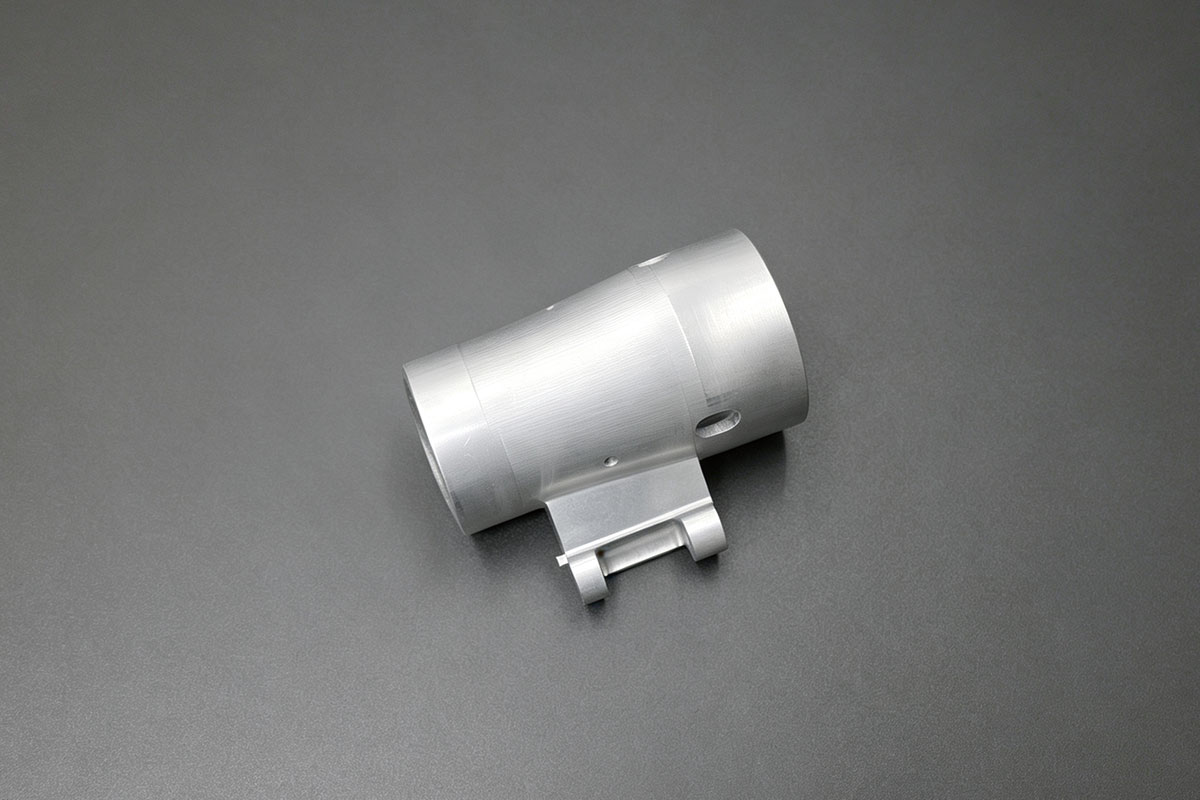

We successfully manufactured a precision 6061 aluminum pipe mounting base for a lithium battery equipment application. This structural mounting component features side clamp pockets with thin-wall sections, precision cylinder pin-hole locations, and intersecting cross-slots — presenting significant machining challenges including thin-wall side clamp warpage and spring-back during machining, cylinder body pin-hole positional accuracy, and difficult cross-slot burr removal. Through stress-relief machining sequences, optimized fixturing, and specialized deburring techniques, we delivered dimensionally stable mounting bases with clean internal features.

Project Overview

Key Technical Highlights

• Thin-Wall Clamp Warpage and Spring-Back Prevention: Implemented staged stress-relief machining sequences with balanced material removal from both sides of the clamp pockets, combined with low-stress fixturing to prevent side clamp distortion — maintaining flatness ≤0.01mm on thin-wall clamp surfaces.
• Process Innovation:
  • Stress-Relief Machining Strategy: Roughing operations performed in alternating sequences with intermediate stress-relief pauses before finishing, preventing spring-back and warpage in thin-wall clamp sections.
  • Precision Pin-Hole Positioning: Cylinder body pin-holes machined in single-setup with precision boring and spot-drilling sequences, maintaining ±0.015mm positional accuracy across the pin-hole array.
  • Cross-Slot Burr Removal: Specialized deburring tools with controlled brushing/abrasive techniques remove burrs at intersecting cross-slot junctions — eliminating internal burrs without damaging adjacent surfaces.
  • Low-Stress Fixturing: Custom fixtures with strategic support under thin-wall sections prevent clamping-induced distortion during machining.
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on all interface surfaces.
  • All cross-slot intersections verified burr-free through visual and tactile inspection.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.02mm), pin-hole positional accuracy (±0.015mm), and clamp flatness (≤0.01mm), supplemented by surface roughness testing (Ra≤1.6μm) and visual inspection for cross-slot burr removal.

Industry Applications

This solution demonstrates our expertise in precision mounting component manufacturing for battery equipment, ideal for:
✓ Lithium battery production line mounting bases ✓ Pipe and conduit mounting hardware ✓ Equipment structural interfaces ✓ Precision positioning components

Why Partner With Us?

• Proven expertise in thin-wall clamp machining with warpage and spring-back prevention
• Advanced precision pin-hole positioning capabilities
• Specialized cross-slot deburring techniques for clean internal features
• 12+ years of precision manufacturing experience across lithium battery and industrial equipment sectors
