Precision 6061 Aluminum Flared Horn Housing with Deep-Cavity Machining and Perpendicularity Control

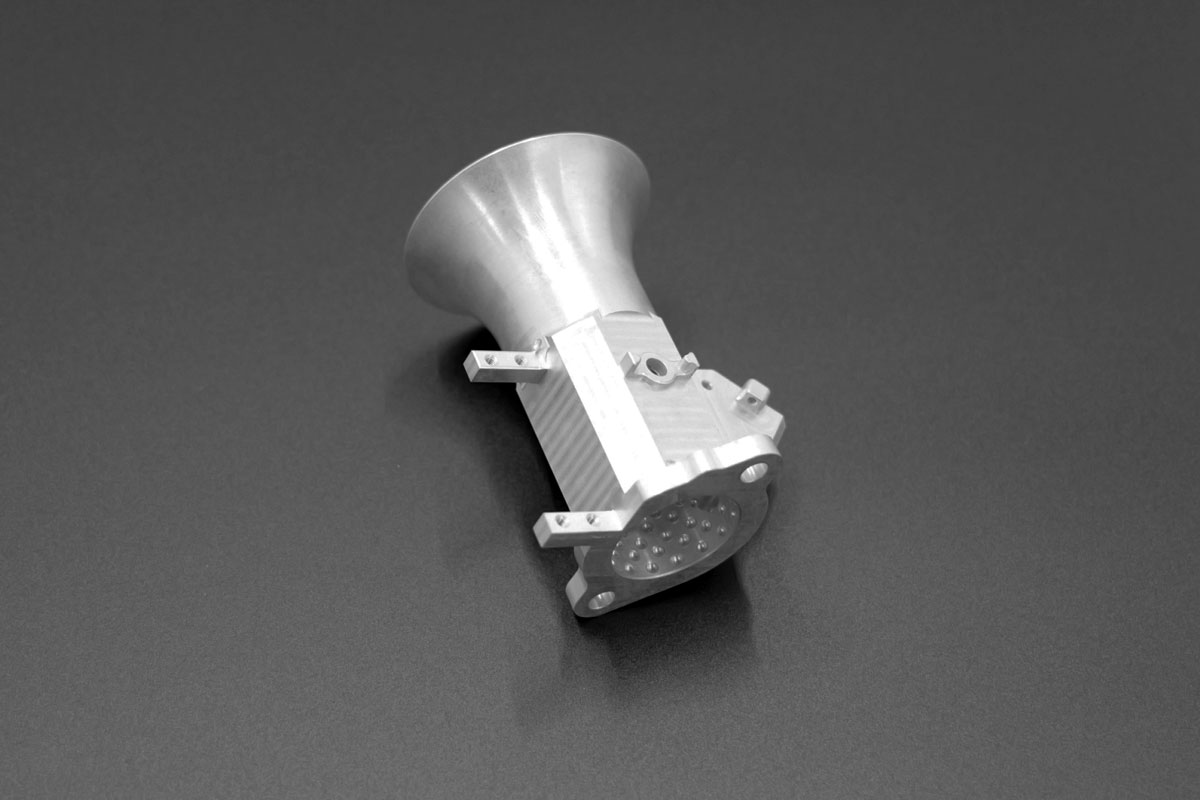

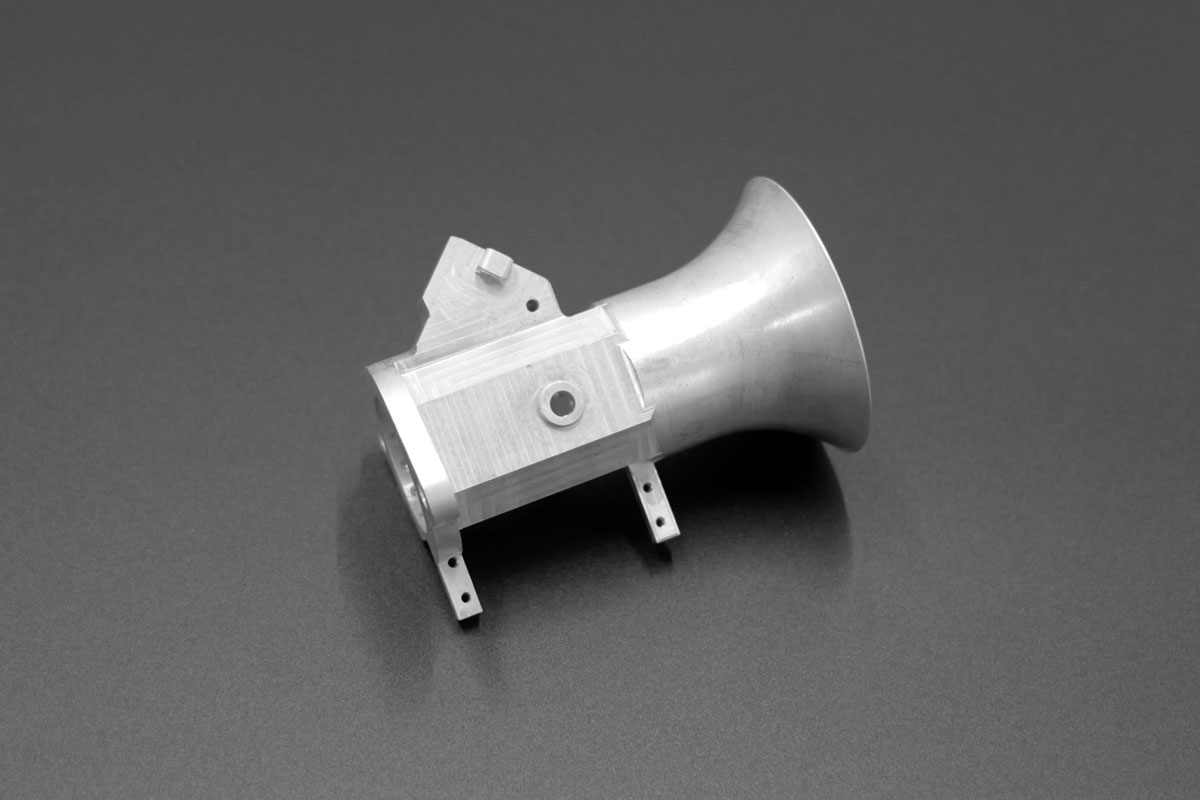

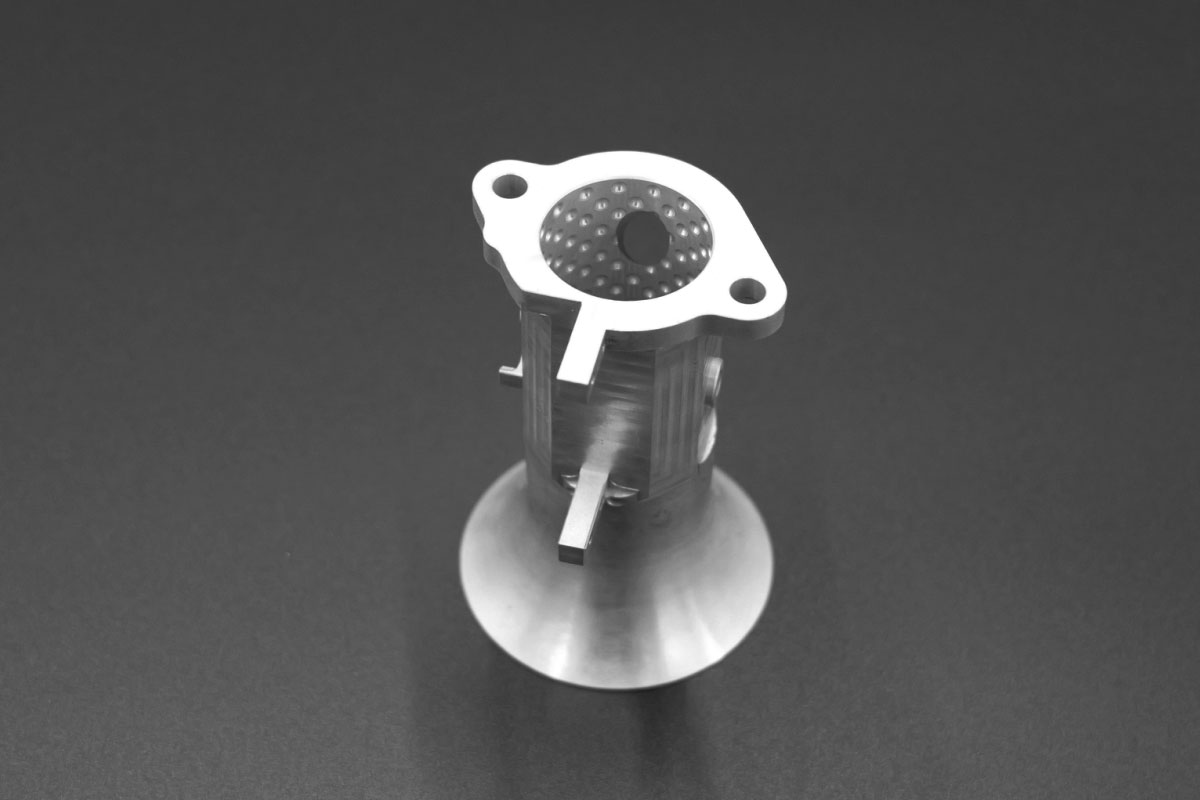

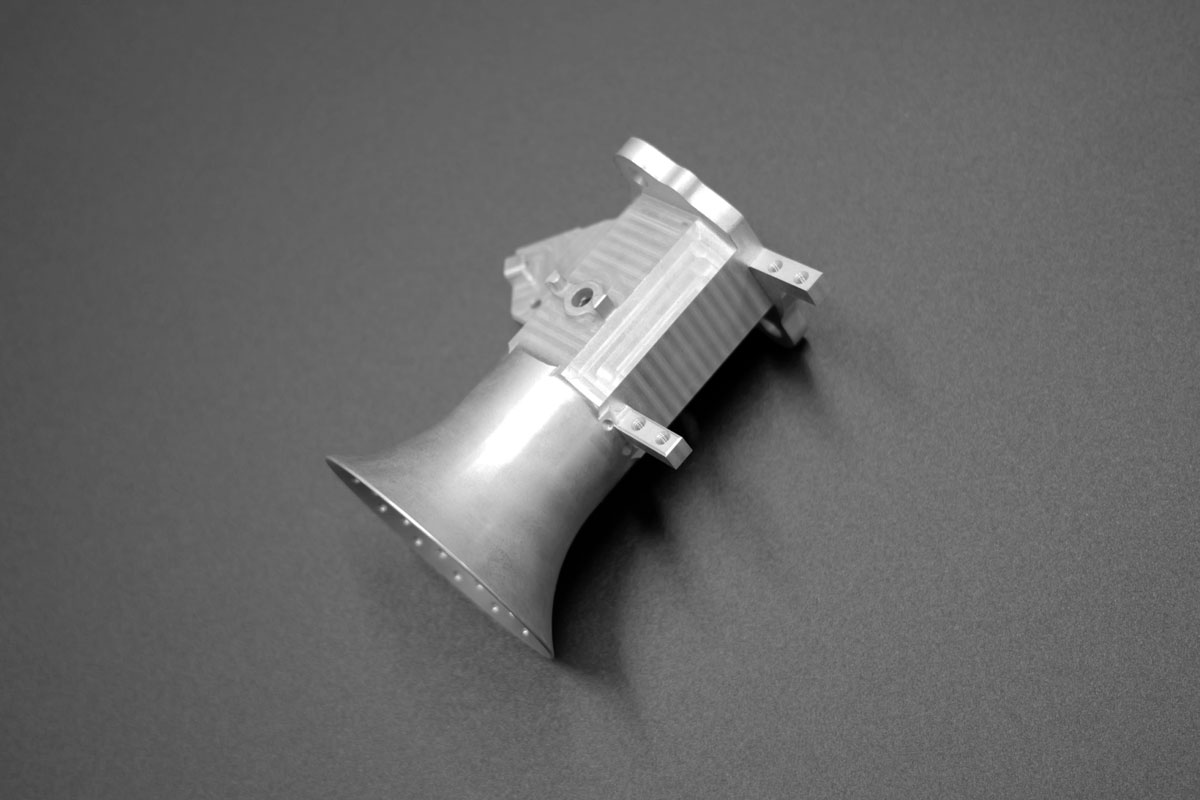

We successfully manufactured a precision 6061 aluminum flared horn housing for an automotive speaker application. This deep cylindrical housing features a gradual flared mouth profile and presents significant machining challenges — including deep-cavity machining with long-tool chip evacuation and thermal management, and multi-directional hole perpendicularity control across the cylindrical wall. Through optimized long-reach tooling strategies, advanced coolant delivery, and precision fixturing, we delivered dimensionally stable housings meeting all geometric requirements.

Project Overview

Key Technical Highlights

• Deep-Cavity Machining Optimization: Implemented custom long-reach tooling with optimized flute geometry and high-pressure coolant delivery to ensure effective chip evacuation and thermal management in the deep cylindrical cavity, preventing tool breakage and thermal distortion.
• Process Innovation:
  • Chip Evacuation Strategy: Pecking cycles and advanced coolant-through tooling maintain clear cutting zones in deep cavities, preventing chip recutting and heat buildup.

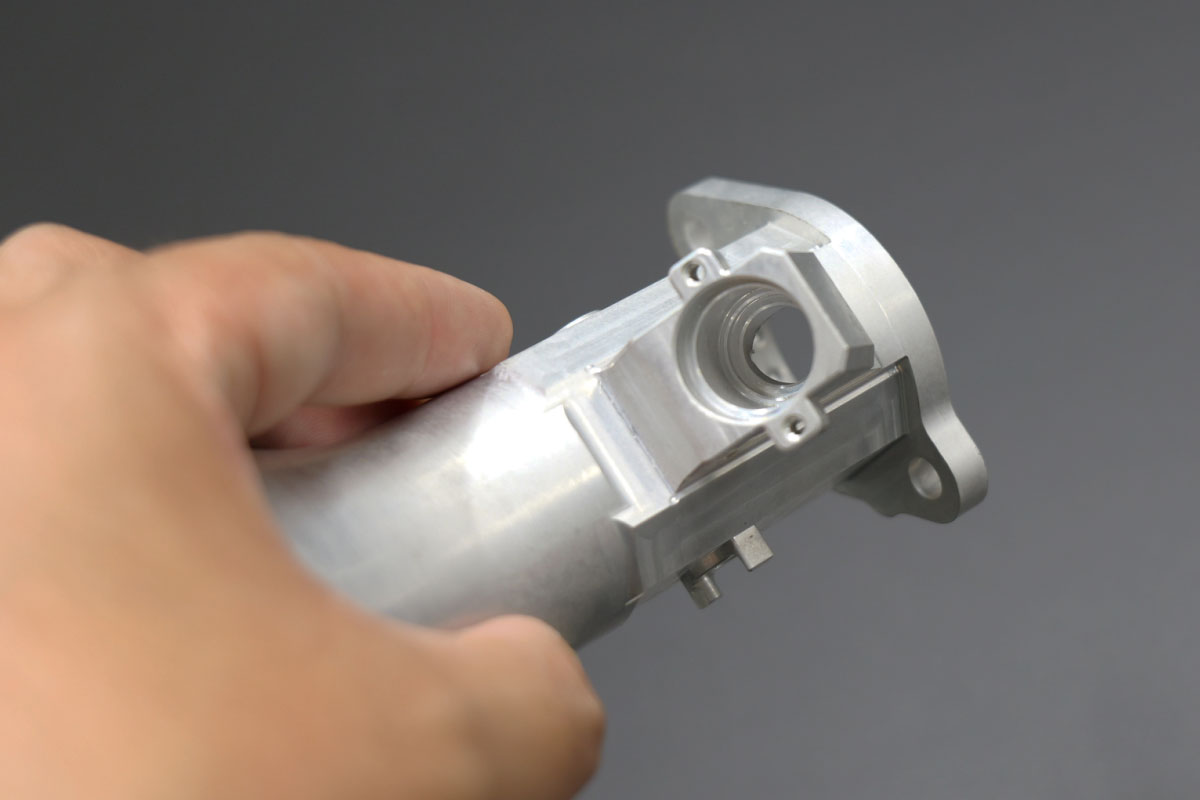

  • Multi-Directional Hole Perpendicularity: Single-setup machining with precision fixturing ensures all radial and axial hole patterns maintain ≤0.01mm perpendicularity to the housing axis and reference surfaces.

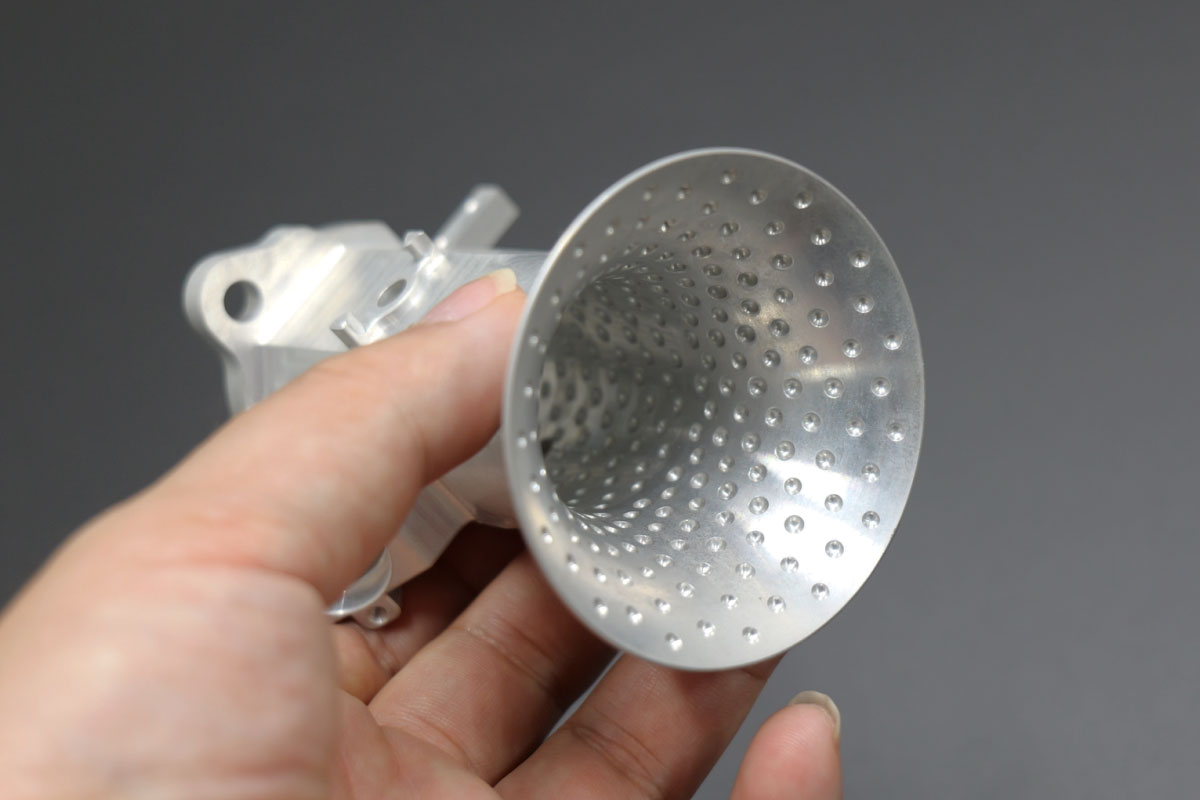

  • Gradual Flare Profile Machining: Optimized contouring toolpaths with tapered end mills achieve smooth internal transition from cylindrical bore to flared mouth profile.
• Surface Quality:
  • Precision finishing achieves Ra≤1.6μm surface finish on internal cavity surfaces.
  • Controlled machining parameters minimize tool marks and surface defects in the deep cavity.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.02mm), perpendicularity verification (≤0.01mm on hole patterns), and surface roughness testing (Ra≤1.6μm) on internal cavity surfaces.

Industry Applications

This solution demonstrates our expertise in precision deep-cavity component manufacturing, ideal for:
✓ Automotive speaker housings ✓ Acoustic waveguide components ✓ Deep cylindrical enclosures ✓ Precision audio equipment

Why Partner With Us?

• Proven expertise in deep-cavity machining with long-reach tooling solutions
• Advanced chip evacuation and thermal management strategies
• Precision multi-directional hole perpendicularity control
• 12+ years of precision manufacturing experience across automotive and audio equipment sectors
