Precision White PTFE Streamlined Wear-Resistant Bushing with Surface Finish and Deformation Control

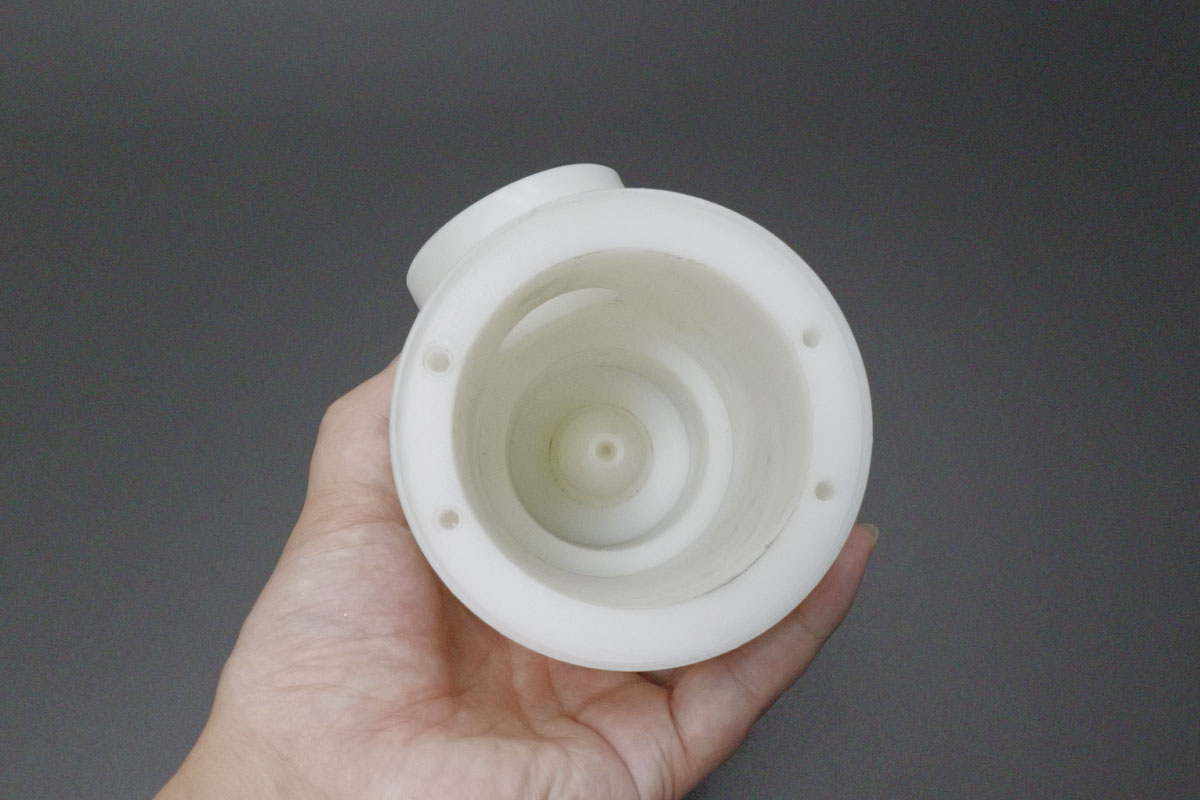

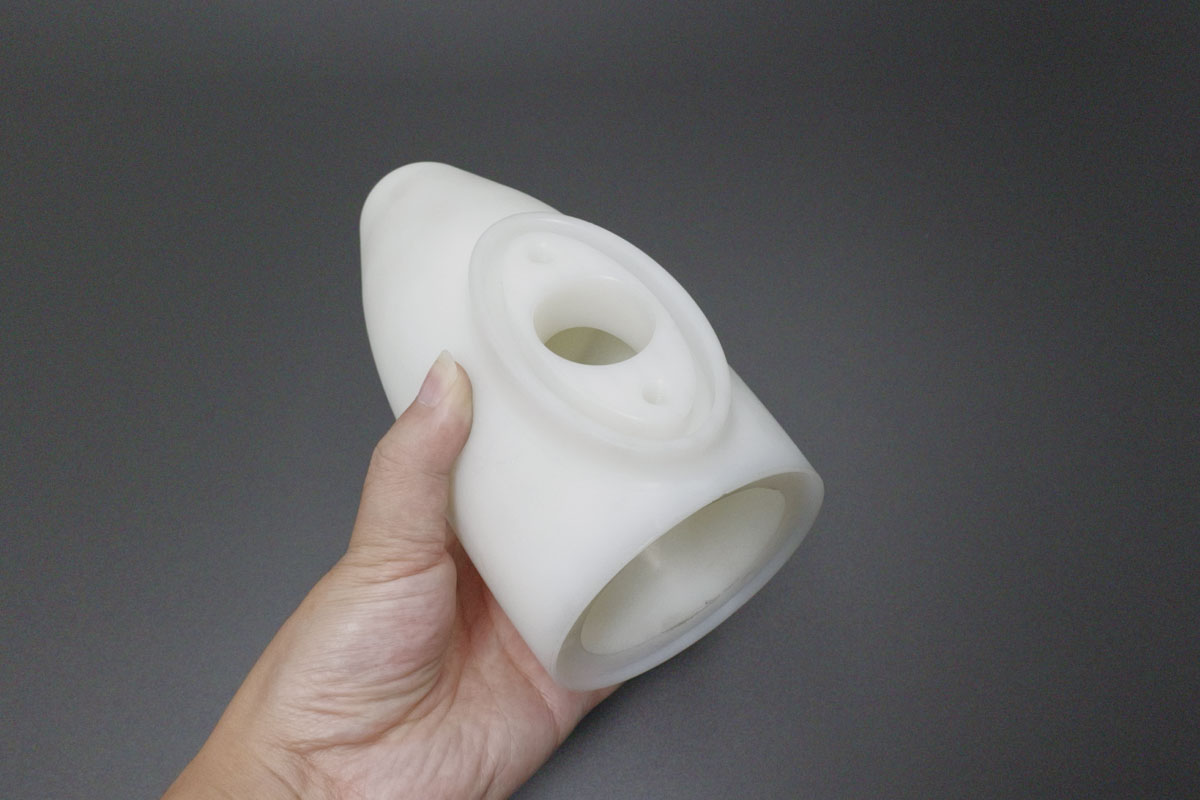

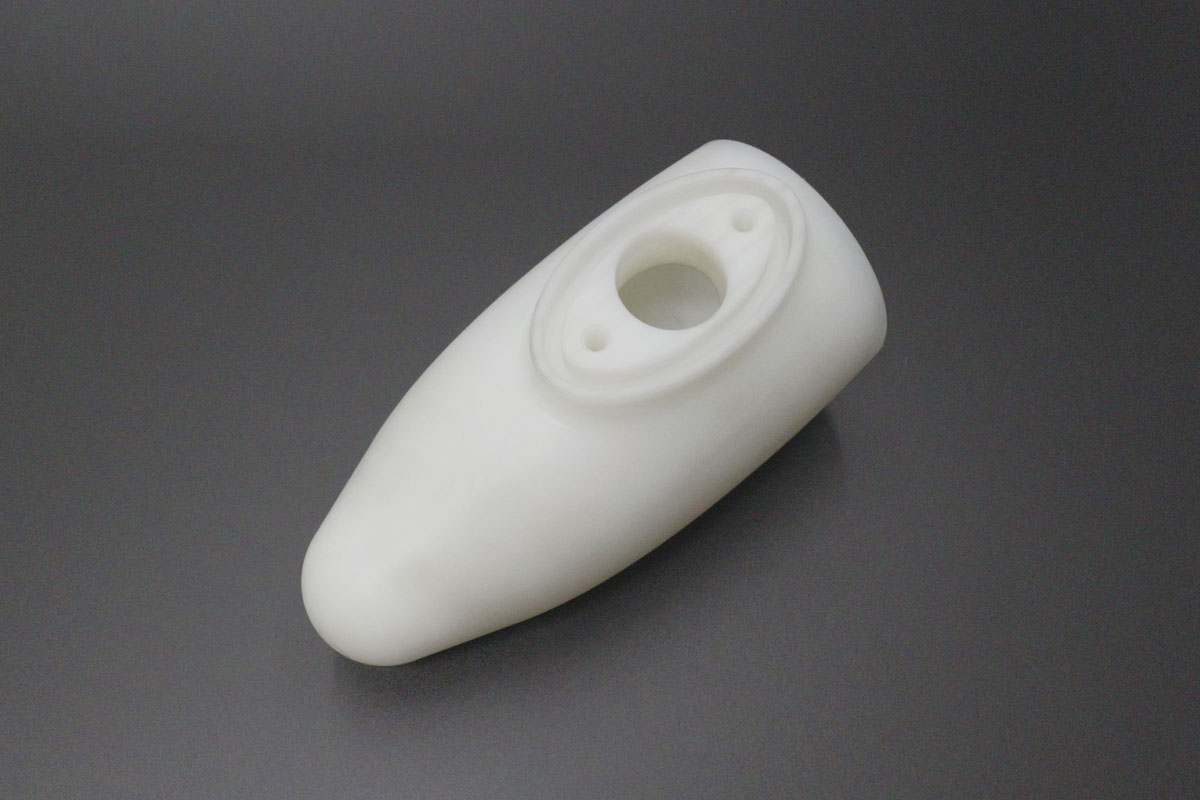

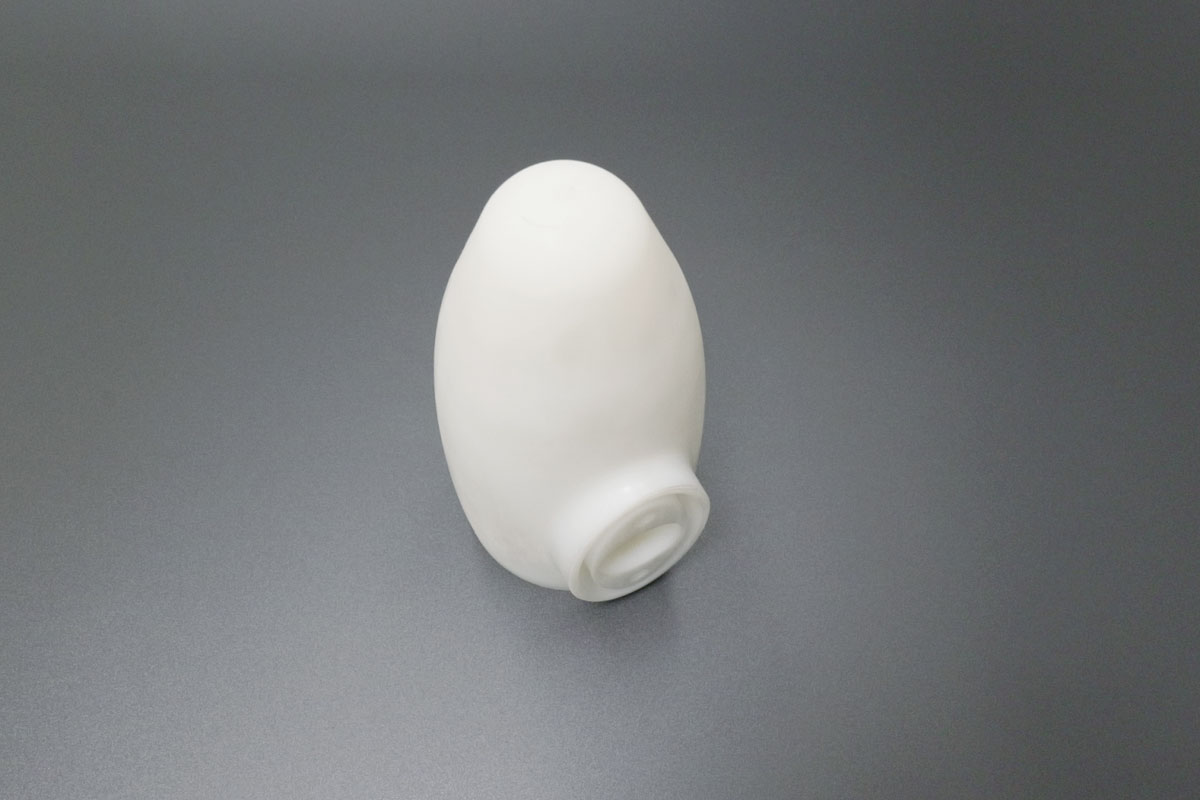

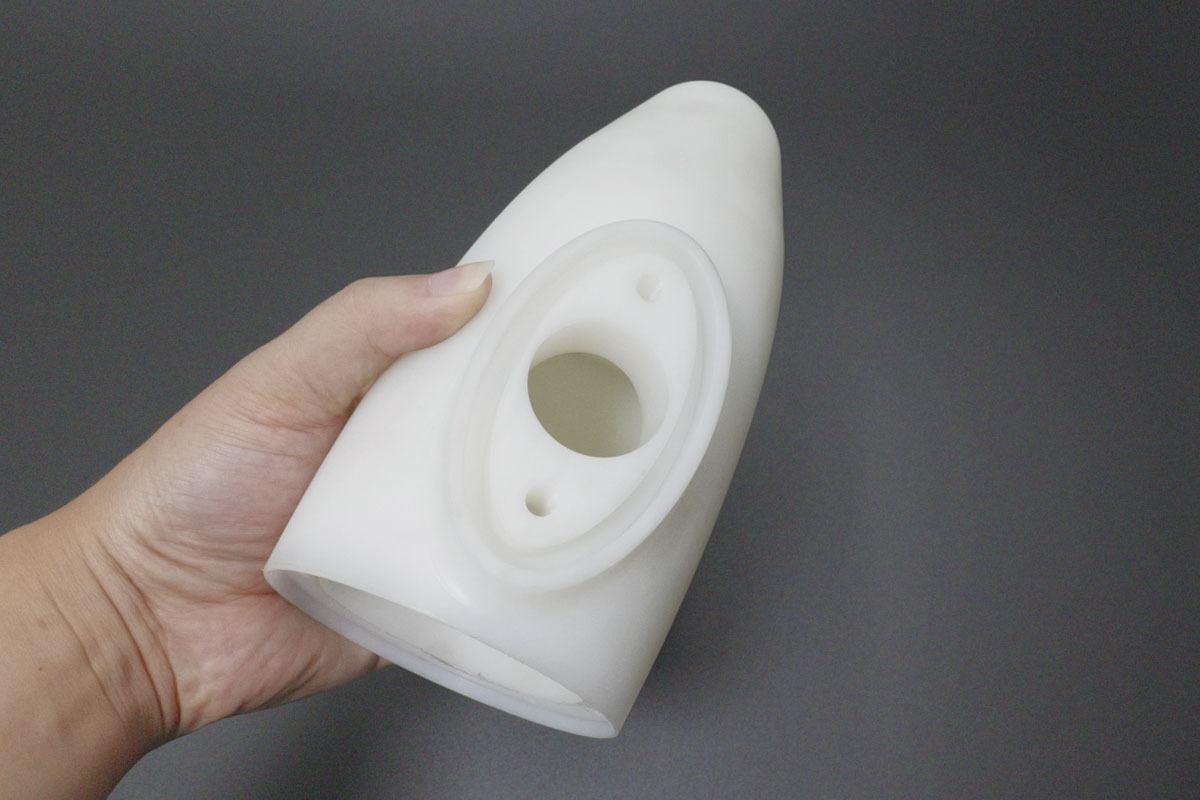

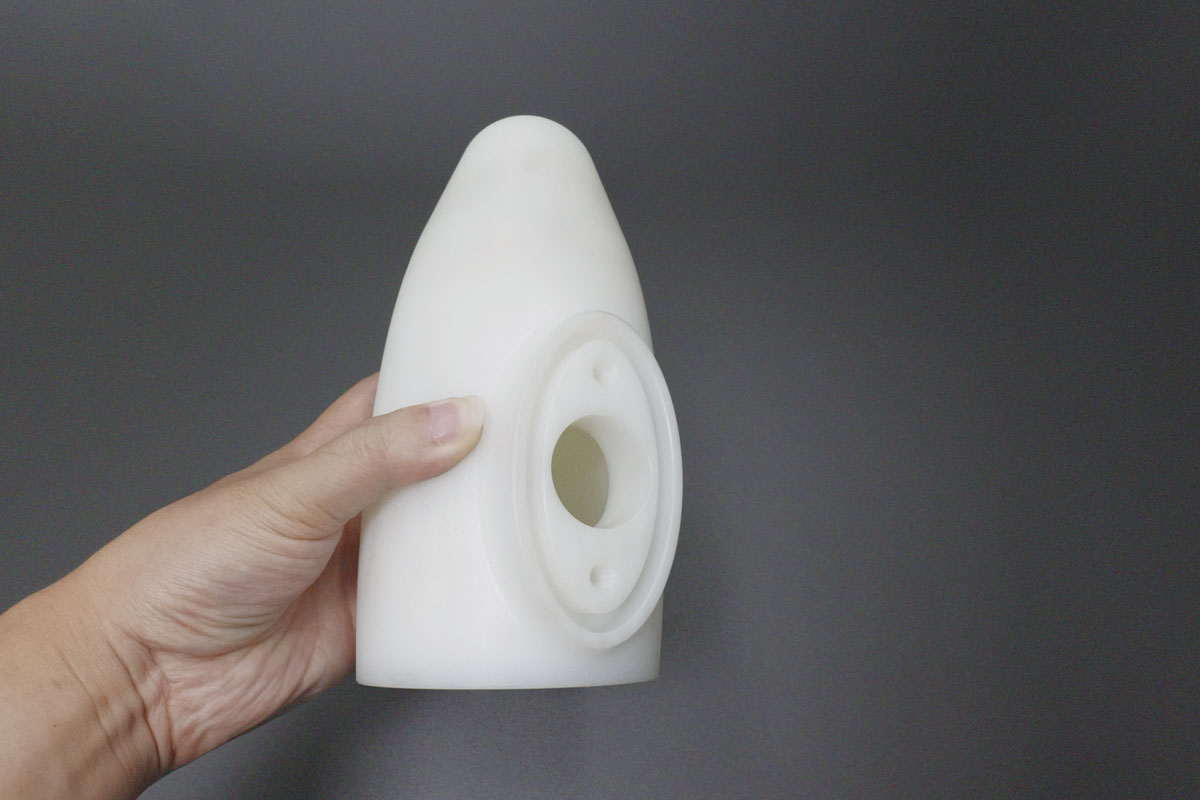

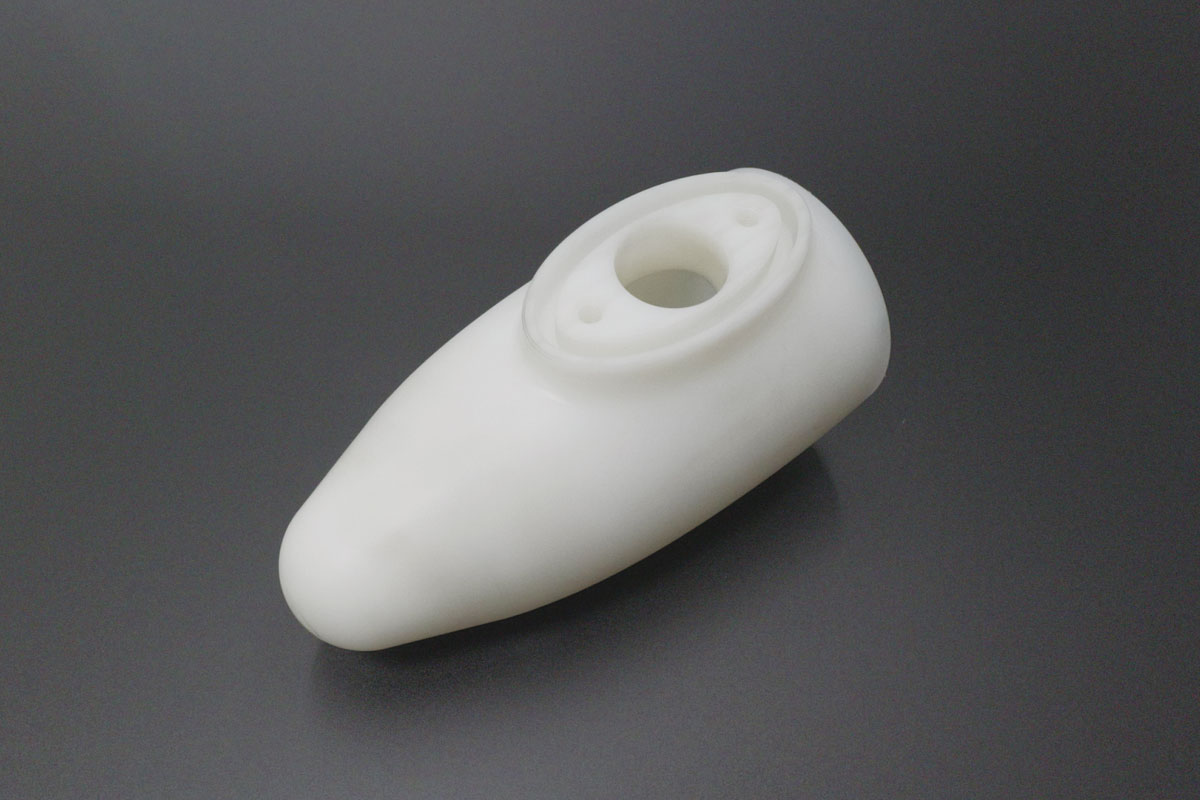

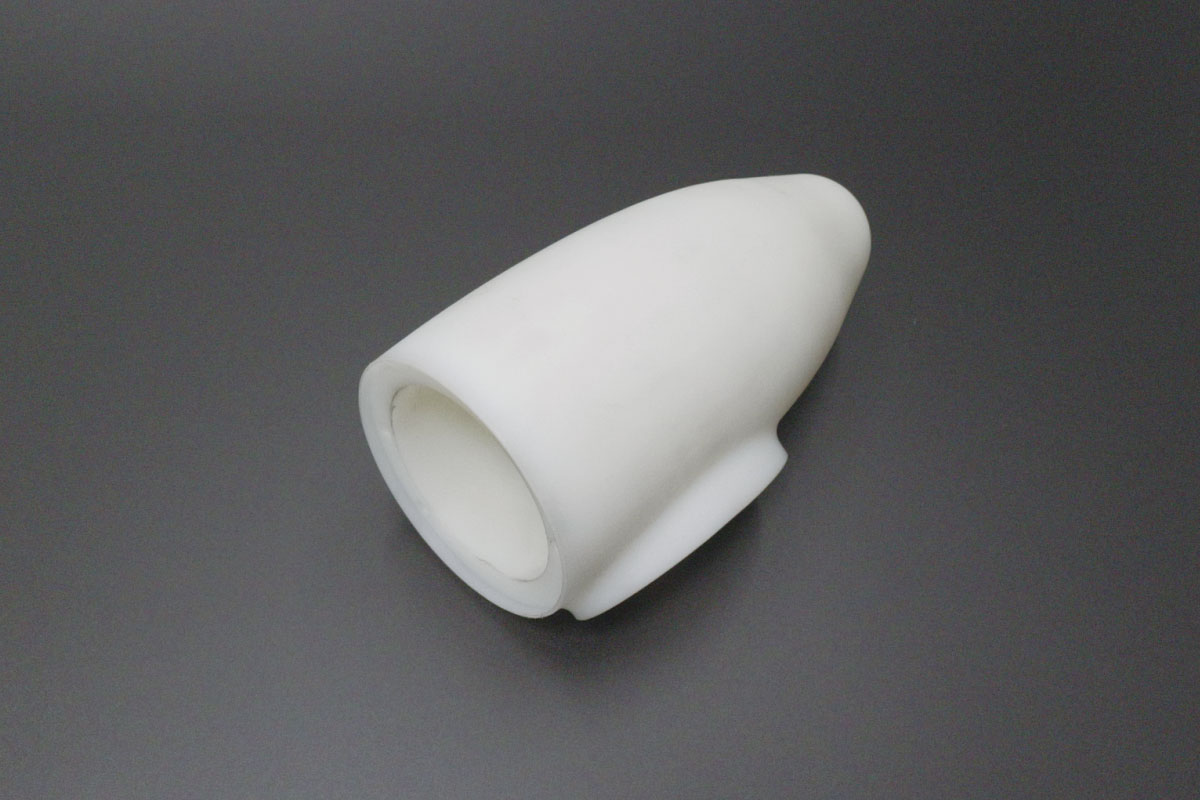

We successfully manufactured a precision white PTFE streamlined wear-resistant bushing for a lithium battery equipment application. This complex-shaped bushing features a streamlined contour and multiple curved surfaces — presenting significant machining challenges including soft material extrusion deformation during milling, surface fuzzing and fibrous burrs, and stringent surface finish requirements. PTFE's high resilience, low hardness, and poor thermal conductivity make it prone to surface defects and dimensional instability under conventional cutting conditions [citation:4][citation:10]. Through sharp tooling selection, dry cutting strategy, and staged low-stress machining, we delivered dimensionally stable, high-surface-quality bushings meeting lithium battery equipment cleanliness standards.

Project Overview

Key Technical Highlights

• Soft Material Extrusion Deformation Prevention: PTFE's low hardness causes it to be pushed or "smeared" by dull tools rather than cleanly sheared [citation:7]. We implemented ultra-sharp 2-flute HSS end mills with high positive rake angles — studies show 2-flute tools significantly reduce surface roughness in PTFE milling compared to 4-flute designs [citation:3][citation:12].
• Process Innovation:
  • Dry Cutting Strategy: PTFE's self-lubricating properties make dry cutting preferable over wet conditions. Research shows dry milling produces smoother surfaces and shorter, discontinuous chips, while coolant can cause tangled, needle-like chips that degrade surface quality [citation:3][citation:7].
  • Low-Stress Fixturing: PTFE is susceptible to stress creep (cold flow) under clamping pressure — material compresses during machining and rebounds after release, causing dimensional inaccuracy [citation:7][citation:11]. Custom fixtures with minimal clamping force and distributed support prevent extrusion deformation.
  • Temperature-Controlled Machining: PTFE's linear expansion coefficient is significantly higher than metals — localized heat from cutting causes thermal expansion, leading to dimensional errors when the part cools [citation:1][citation:7]. Controlled cutting speeds and feed rates minimize heat generation, while machining and inspection at stable ambient temperature (20±1°C) ensure dimensional stability.
  • Staged Machining with Stress Relief: Staged roughing and finishing passes allow stress relaxation between operations — preventing spring-back and residual stress-induced deformation.
• Surface Quality:
  • Precision finishing achieves Ra≤0.8μm surface finish on critical fluid-contact surfaces.
  • Sharp tooling and optimized parameters eliminate surface fuzzing, fibrous burrs, and extrusion marks.

Quality Verification

Each component underwent comprehensive inspection using CMM measurement for dimensional accuracy (±0.02mm), supplemented by surface roughness testing (Ra≤0.8μm) and microscopic inspection for fuzzing, burrs, and surface defects.

Industry Applications

This solution demonstrates our expertise in precision PTFE component manufacturing for demanding fluid handling applications, ideal for:
✓ Lithium battery equipment wear-resistant bushings ✓ Chemical-resistant flow guides ✓ Ultra-clean fluid contact components ✓ Semiconductor wet processing parts

Why Partner With Us?

• Proven expertise in soft material PTFE milling with deformation and fuzzing control
• Specialized dry cutting and sharp tooling strategies for superior surface finish
• Low-stress fixturing for dimensionally stable plastic components
• 12+ years of precision manufacturing experience across lithium battery and semiconductor sectors
